Why is Scott’s Hotrods Different?

Scott’s builds chassis specific to each and every application.  We build the MOST COMPLETE CHASSIS available on the market.  That means our chassis can come with a Fuel Tank, In-Tank pump, Fuel Lines, Brake Lines, Engine & Transmission Mounts, Disc Brakes, Sway Bars and more!  Scott’s Hotrods ‘n Customs IS Quality, Engineering & Workmanship. 100% TIG Welded, 100% American Made, 100% Bad Ass.

Scott’s Hotrods manufactures chassis for ANY year/make/model vehicle.  Each and every chassis is Built-To-Order per the vehicle and customer specs.  If you have an off-the-wall project that requires out of the ordinary engineering the price is set accordingly.  All chassis require a 50% deposit at the time the order is placed.  The balance will be collected as the chassis is completed.

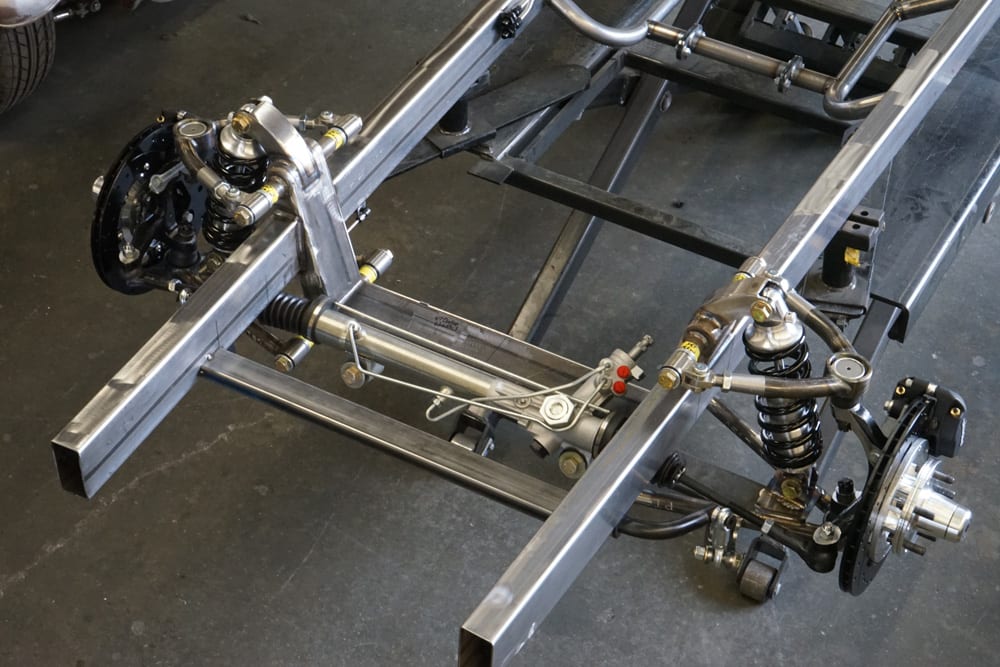

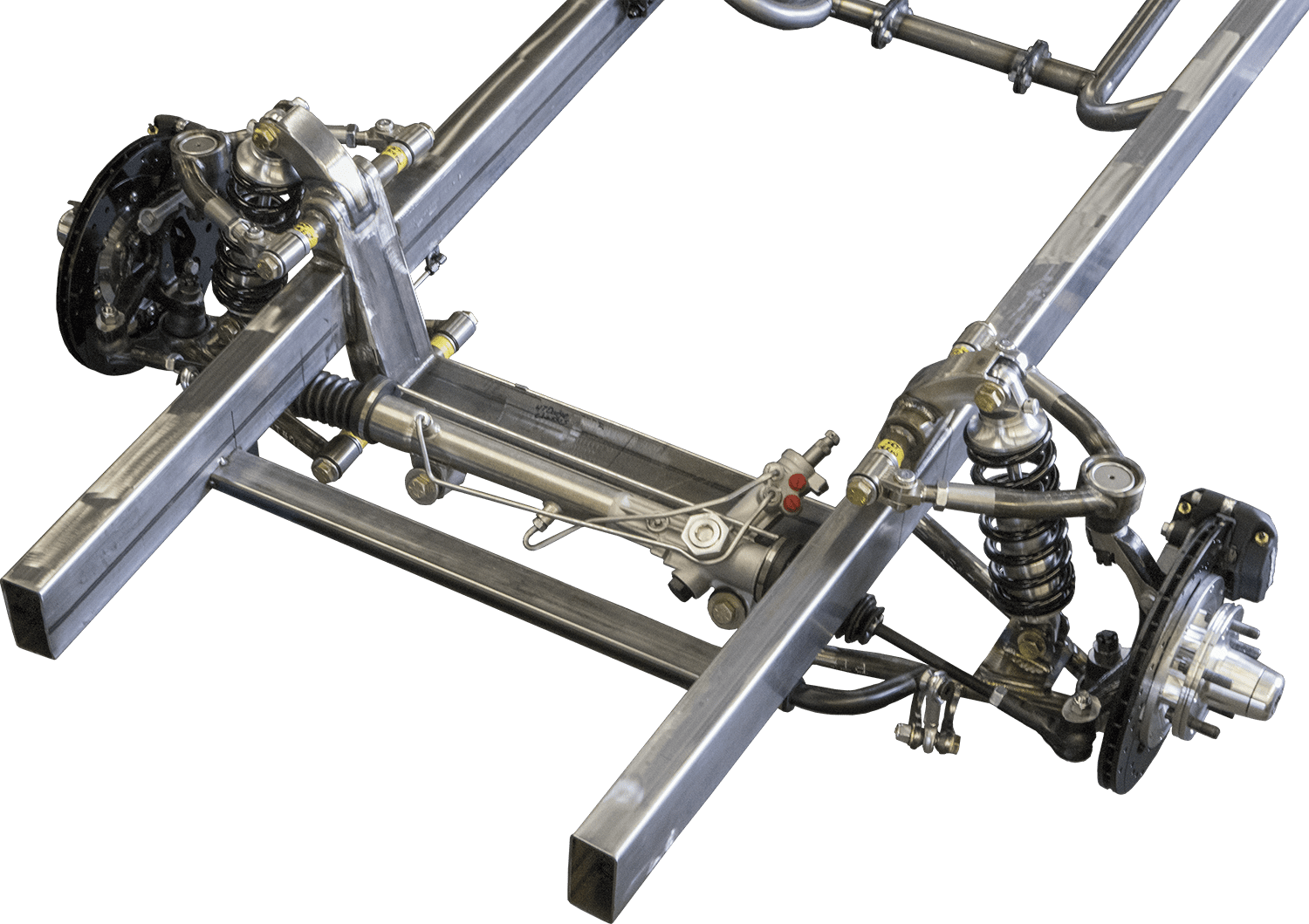

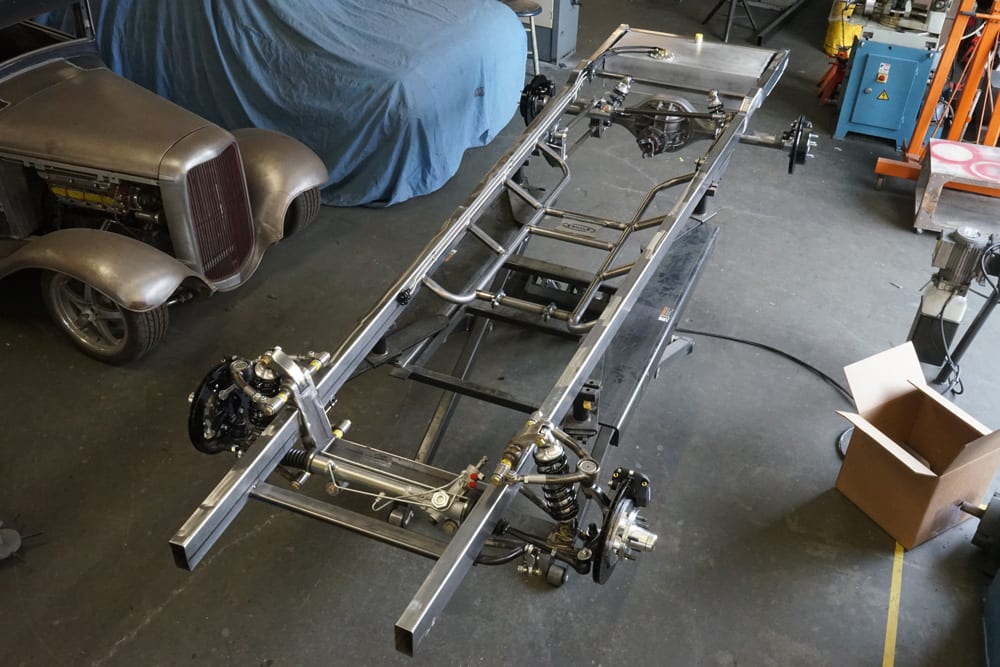

Scott’s 1947 Dodge Wayfarer Chassis – From $10,600

  • SCOTT’S CHASSIS FEATURES  Starting at $10,600

    • Mandrel Bent 2”x4”x.120-wall tube frame rails
    • 1-piece 2”x4”x3/16”-wall tube IFS Crossmember
    • 8-Point 1-1/2” DOM tubular Chassis Crossmember

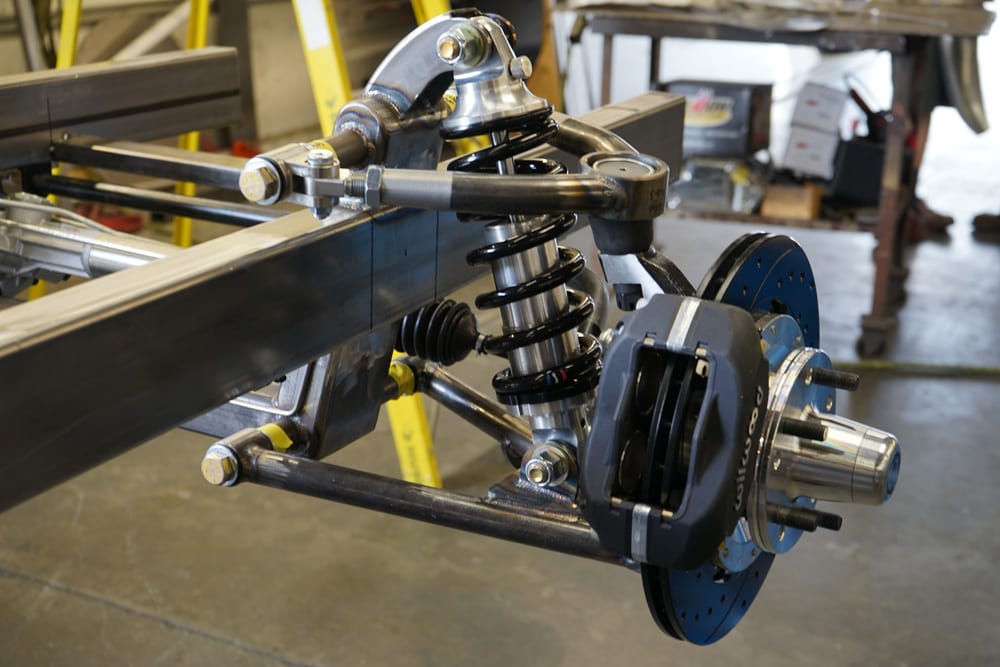

    • Tubular Upper & Lower A-Arms, 1-1/8”x1/4”-wall DOM
    • 100% TIG-welded
    • Stainless Steel CNC Machined Fully Adjustable Upper A-Arm Rod Ends
    • Oversized Serviceable Press-In Ball Joints
    • Aldan American Single-Adjustable Coilovers or Airbags
    • Built-in Anti-Dive
    • Manual Steering Rack & Pinion
    • Standard or Drop Forged Steel Spindles
    • Moser Ford 9” Housing & 31-spline axles, Fill & Drain Plug
    • 1”-1/8”x1/4”-wall DOM tubing Link bars (adjustable RH- & LH-Thread)
    • Stainless Steel CNC Machined Rod Ends – RH- & LH-Thread
    • 1”-1/8”x1/4”-wall DOM tubing Panhard bar (adjustable RH- & LH-Thread)
    • FK Bearing Heim Joints – RH- & LH-Thread

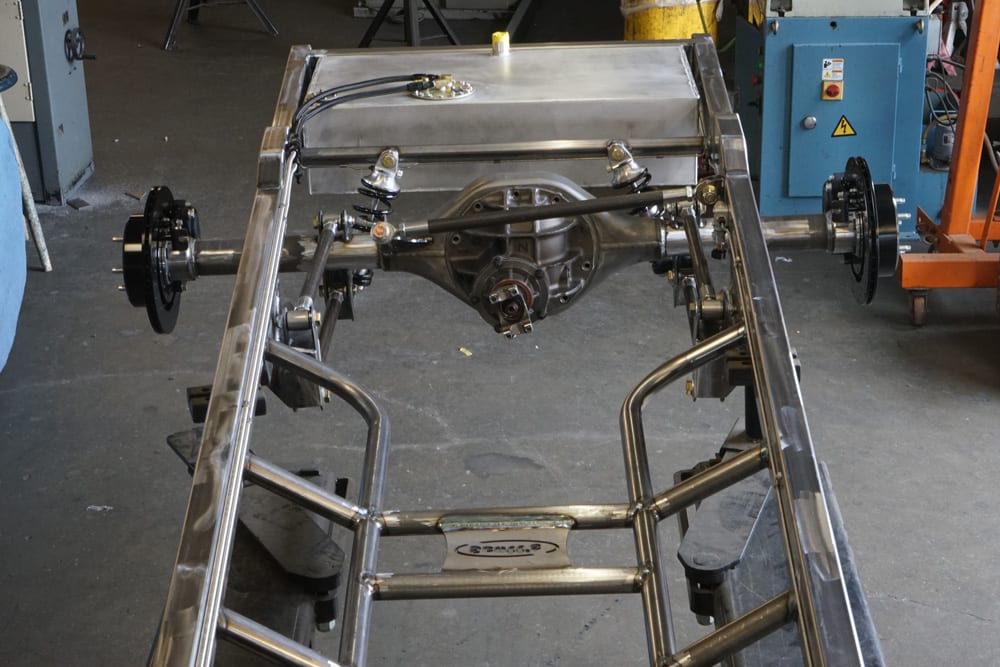

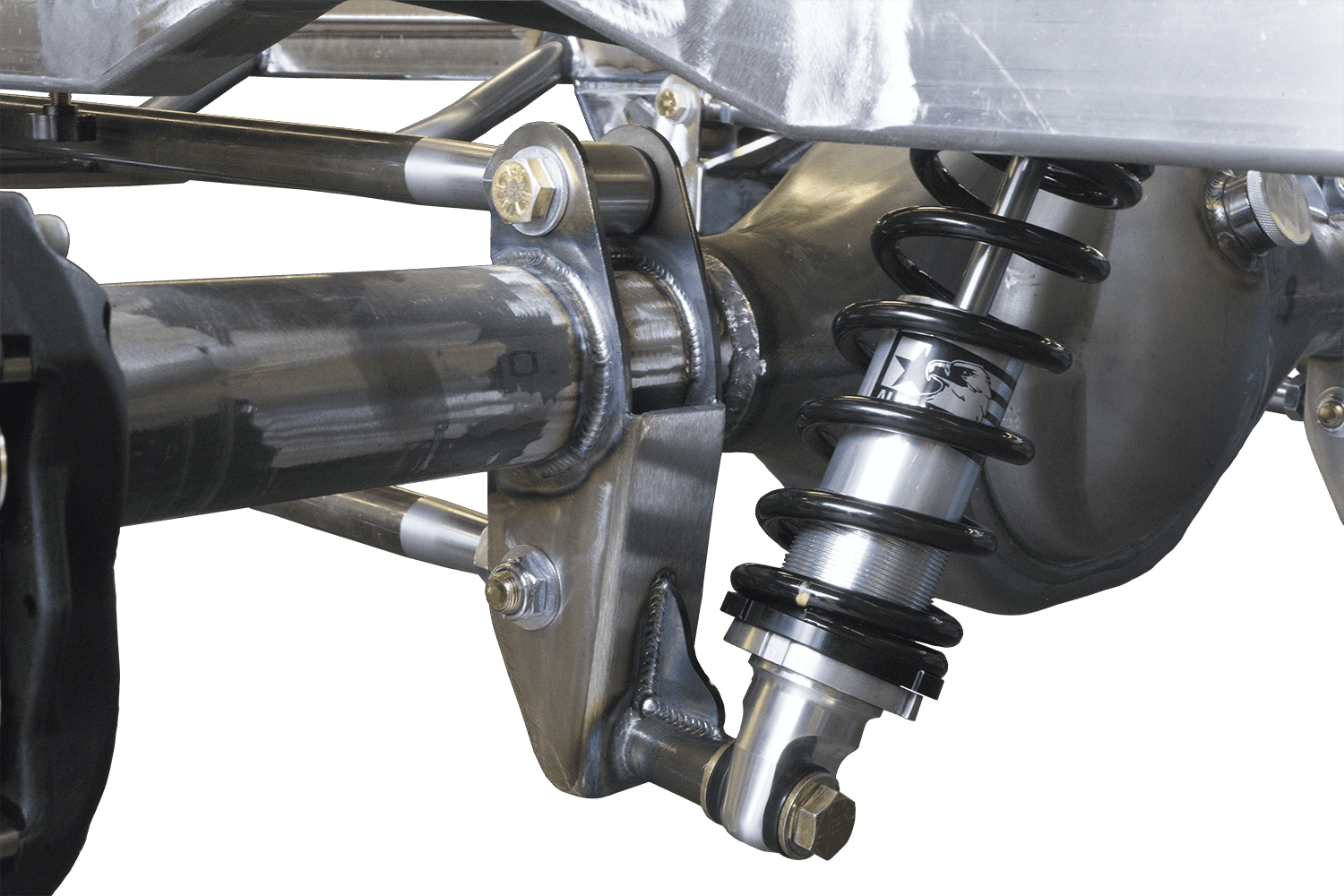

    • 4-Bar Rear-End Housing Brackets
    • 4-Bar Frame Brackets
    • Body Mounts
    • All Grade-8 hardware
    • LIFETIME GUARANTEE

    *Required for Airbags:
    • RideTech HQ Single-Adjustable Shocks (Rebound) $660

OPTIONS

  • Custom Track Width & Ride Height
  • Motor Mounts $150+
  • Power Rack & Pinion Steering $250
  • Right Hand Drive Rack & Pinion $799
  • Drop-Out Transmission Crossmember $289
  • Wilwood Mustang II ProSpindles $200
  • Standard 1” Solid Sway Bar $289
  • Front Torsion Spline Sway Bar $625
  • Rear Torsion Spline Sway Bar $625
  • Scott’s Watts Link $995
  • Wilwood 11”, 12”, 13”, 14” Complete Brake Kits $1,740+
  • Moser 3rd Member with POSI and choice of gears $1,675
  • Handcrafted Aluminum Baffled Fuel Tank w/Sending Unit $649 Carb or $995 EFI
  • Stainless Steel Fuel Lines Plumbed $615 Carb or $1,015 EFI
  • Stainless Steel Brake Lines Plumbed $923
  • Parking Brake Cables $120
  • Powder Coating & Reassembly $3,000

COILOVER OPTIONS

  • Aldan American Single-Adjustable (Rebound) (included)
  • Aldan American Double-Adjustable (Rebound/Compression) $1,000
  • RideTech by FOX Single-Adjustable (Rebound) $1,300
  • RideTech by FOX Triple Adjustable (Rebound/High & Low Compression) $3,300

*Ford Rear Sump Oil Pan Required
*GM Performance Parts LS Engine Oil Pan 12628771

Scott's Hotrods Build-A-Chassis

A qualified professional mechanic or fabricator with the technical understanding of product function and installation procedures must install all Scott’s Hotrods products. Be sure to properly bleed your power rack

Scott’s FAQs

*Ford Rear Sump Oil Pan Required M-6675-A50
*GM Performance Parts LS Engine Oil Pan 12628771



We stand behind ALL of the parts we manufacture.  Other parts that we do not manufacture such as brakes, steering racks, ball joints, brake flex lines, power steering lines, etc carry their own manufacturers warranties.  We are not responsible for these items outside of their original warranty.

All of Scott’s Hotrods manufactured parts are guaranteed to be free of defects in materials & workmanship for the lifetime of the part. Scott’s Hotrods warranty is non-transferable.

GM Performance Parts LS Engine Oil Pan 12628771

Scott’s Hotrods manufactures the most complete chassis on the market for ANY Year/Make/Model vehicle from 1925 to 1987.

Every car project can benefit from replacing the old, worn out and weak stock chassis with a brand new, rigid, American made custom chassis.  Every Scott’s Chassis is fully built from raw materials using our chassis tables and vehicle specific jigs to ensure tighter-than-factory tolerances.

We engineer chassis for all different types of applications: Street Cruiser, ProStreet, ProTouring, Low Static Ride Height, 100% Stock-Appearing or completely laid out on the ground.  Our SuperSlam Chassis will lay frame 100% front to back.  All of our chassis are set up for your desired ride height, your handling characteristics and your custom track or wheelbase.

All Scott’s chassis feature our IFS & 4-Bar with either Coilovers or Airbags with external shocks and Disc Brakes on all four corners.  We do not offer lesser quality components leaf springs and drums brakes.

We even build complete chassis for Unibody vehicles, giving them the rigidity they so desperately need. The chassis and crossmembers are built to accommodate the full seating area; unlike other chassis manufacturers that use cookie-cutter chassis patterns & components that can cause you to lose some seating room.

Our application specific, custom tubular crossmember, or square tube x-member in some cases, is tailored to the specific application of each customer.

Although the little things can get overlooked by other manufacturers, floor clearance, exhaust clearance and rigidity are essential traits for every custom chassis we build.  We take the extra time to make sure all of the little things are not overlooked.
