Why is Scott’s Hotrods Different?

Scott’s will build your ’64-’66 F100 chassis specifically for you.  Scott’s Hotrods ‘n Customs IS Quality, Engineering & Workmanship. 100% TIG Welded, 100% American Made, 100% Bad Ass.

If you are looking for the MOST complete chassis available for your ’64-’66 Ford F100, you have come to the right place. Each and every chassis is Built-To-Order per the vehicle and customer specs. Coilovers (Casual Cruiser to ProTouring) or Airbags (Lay Frame/Rocker, Adjustable On-The-Fly Ride Height).  You won’t find any leafs or drum brakes here.

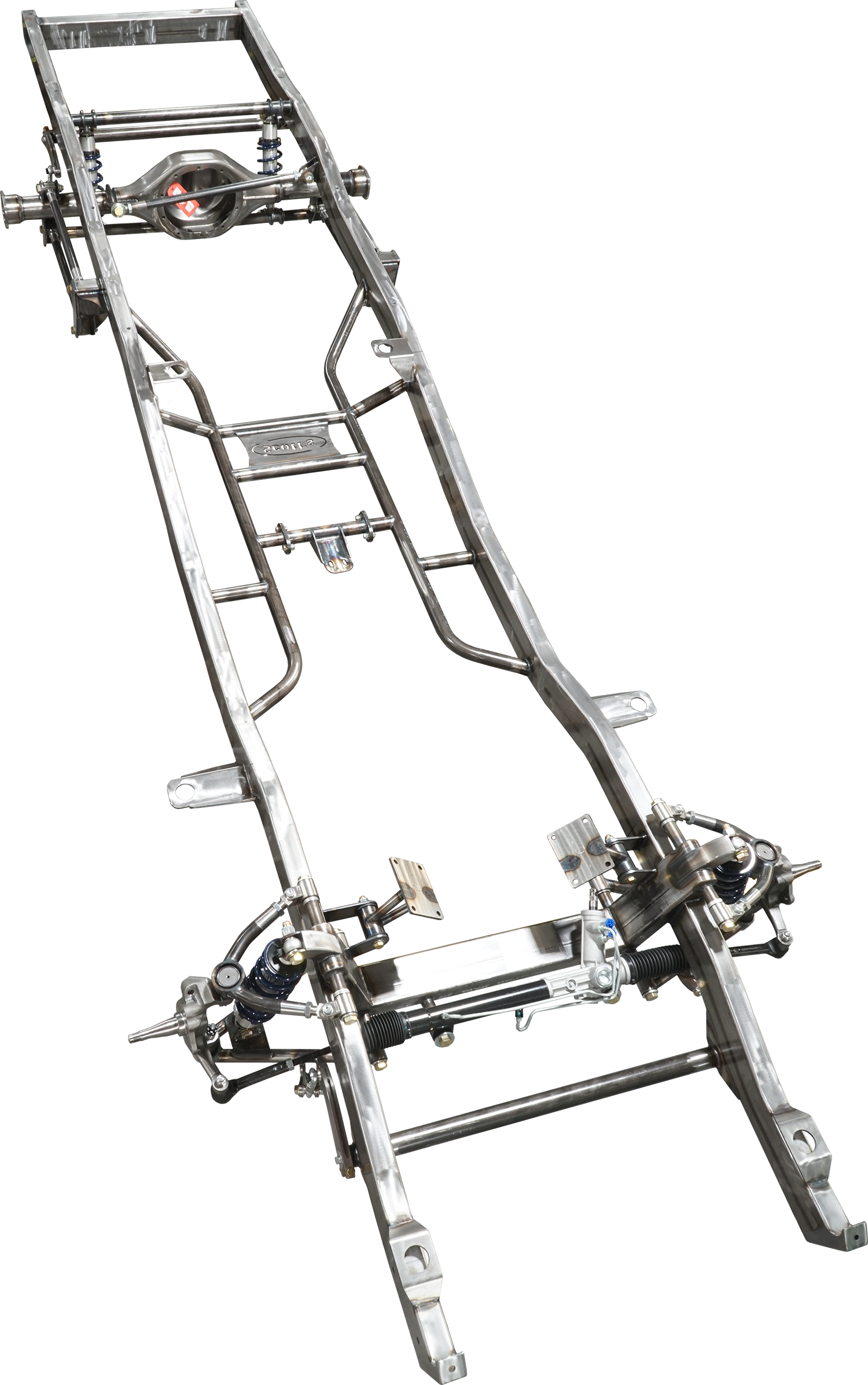

Scott’s Standard ’64-’66 Ford F100 Chassis – From $9,500

SCOTT’S CHASSIS FEATURES  Starting at $9,500

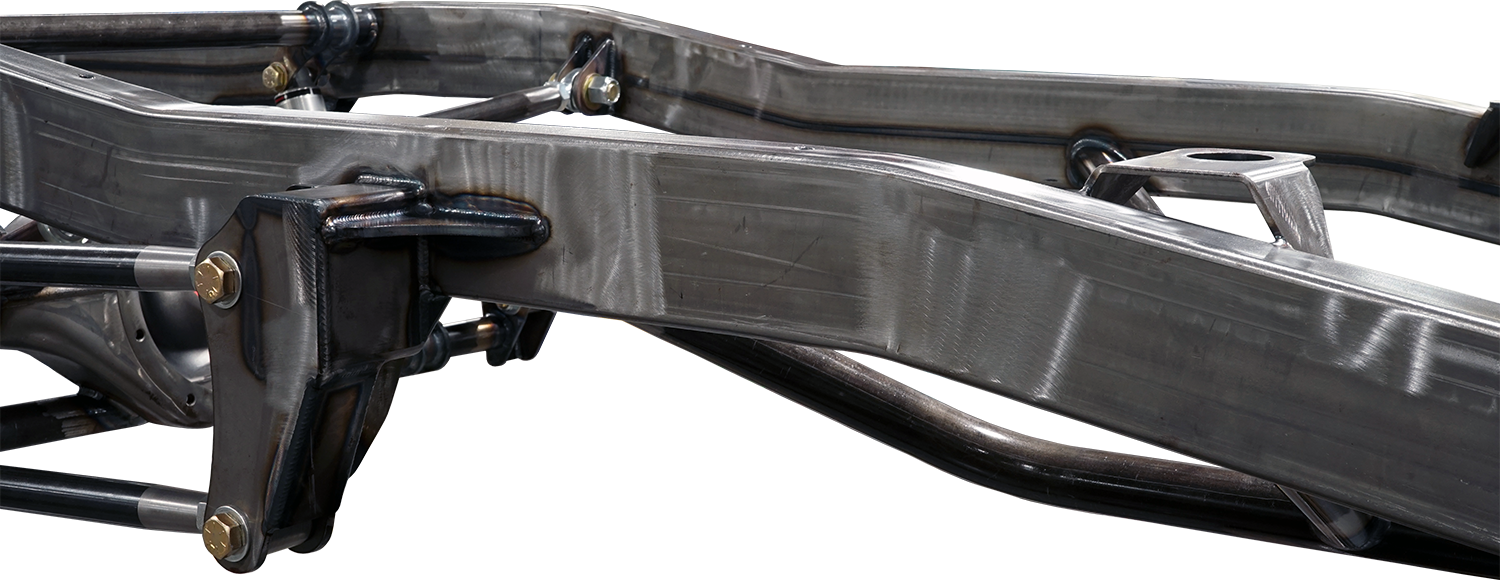

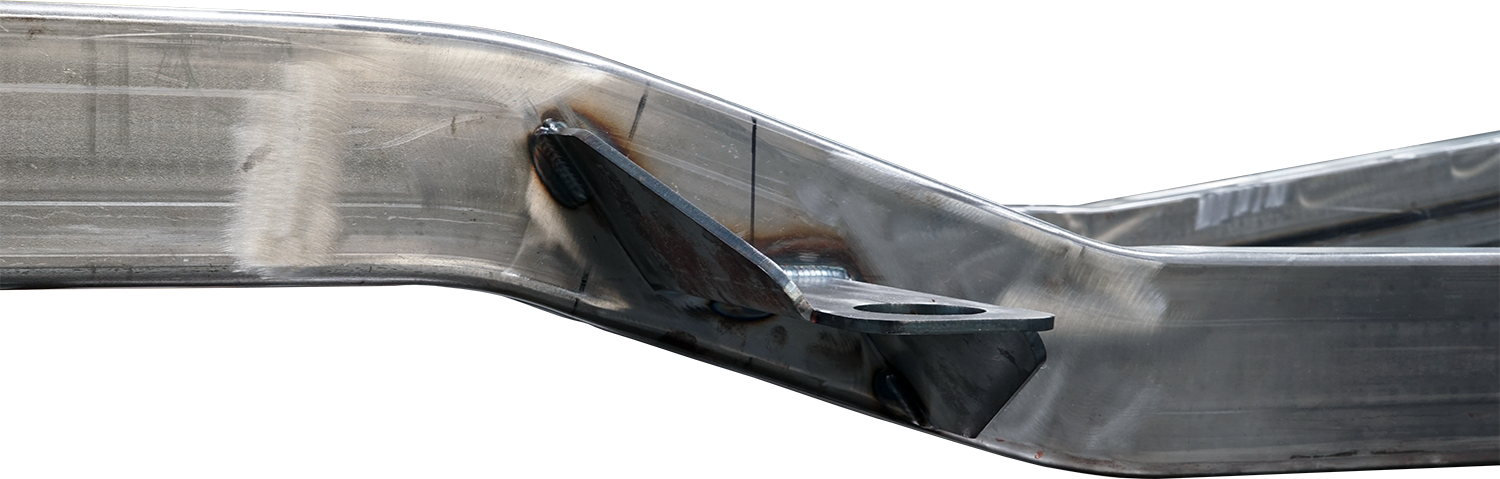

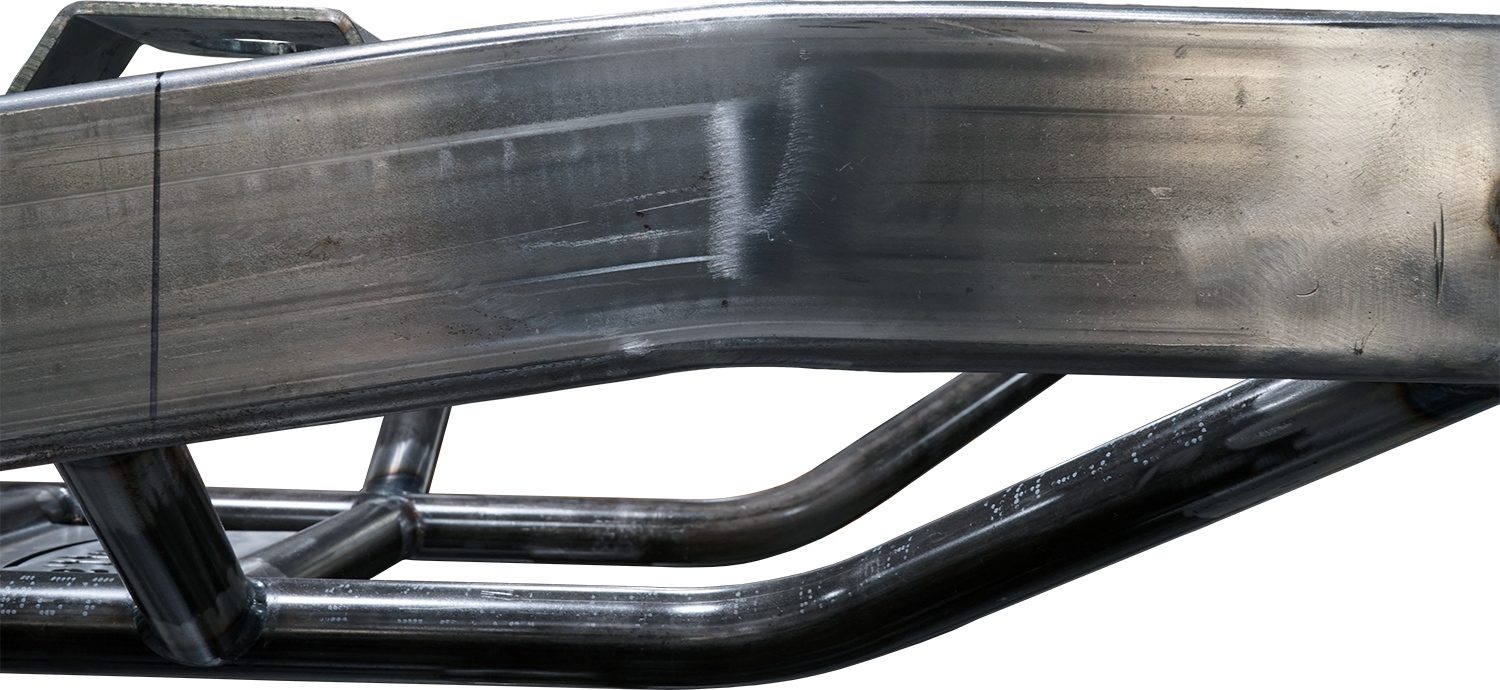

  • 100% TIG Welded 2”x4”x.120-wall tube frame rails

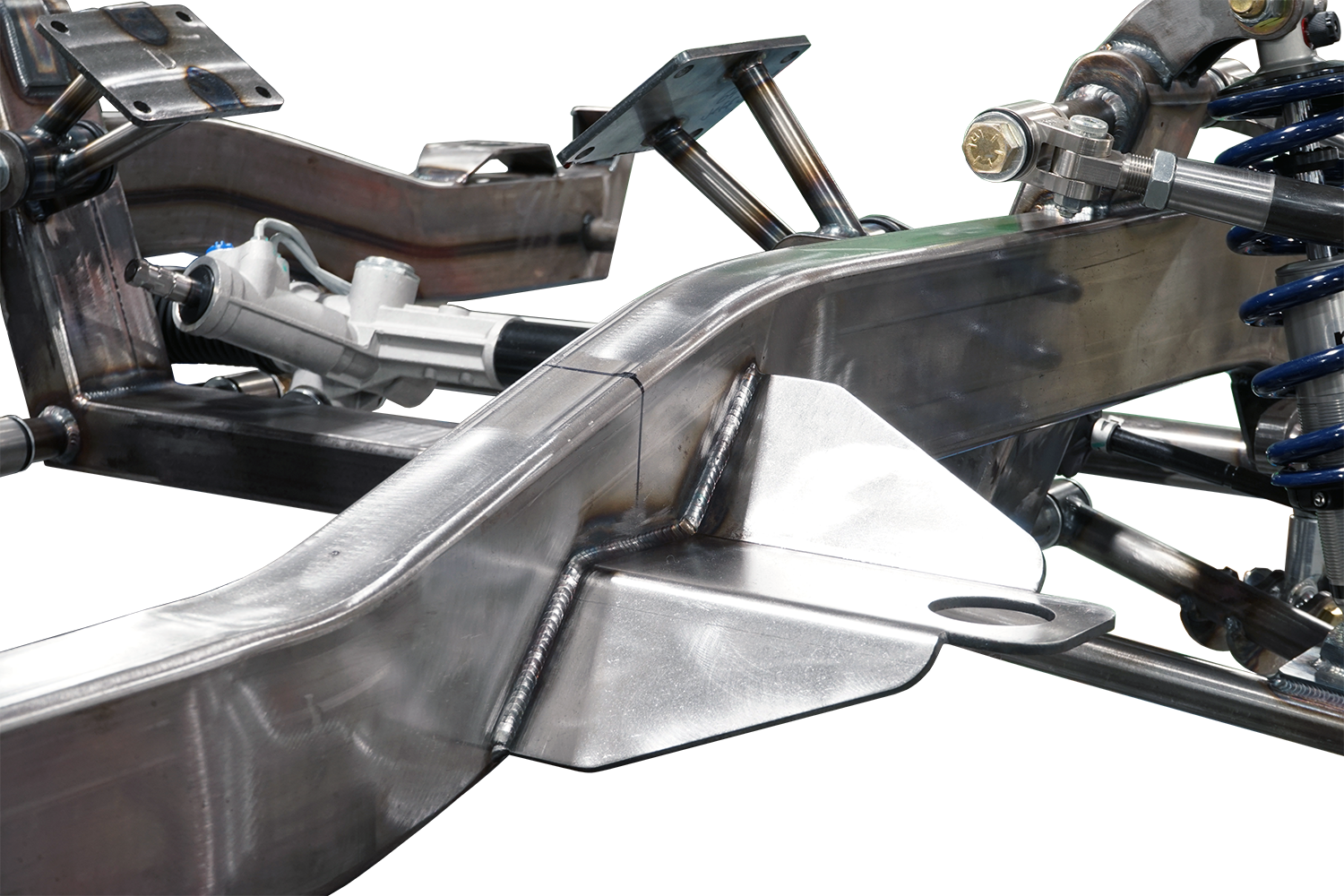

  • 1-piece 2”x4”x3/16”-wall tube IFS Crossmember

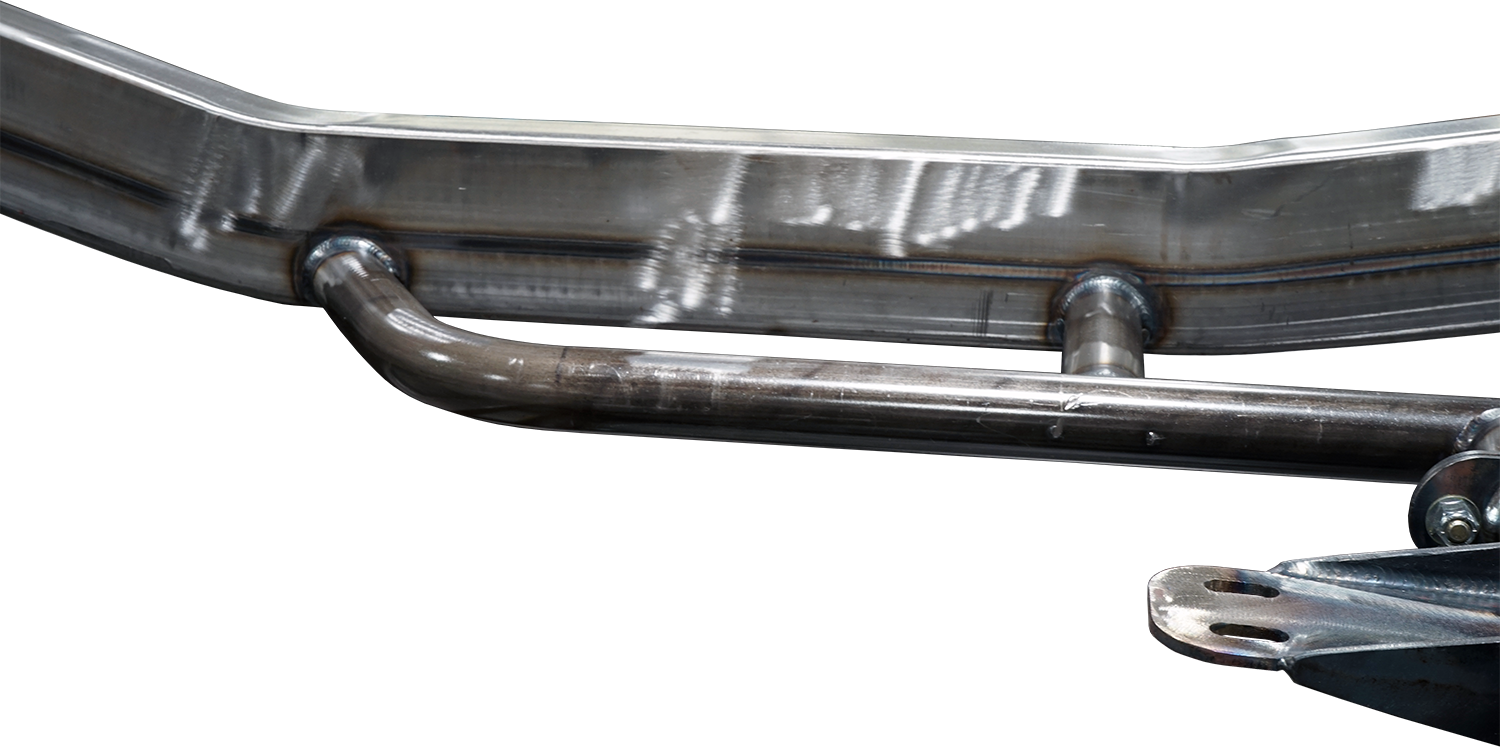

  • 8-Point 1-1/2” DOM tubular Chassis Crossmember
  • Tubular Upper & Lower A-Arms, 1-1/8”x1/4”-wall DOM
  • Stainless Steel CNC Machined Fully Adjustable Upper A-Arm Rod Ends
  • Oversized Serviceable Press-In Ball Joints

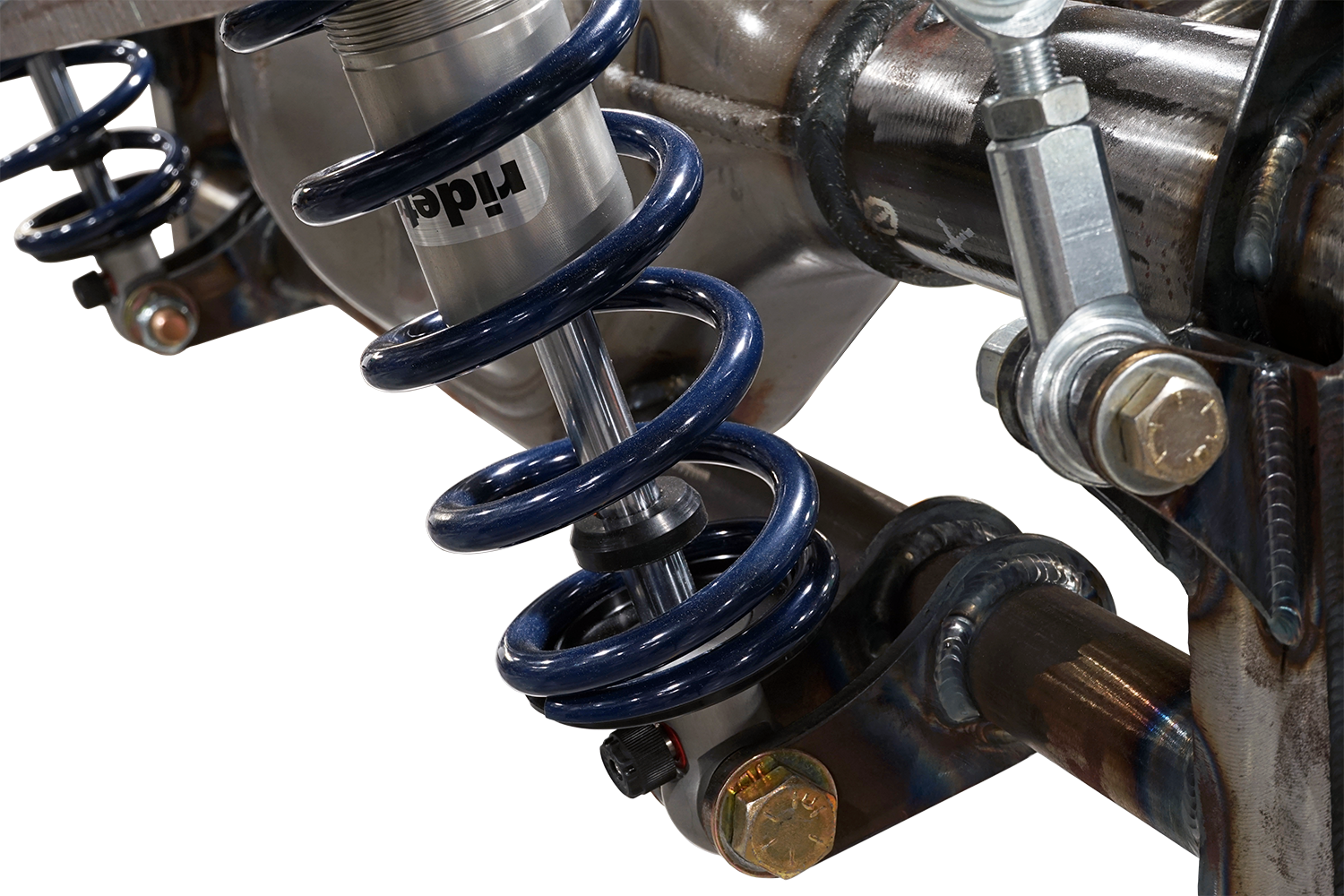

  • Aldan American Single-Adjustable Coilovers or Airbags & Shocks
  • Built-in Anti-Dive
  • Manual Steering Rack & Pinion
  • Standard or Drop Forged Steel Spindles

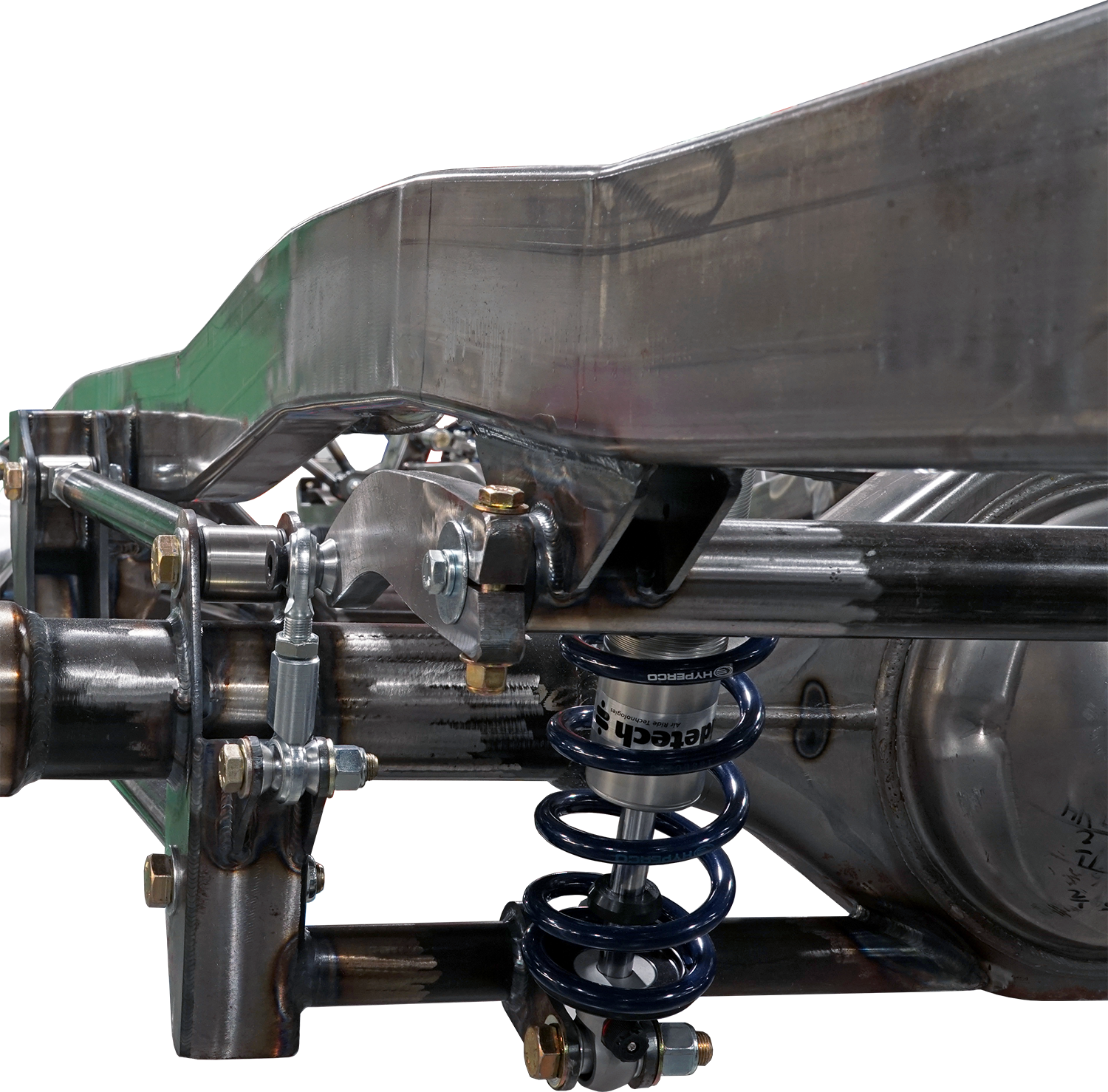

  • Moser Ford 9” Housing & 31-spline axles, Fill & Drain Plug
  • 1”-1/8”x1/4”-wall DOM tubing bars (adjustable RH- & LH-Thread)
  • Stainless Steel CNC Machined Rod Ends – RH- & LH-Thread
  • 1”-1/8”x1/4”-wall DOM tubing Panhard bar (adjustable RH- & LH-Thread)
  • FK Bearing Heim Joints – RH- & LH-Thread

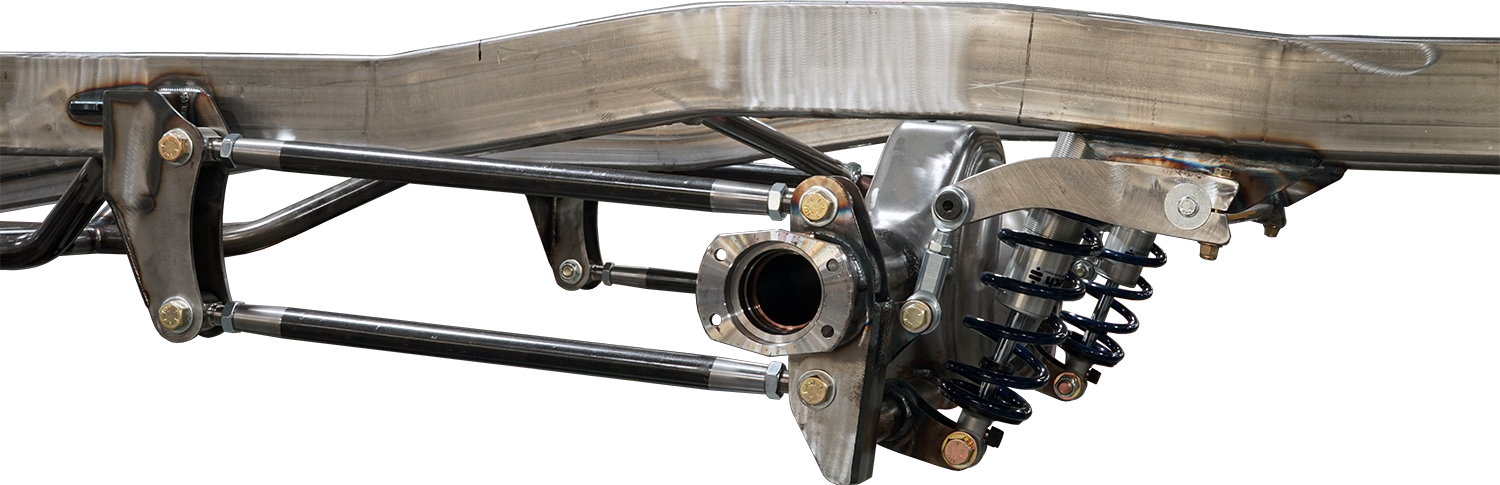

  • 4-Bar Rear-End Housing Brackets
  • 4-Bar Frame Brackets

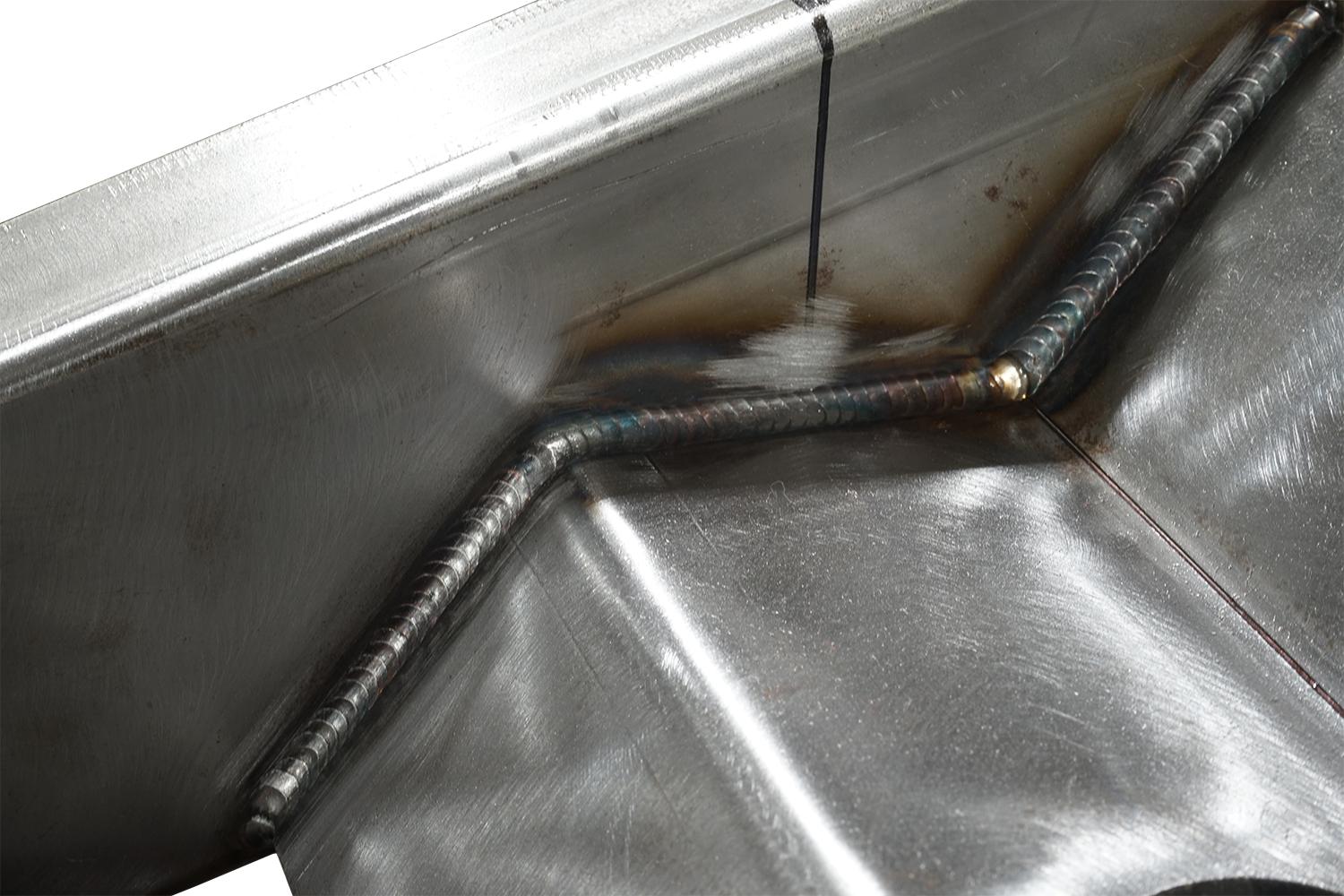

  • Body Mounts
  • All Grade-8 hardware
  • LIFETIME GUARANTEE

OPTIONS

  • Custom Track Width & Ride Height
  • Motor Mounts $150+
  • Power Rack & Pinion Steering $250
  • Right Hand Drive Rack & Pinion $699
  • Power Steering Steel Braided Line Kit $165
  • Drop-Out Transmission Crossmember $289
  • Wilwood Mustang II ProSpindles $200
  • 5 on 5, 5 on 5.5, and 6 lug bolt pattern $300
  • Standard 1” Solid Sway Bar $289
  • Front Torsion Spline Sway Bar $625
  • Rear Torsion Spline Sway Bar $625
  • Scott’s Watts Link $995
  • Wilwood 11”, 12”, 13”, 14” Complete Brake Kits $775+
  • Steel Braided Brake Flex Lines w/-3AN fittings $148
  • Moser 3rd Member with POSI and choice of gears $1,575
  • Handcrafted Aluminum Baffled Fuel Tank w/Sending Unit $649 Carb or $995 EFI
  • Stainless Steel Fuel Lines Plumbed $375 Carb or $775 EFI
  • Steel Braided Soft Line (Tank to Hard Line) $140 Carb or $240 EFI
  • Stainless Steel Brake Lines Plumbed $775
  • Parking Brake Cables $120
  • Powder Coating & Reassembly $3,000

COILOVER OPTIONS

  • Aldan American Single-Adjustable (Rebound) (included)
  • Aldan American Double-Adjustable (Rebound/Compression) $1,000
  • RideTech Single-Adjustable (Rebound) $1,300
  • RideTech Triple Adjustable (Rebound/High & Low Compression) $3,300

SUPERSLAM SHOCK OPTIONS

  • RideTech HQ Single-Adjustable Shocks (Rebound) $660

*Ford Rear Sump Oil Pan Required

*GM Performance Parts LS Engine Oil Pan 12628771



A qualified professional mechanic or fabricator with the technical understanding of product function and installation procedures must install all Scott’s Hotrods products.

We stand behind ALL of the parts we manufacture.  Other parts that we do not manufacture such as brakes, steering racks, ball joints, brake flex lines, power steering lines, etc carry their own manufacturers warranties.  We are not responsible for these items outside of their original warranty.

All of Scott’s Hotrods manufactured parts are guaranteed to be free of defects in materials & workmanship for the lifetime of the part. Scott’s Hotrods warranty is non-transferable.

GM Performance Parts LS Engine Oil Pan 12628771

Scott’s Hotrods is your #1 source for custom chassis no matter what vehicle you drive!  That’s right…we build them for virtually ANY American Made application from 1925 to 1987! And, they’re designed and engineered by the finest chassis & suspension engineering team. At Scott’s Hotrods, form follows function. Our custom chassis not only look great, they truly perform on the street, on the track or wherever the road takes you! They deliver without compromising ride quality, handling or the stance you’re looking for. Each chassis is precision hand crafted in-house utilizing premium USA made materials and backed by a limited lifetime guarantee. Trust Scott’s Hotrods to build the custom chassis of your dreams.

All of Scott’s Hotrods Chassis are built with the same quality as our IFS kits and are also 100% TIG welded. Scott’s Chassis are all Built-To-Order and are the most complete chassis you can order in today’s market meaning that you can tell us your desired ride height and chassis options including: Coilovers or Airbags and Shocks, Motor Mounts, Transmission Mount, Wilwood Brakes, complete MOSER Ford 9” rear end with a POSI 3rd member and axles, Stainless Steel Fuel & Brake lines plumbed on the chassis, aluminum fuel tank, your choice of sway bar styles and more! If you want your frame to lay out 100% front to back or have a static stock ride height, we are the shop for you. All of our chassis use an 8-point crossmember for superior strength and handling. We can build a chassis for all project vehicles, any year make or model and include a lifetime warranty on craftsmanship.
