Why Choose Scott’s Hotrods C10 Bolt-On IFS?

Scott’s C10 Bolt-On Independent Front Suspension kits are engineered vehicle-specific—never one-size-fits-all and never based on a Mustang II design.

Our IFS is a true independent suspension system, built with tubular upper and lower A-arms designed specifically for Chevy C10 trucks. Unlike kits that use a 3-piece crossmember with spring pockets or T-bolt adjusters that can loosen over time, Scott’s uses a precision TIG-welded design with coilovers or airbags and external shocks.

This means:

  • No weak points – 100% TIG-welded construction

  • Stronger hardware – 5/8” or larger Grade 8 hardware only

  • Better performance – dial in suspension precisely, never knocked out of alignment

  • Proven engineering – built to handle like a modern performance vehicle

From 1963-1966 C10s and 1967-1972 Chevy/GMC trucks to 1973-1987 Squarebody C10s, Scott’s Hotrods builds every Bolt-On IFS to deliver the strength, suspension geometry, adjustability and modern driving experience your classic truck deserves.

Check out our IFS QC Gallery to view a wide variety of IFS Kits we recently shipped out.

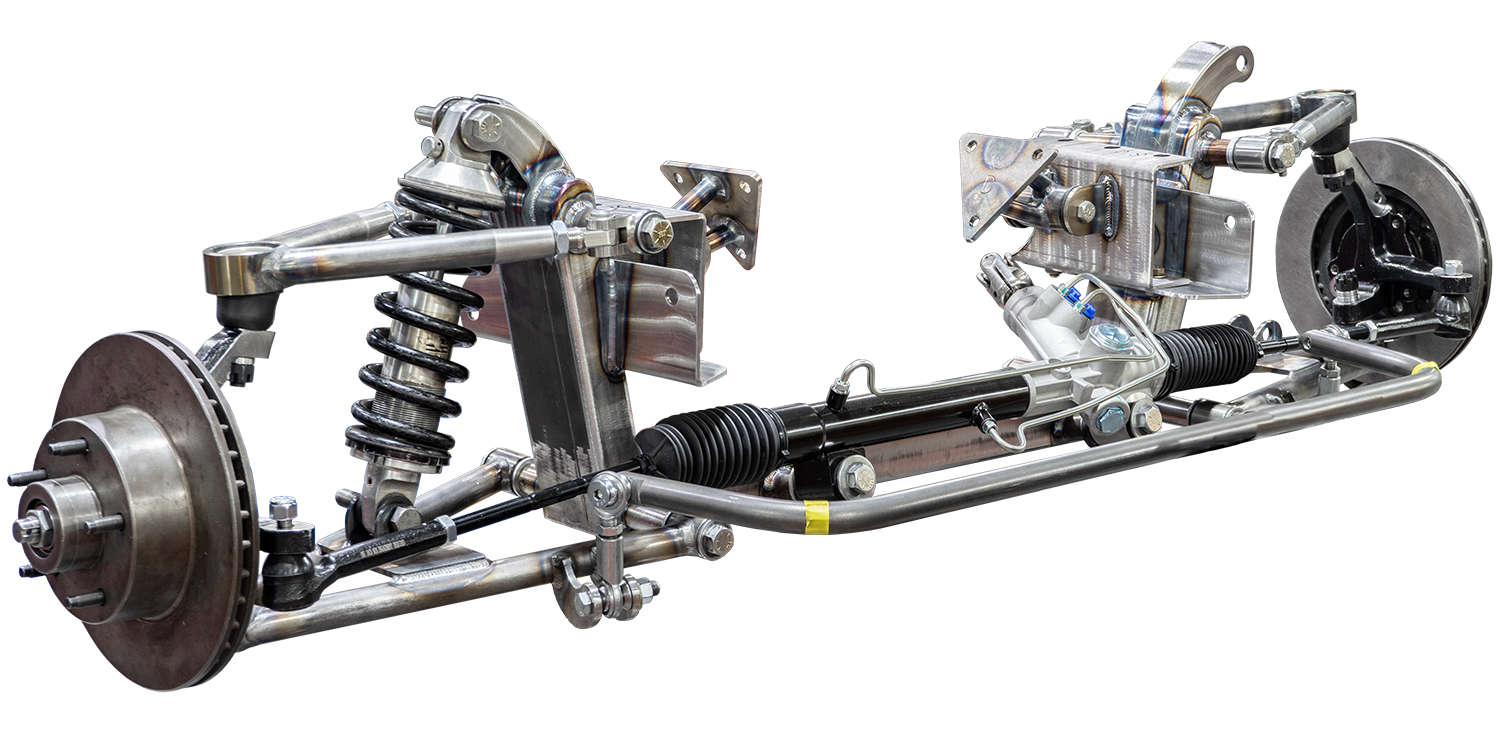

1963-1987 Chevy & GMC C10 Bolt-On IFS

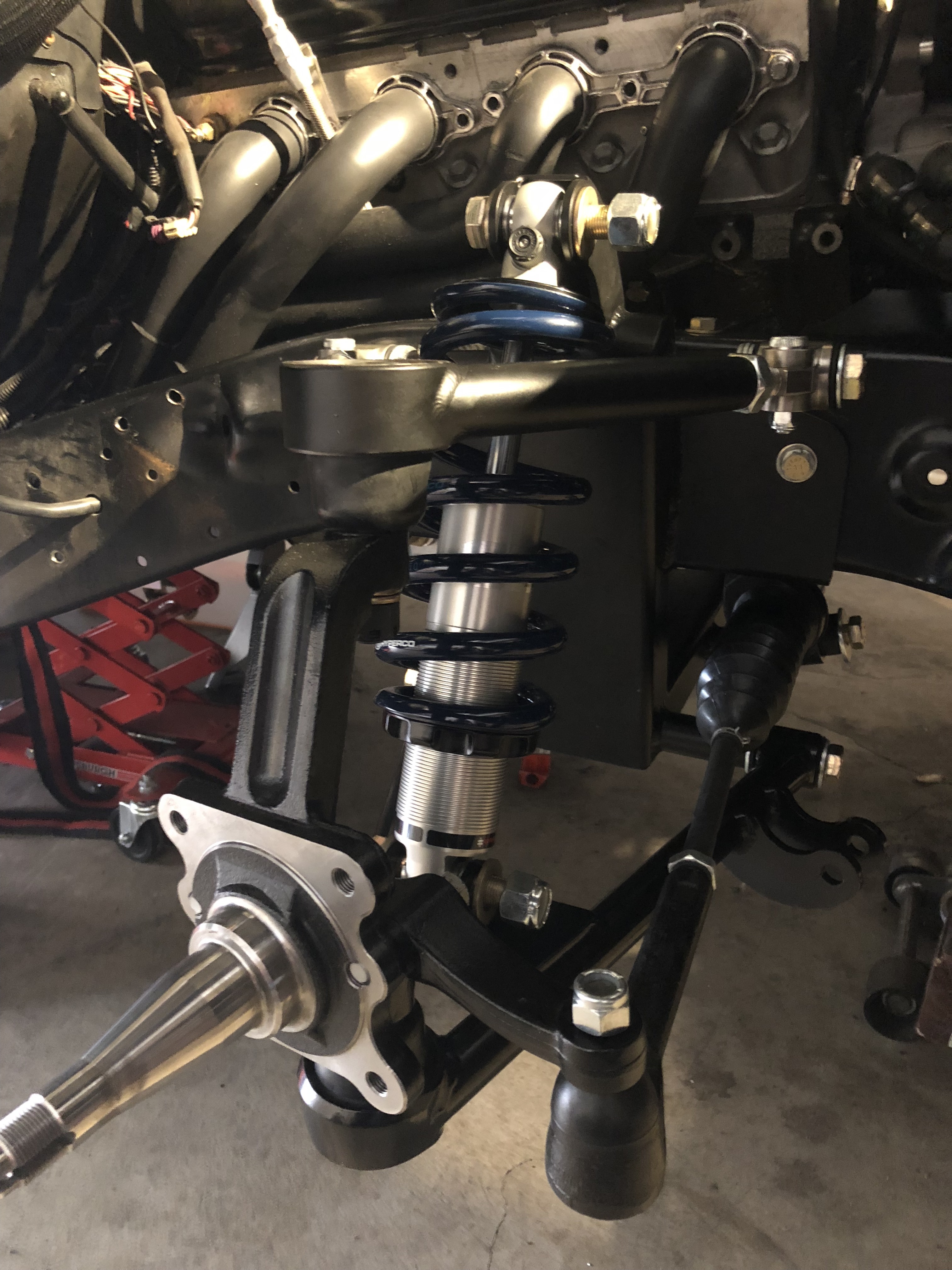

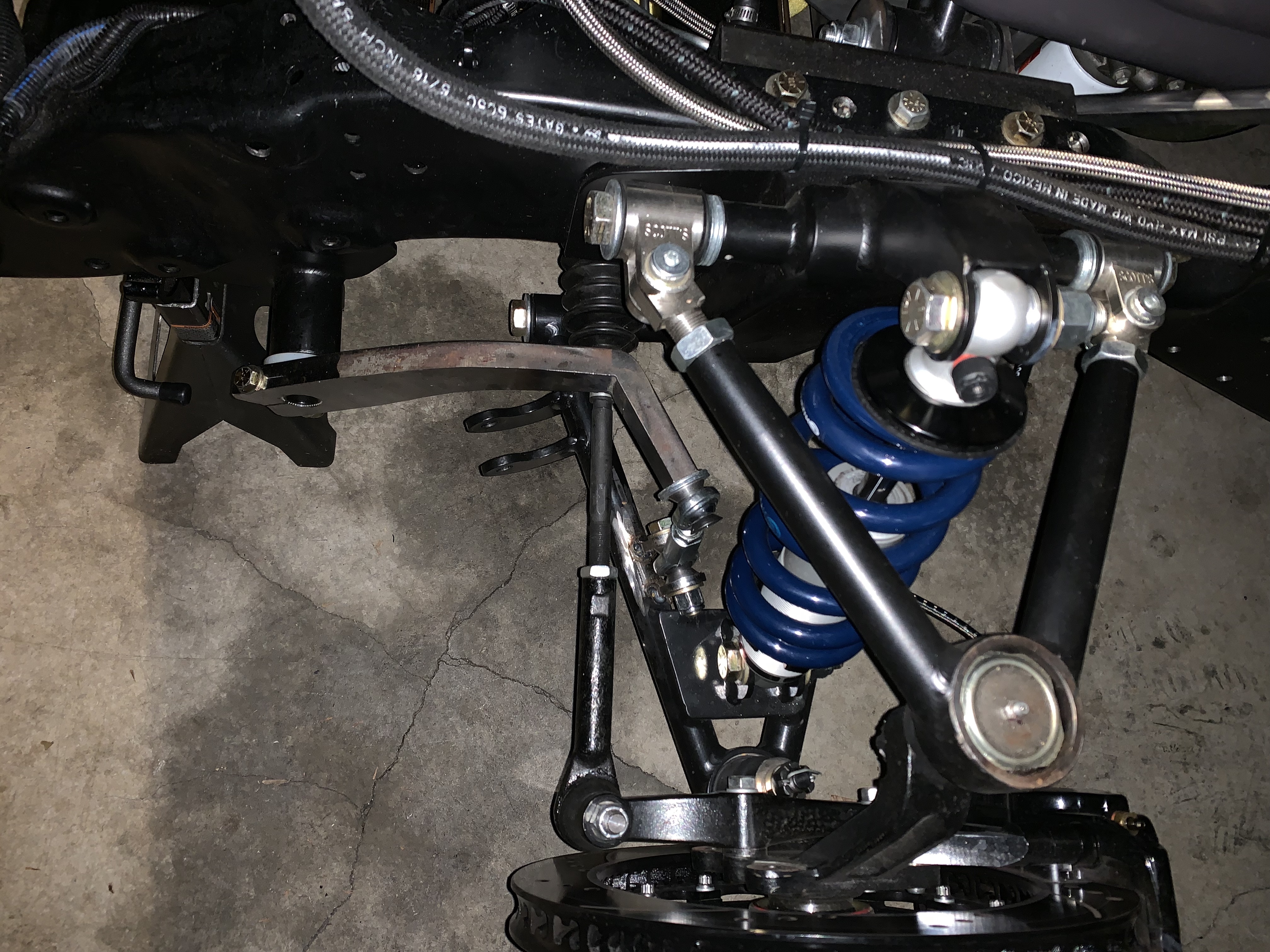

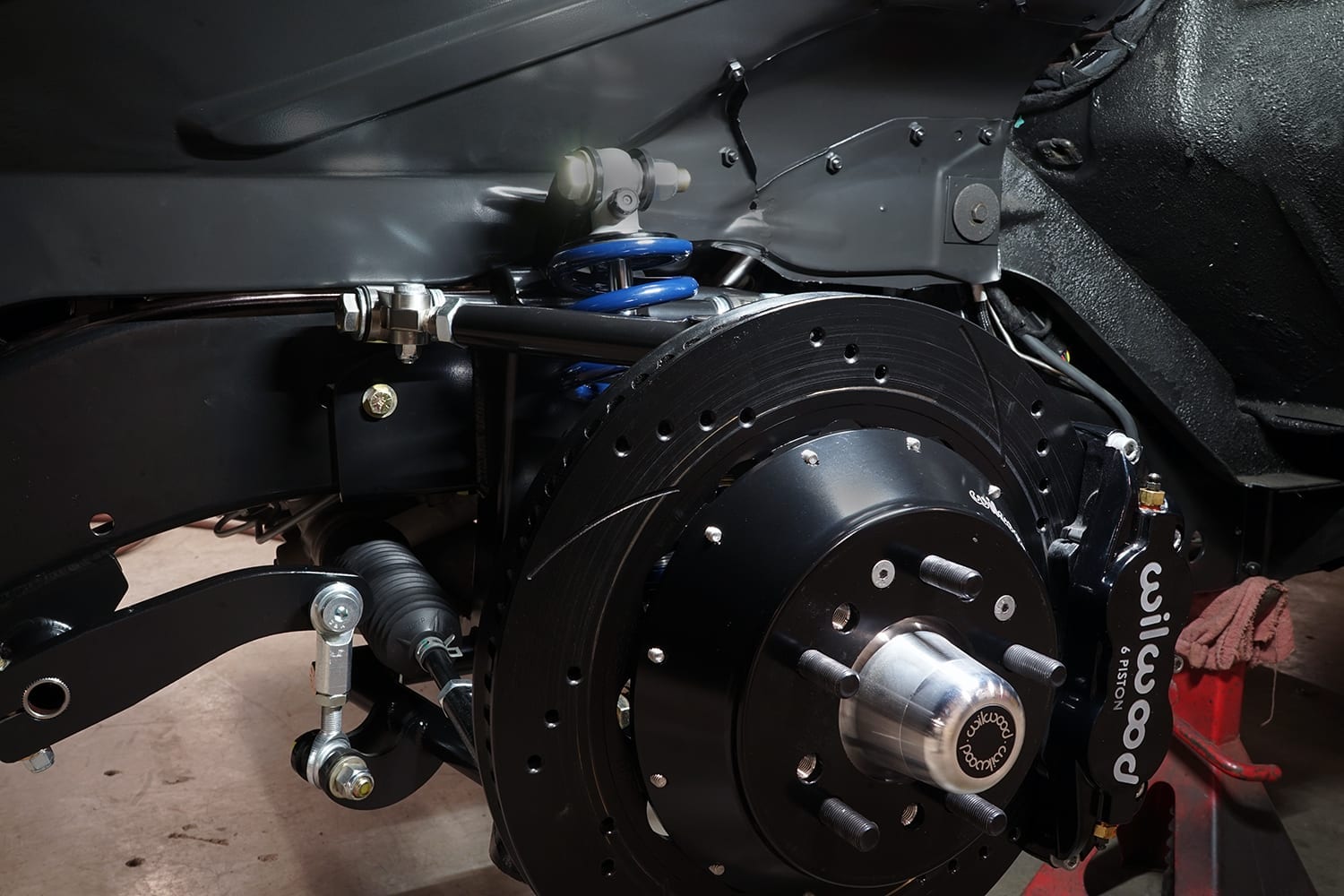

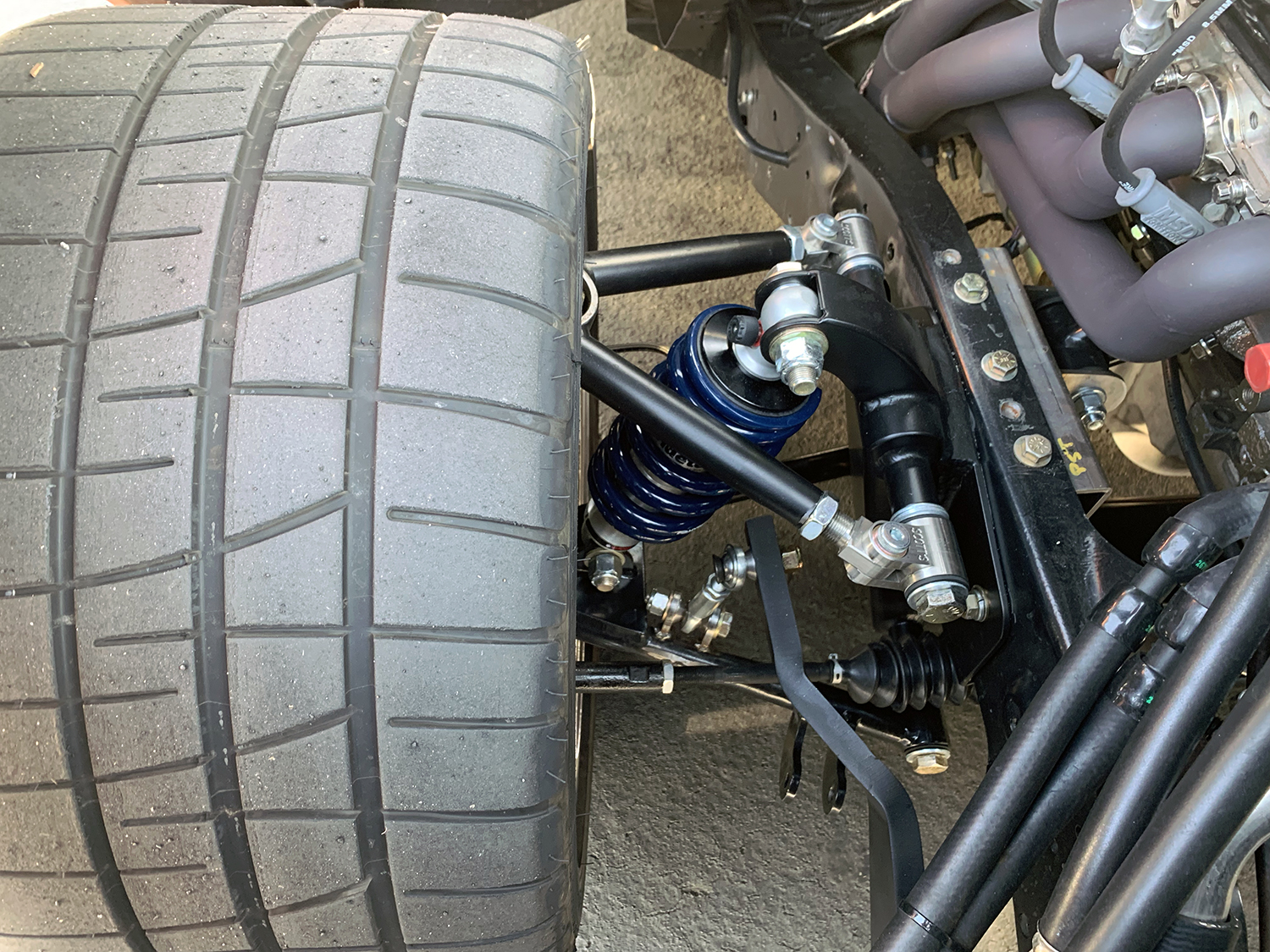

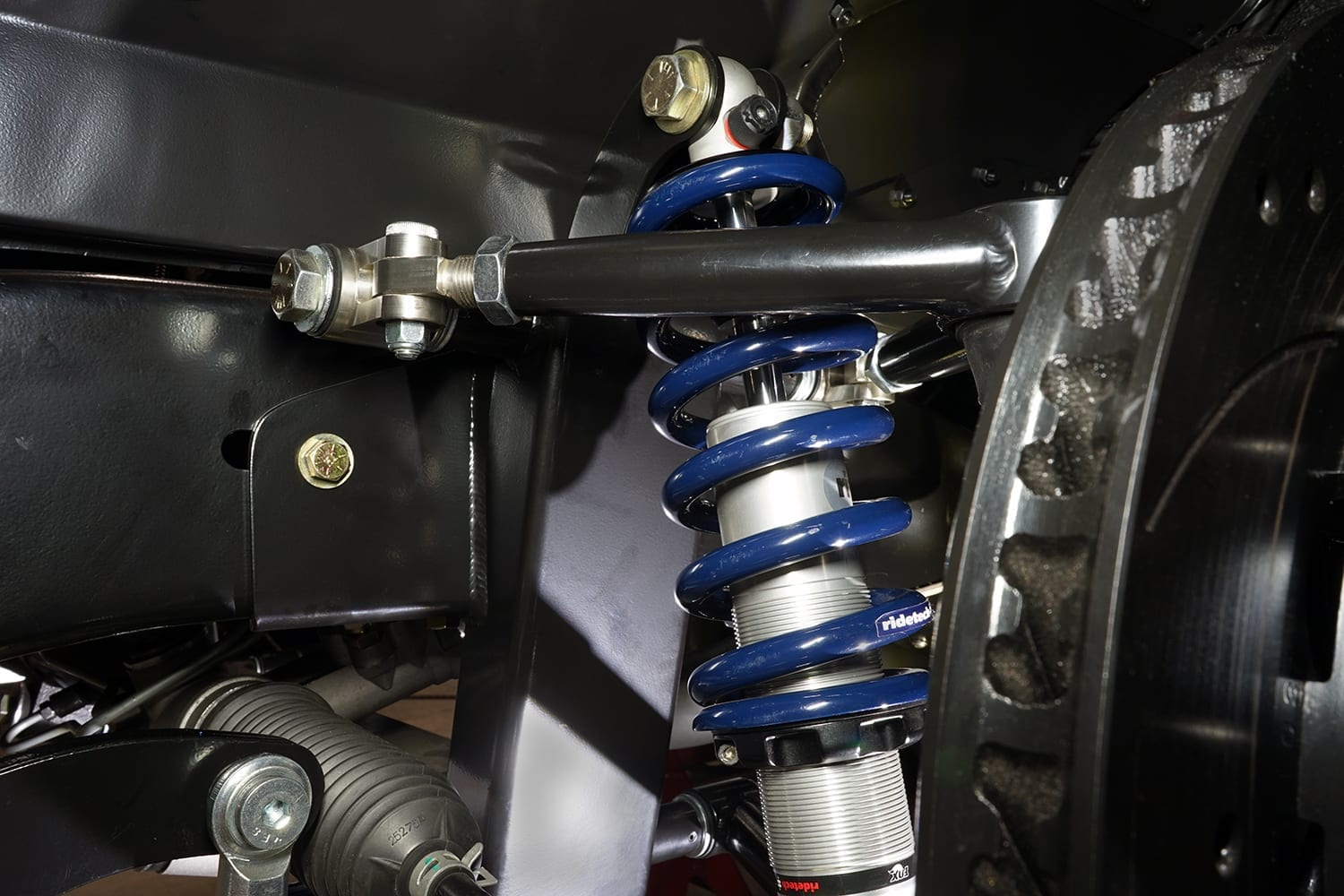

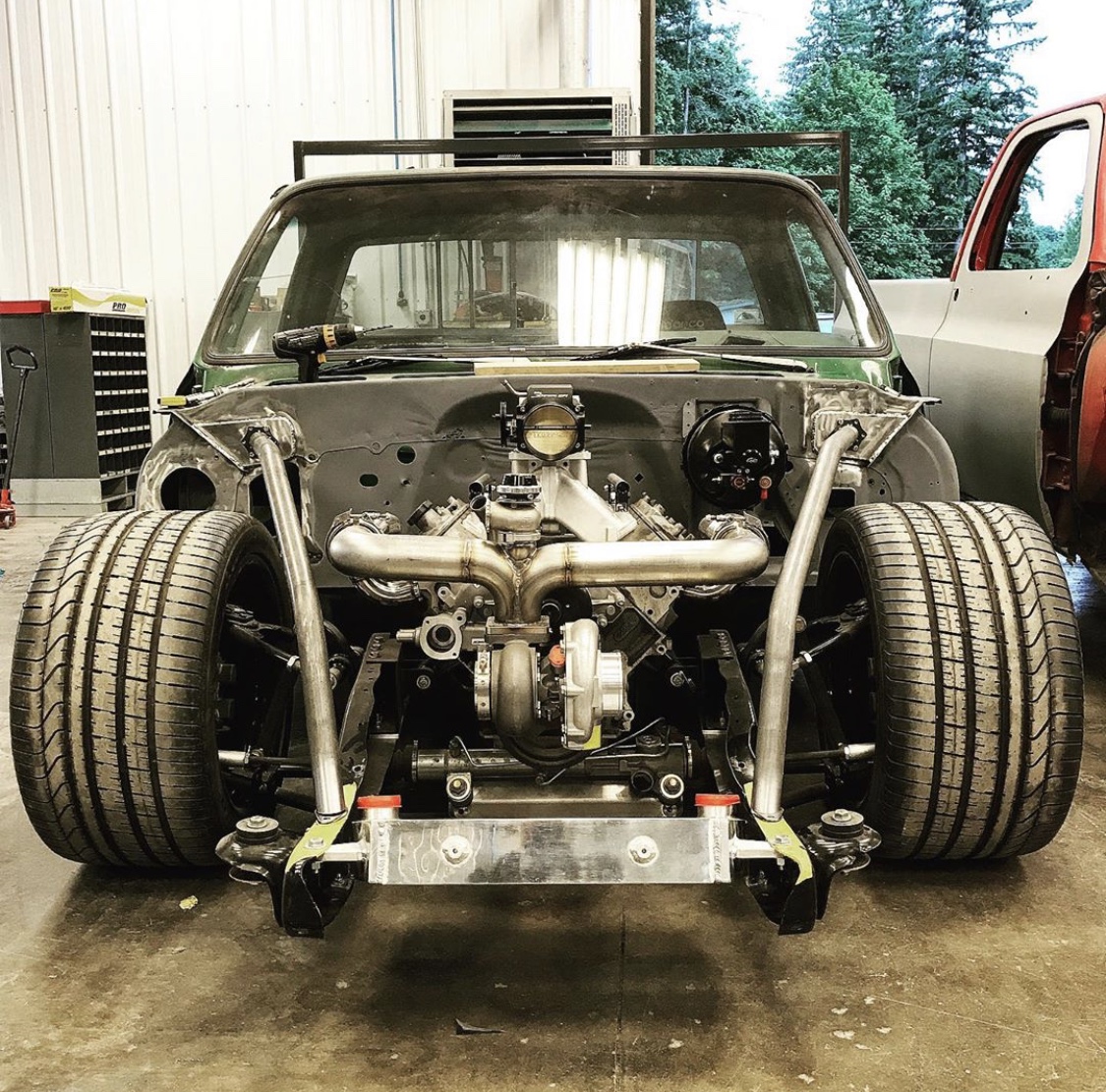

Transform the handling, ride quality and stance of your classic Chevy or GMC truck with Scott’s Hotrods 1963-1987 C10 Bolt-On Independent Front Suspension (IFS). Engineered specifically for 1963-1966 C10, 1967-1972 C10 and 1973-1987 Squarebody Chevy & GMC trucks, our true bolt-on IFS replaces the outdated factory front suspension with modern rack & pinion steering, heavy-duty Tubular Upper & Lower A-Arms, improved suspension geometry and your choice of Aldan American Coilovers or Scott’s SuperSlam Airbag suspension.

Unlike universal suspension conversions, every Scott’s C10 Bolt-On IFS is built-to-order for your specific truck, drivetrain, ride height and intended use. Choose a performance-oriented Coilover setup for responsive handling and everyday drivability, or go with our SuperSlam Airbag IFS for an ultra-low stance with up to 9 inches of total suspension travel. Whether you’re building a daily-driven C10, Pro Touring truck, high-horsepower restomod or frame-laying Squarebody, Scott’s gives you modern performance without replacing your entire factory chassis.

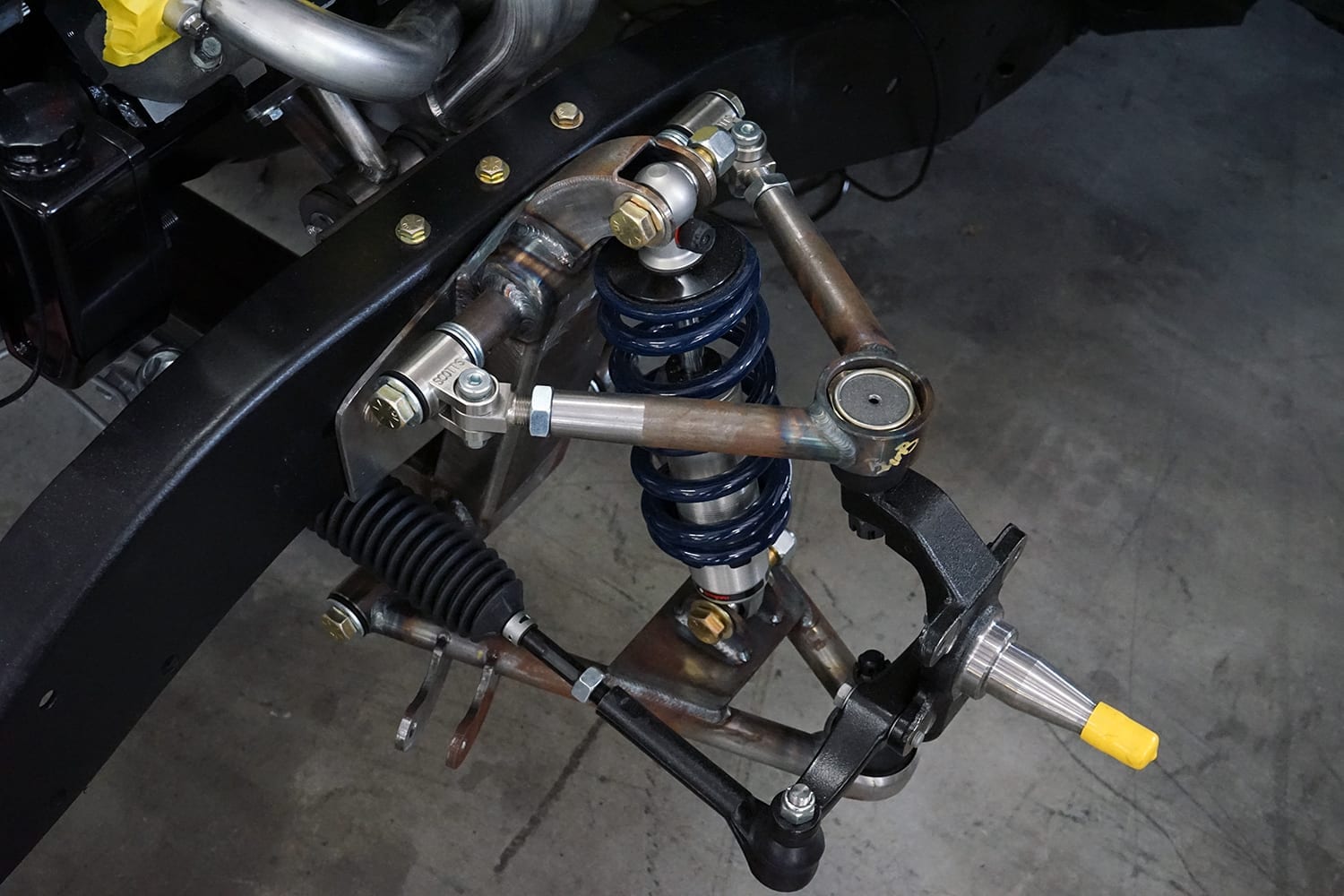

Best of all, Scott’s C10 IFS is a true bolt-on system designed to install onto the original frame, giving builders a dramatically improved front suspension without the extensive fabrication required by traditional weld-in conversions. From a mild cruiser to an all-out custom truck, your C10 can finally drive as good as it looks.

Coilover Kits Starting at $3,925

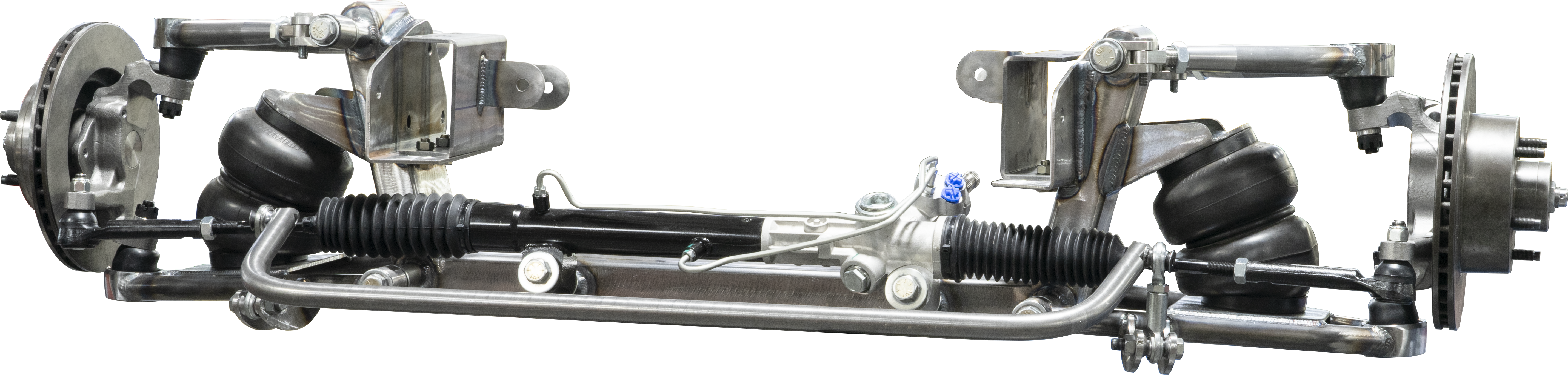

SuperSlam Kits Starting at $4,365



Already Have CPP C10 Spindles & Big Brakes?

This variation of Scott’s C10 Bolt-On IFS Kit is designed to be used with the ’73-’87 CPP C10 Spindle.  The only reason to choose this kit over Scott’s regular IFS kit is if you already have the CPP Big Brake Kit installed on your truck and you don’t want to get rid of this expensive Spindle & Brake kit.  We incorporate the ’73-’87 Square Body ball joints to accept the CPP spindle and include special tie rod ends to work correctly with the steering arm.  This special kit does not include Spindles or Brakes.

1963-87 Chevy/GMC Truck for use with CPP Spindle:
Coilover Kits Starting at $4,125
SuperSlam Kits Starting at $4,565

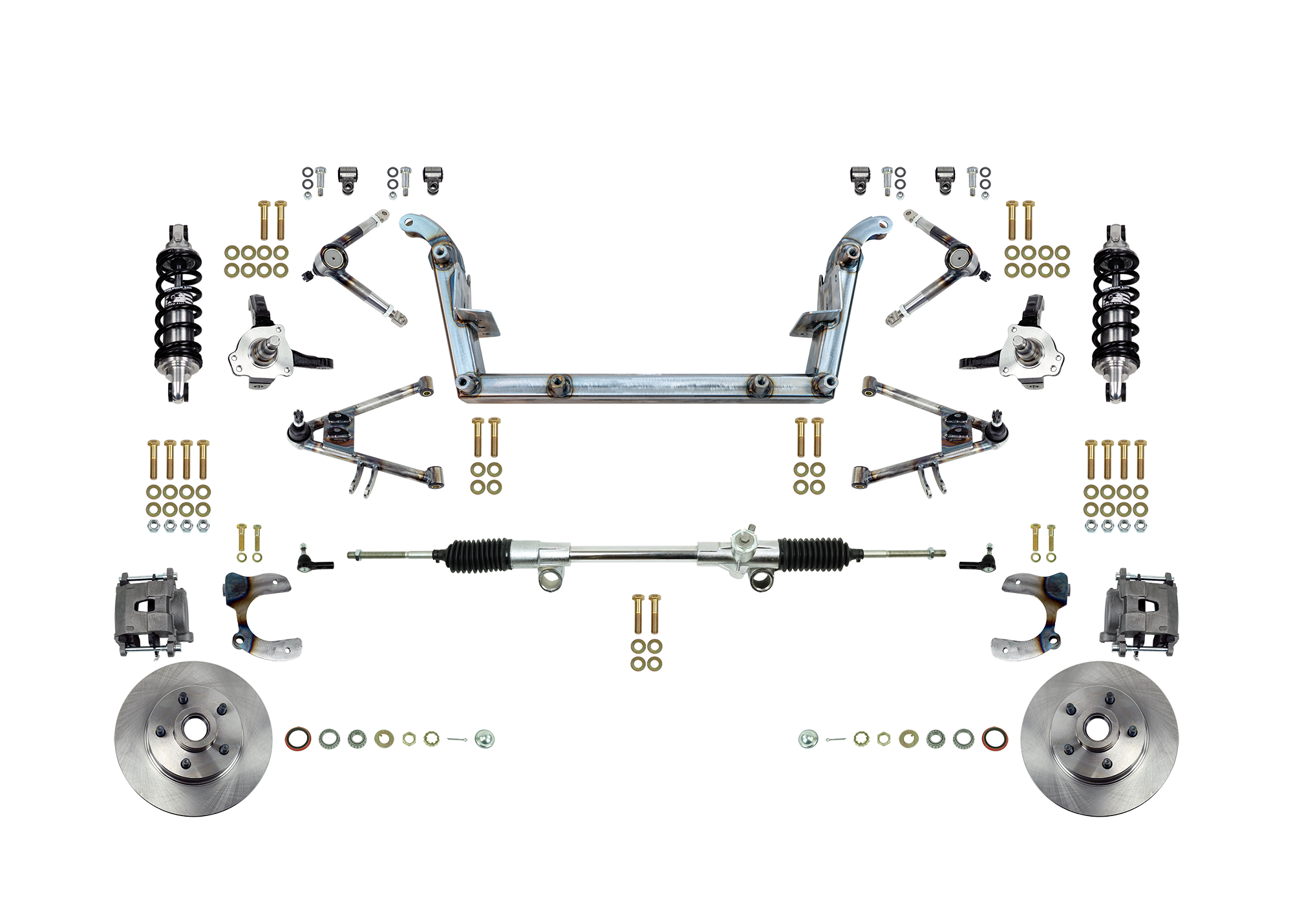

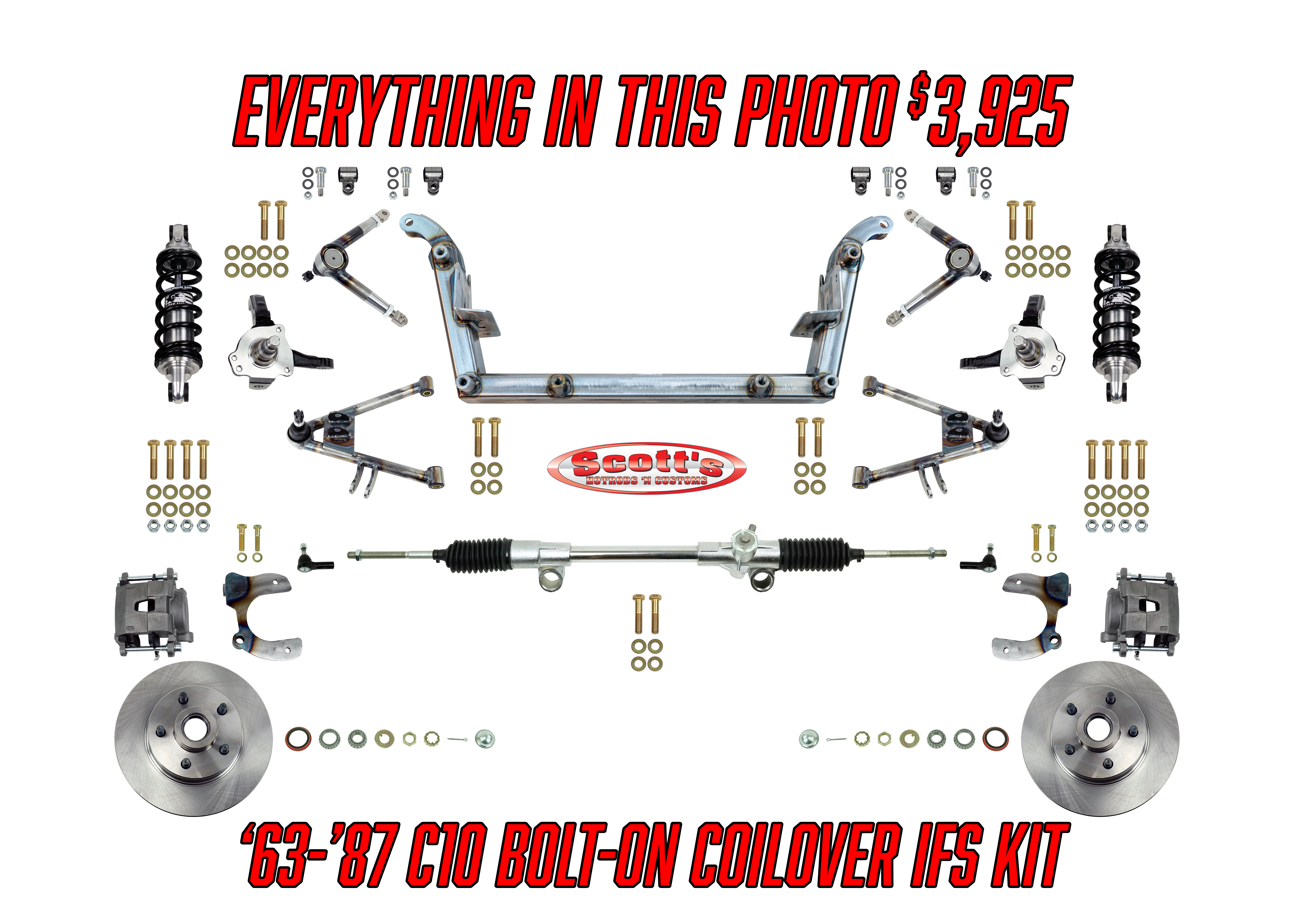

Scott’s Hotrods 1963-87 Chevy/GMC C-10 Bolt-On IFS

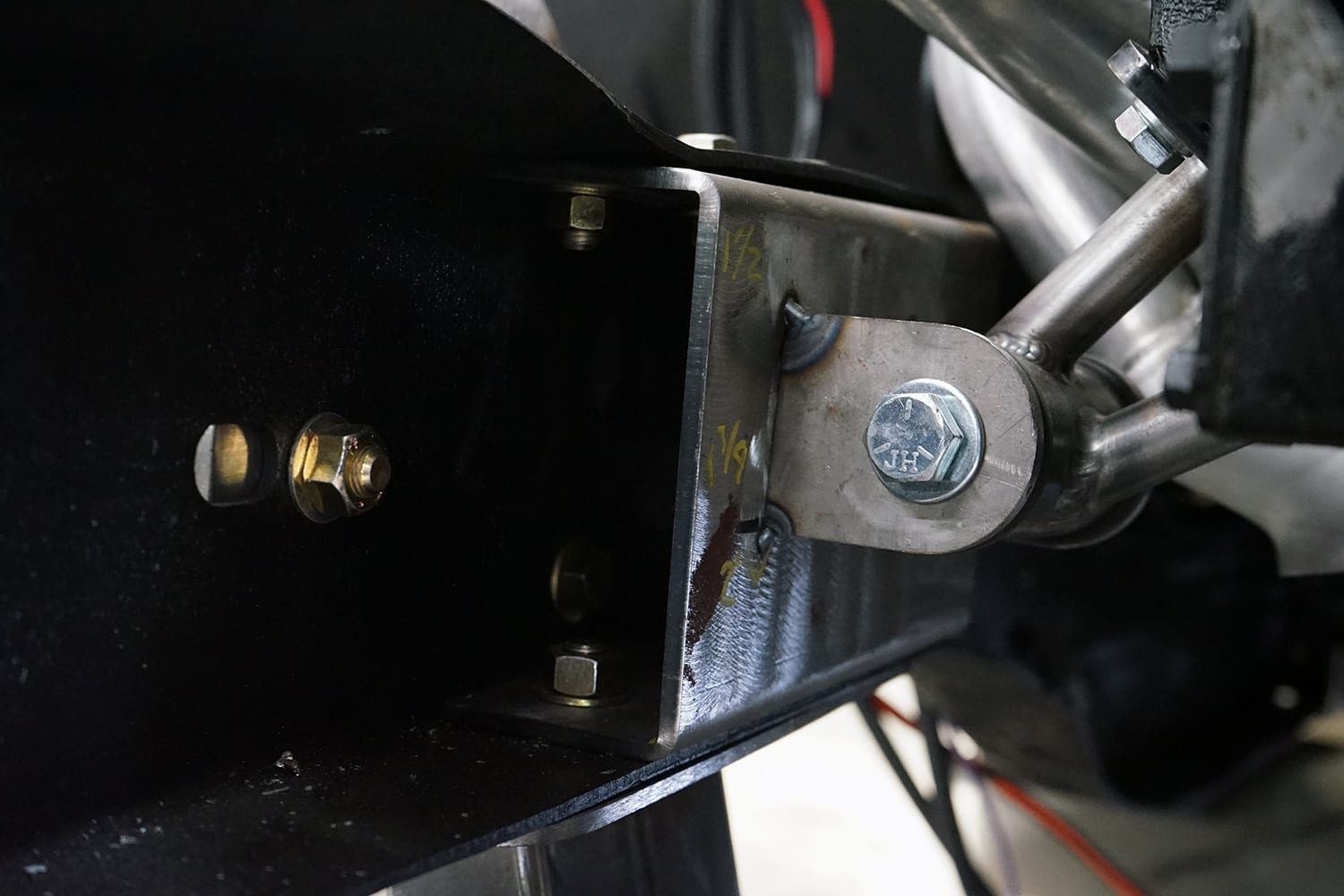

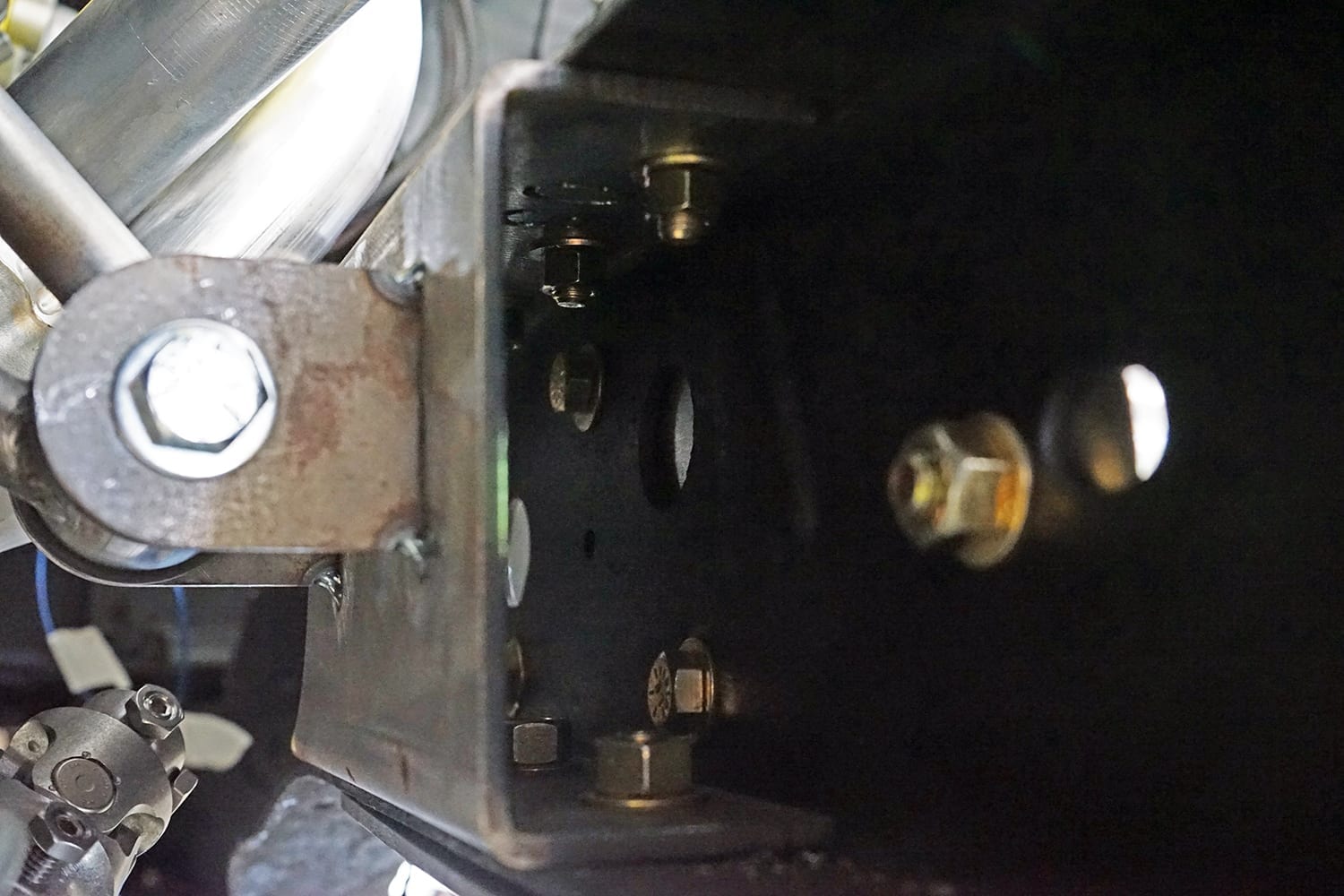

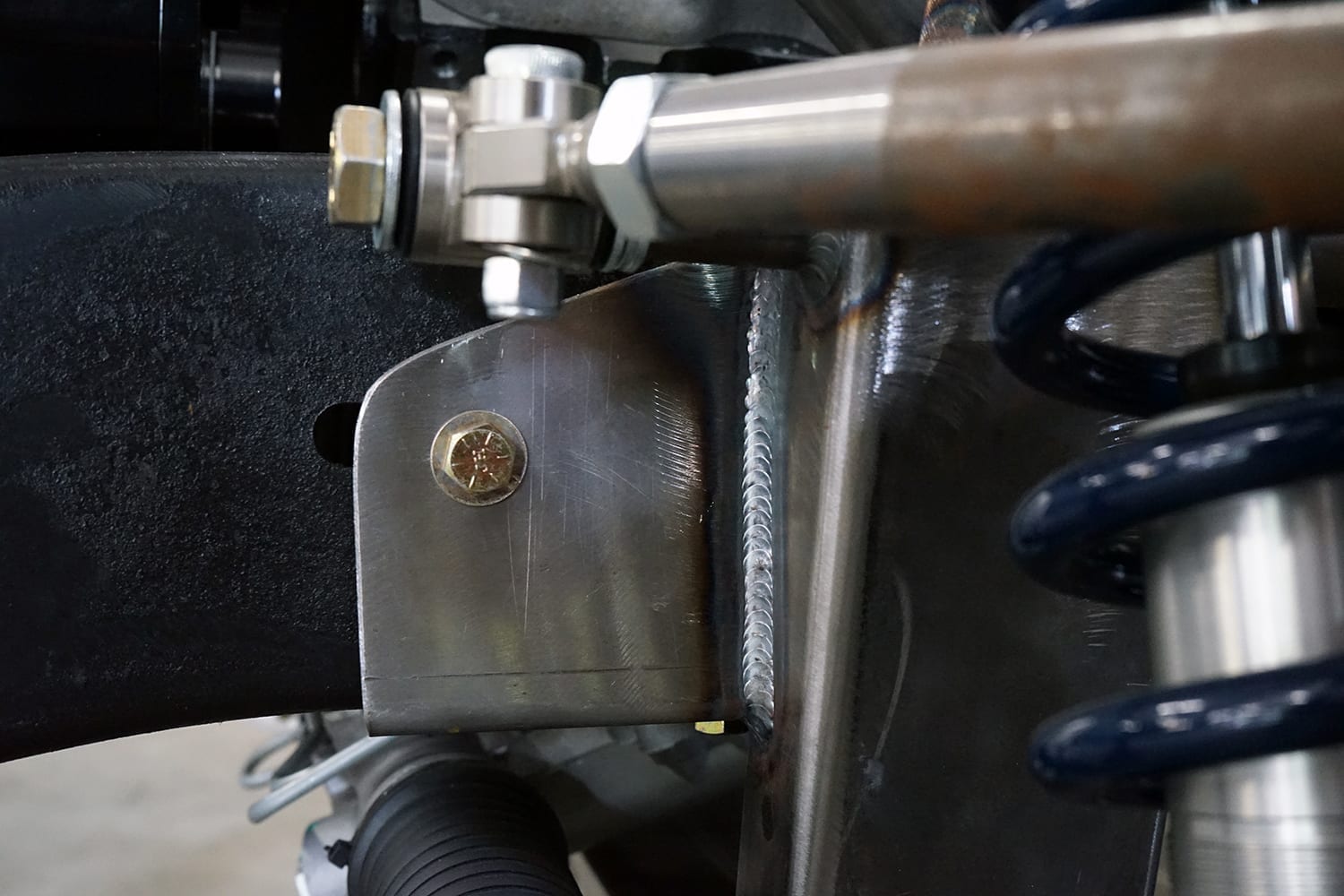

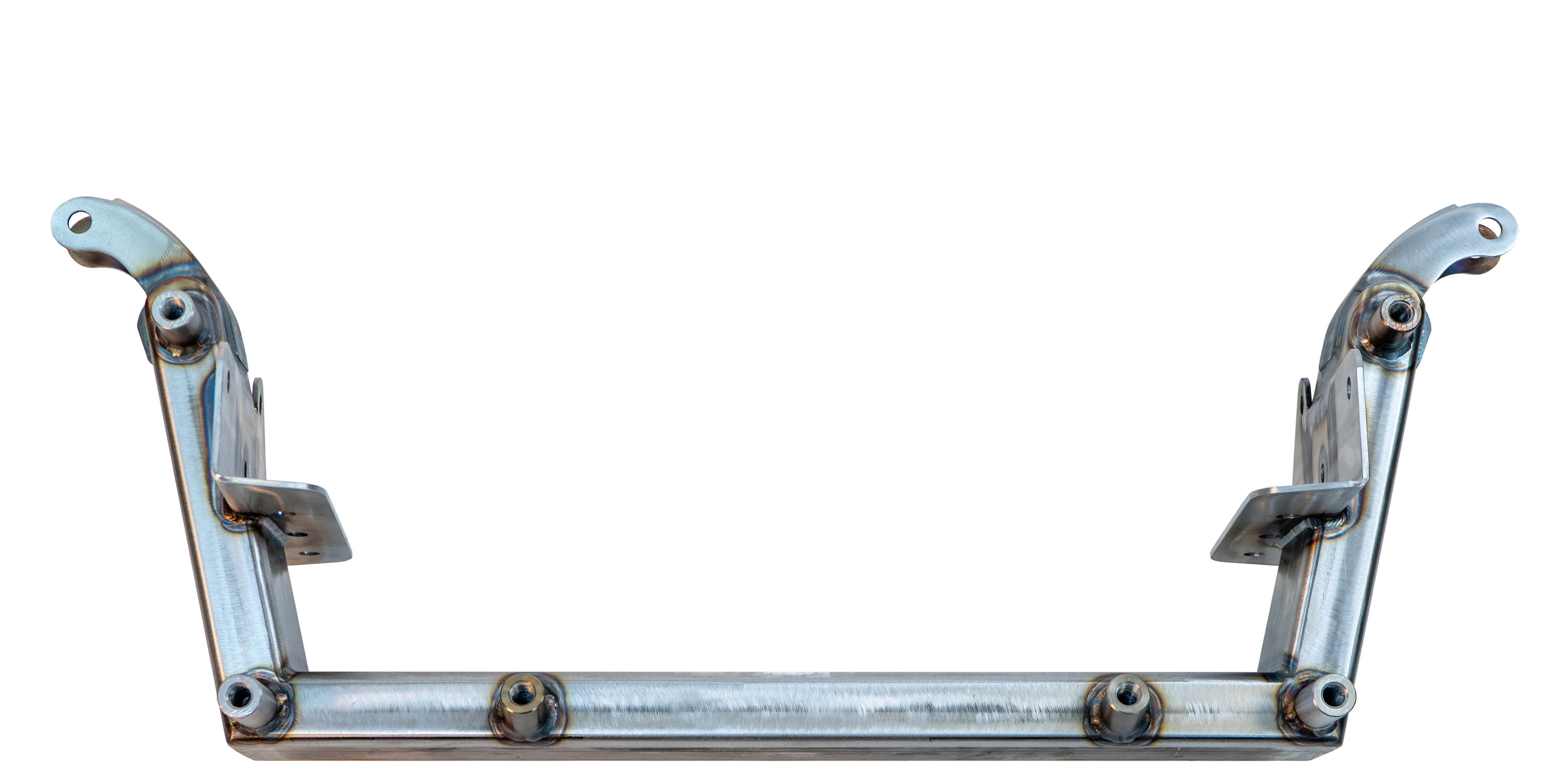

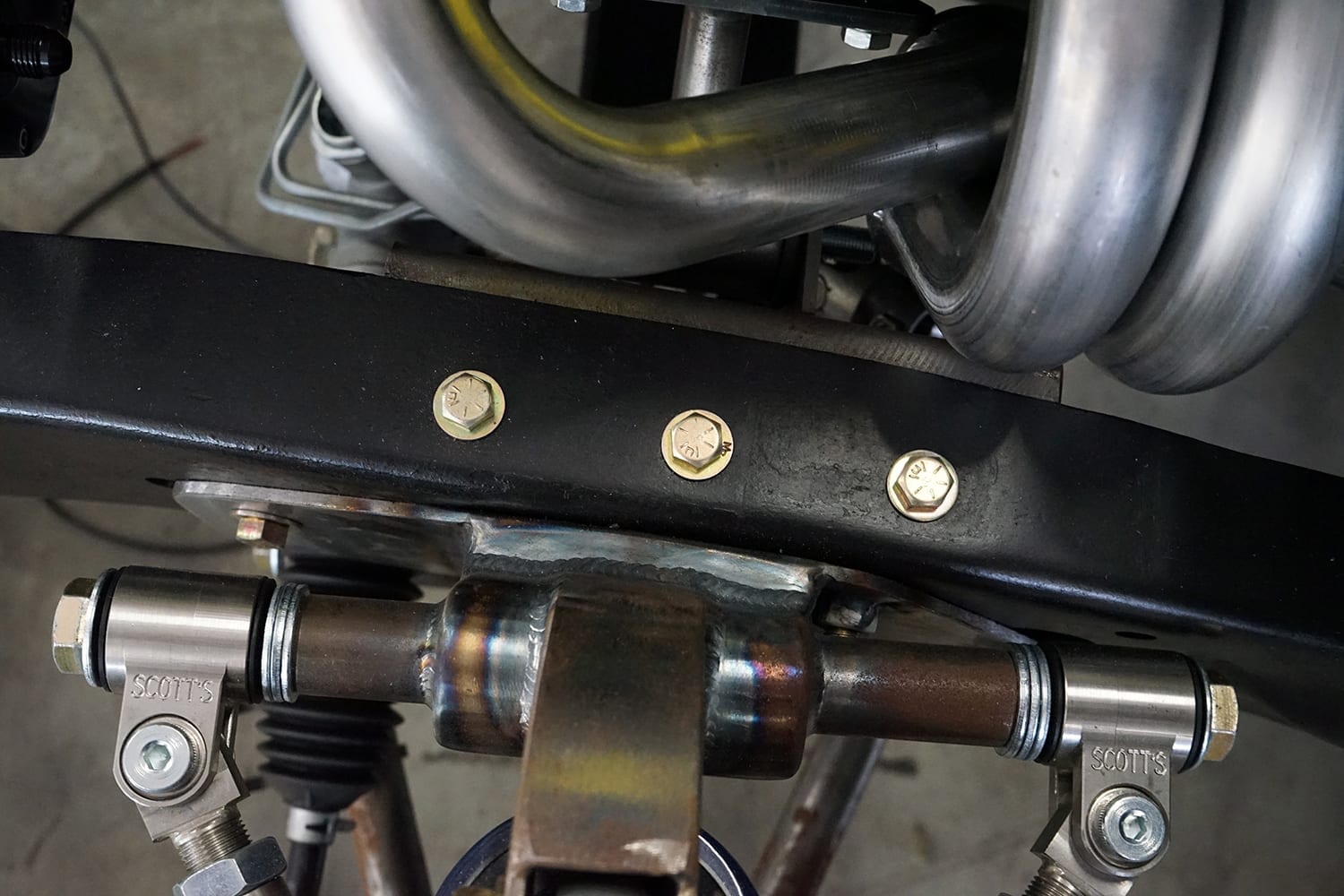

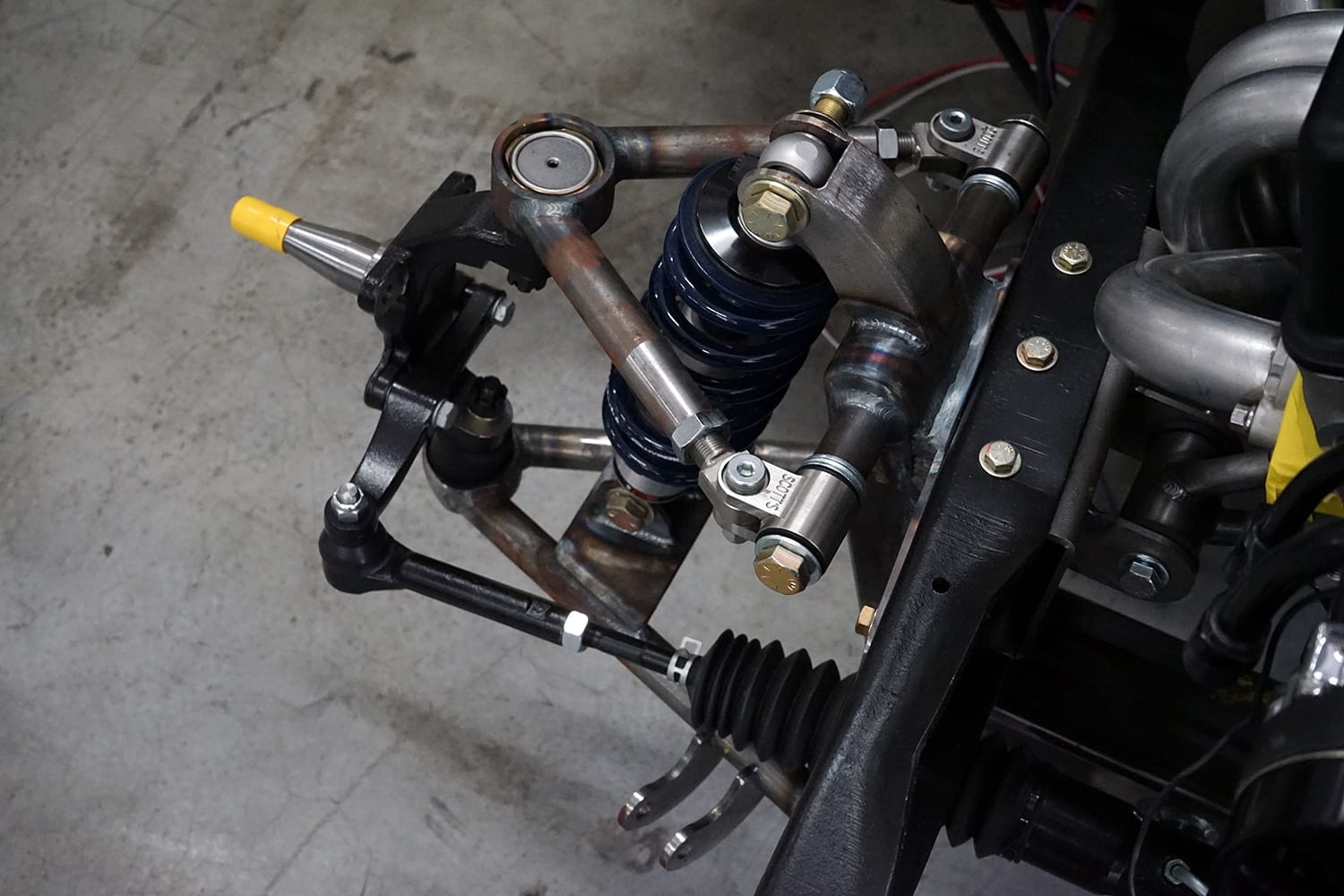

• 1-piece Bolt-On crossmember 2”x4”x3/16”-wall box tubing

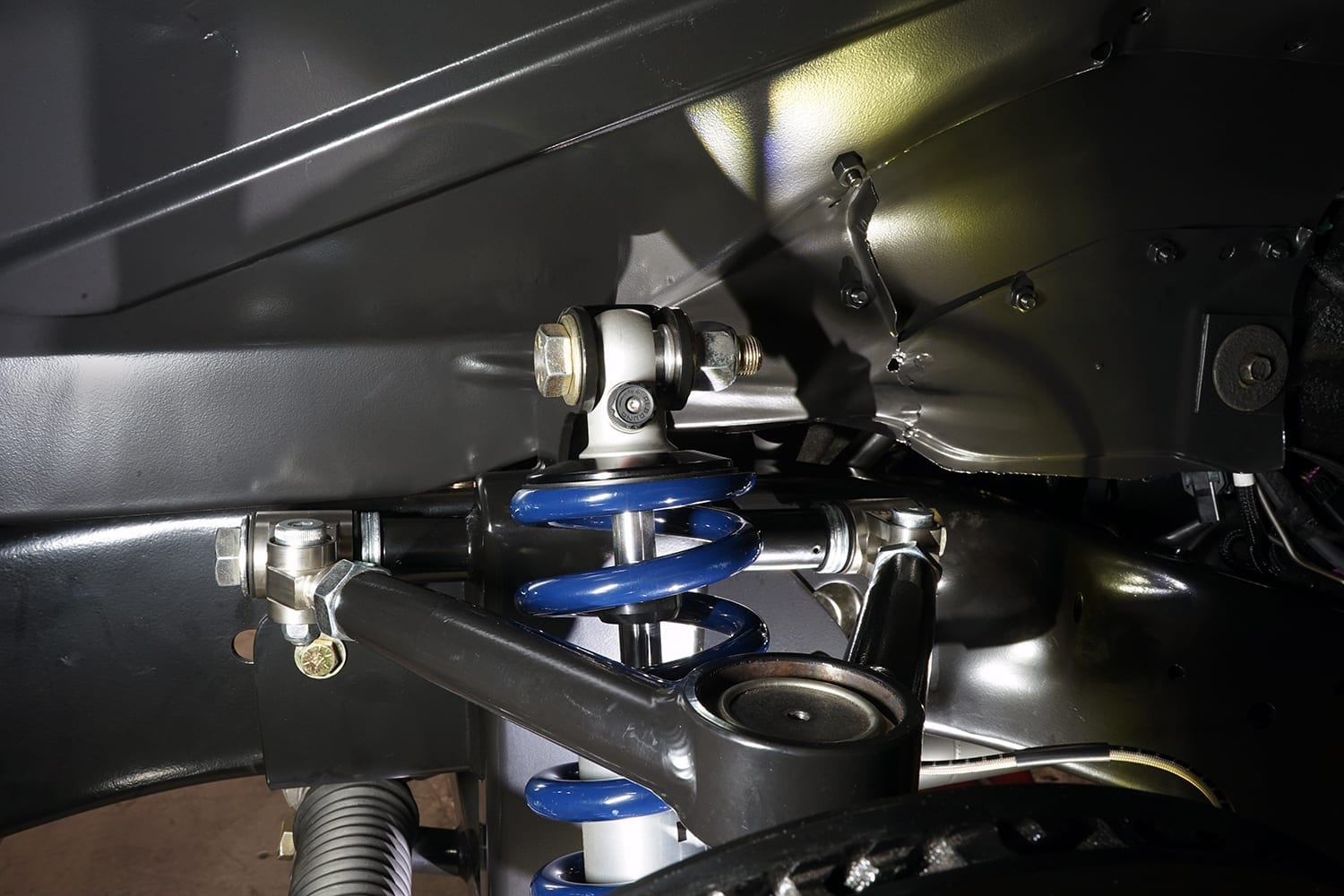

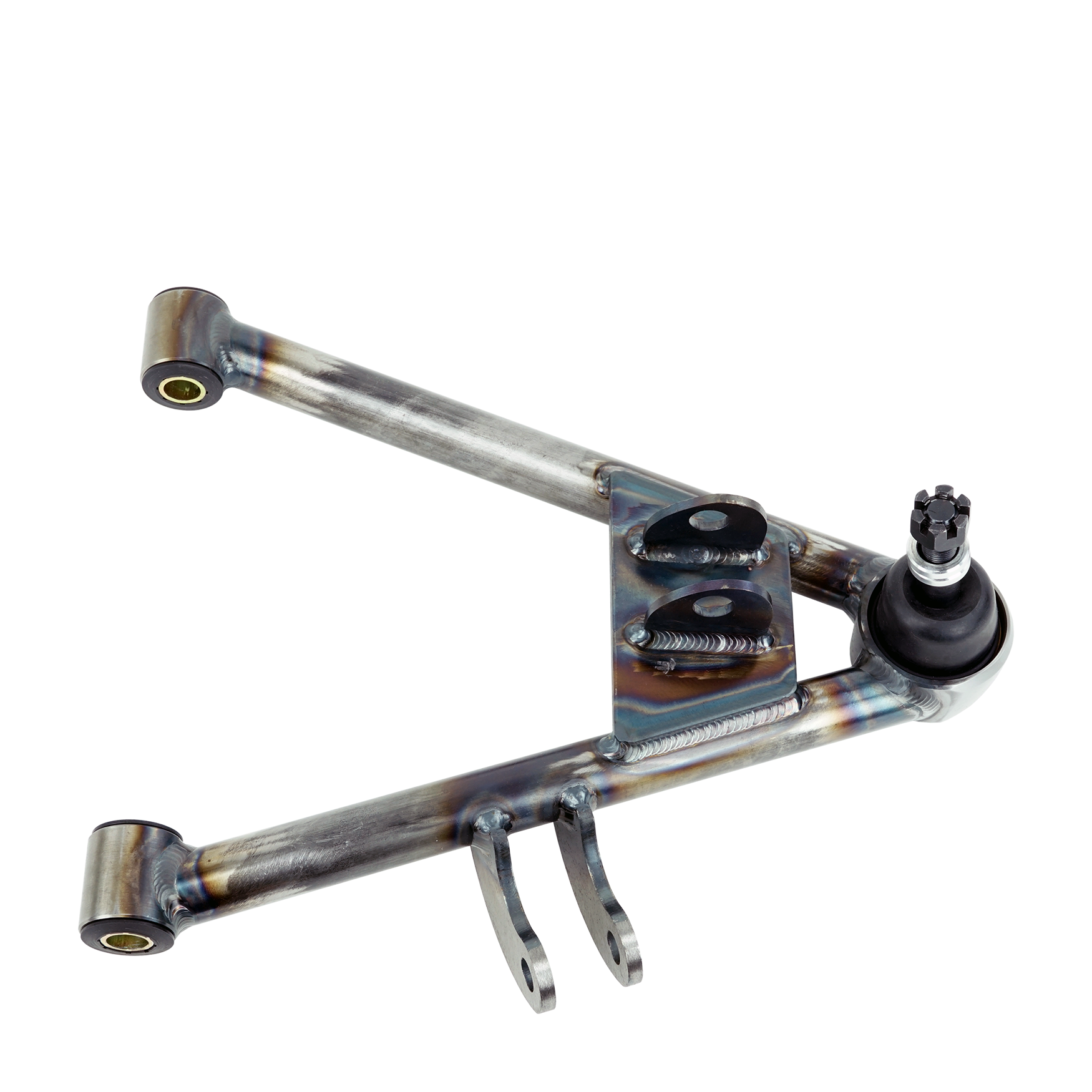

• Unequal-length A-Arms, 1-1/8”x1/4”-wall seamless DOM tubing

• Oversized Serviceable Press-In Ball Joints

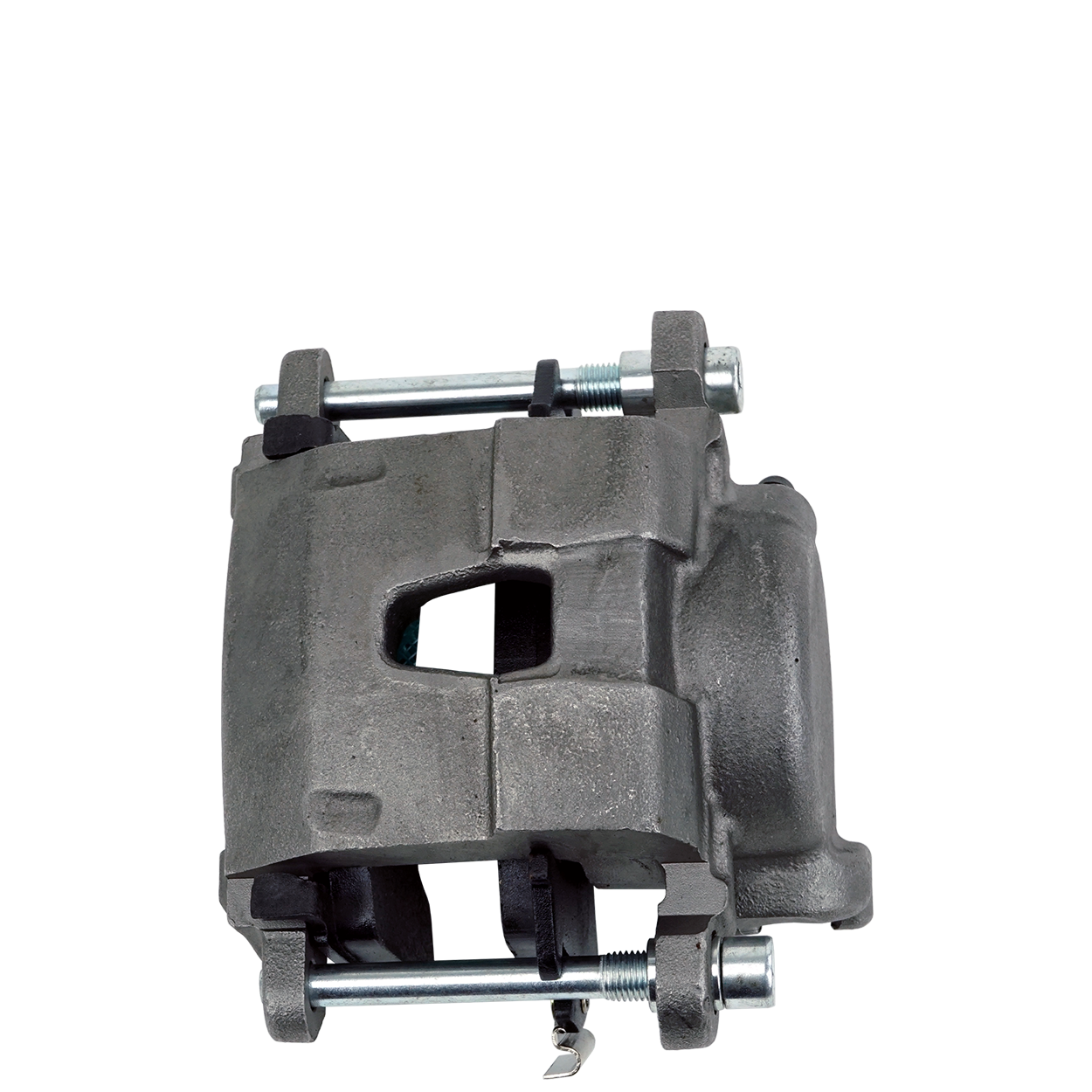

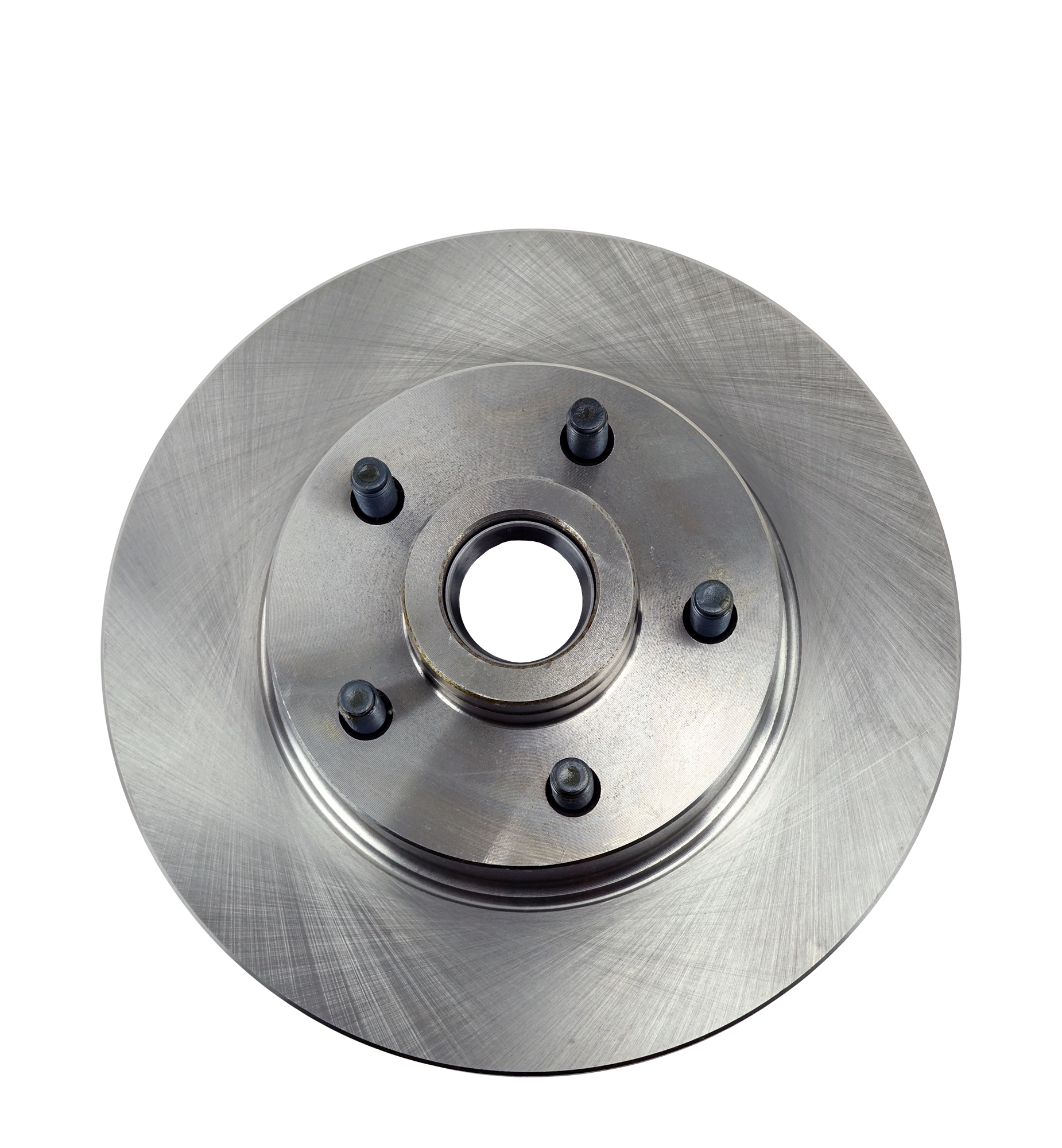

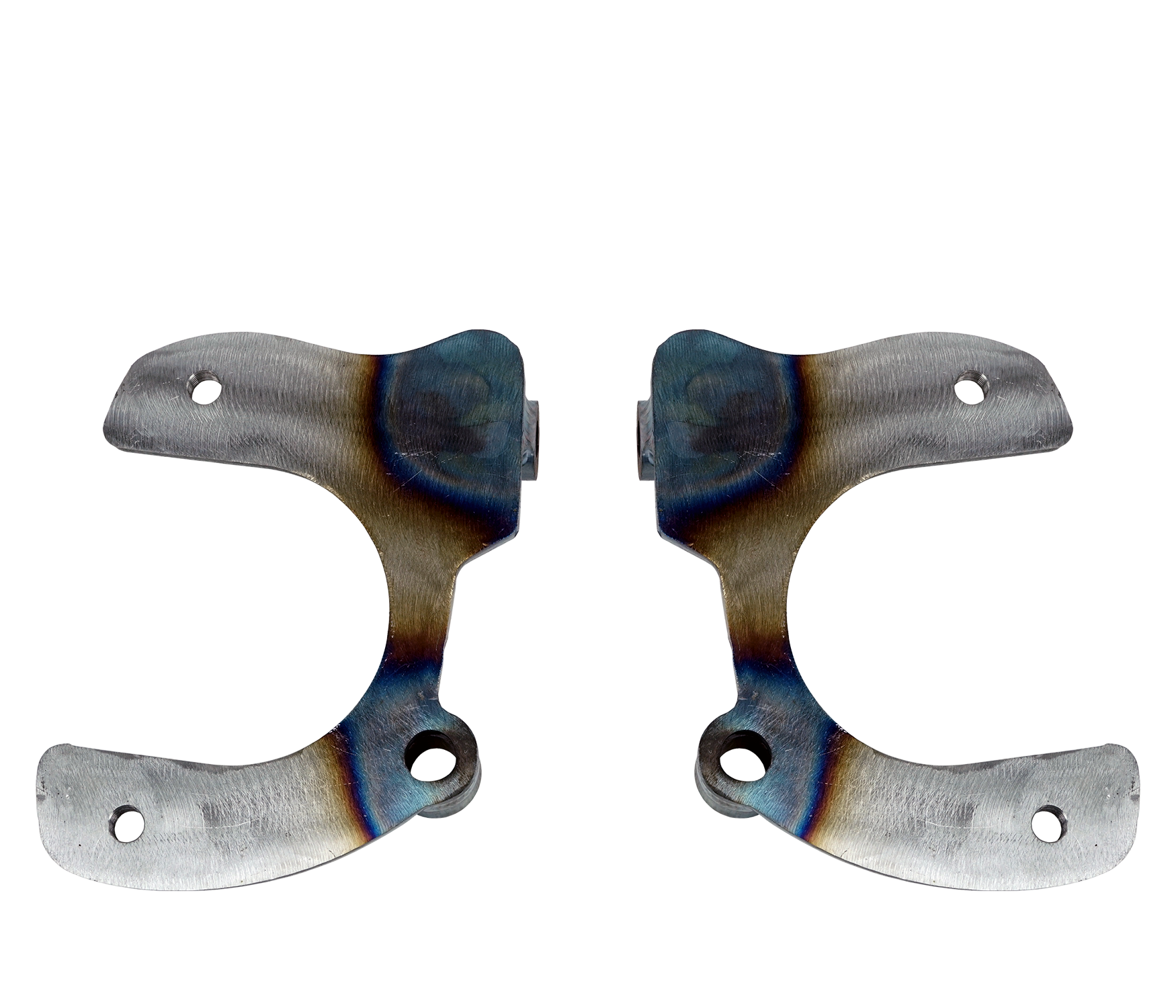

• 11” Plain Brake Rotors w/Single Piston GM Caliper (5 on 4.5” or 4.75” Bolt Pattern)

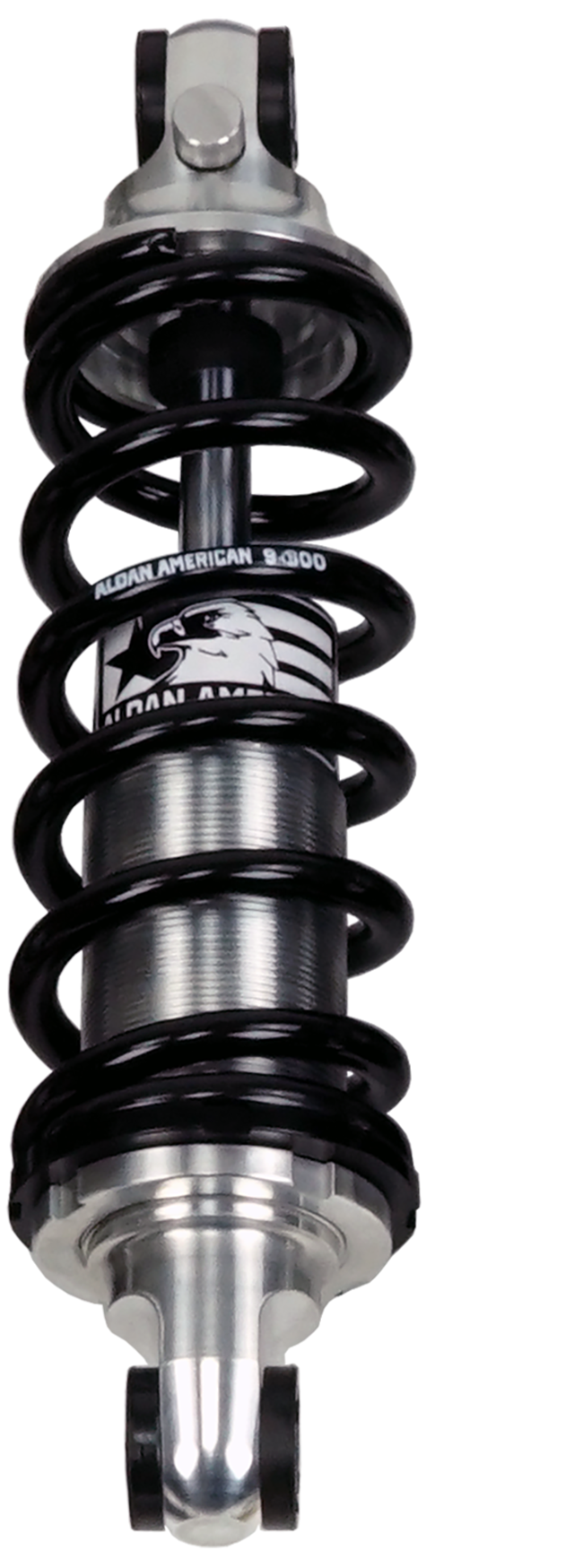

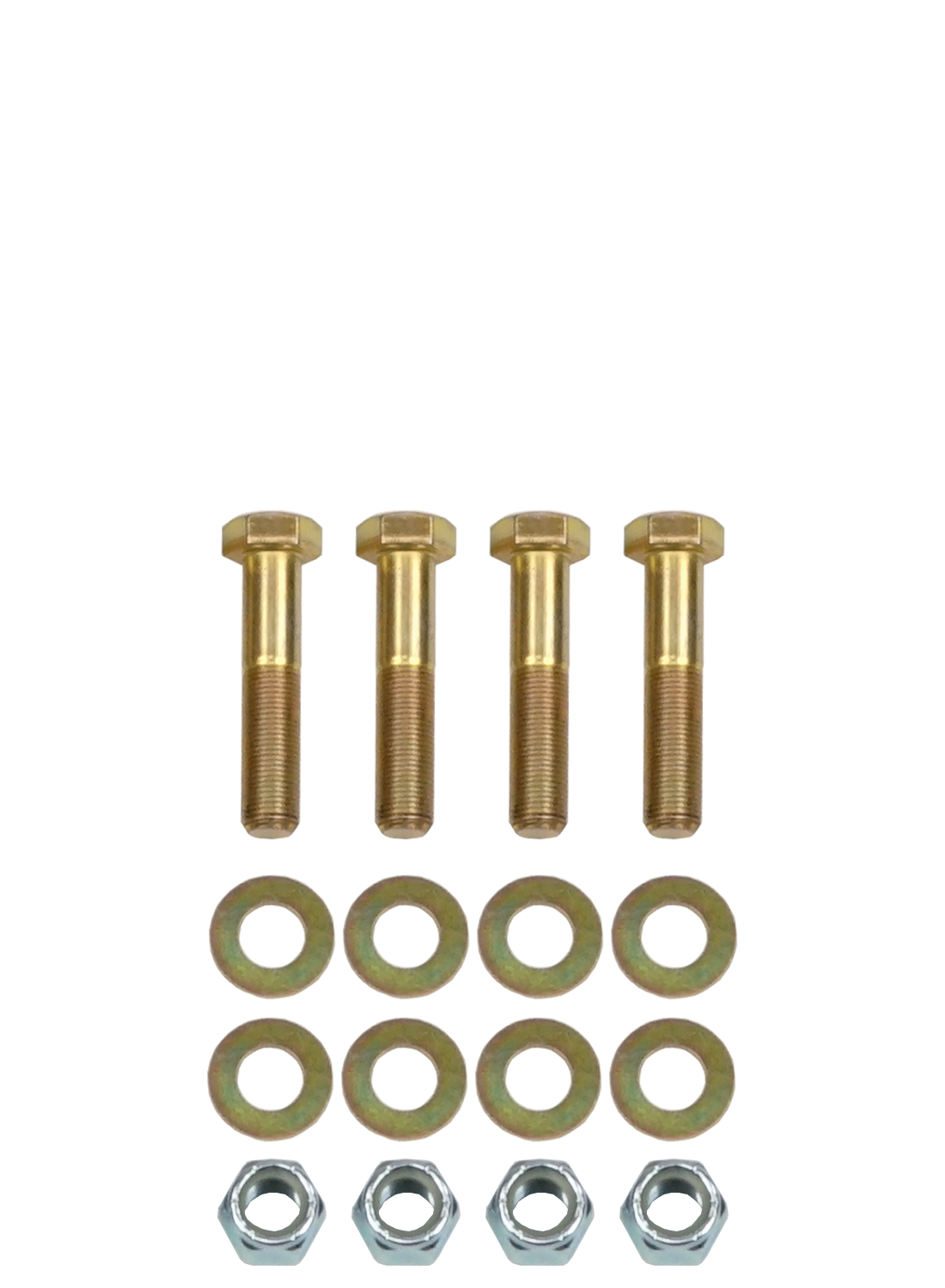

• Aldan American Single-Adjustable Coilovers or SuperSlam Airbags

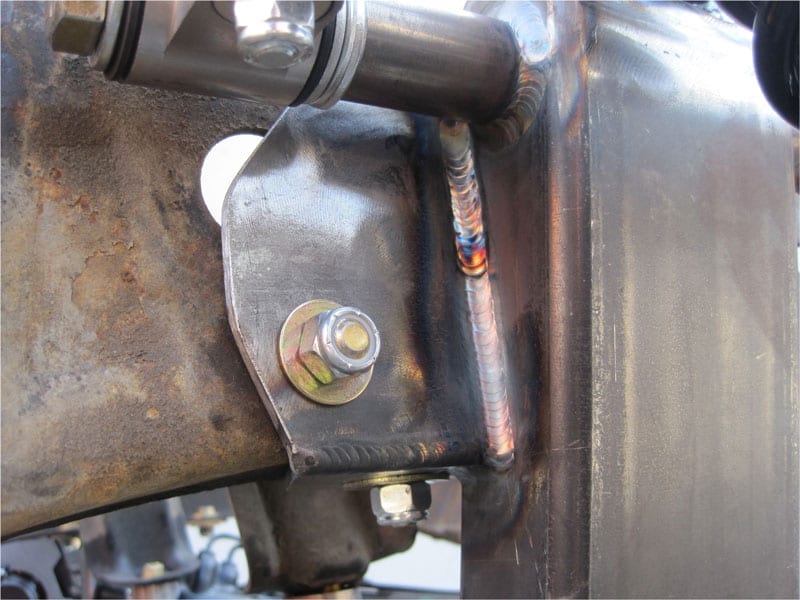

• Frame Boxing Cradle

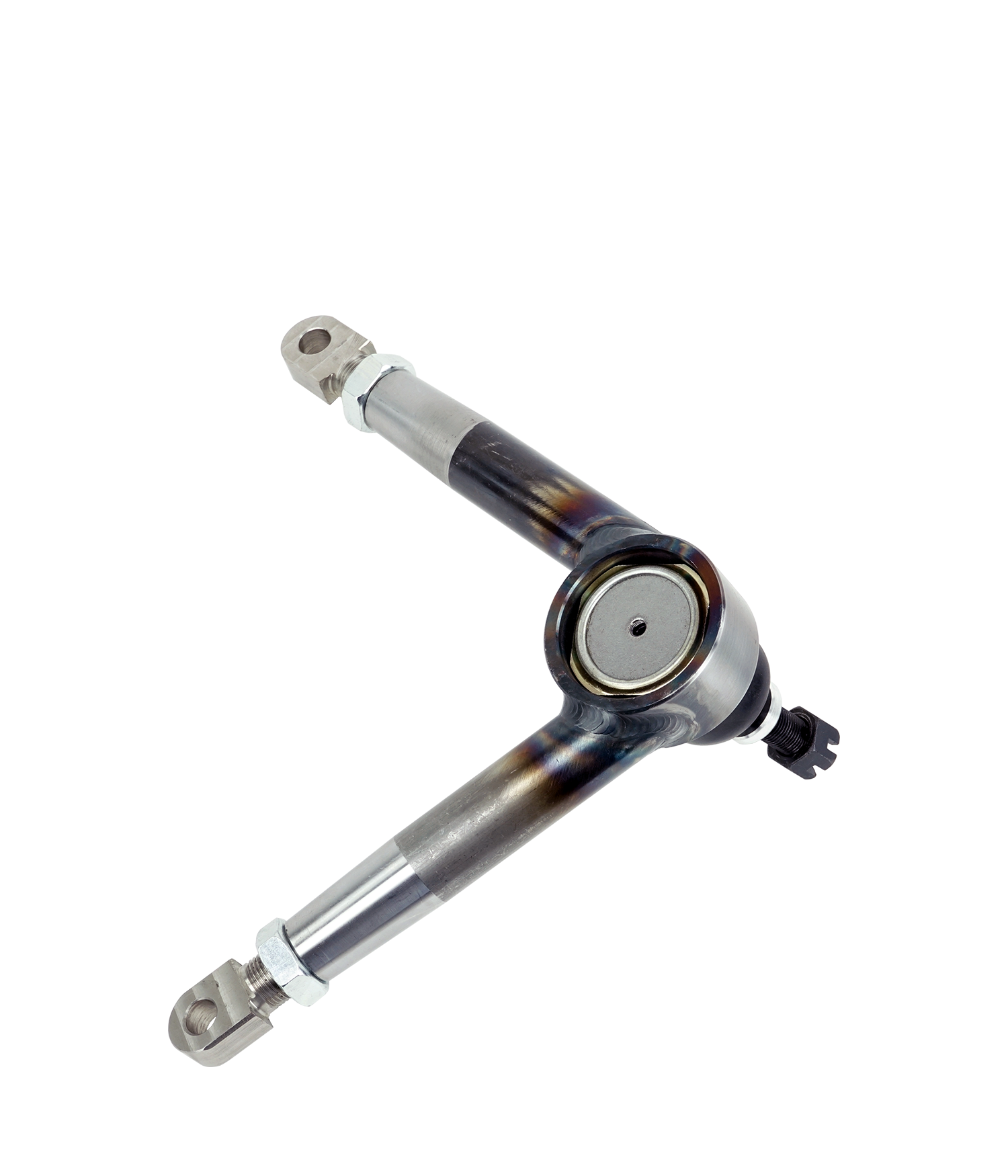

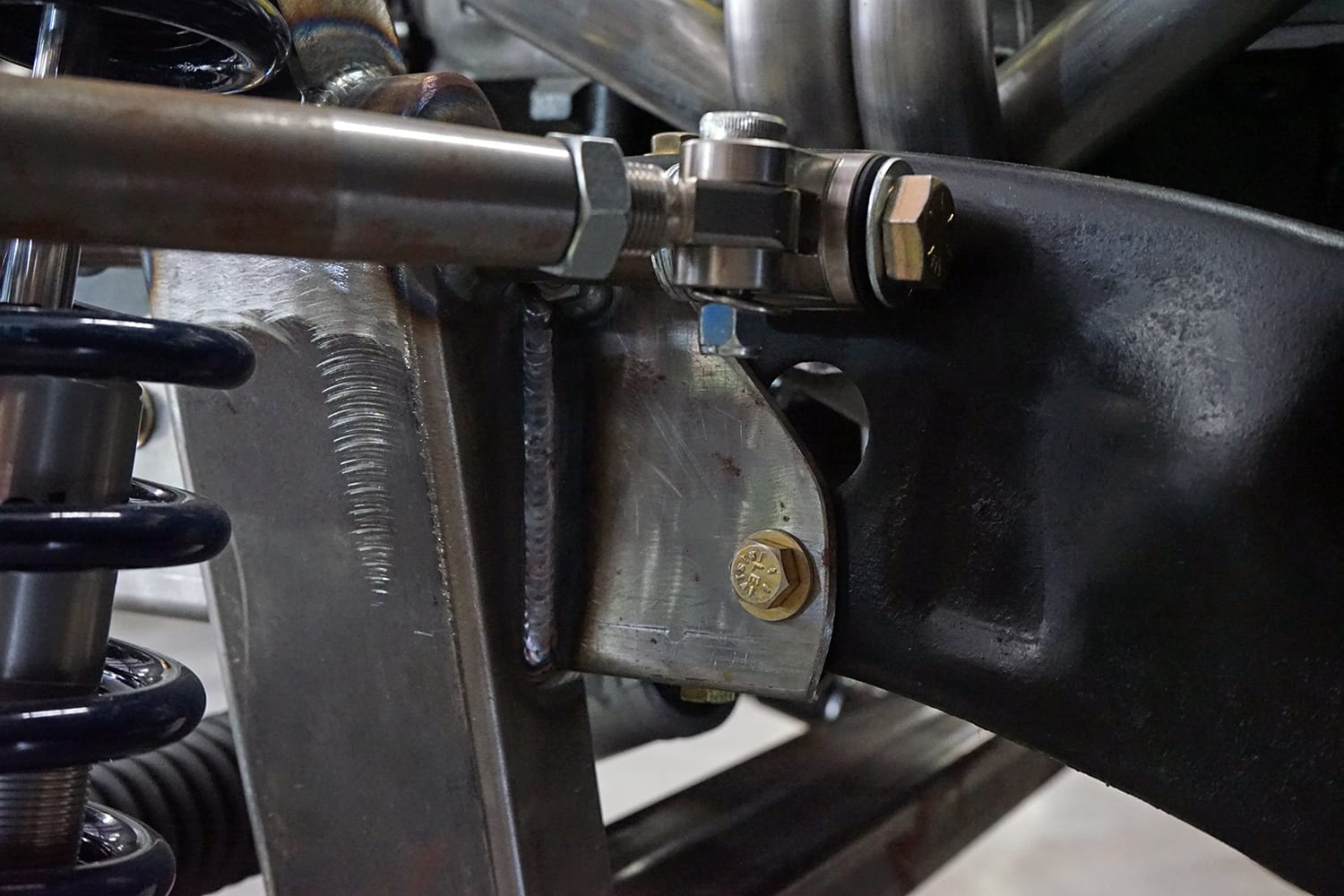

• Stainless Steel Fully Adjustable Upper A-Arm Rod Ends

• Built-in Anti-Dive

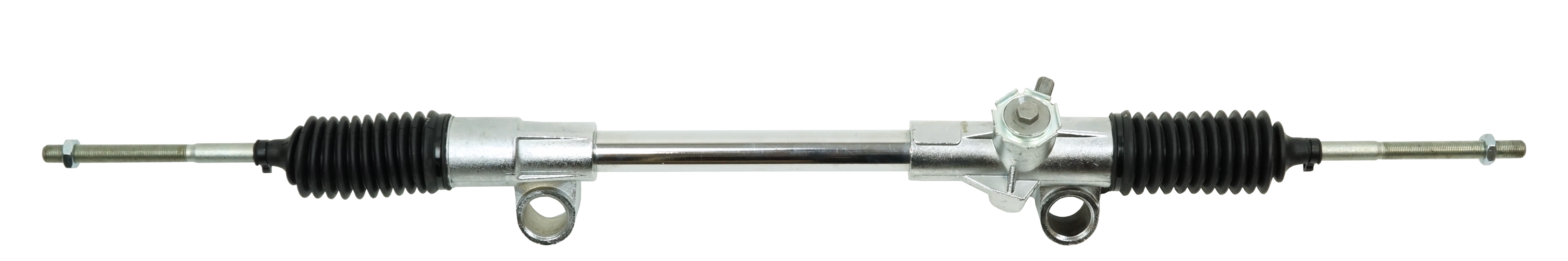

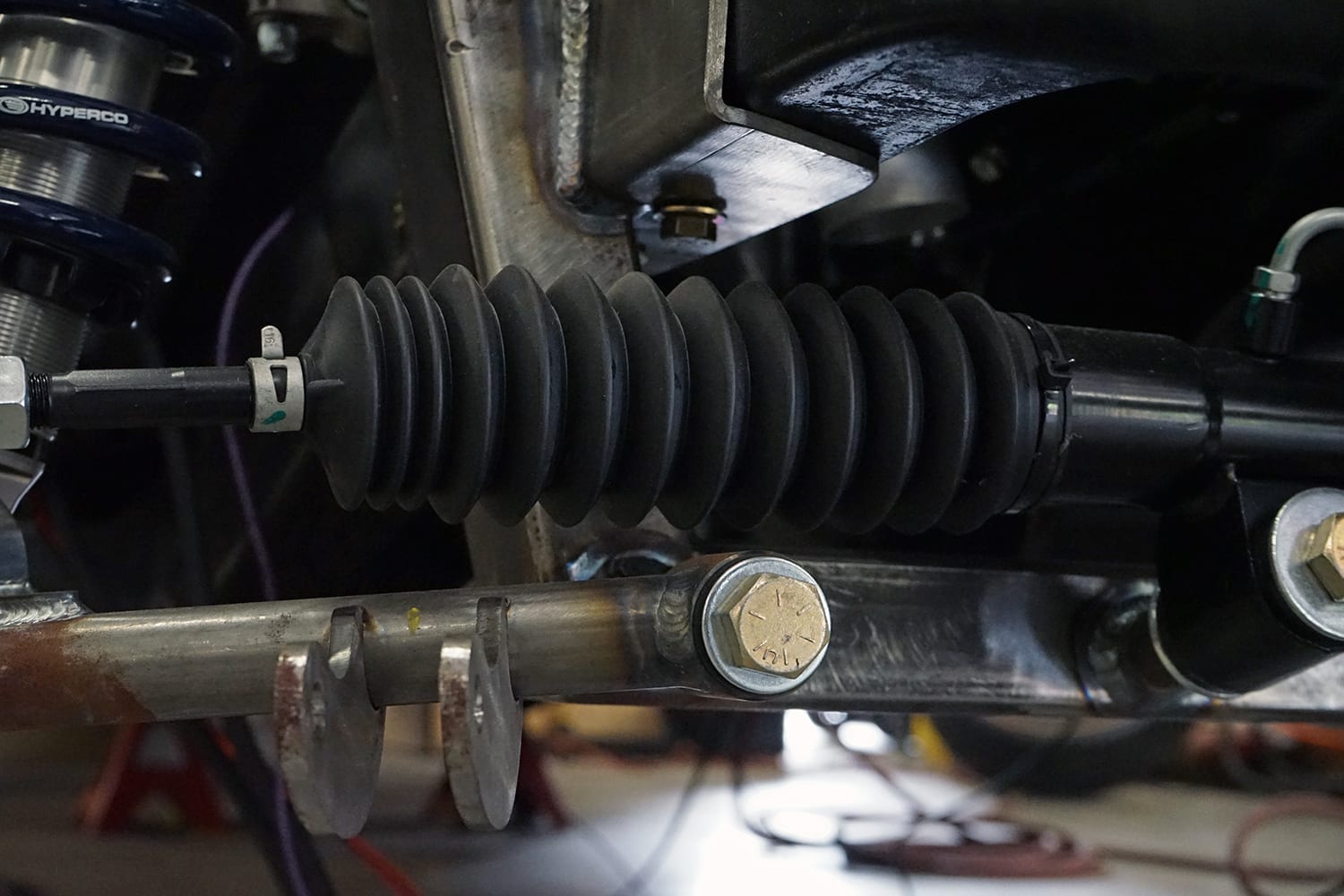

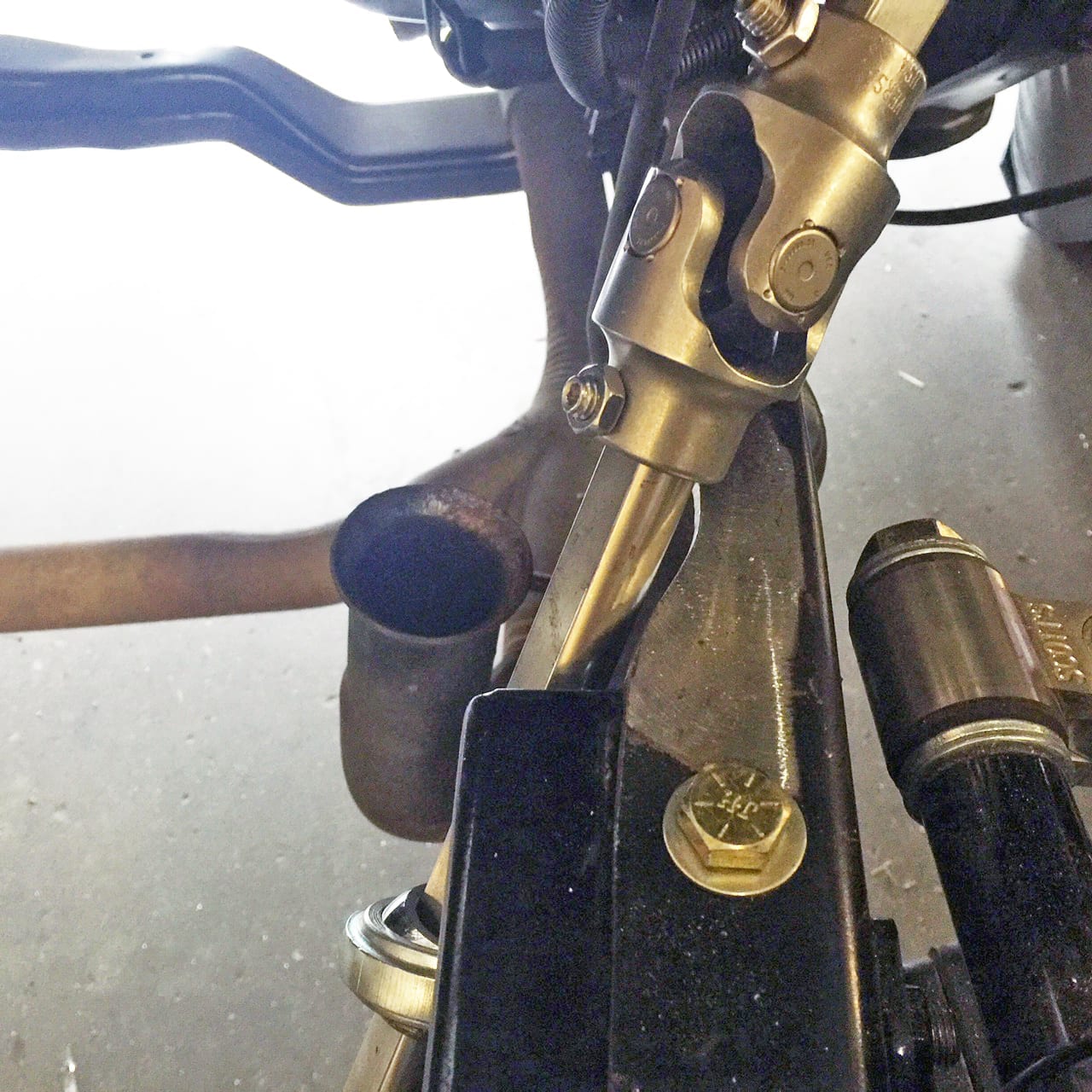

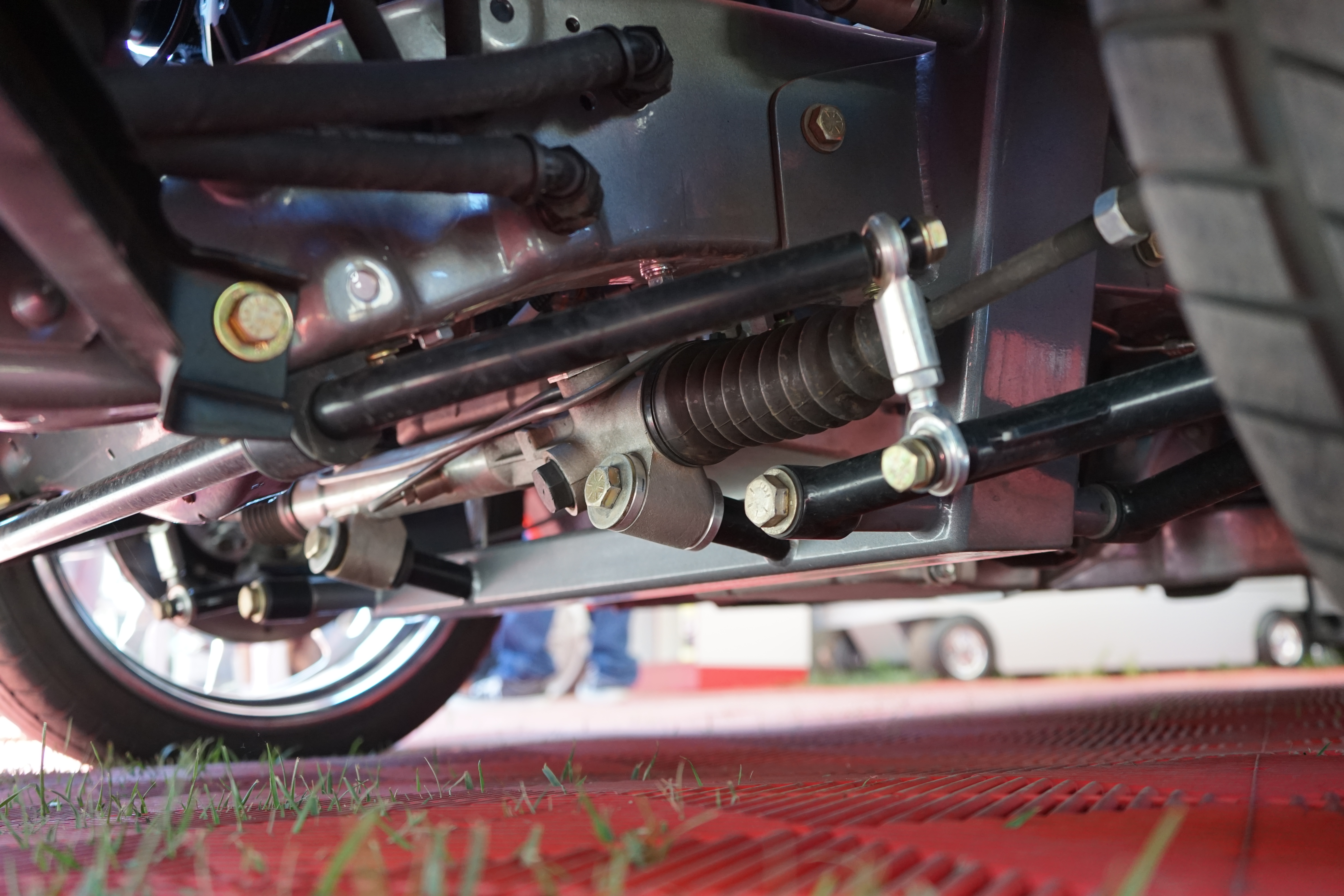

• Manual Steering Rack & Pinion

• Standard or Dropped Forged Steel Spindles

• LIFETIME GUARANTEE



Scott’s Hotrods 1963-87 Chevy/GMC C-10 Bolt-On IFS (for use with CPP Spindle)

• 1-piece Bolt-On crossmember 2”x4”x3/16”-wall box tubing

• Unequal-length A-Arms, 1-1/8”x1/4”-wall seamless DOM tubing

• ’73-’87 C10 Ball Joints

• Aldan American Single-Adjustable Coilovers or SuperSlam Airbags

• Frame Boxing Cradle

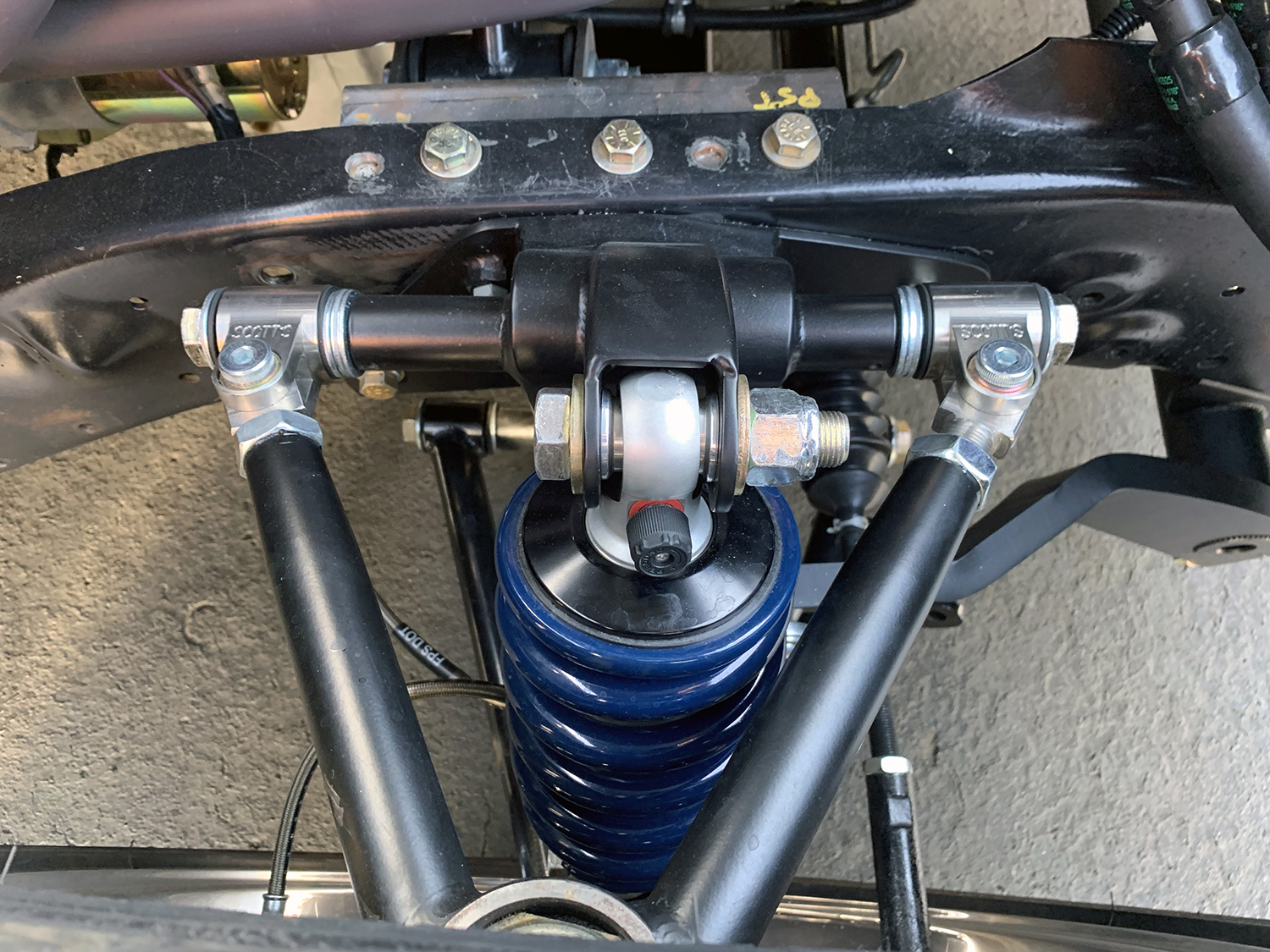

• Stainless Steel Fully Adjustable Upper A-Arm Rod Ends

• Built-in Anti-Dive

• Manual Steering Rack & Pinion

• Machined Outer Tie Rod Ends

• NO BRAKES. NO SPINDLES.

• LIFETIME GUARANTEE

Scott's Hotrods IFS Pricing 2026

ITEM/UPGRADEDESCRIPTIONPRICE
COILOVER IFS KITAldan Single-Adjustable Coilovers, Manual Rack, Tubular A-Arms, Forged Spindles, 11" Rotors, GM caliper, 5x4.5" or 4.75"$3,380
Spring Pocket Replacement IFS KITSpring Pocket Replacement Kits$3,655
Bolt-On IFS KITBolt-On IFS ('48-'54 & '63-'87 Chevy Trucks)$3,925
Bolt-On IFS ('55-'59 Chevy Trucks)$4,540
Van/Cabover IFS KITVan & Cabover IFS Kits$4,465
Rear Steer IFS KITPre 1934 Cars$4,660
IFS ClipCamaro$5,685
Tri 5$5,685
Nova II$4,740
75-79 Nova$5,685
SuperSlam KitsSlam Specialties SS-6 Bags, RideTech HQ Single-Adjustable Shocks+$440
C10 CradlesMotor Mount Cradles ONLY+$155
CoiloversAldan American Single-Adjustable$0
RideTech Single-Adjustable+$820
Aldan American Double-Adjustable+$500
RideTech Triple-Adjustable+$1,900

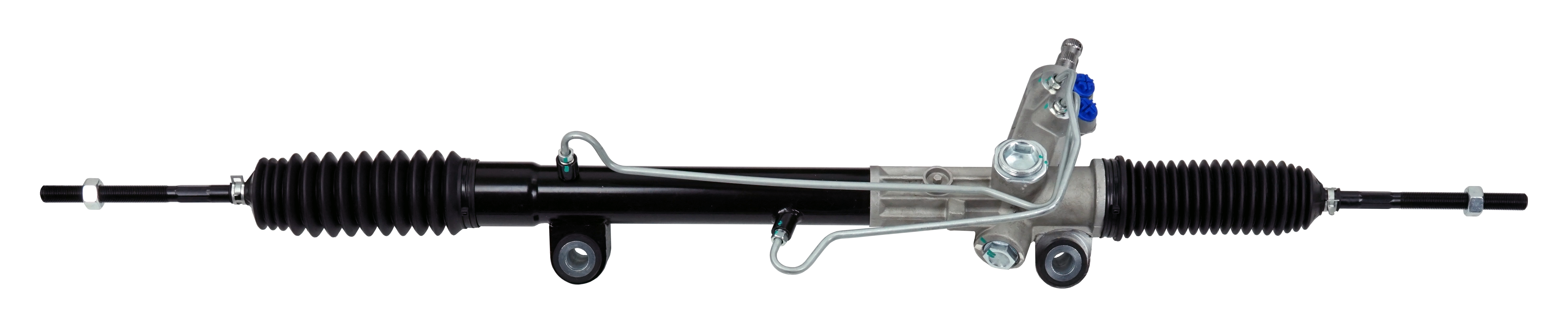

Rack & PinionPower Rack & Pinion+$330
Right Hand Drive Power Rack & Pinion+$990
Rear Steer Power Rack & Pinion+$990

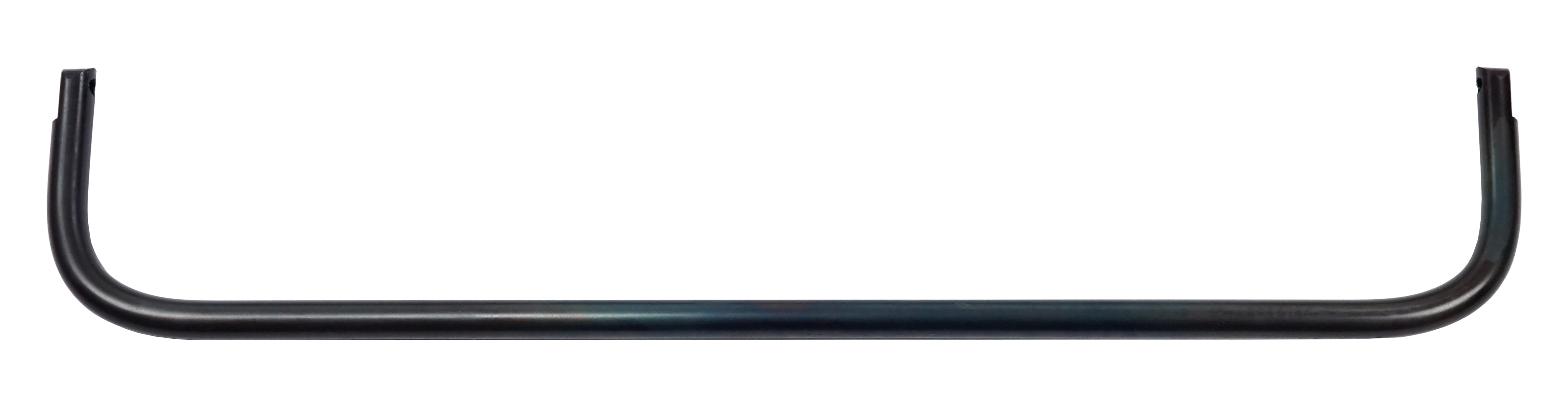

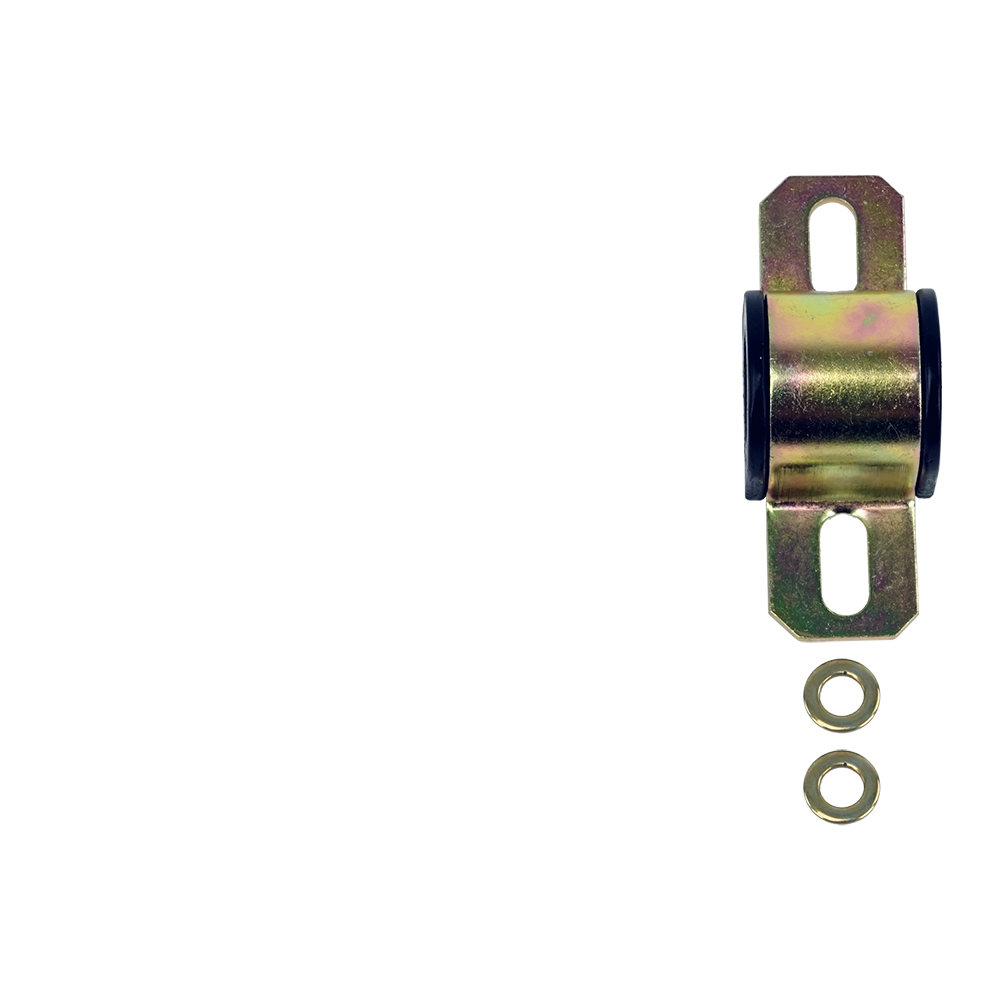

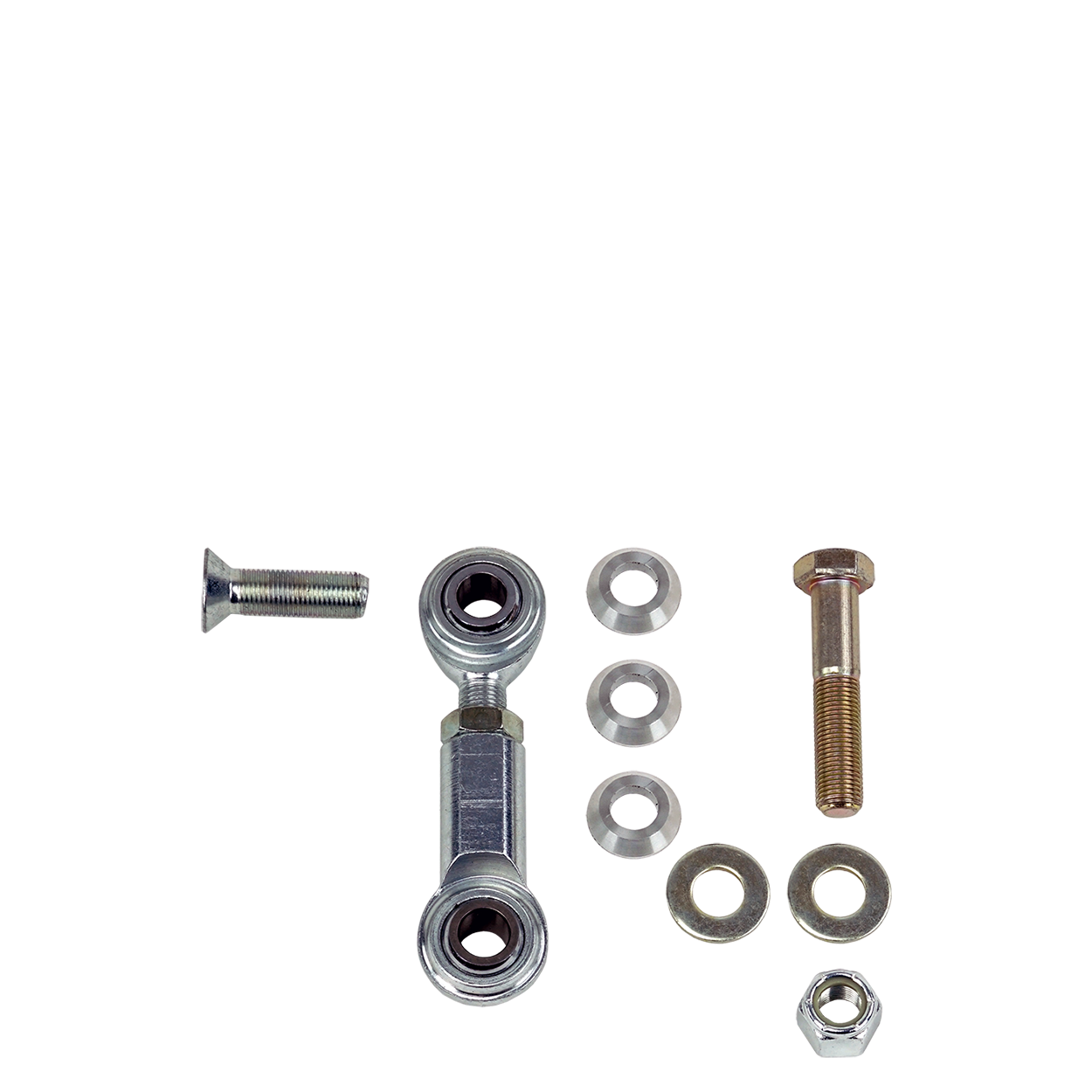

Sway Bar1" Solid Sway Bar+$390
Torsion Spline Sway Bar+$840

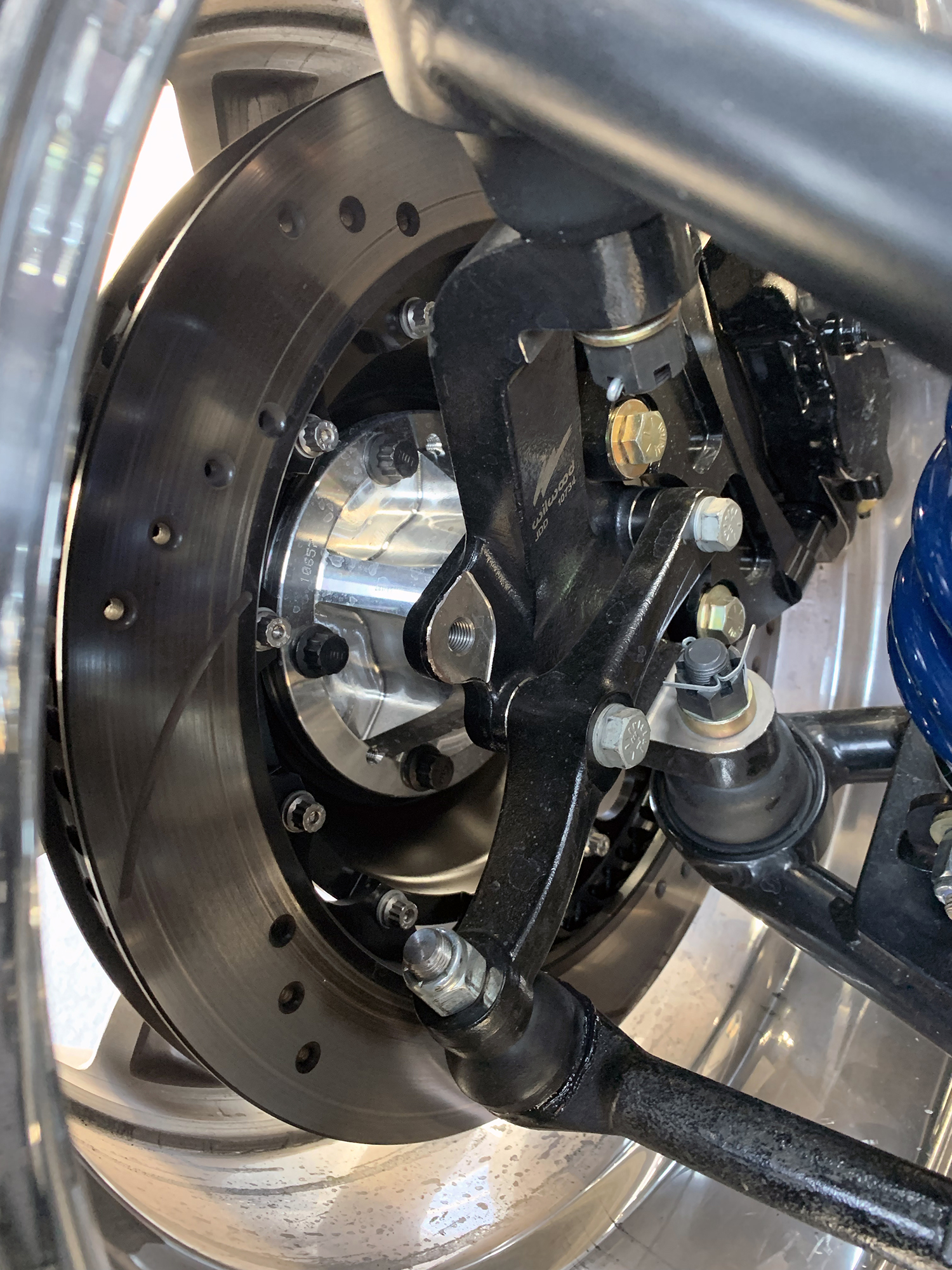

Wilwood SpindlesWilwood ProSpindle, Standard or Drop+$430

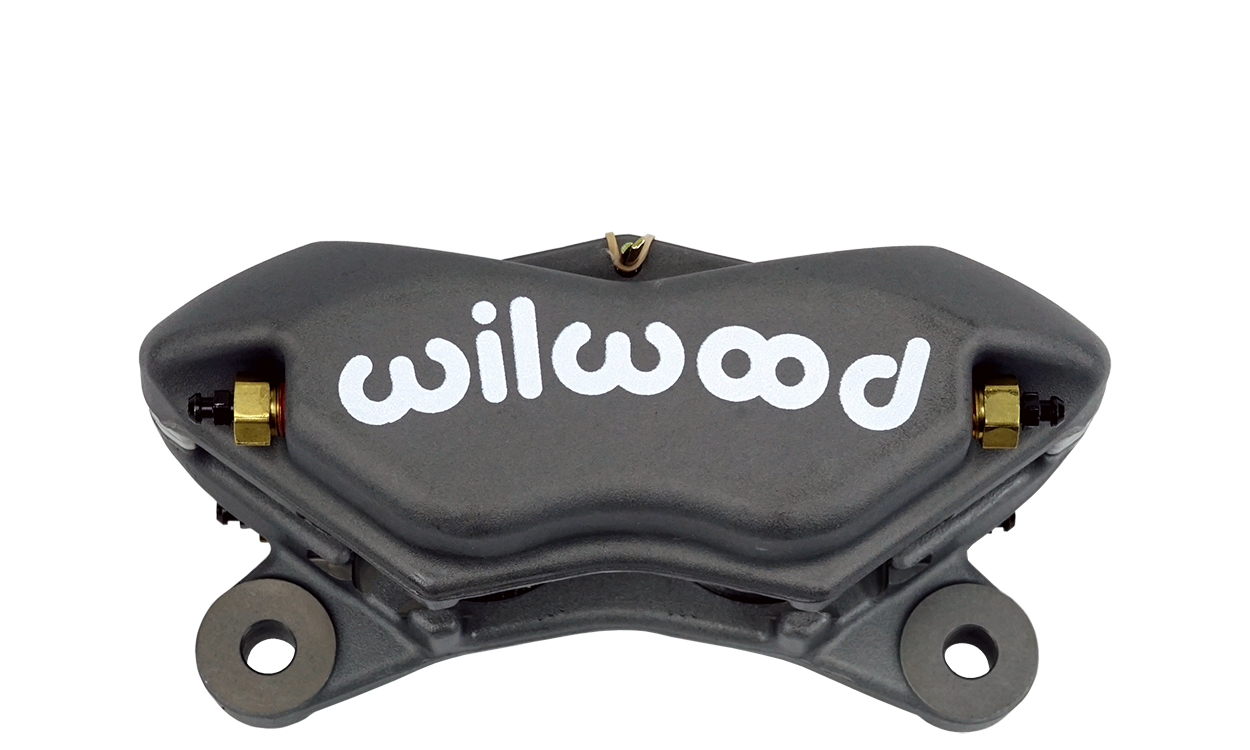

Brakes UpgradesWilwood Calipers ONLY, 4-Piston, Black or Red (15" Diameter Wheel Minimum)+$490
Wilwood Calipers ONLY, 4-Piston, Polished (15" Diameter Wheel Minimum)+$720
4-Piston11" D&S Wilwood Kit, Red or Black (15" Diameter Wheel Minimum)+$1,204
4-Piston11" D&S Wilwood Kit, Polished (15" Diameter Wheel Minimum)+$1,404
4-Piston12" D&S Wilwood Kit, Red or Black (16" Diameter Wheel Minimum)+$1,270
4-Piston12" D&S Wilwood Kit, Polished (16" Diameter Wheel Minimum)+$1,470
6-Piston12" D&S Wilwood Kit, Red or Black (16" Diameter Wheel Minimum)+$1,452
6-Piston13" D&S Wilwood Kit, Red or Black (17" Diameter Wheel Minimum)+$2,293
6-Piston13" D&S Wilwood Kit, Polished (17" Diameter Wheel Minimum)+$2,676
6-Piston14" D&S Wilwood Kit, Red or Black (18" Diameter Wheel Minimum)+$2,497
6-Piston14" D&S Wilwood Kit, Polished (18" Diameter Wheel Minimum)+$2,881
6-Piston, AERO614" D&S Wilwood Kit, Red or Black, AERO6 Caliper (18" Diameter Wheel Minimum)+$2,711
M2 PRO HUB*Sealed Hub Spindle, Drop Only+$650
4-Piston12" D&S Wilwood Kit, R OR B+$1,470
6-Piston12" D&S Wilwood Kit, R OR B+$1,452
6-Piston13" D&S Wilwood Kit, R OR B+$2,293
6-Piston14" D&S Wilwood Kit, R OR B+$2,676
6-Piston14" D&S Wilwood Kit, R OR B AERO+$2,497
6-Piston15" SLOT Wilwood Kit, R or B, AERO+$2,881
Special Bolt Pattern w/Standard Rotor5x5.5"
+$550
5x5"+$550
6-Lug+$550
5X5" 4-Piston
12" D&S Wilwood Kit, Red or Black, 5x5"+$1,861
6-Piston12" D&S Wilwood Kit, Red or Black, 5x5"+$2,079
6-Piston13" D&S Wilwood Kit, Red or Black (ProSpindle ONLY), 5x5"+$2,325
6-Piston14" D&S Wilwood Kit, Red or Black (ProSpindle ONLY), 5x5"+$2,529
AERO6-Piston15" D&S Wilwood Kit, Red or Black (ProSpindle ONLY) 19" Wheel Minimum$2,875

Scott's Hotrods BOLT-ON IFS Quote Form

A qualified professional mechanic or fabricator with the technical understanding of product function and installation procedures must install all Scott’s Hotrods products. Be sure to properly bleed your power rack

Installation Article by Classic Truck Performance:
https://digital.classictruckperformance.com/issue/march-2023rs/scotts-hotrods-ifs-system-front-suspension-and-steering-1964-c10/



We stand behind ALL of the parts we manufacture.  Other parts that we do not manufacture such as brakes, steering racks, ball joints, brake flex lines, power steering lines, etc carry their own manufacturers warranties.  We are not responsible for these items outside of their original warranty.

All of Scott’s Hotrods manufactured parts are guaranteed to be free of defects in materials & workmanship for the lifetime of the part. Scott’s Hotrods warranty is non-transferable.

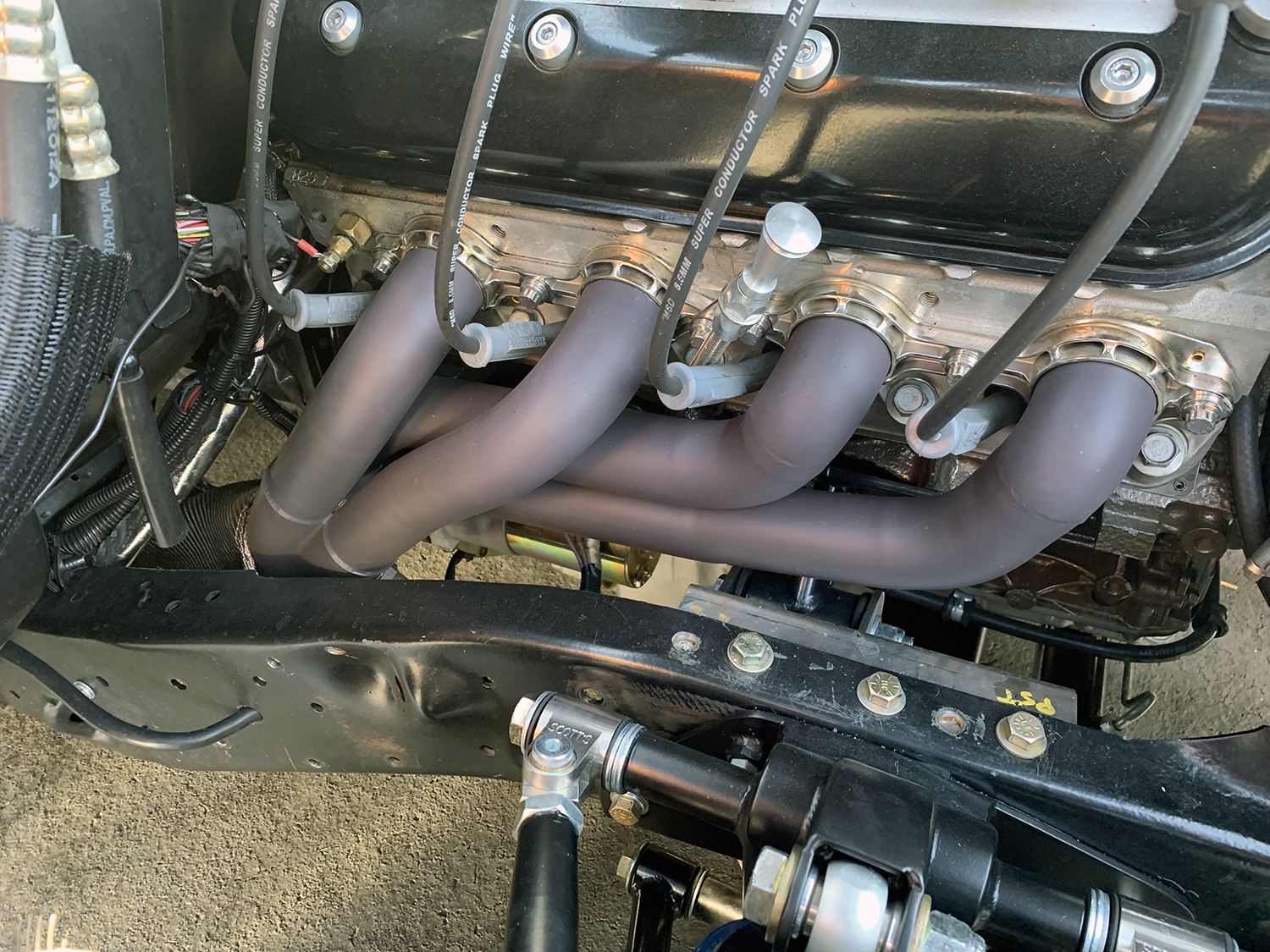

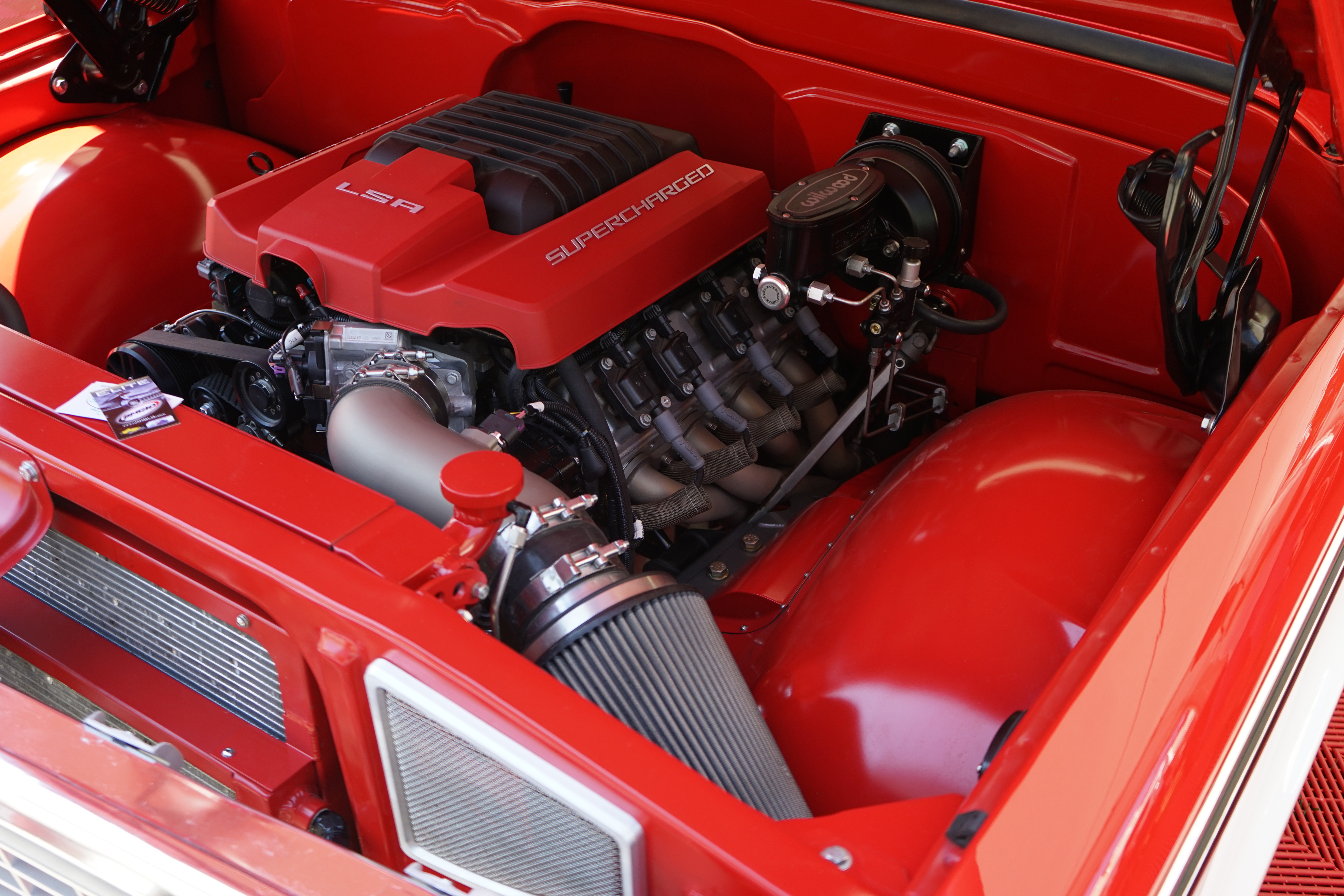

GM Performance Parts LS Engine Oil Pan 12628771

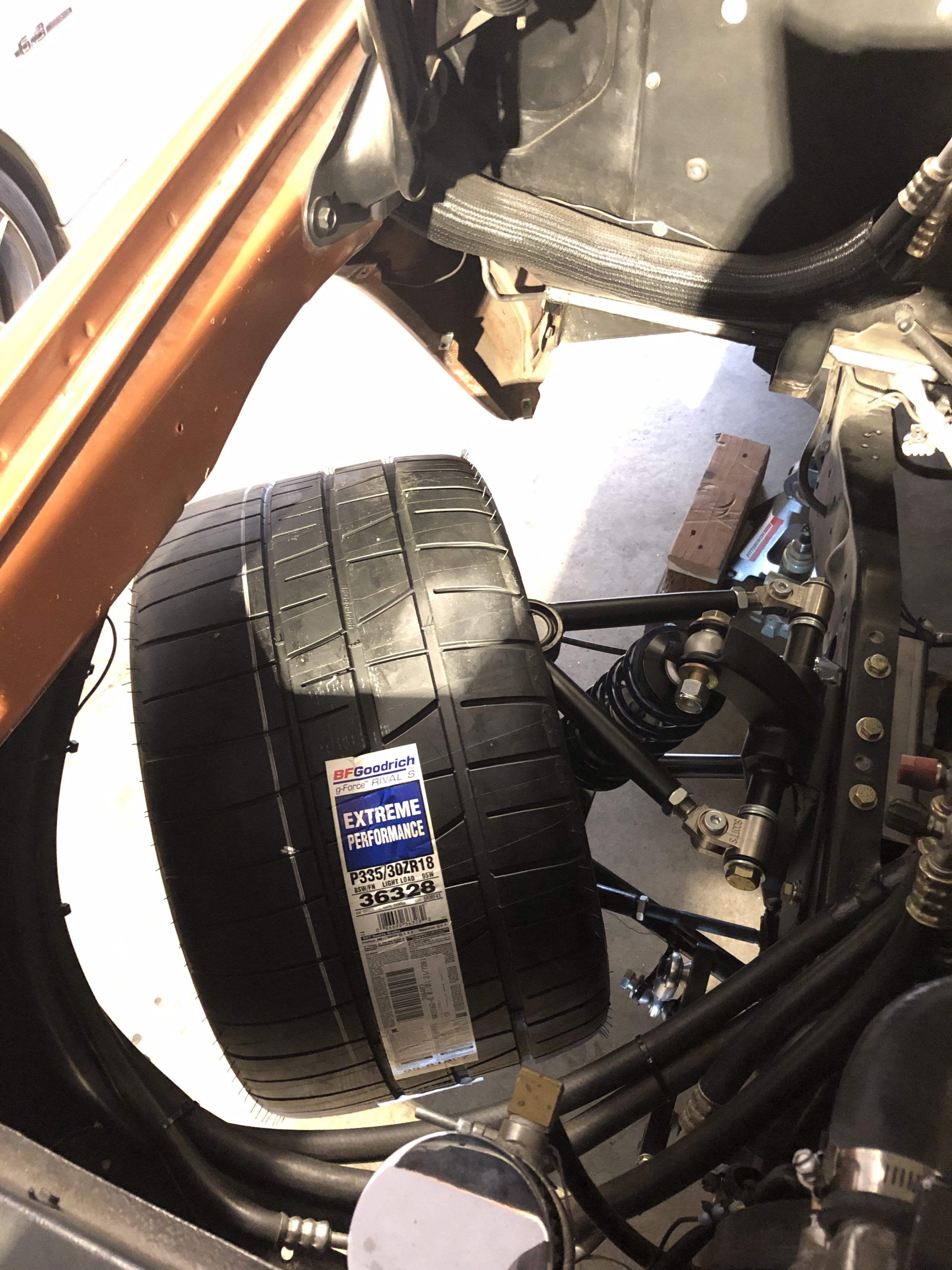

You can run up to a 12″ Wide Front Wheel with 7-1/4″ to 7-3/4″ Backspacing with this C10 Independent Front Suspension Kit. You must specify this option when making your order so we can build your kit accordingly.

Modern C10 Performance Without Replacing Your Factory Frame

Your classic Chevy or GMC truck may have been built decades ago, but it doesn’t have to drive like it. Scott’s Hotrods 1963-1987 C10 Bolt-On IFS transforms the original front suspension with modern Independent Front Suspension geometry, rack & pinion steering, heavy-duty Tubular A-Arms and your choice of Coilovers or SuperSlam Airbags—all while retaining your original C10 frame. Whether you’re upgrading a 1963-1966 Chevy/GMC truck, 1967-1972 C10 or 1973-1987 Squarebody, every system is engineered specifically for the vehicle and the way you intend to drive it.

Like every Scott’s Hotrods IFS, our C10 Bolt-On system is NOT a Mustang II kit and is never treated as a one-size-fits-all suspension. Each crossmember is manufactured from heavy-duty 2″x4″x3/16″-wall box tubing, paired with 1-1/8″x.250-wall DOM Tubular A-Arms, precision components, built-in anti-dive and 5/8″ or larger Grade 8 hardware. Every Scott’s-manufactured component is engineered, fabricated, 100% TIG welded and quality checked in Knoxville, Tennessee before it leaves our facility.

From a comfortable weekend cruiser and daily-driven restomod to a high-horsepower Pro Touring C10 or frame-laying Squarebody, Scott’s Hotrods gives you the suspension foundation to make your classic truck handle, steer, ride and perform like a modern vehicle—without sacrificing the truck that made you want to build it in the first place.
