Why is Scott’s Hotrods IFS Different?

Our Independent Front Suspension is NOT a Mustang II.  We do not use a 3-piece style crossmember with spring pocket hats. We do not use T-Bolt slider adjusters that CAN come lose.  We only use Coilovers or Airbags w/ external shock.  Our Suspension can be dialed in precisely and can never be knocked out of alignment.  We 100% TIG Weld our kits.  We only use 5/8″ Grade 8 Hardware.

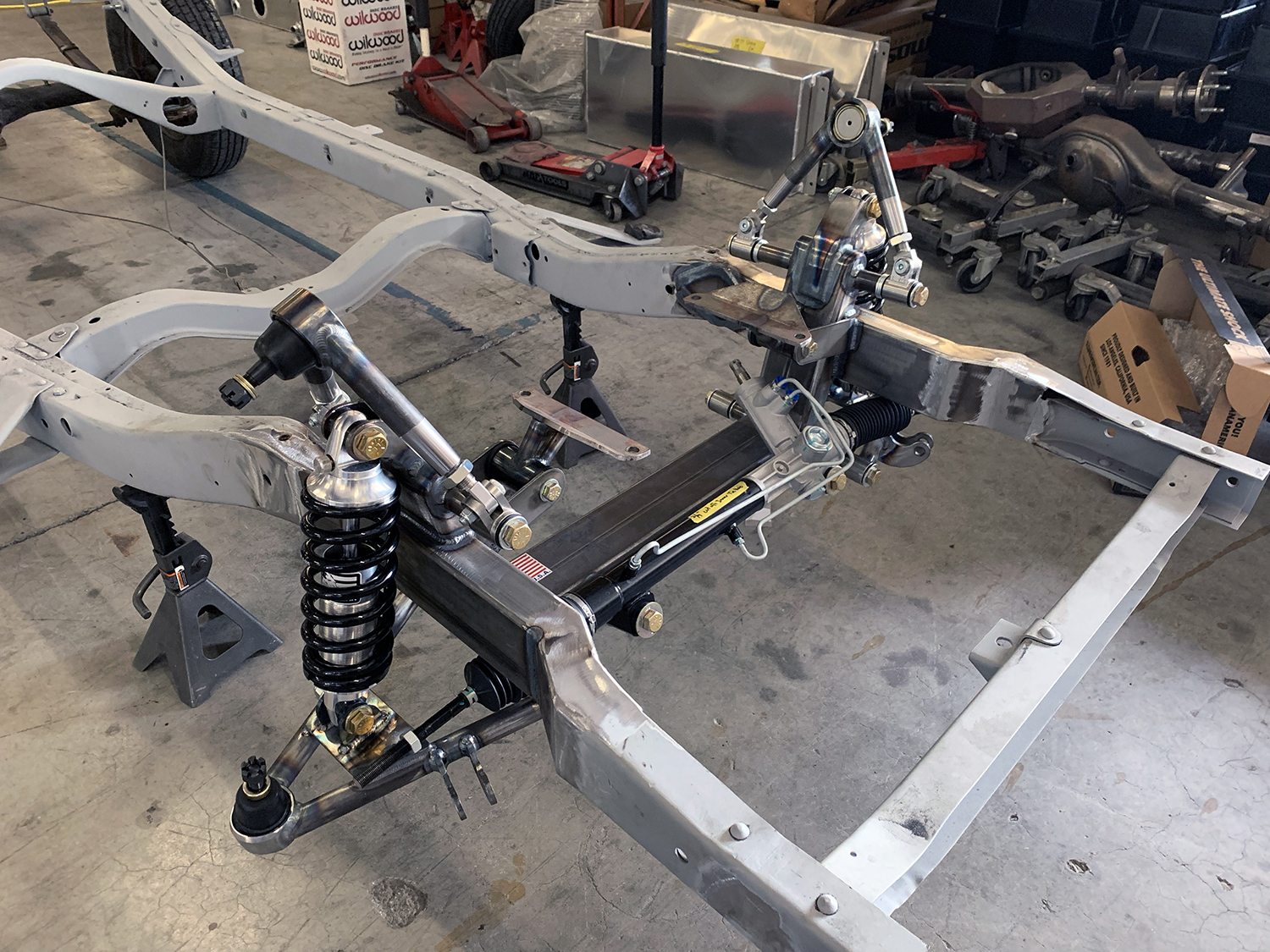

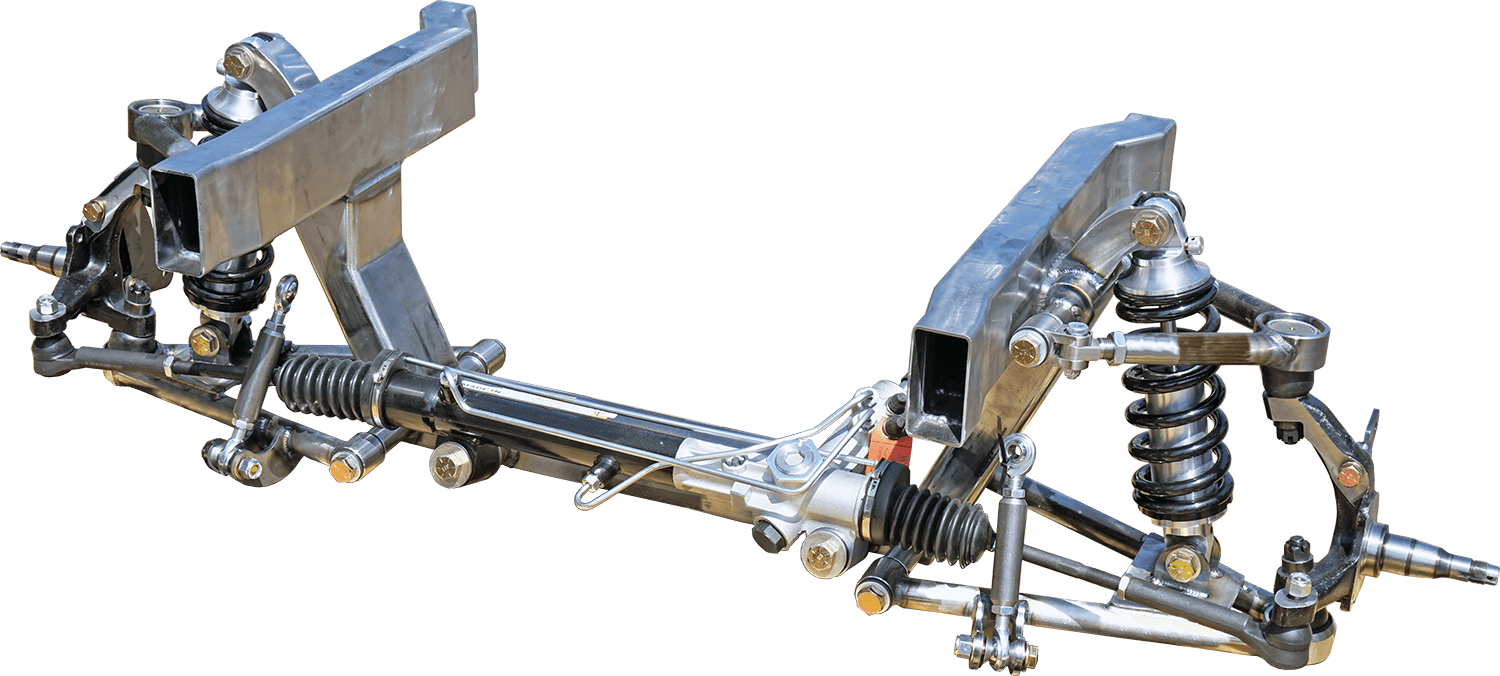

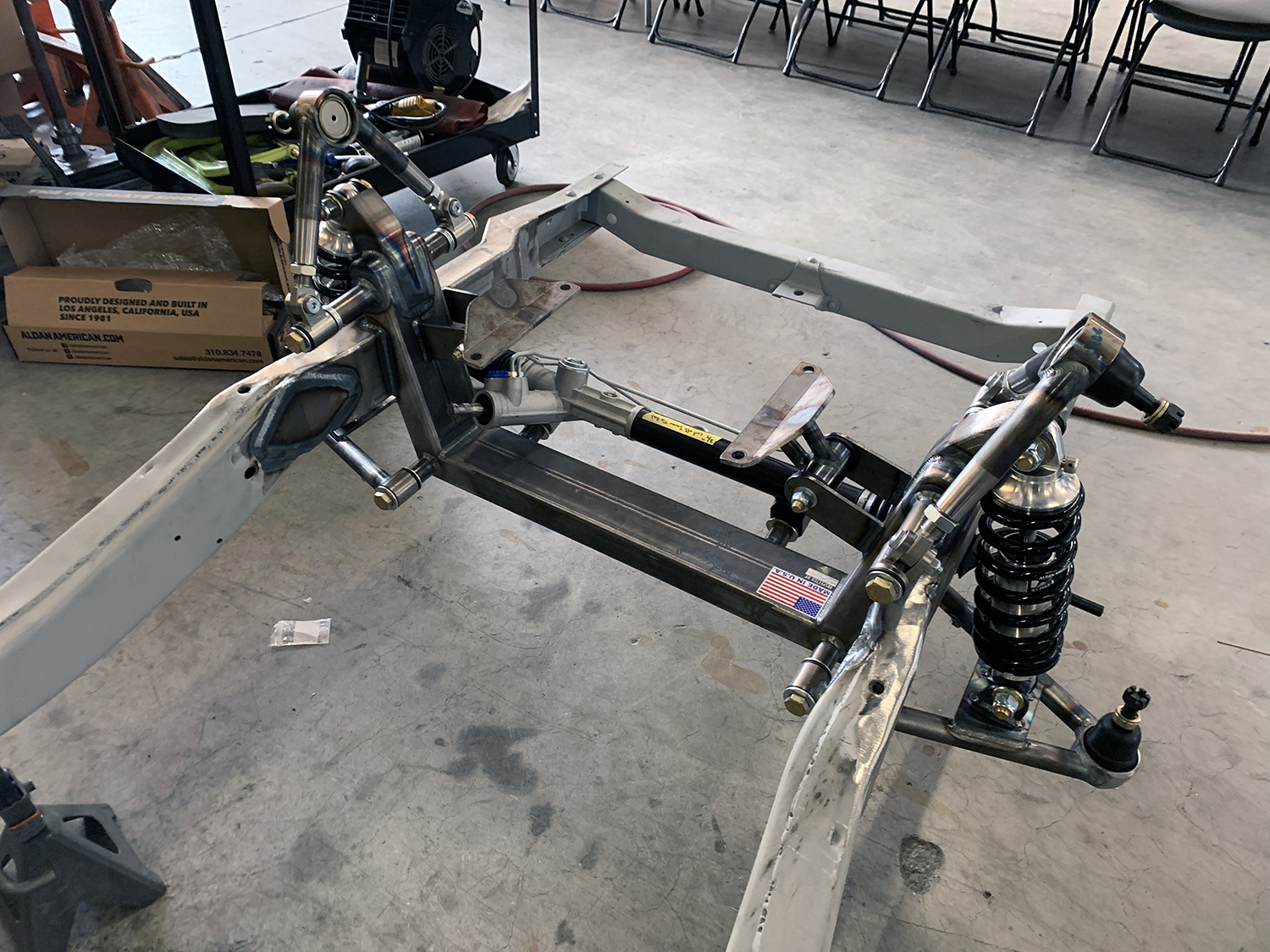

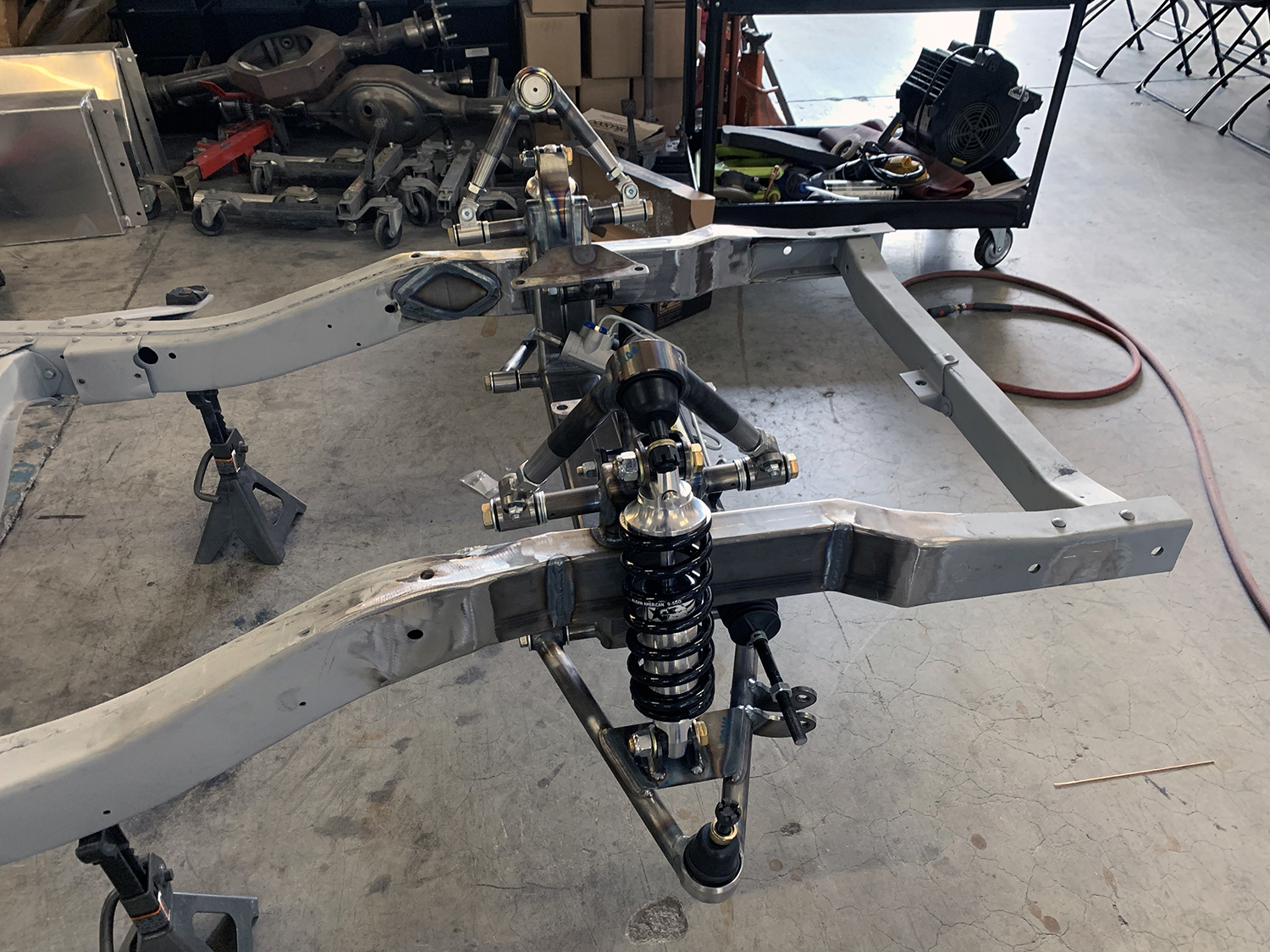

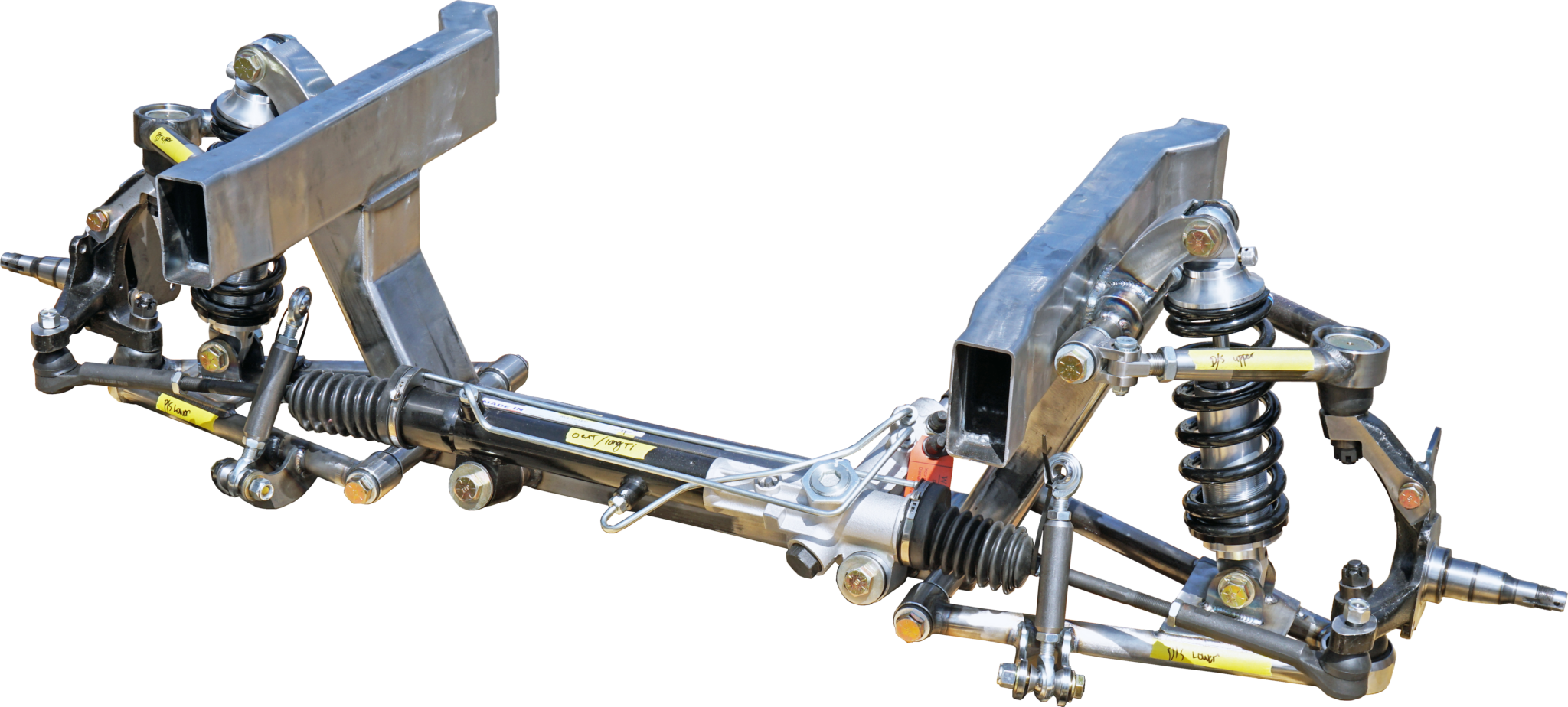

Scott’s Spring Pocket Replacement IFS is designed for vehicles that feature a Spring Pocket Frame from the factory.  These IFS kits come with a 2”x4” frame rail stubs welded into our 1-piece crossmember. These kits are available with coilovers or airbags & shocks.  You will have to cut out the spring pocket frame section on your existing frame and then graph in the new crossmember.  Yes, this is a little more work than our Standard IFS install and it is totally worth it!  No other company can improve your handling characteristics like Scott’s Hotrods ‘n Customs.

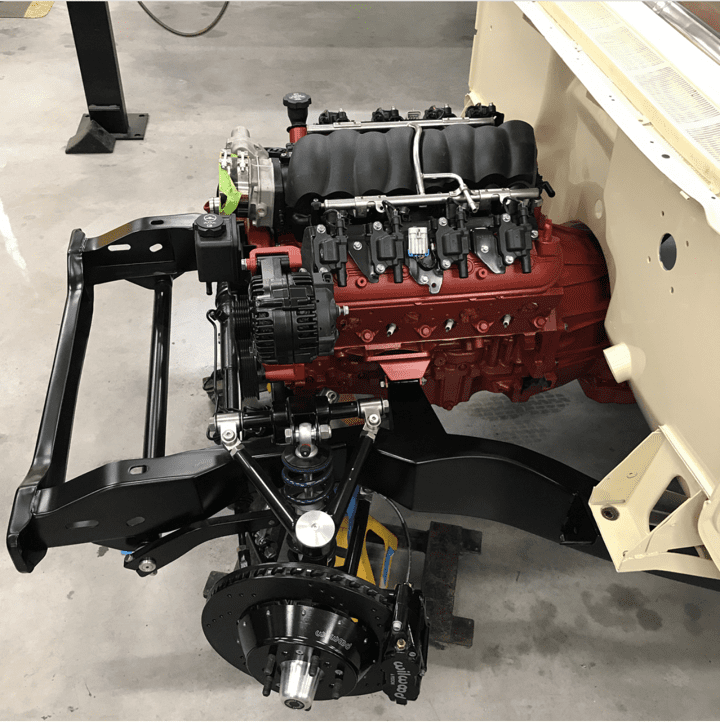

Want to swap in a late model drivetrain?

Want a specific ride height?

Cruiser, Drag Race or ProTouring?

We have you covered!

Starting at $2,695

Call To Order Today!

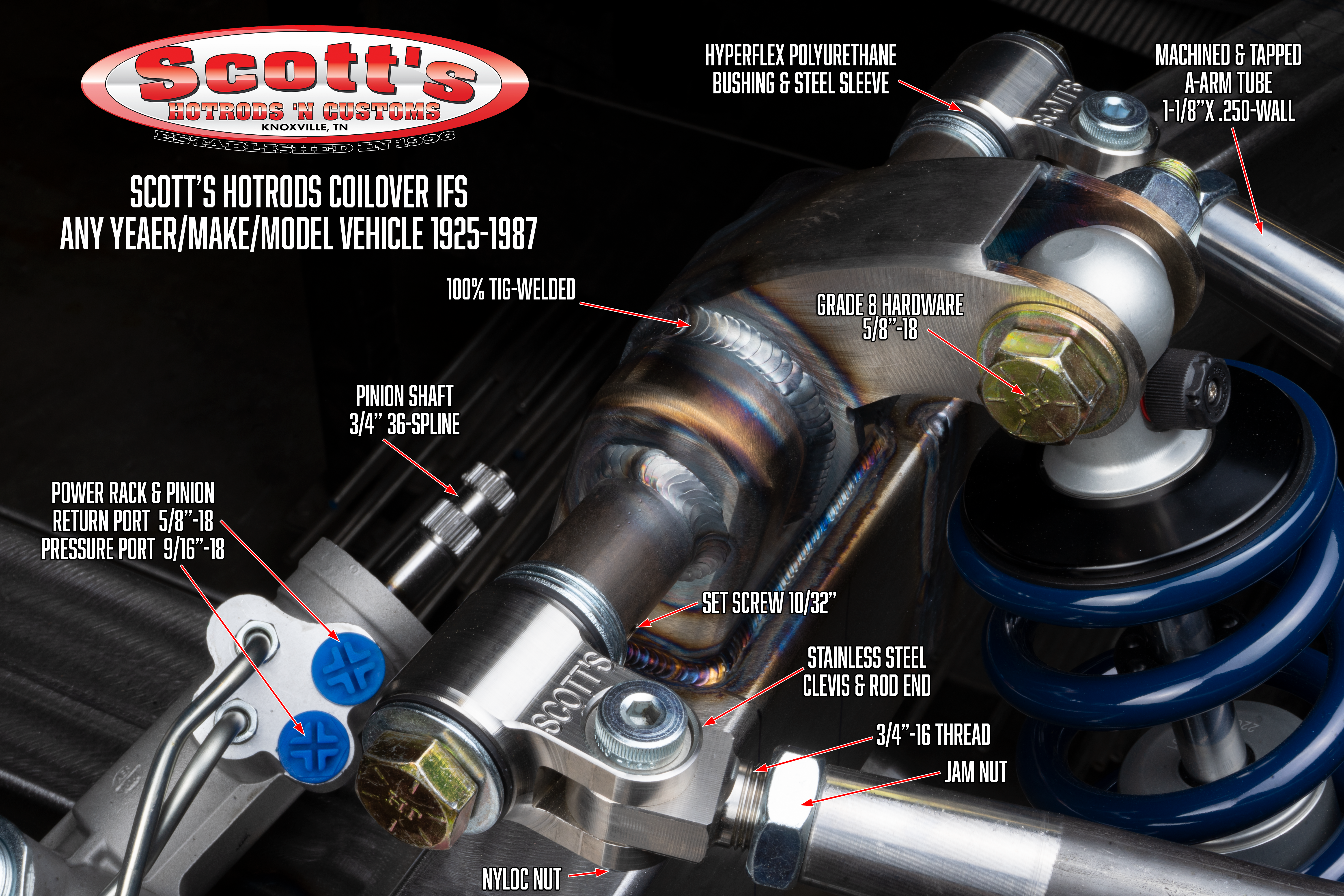

  • One-piece crossmember 2”x4”x3/16”-wall tubing
  • Partial Frame Rail stubs

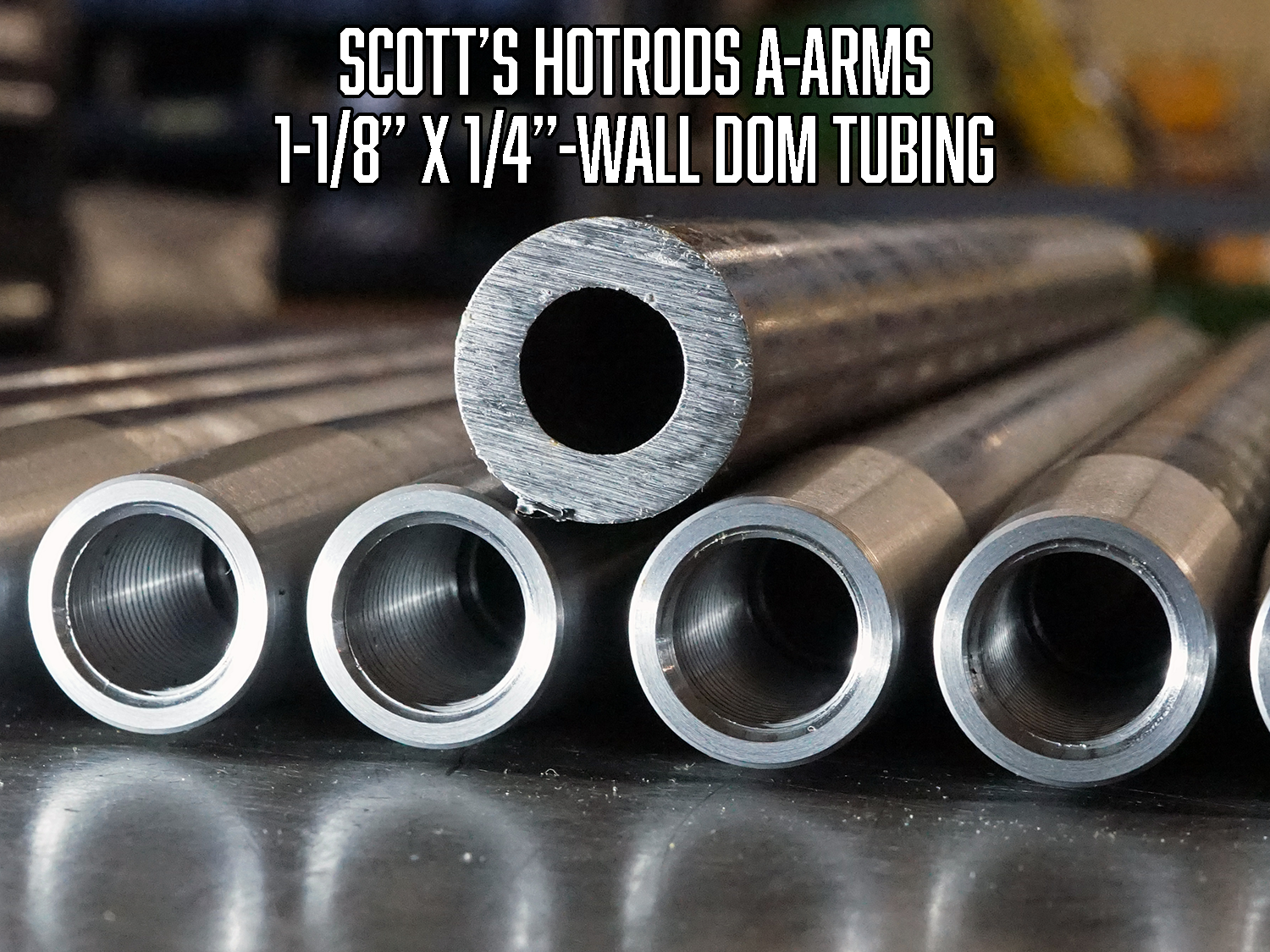

  • Tubular Upper & Lower A-Arms, 1-1/8”x1/4”-wall DOM
  • Stainless Steel CNC Machined Fully Adjustable Upper A-Arm Rod Ends
  • Oversized Serviceable Press-In Ball Joints
  • 11” Plain Vented Brake Rotors w/Single-Piston GM Caliper (5 on 4.5” or 4.75” Bolt Pattern)
  • Aldan American Single-Adjustable Coilovers Slam Specialties SS-6 Slam bags w/internal bump

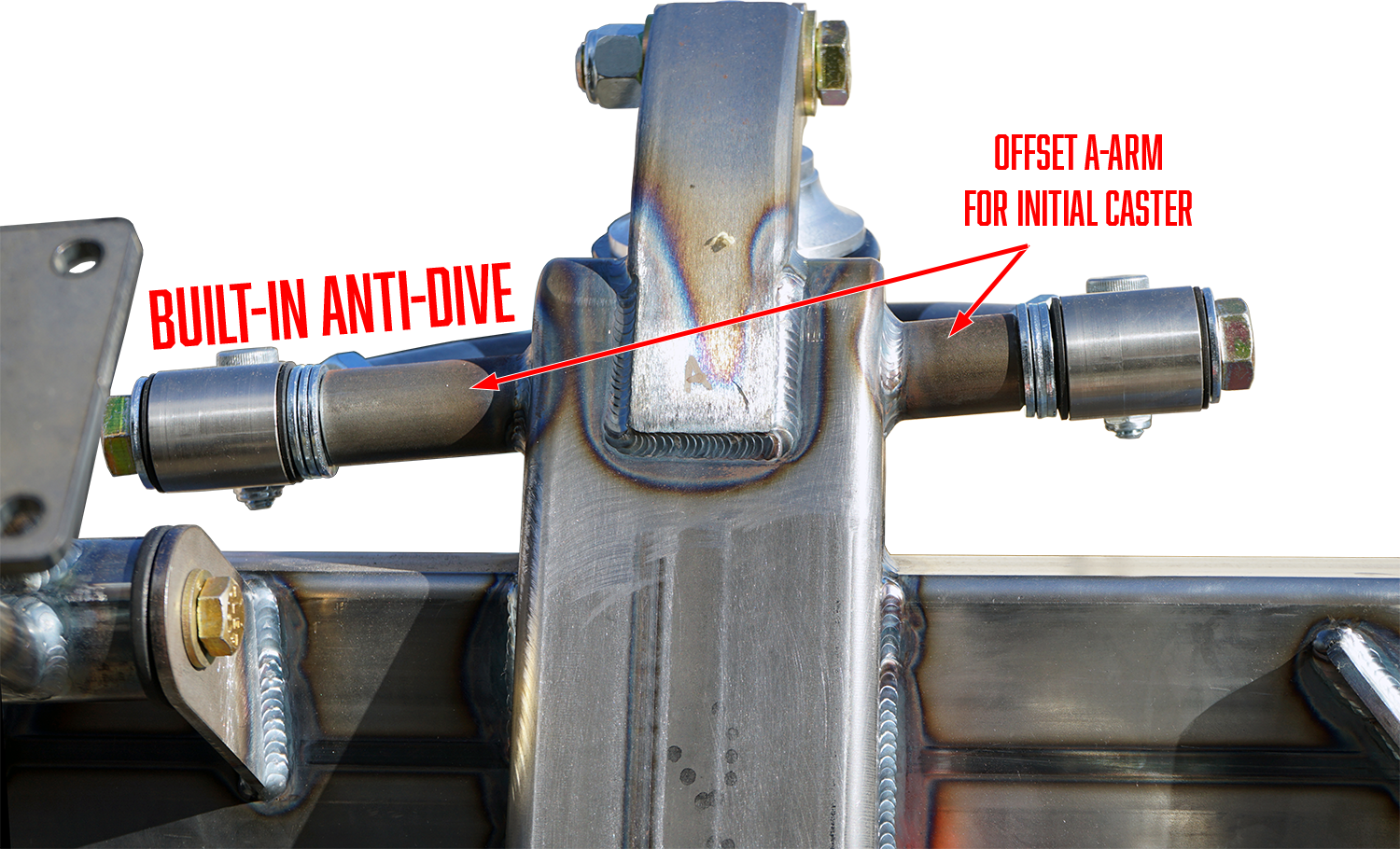

  • Built-in Anti-Dive
  • Manual Steering Rack & Pinion

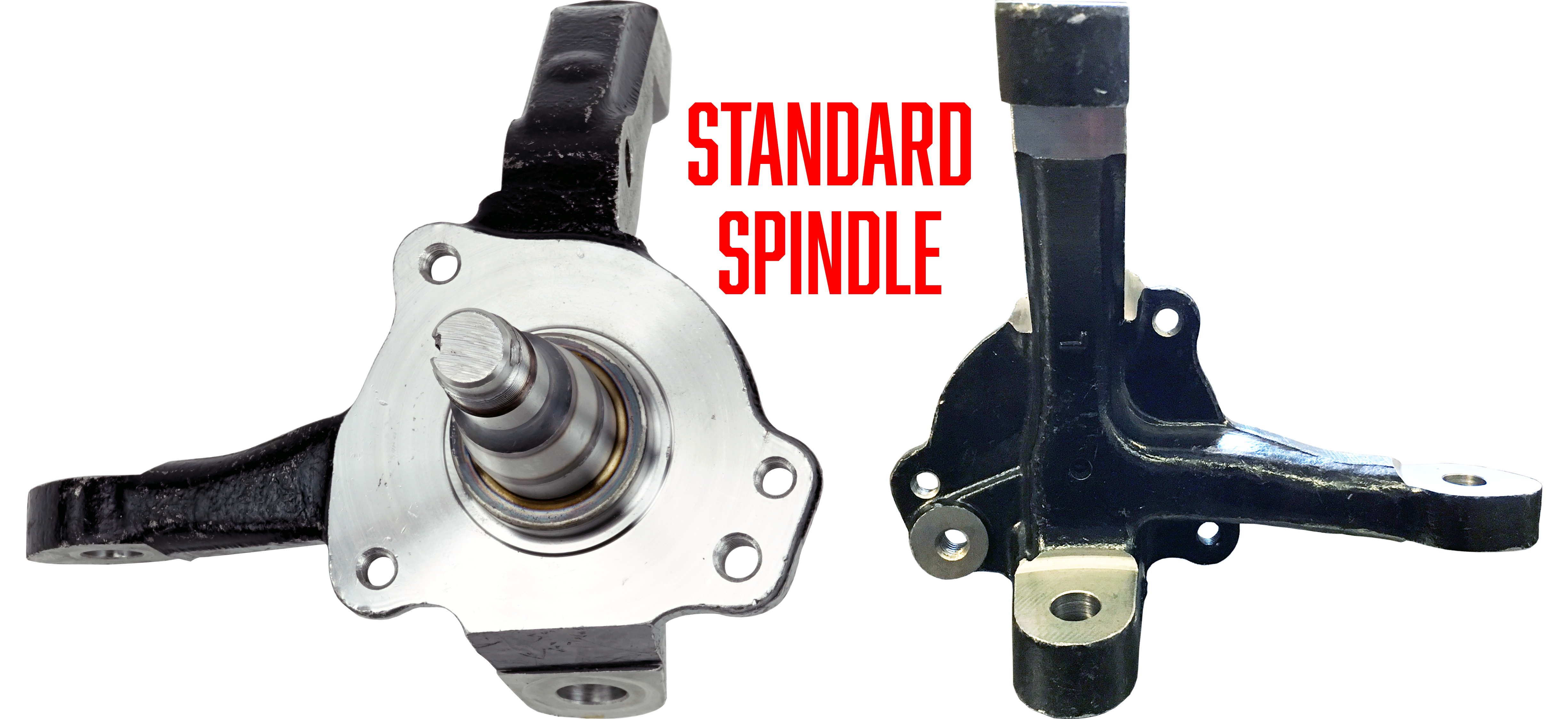

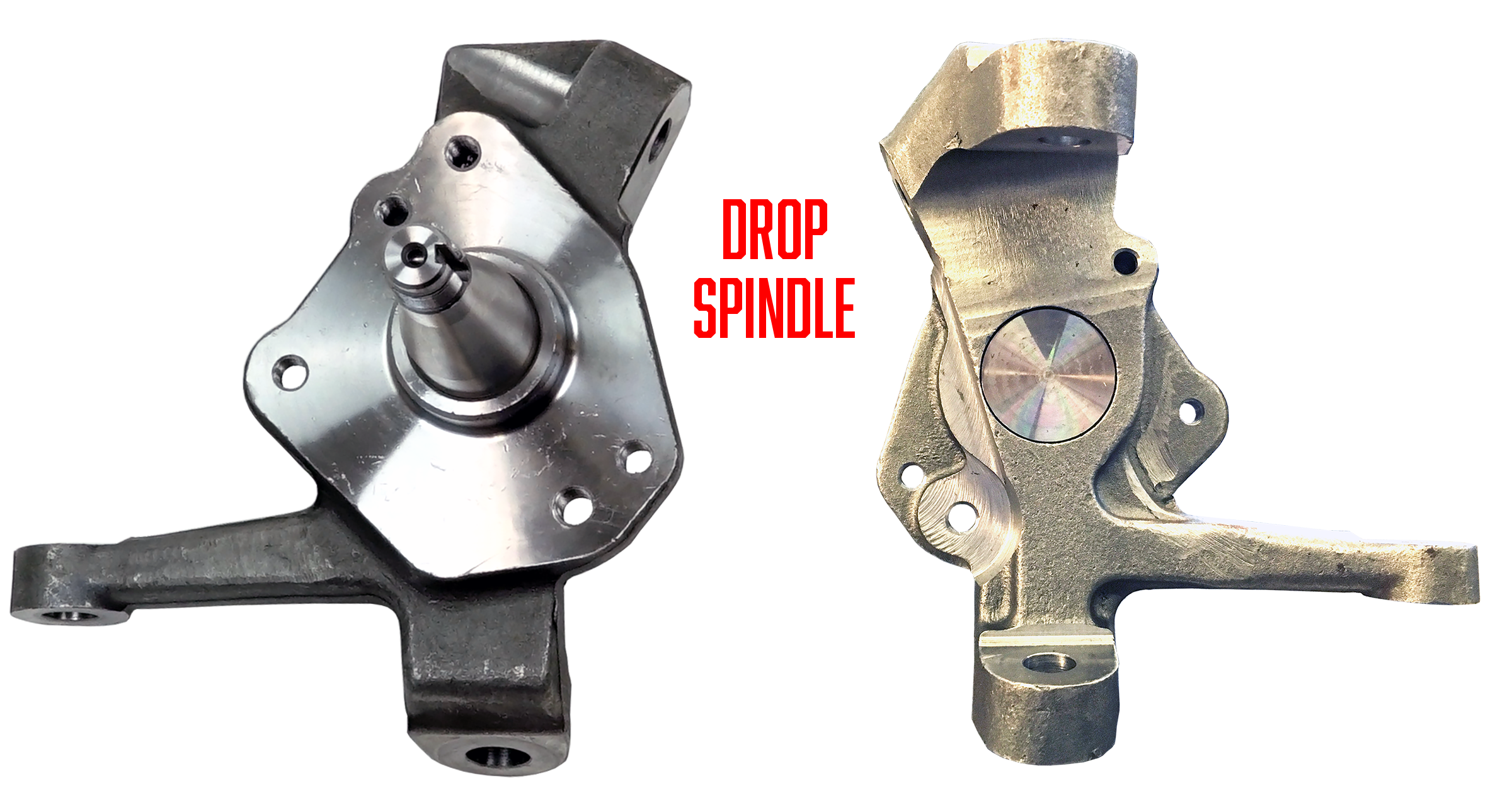

  • Standard or Drop Forged Steel Spindles
  • 5/8” Grade 8 Hardware
  • LIFETIME GUARANTEE

OPTIONS

• Custom Track Width

• Motor Mounts $150+

• Power Rack & Pinion Steering $250

• Right Hand Drive Rack & Pinion $699

• Chrome power steering rack $499

• Power Steering Steel Braided Line Kit $140

• Powder coating $450

• Wilwood Mustang II ProSpindles $200

• 5 on 5”, 5 on 5.5”, and 6 lug bolt pattern $300

• Standard 1” Solid Sway Bar $289

• Torsion Spline Sway Bar $625

• Steel Braided Brake Lines w/Banjo fitting for GM Calipers $88

• Wilwood 4-Piston Caliper Upgrade $300

• Steel Braided Brake Lines w/-3AN for Wilwood Calipers $74

• Wilwood 11”, 12”, 13”, 14” Drilled & Slotted Brake Kits $625+



COILOVER OPTIONS

• Aldan American Single-Adjustable (Rebound) (included)

• Aldan American Double-Adjustable (Rebound/Compression) $500

• RideTech Single-Adjustable (Rebound) $650

• RideTech Triple Adjustable (Rebound/High & Low Compression) $1,650



*Ford Rear Sump Oil Pan Required
*GM Performance Parts LS Engine Oil Pan 12628771

STEP 1

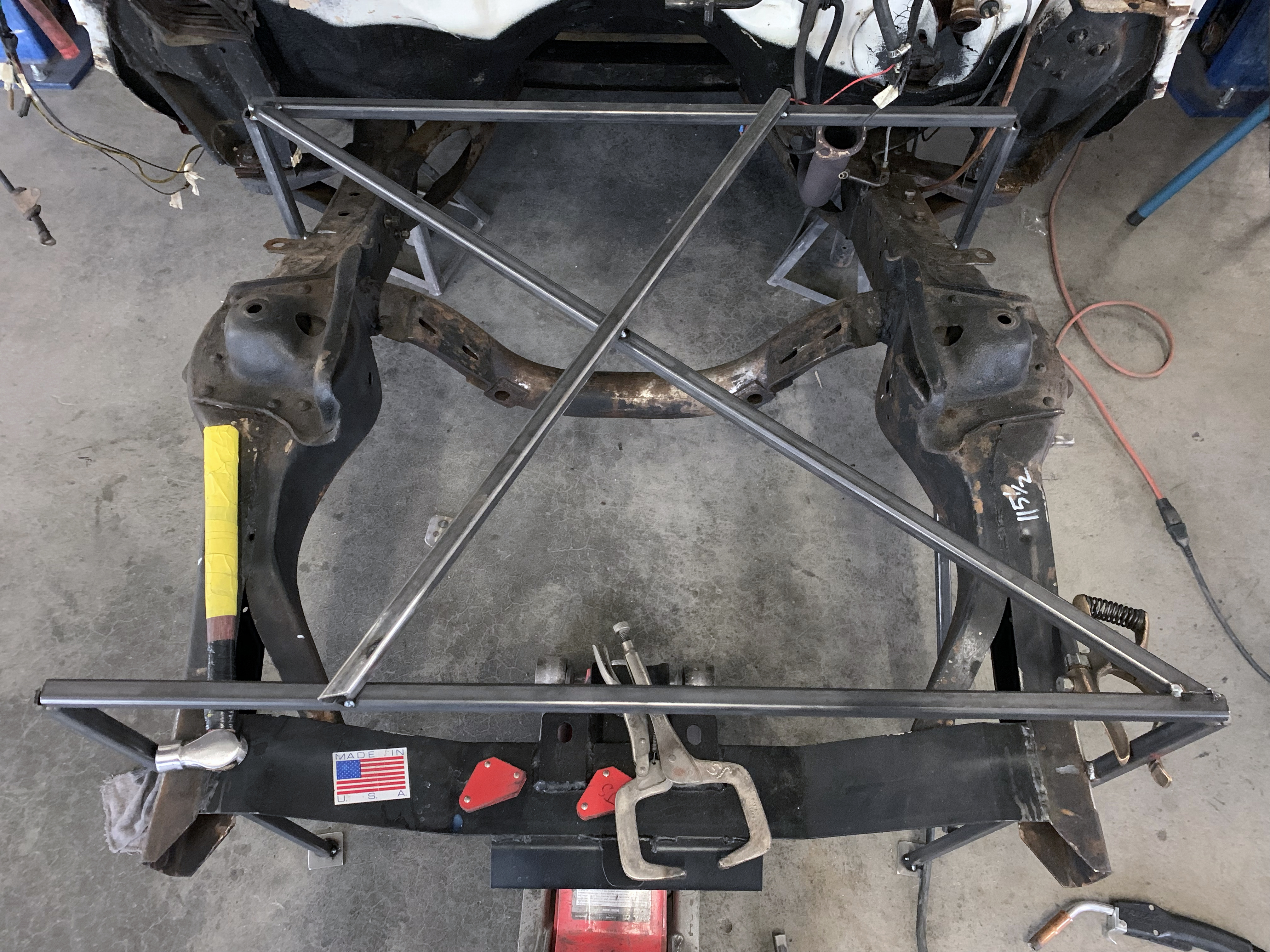

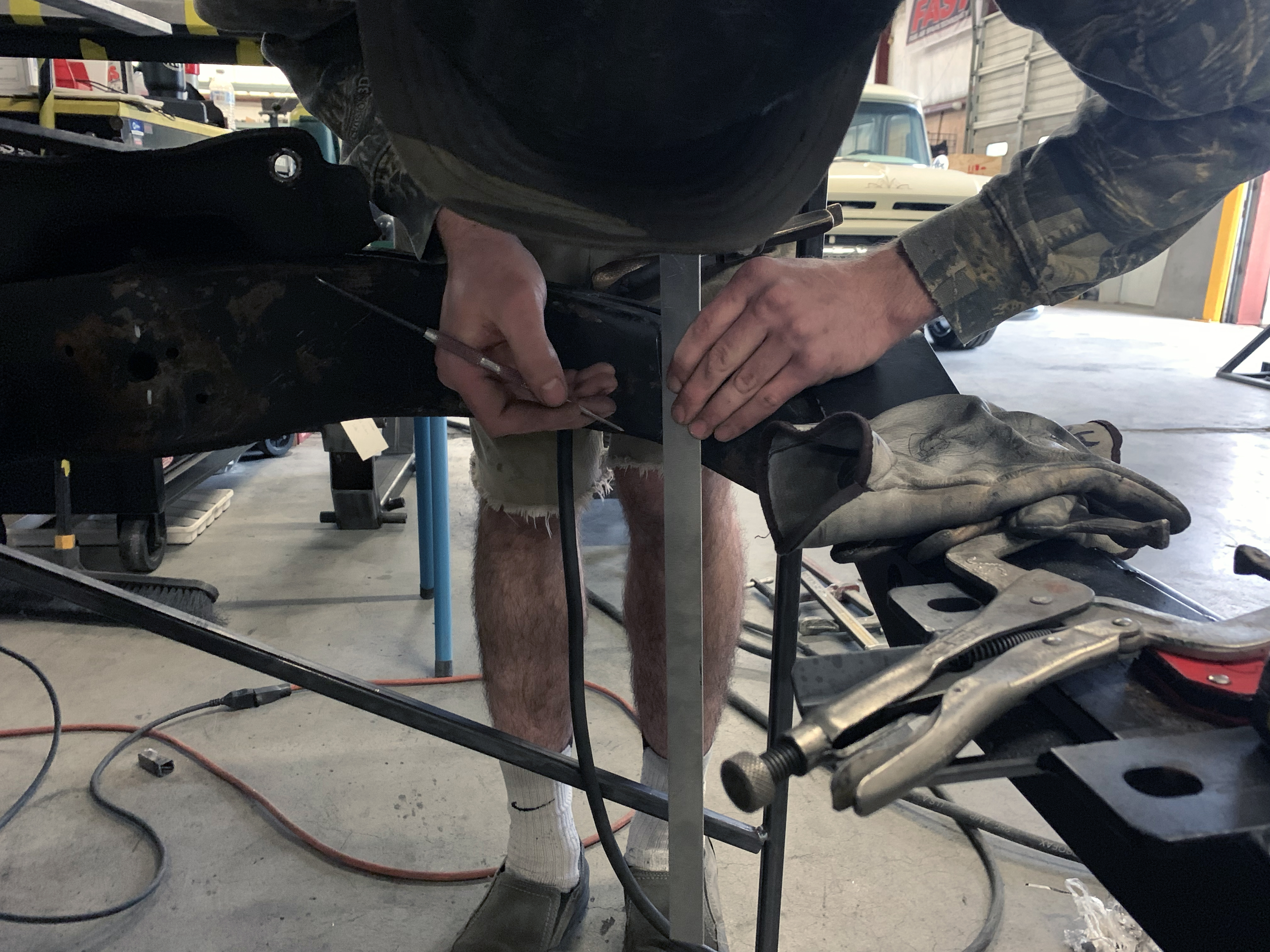

Mark the wheel centerline of the wheel on the fender and on the garage floor.

STEP 2

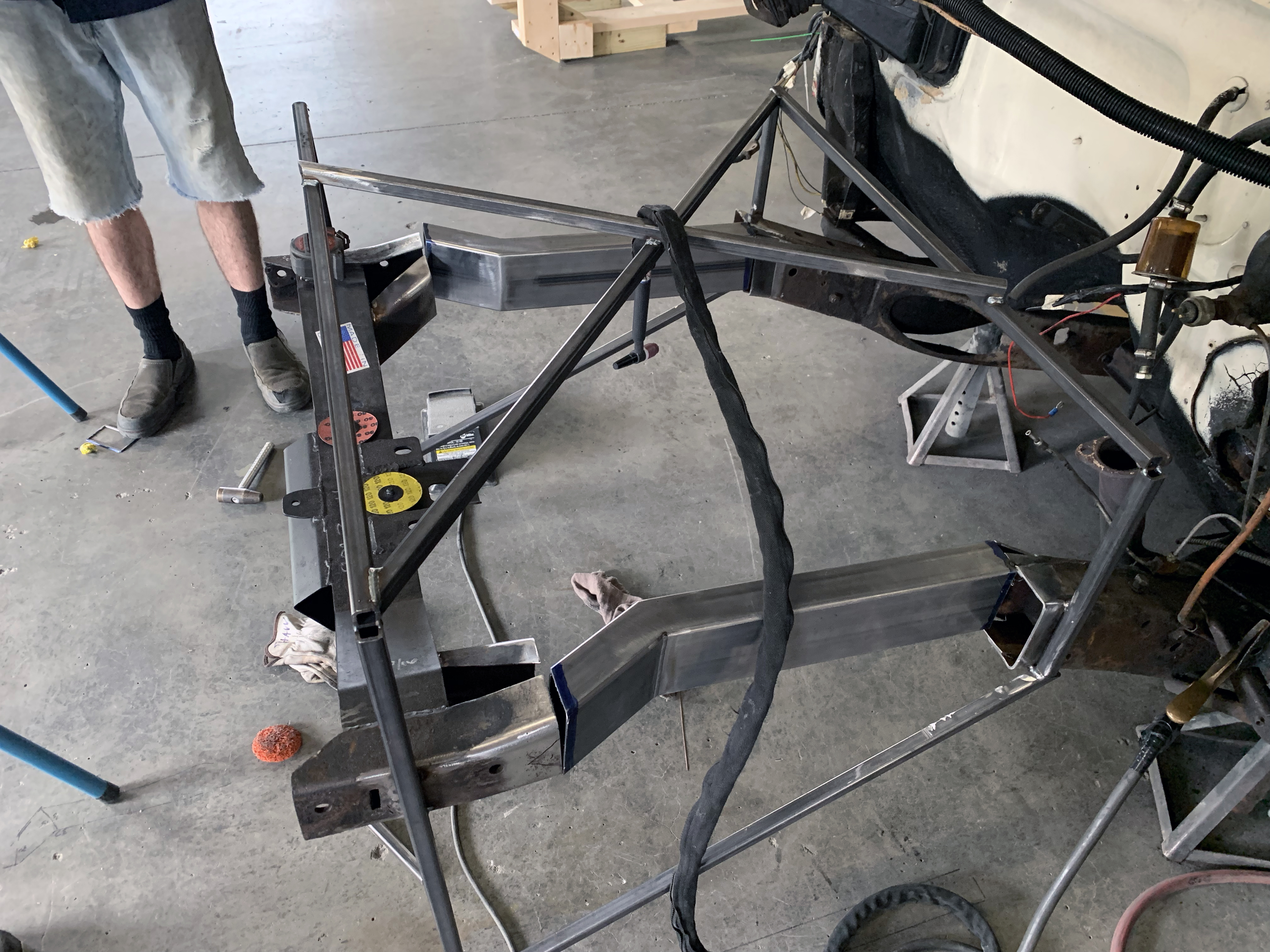

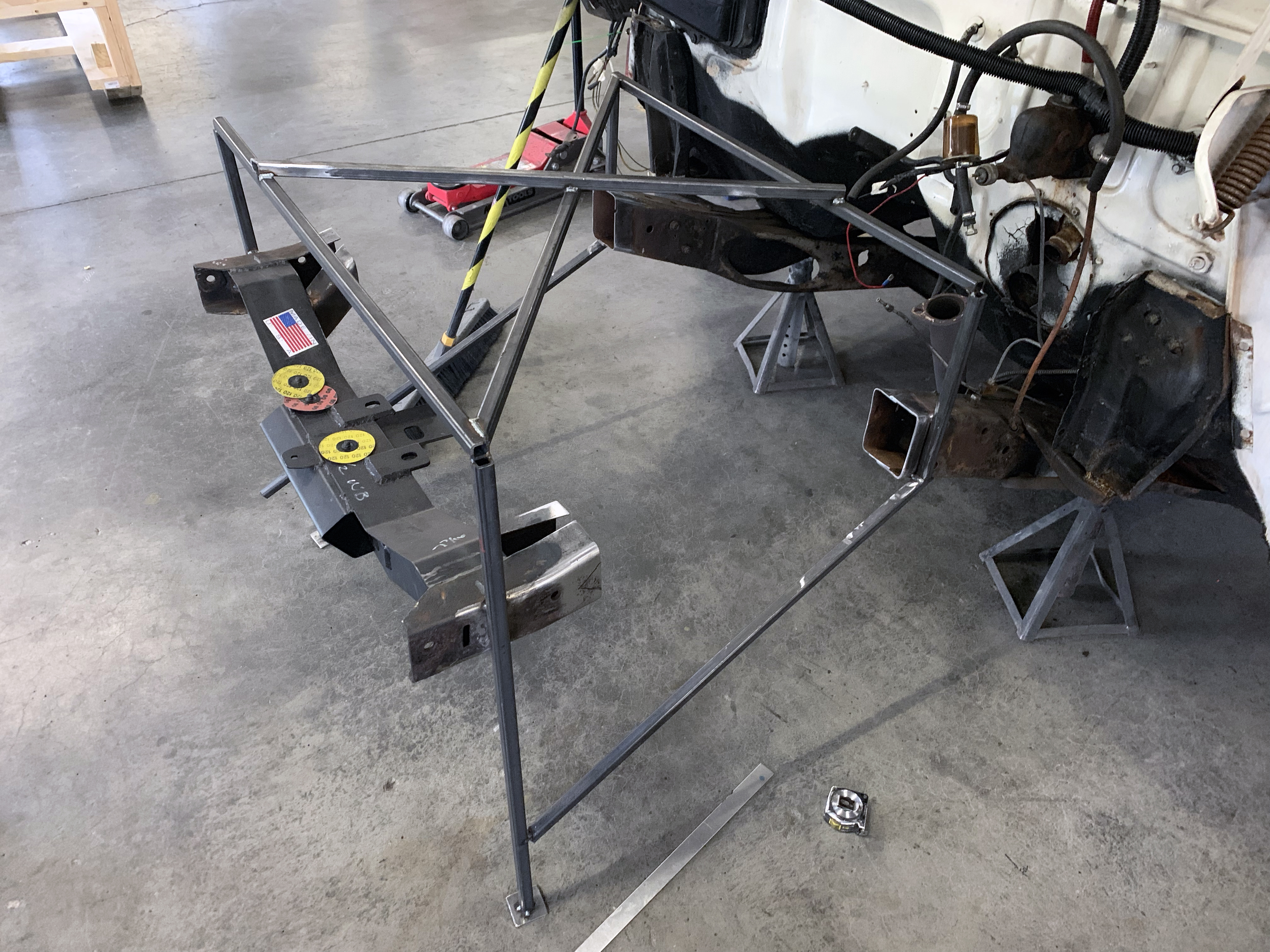

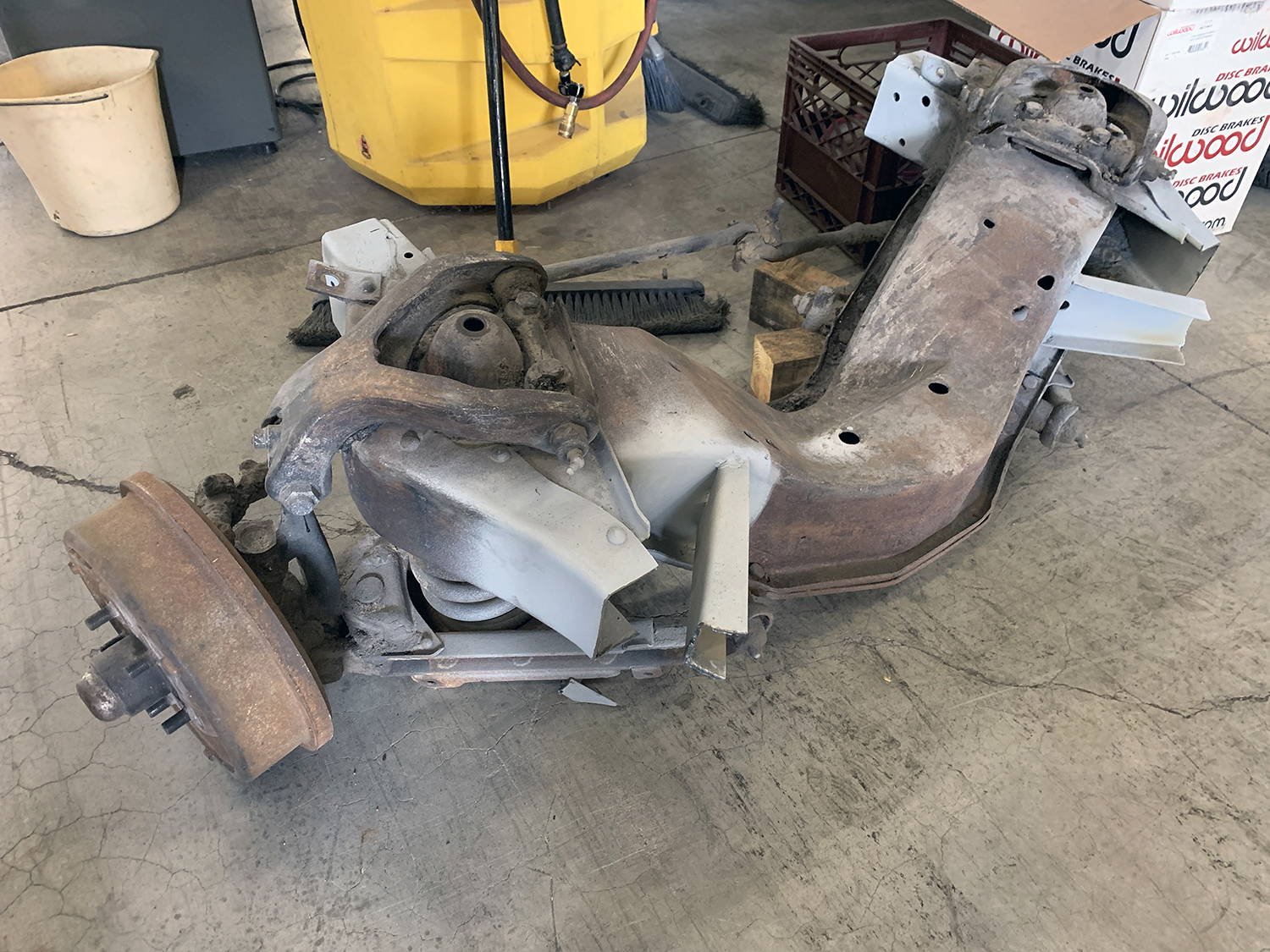

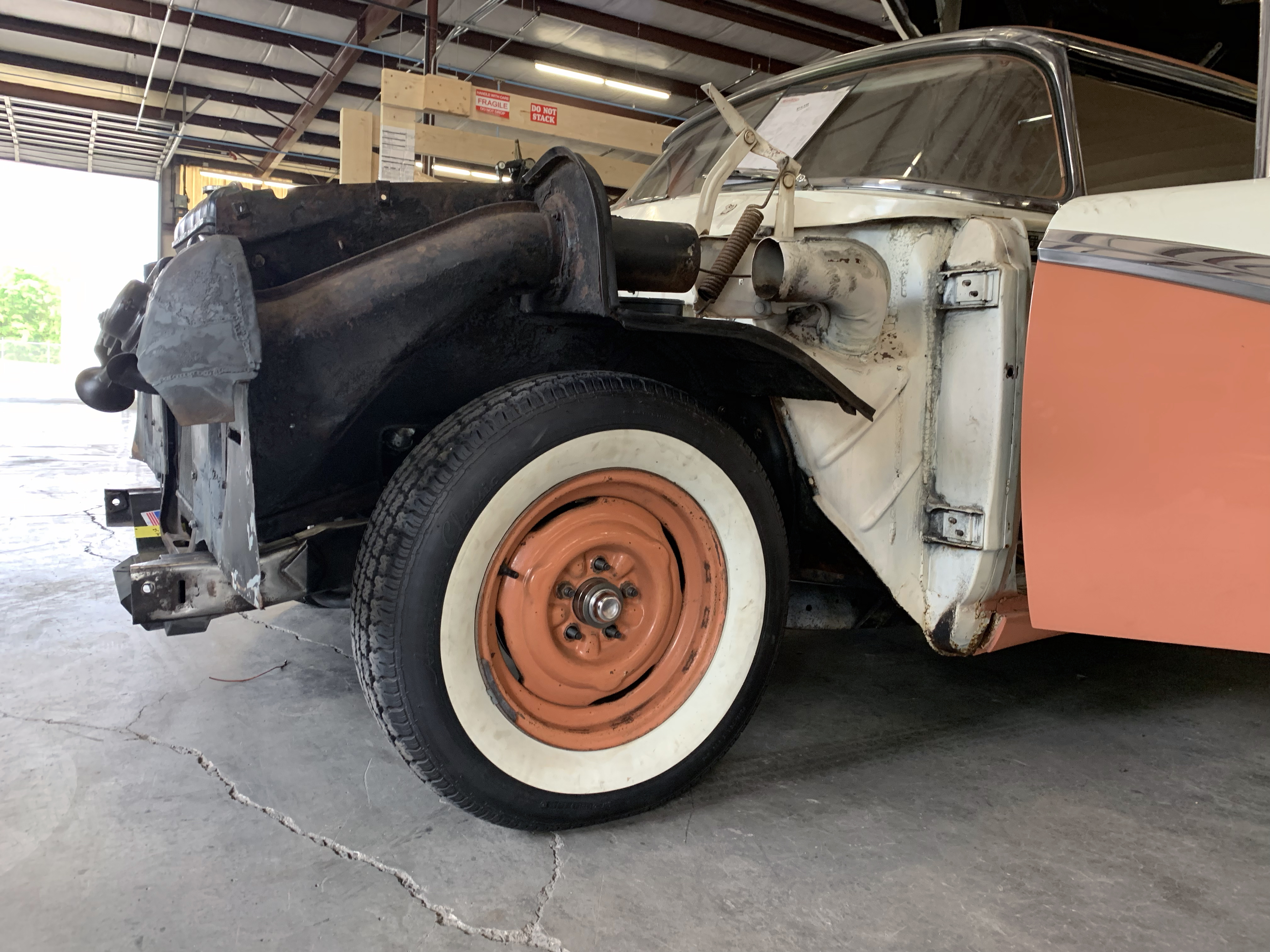

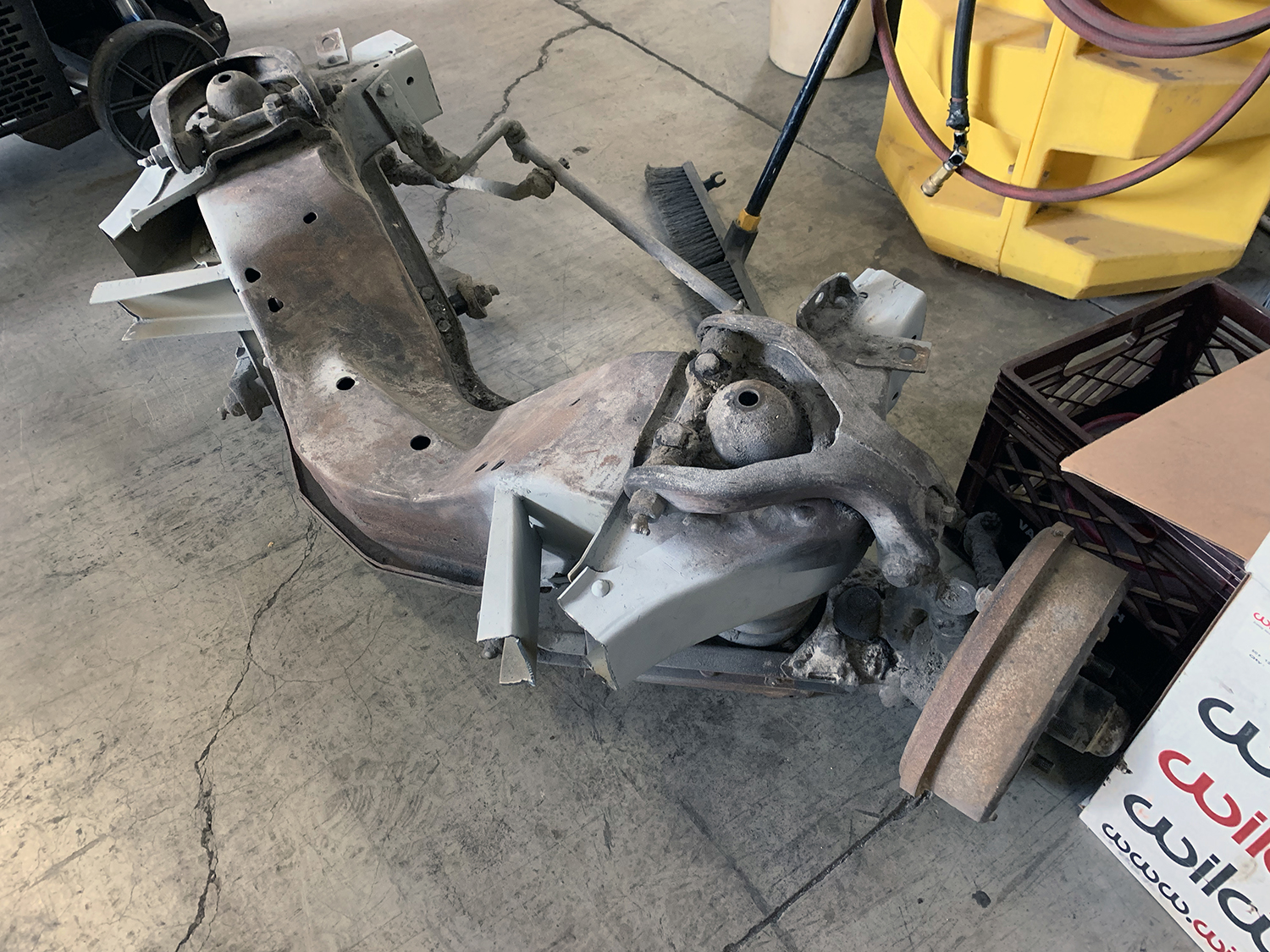

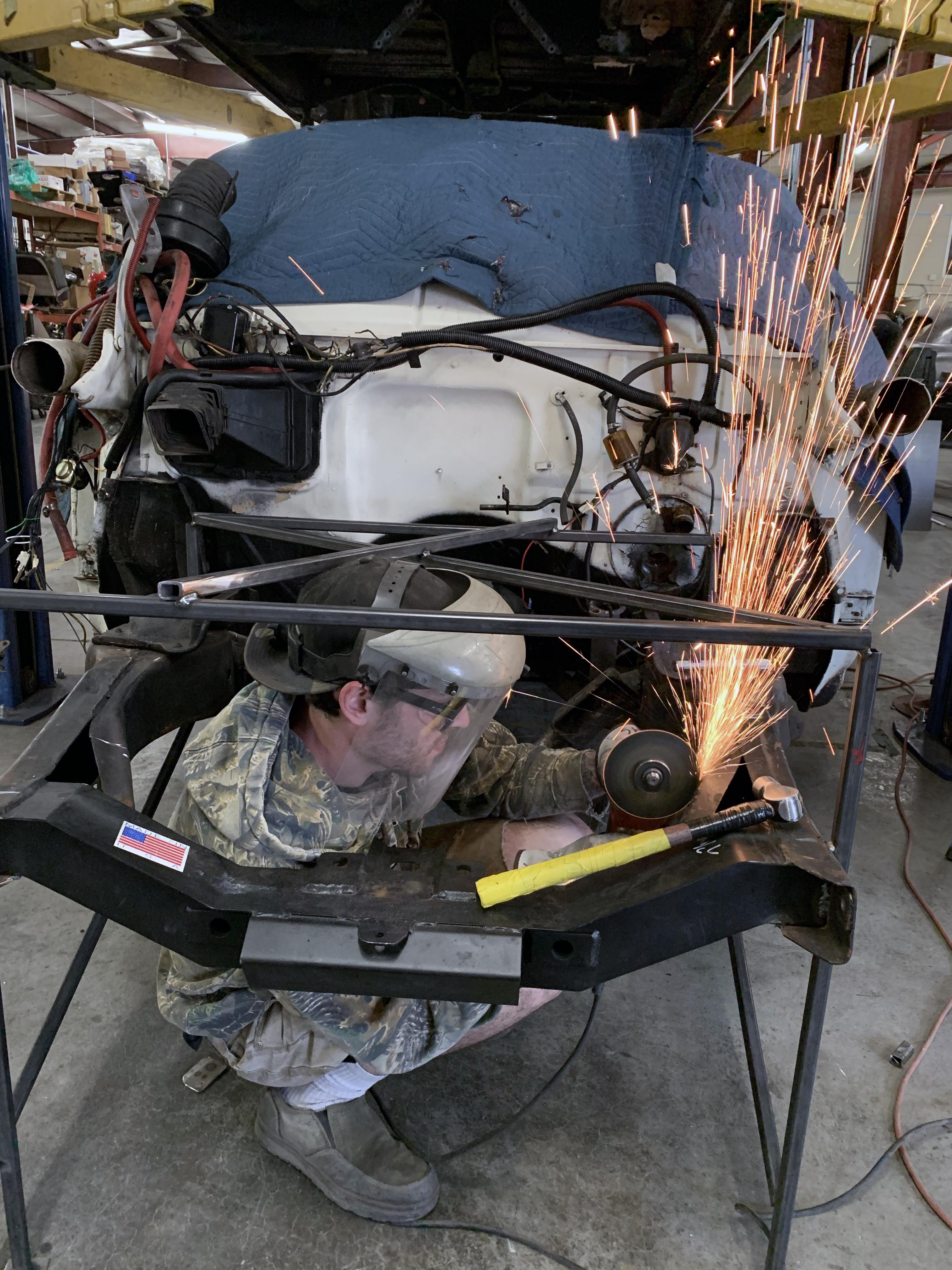

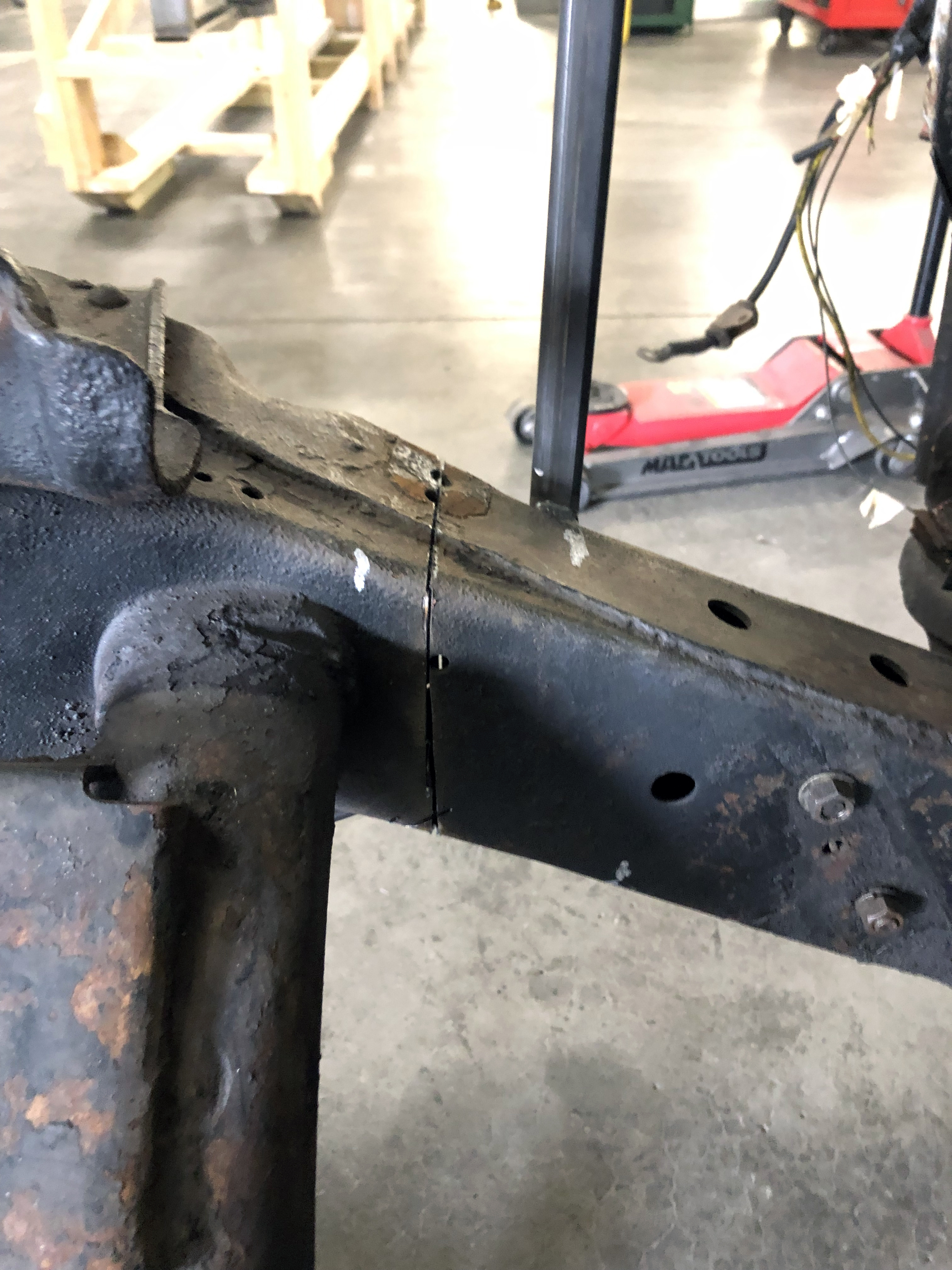

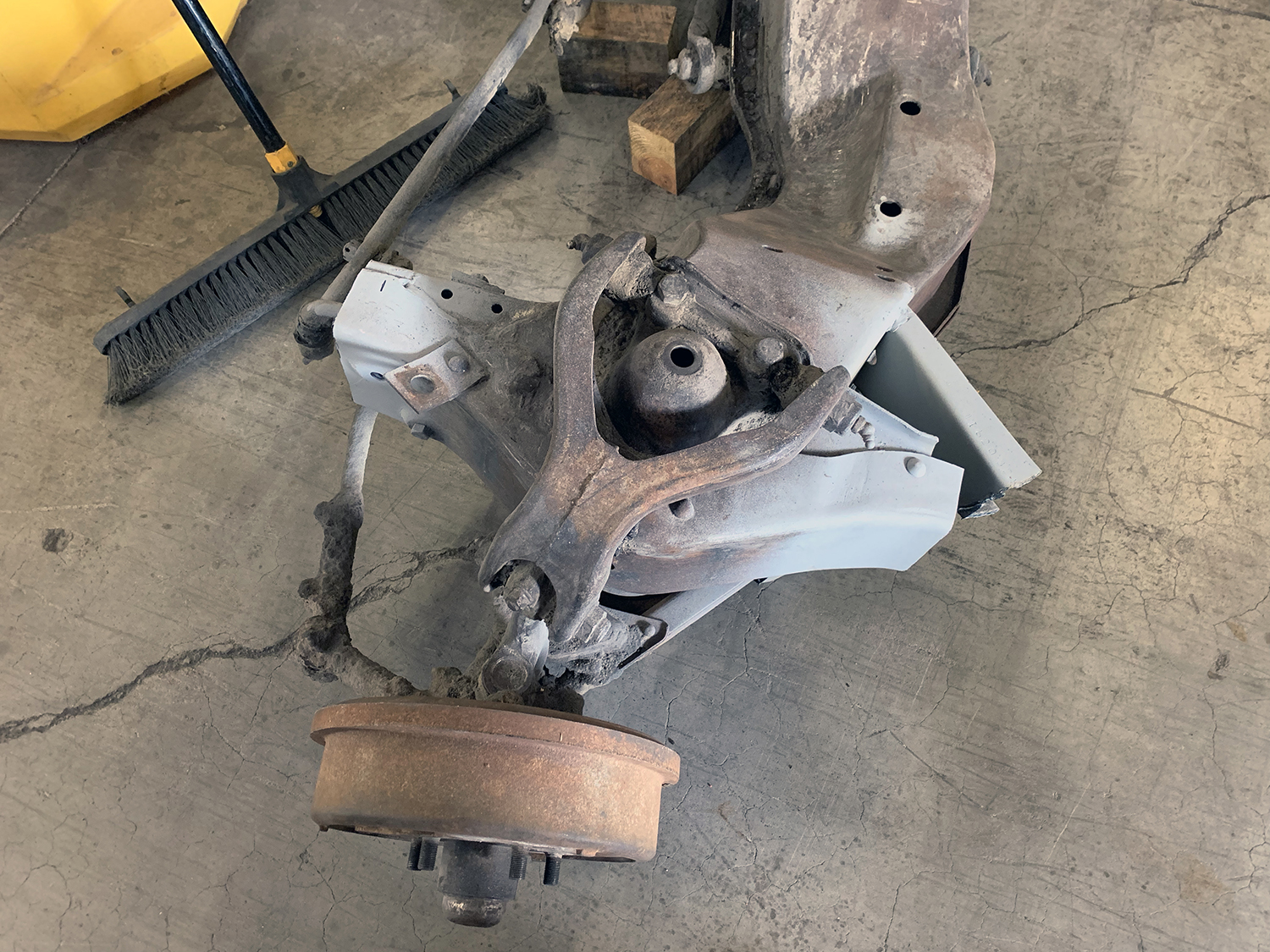

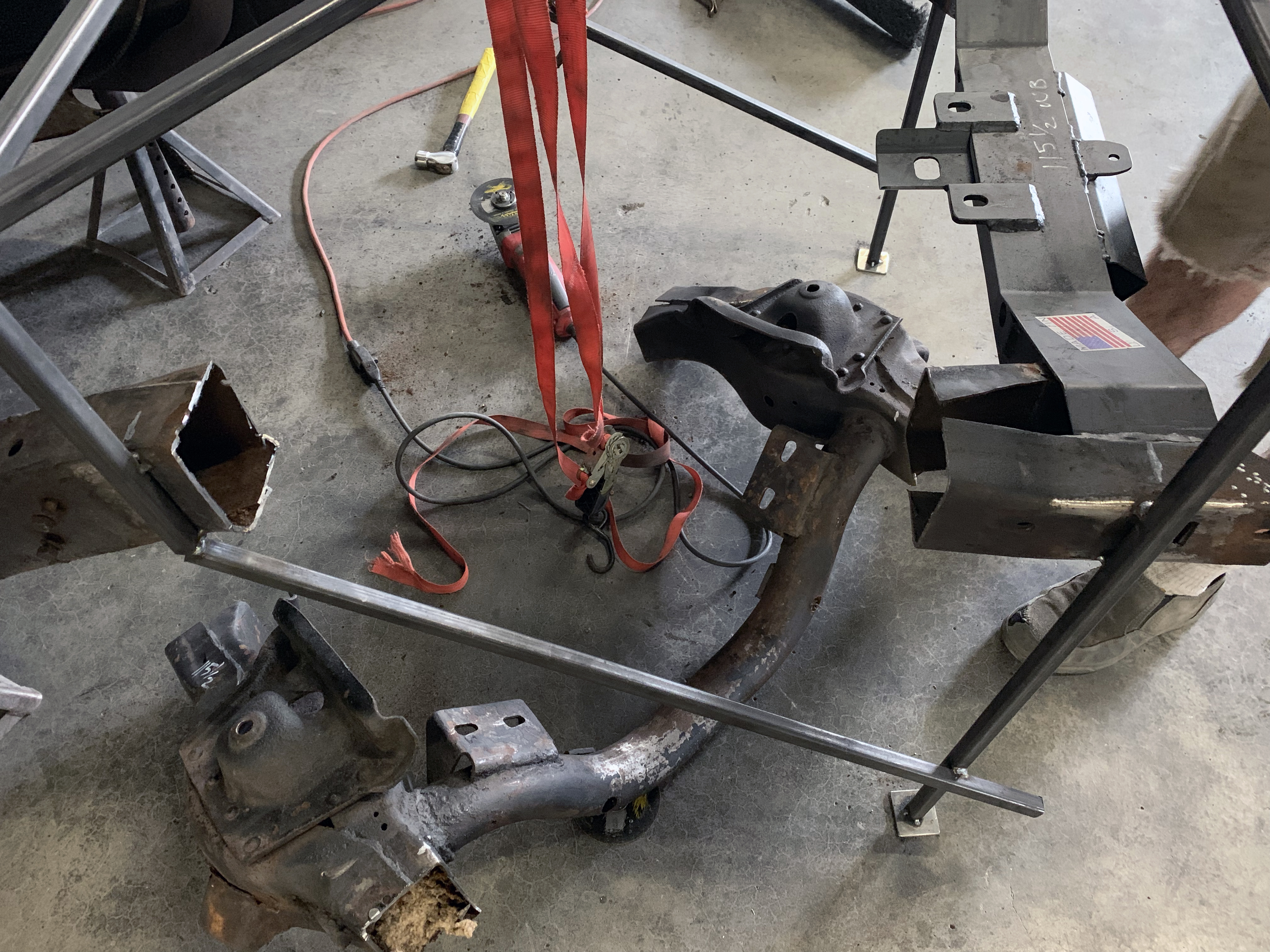

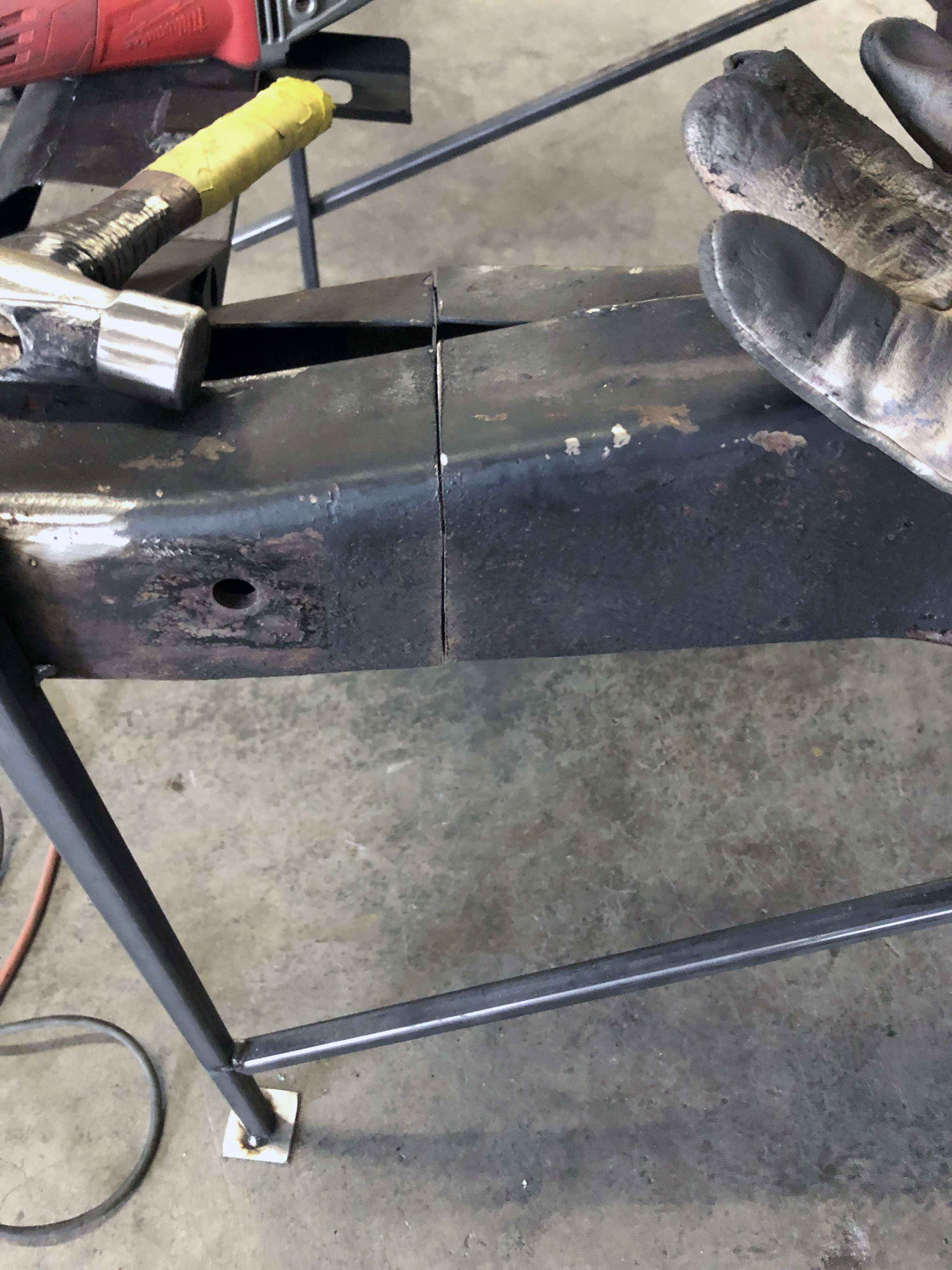

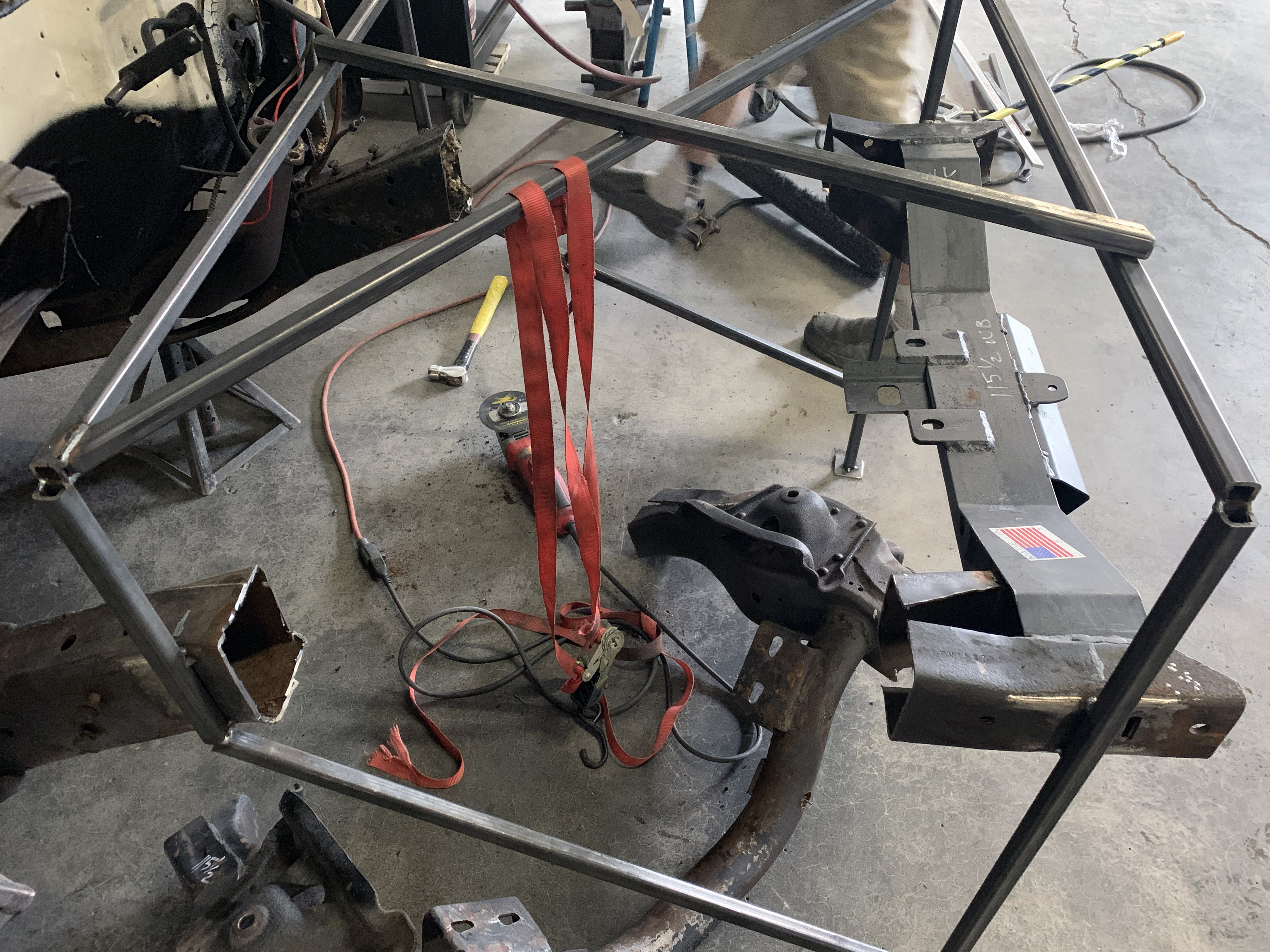

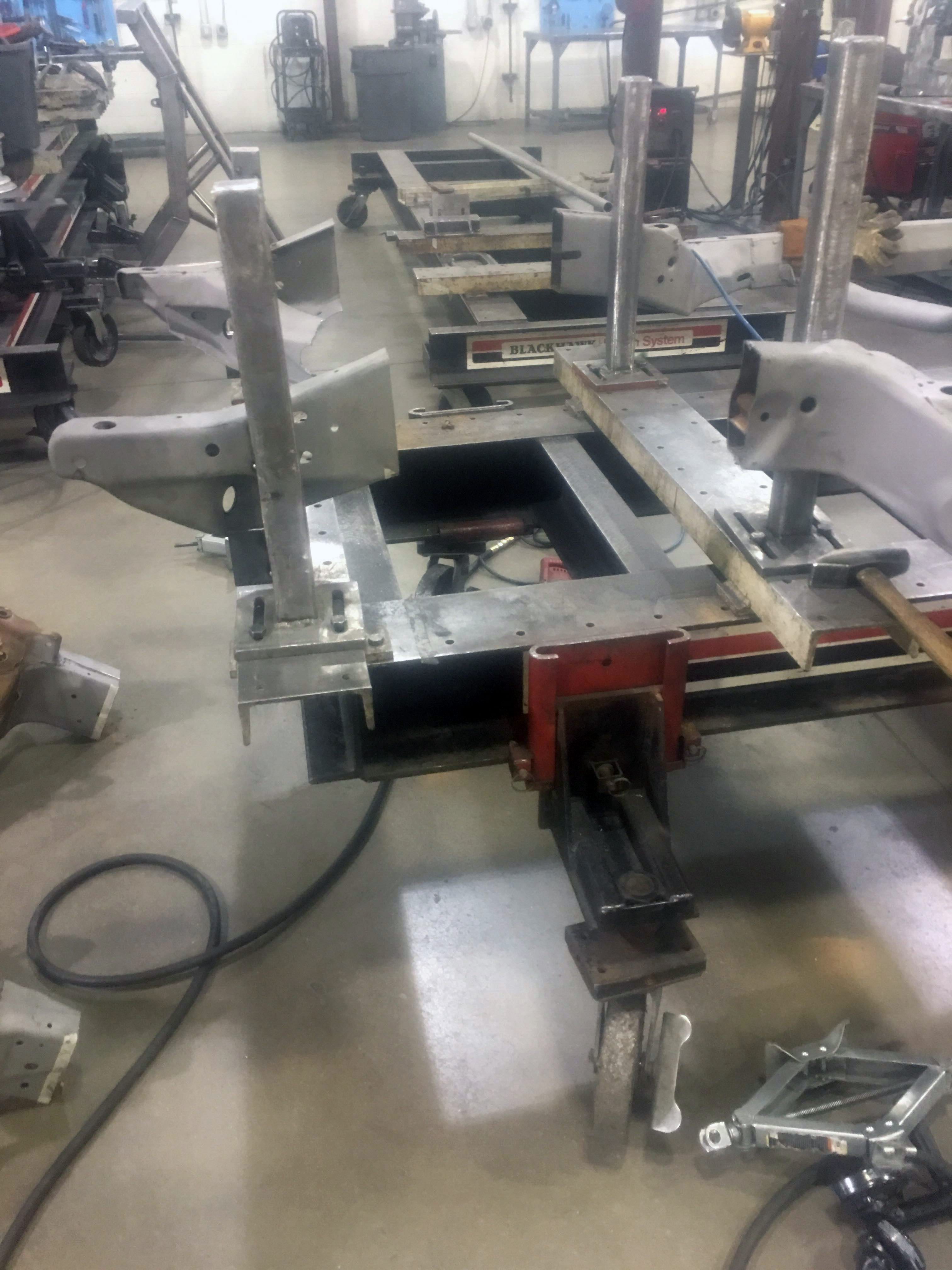

Cut your frame directly in front of and behind the stock spring pocket, removing the stock crossmember.  You can use a Sawzall®, cut off wheel or any other cutting tool.

STEP 3

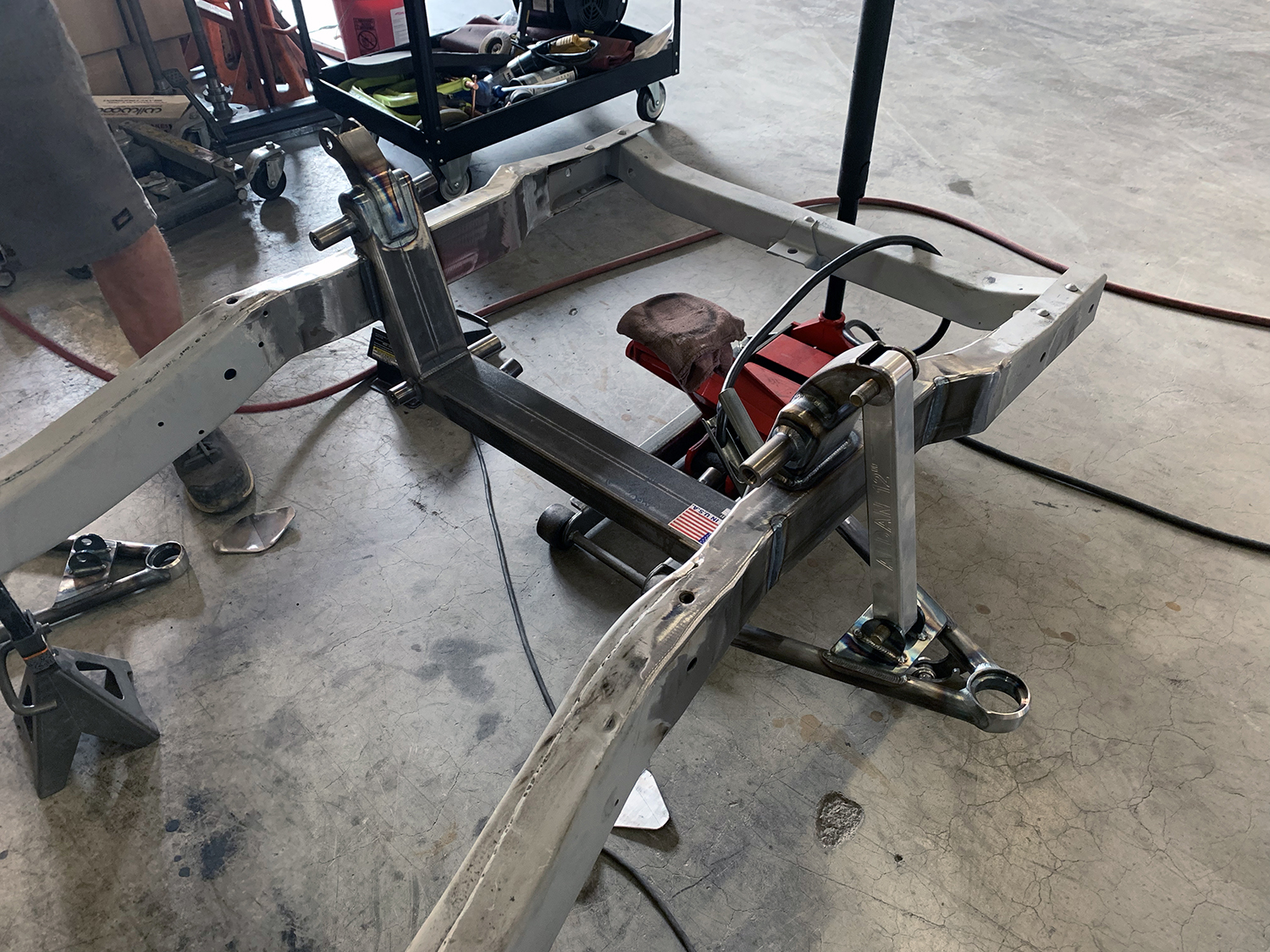

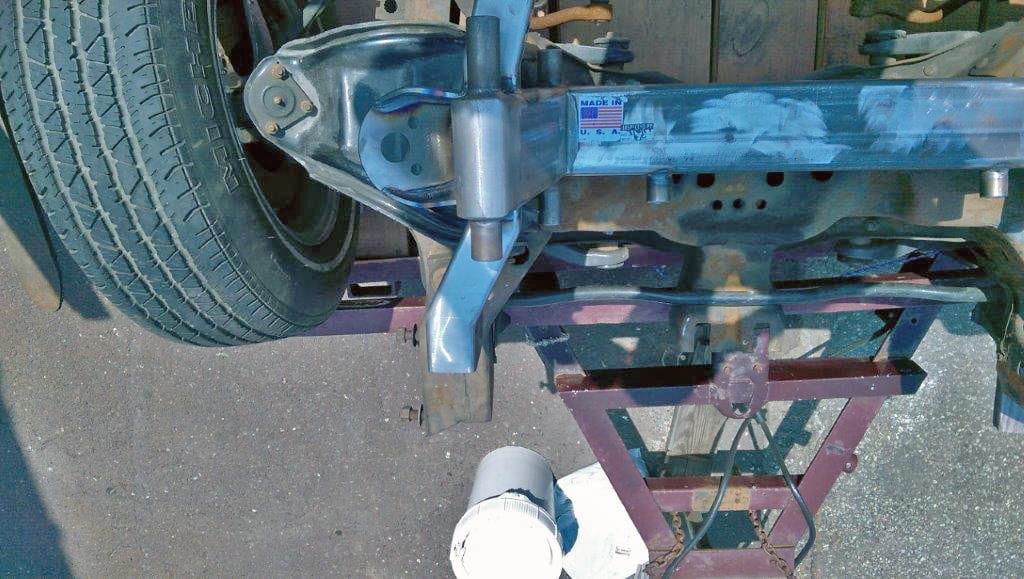

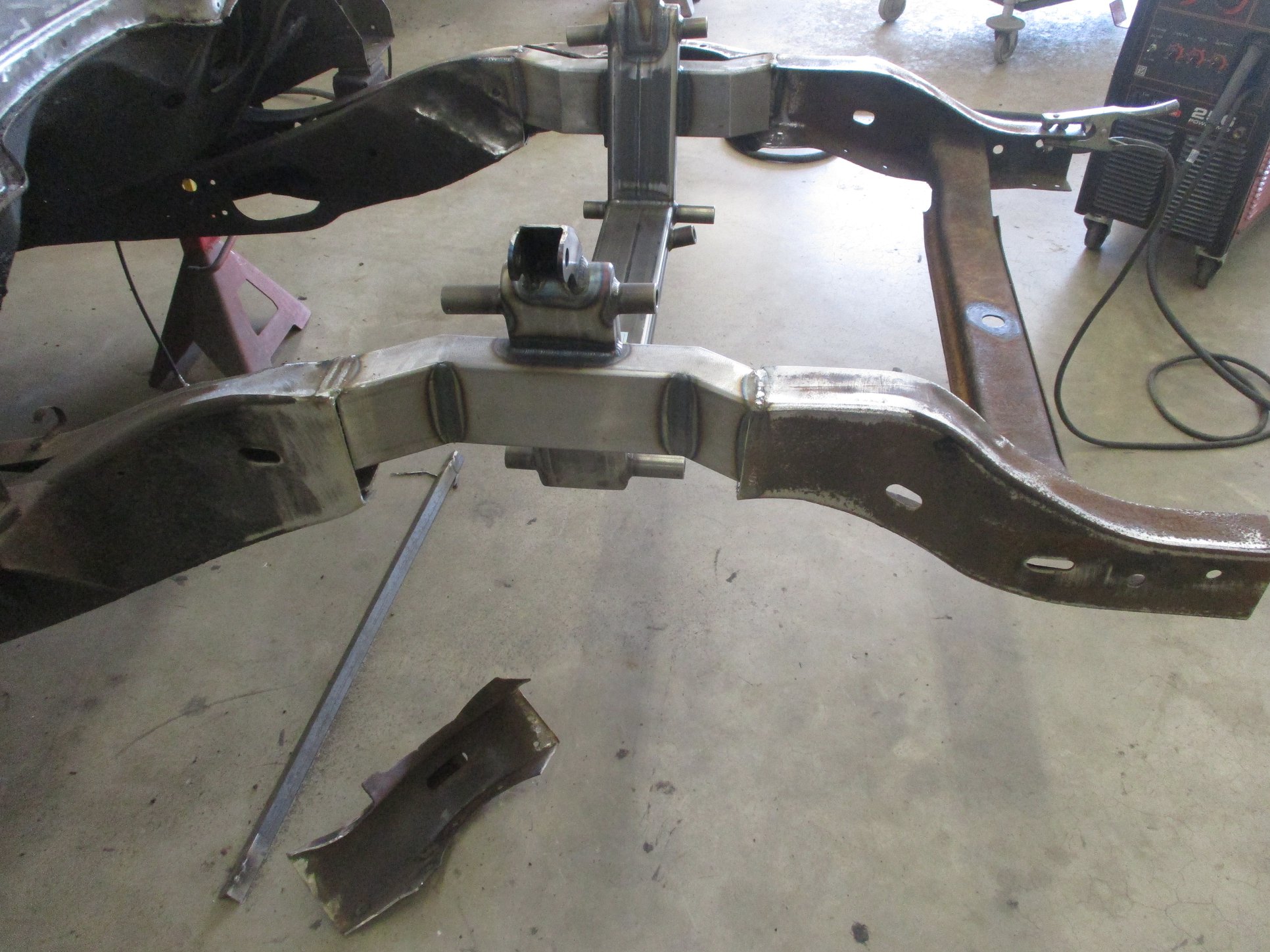

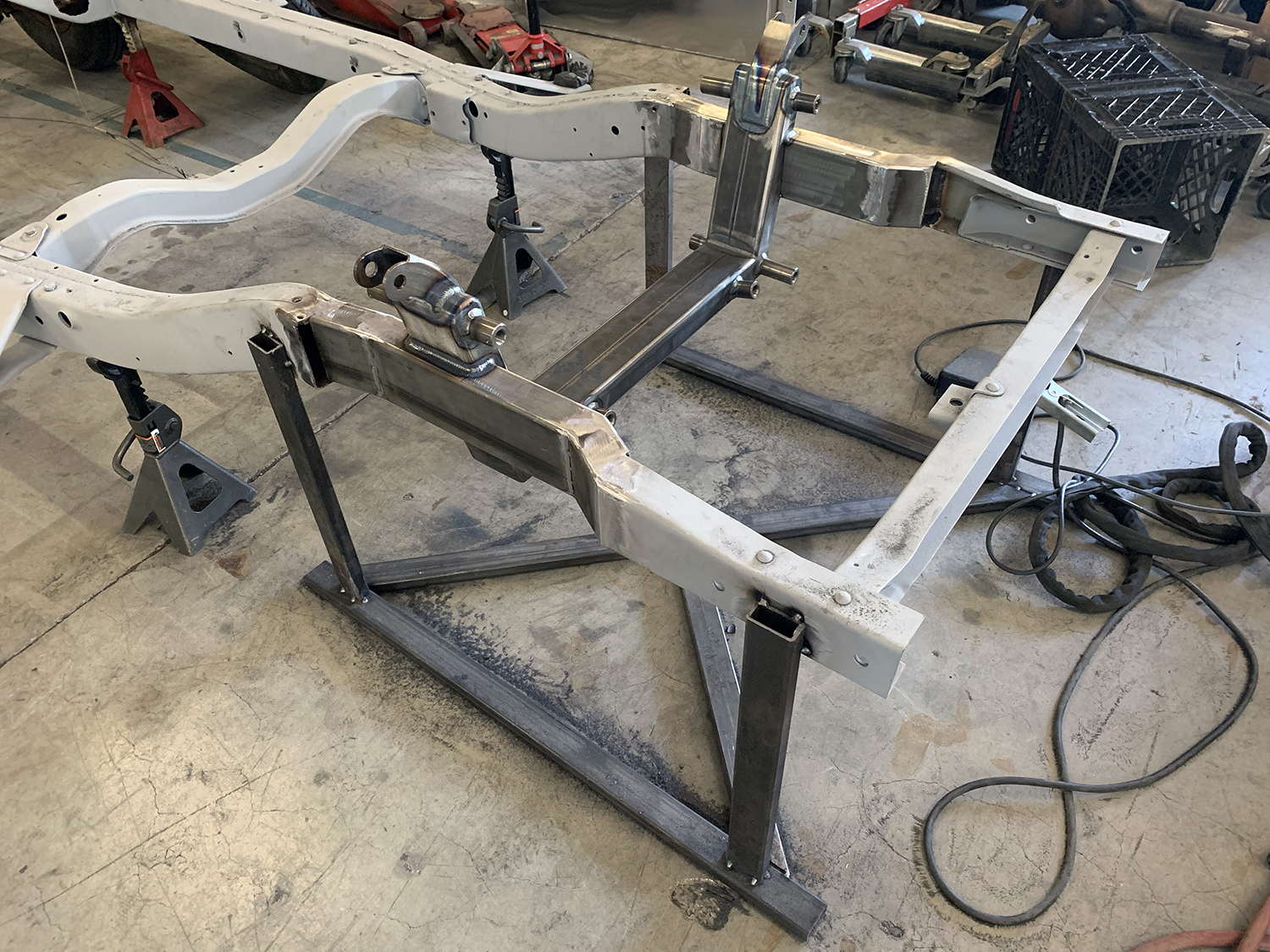

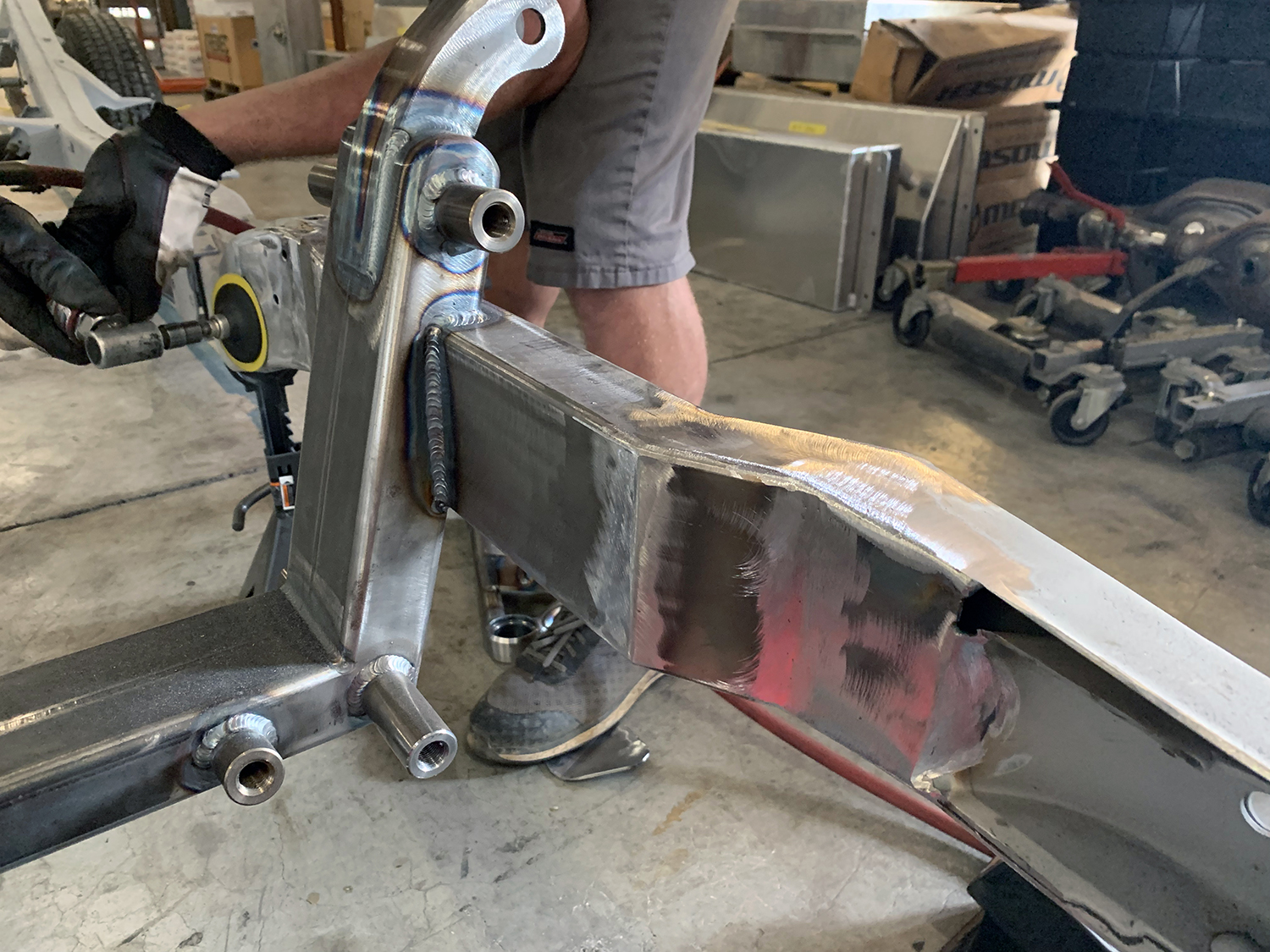

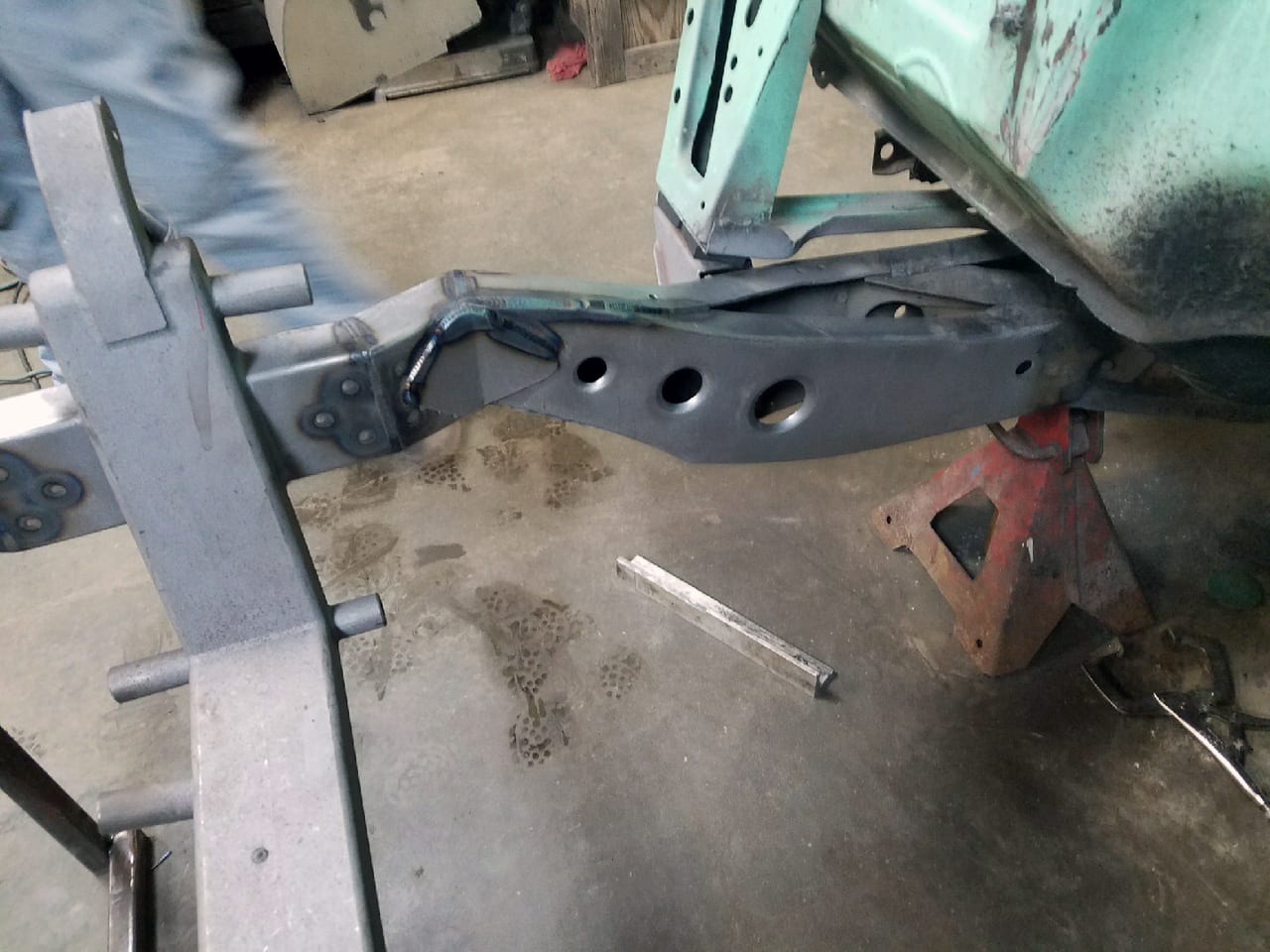

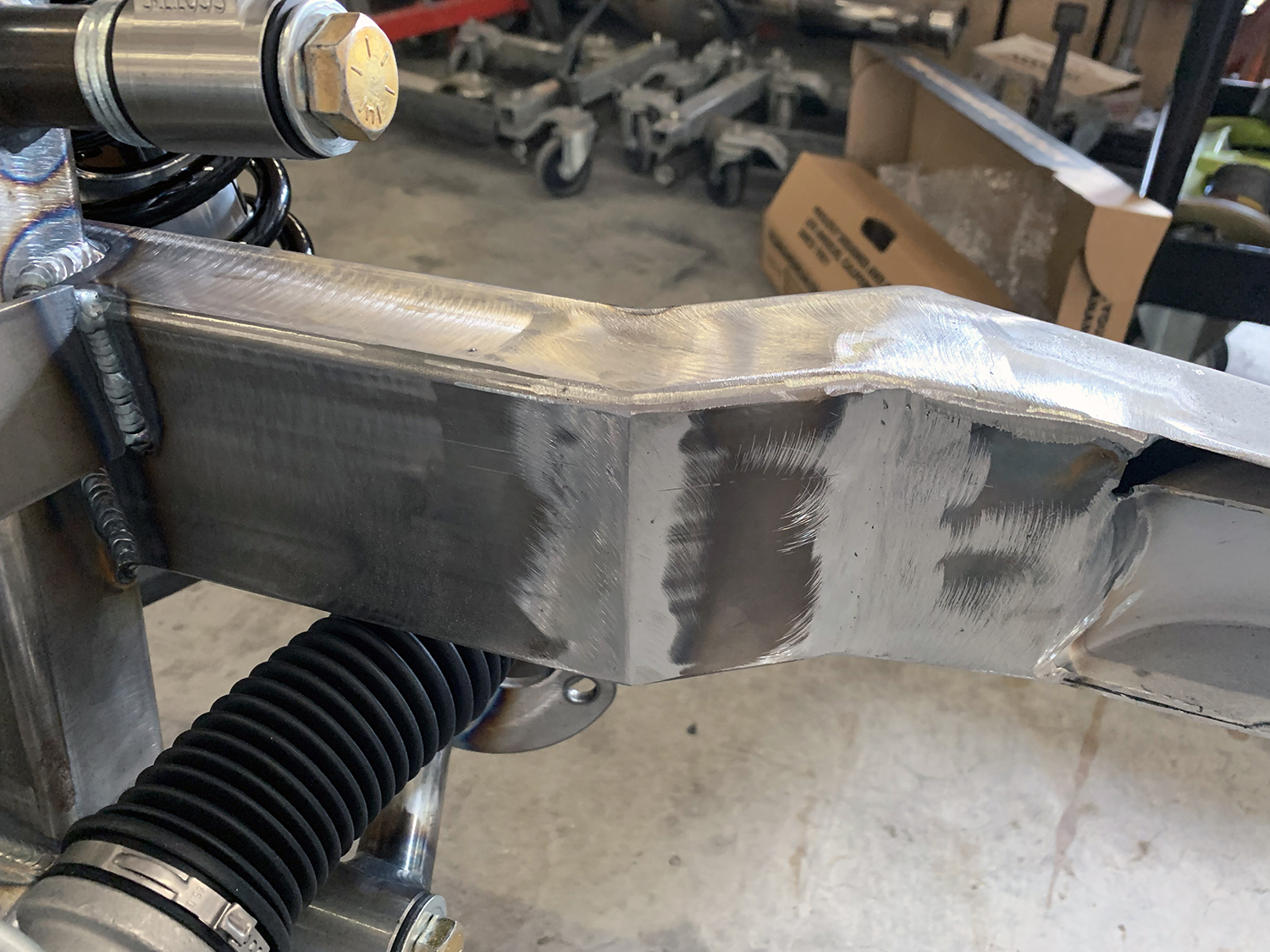

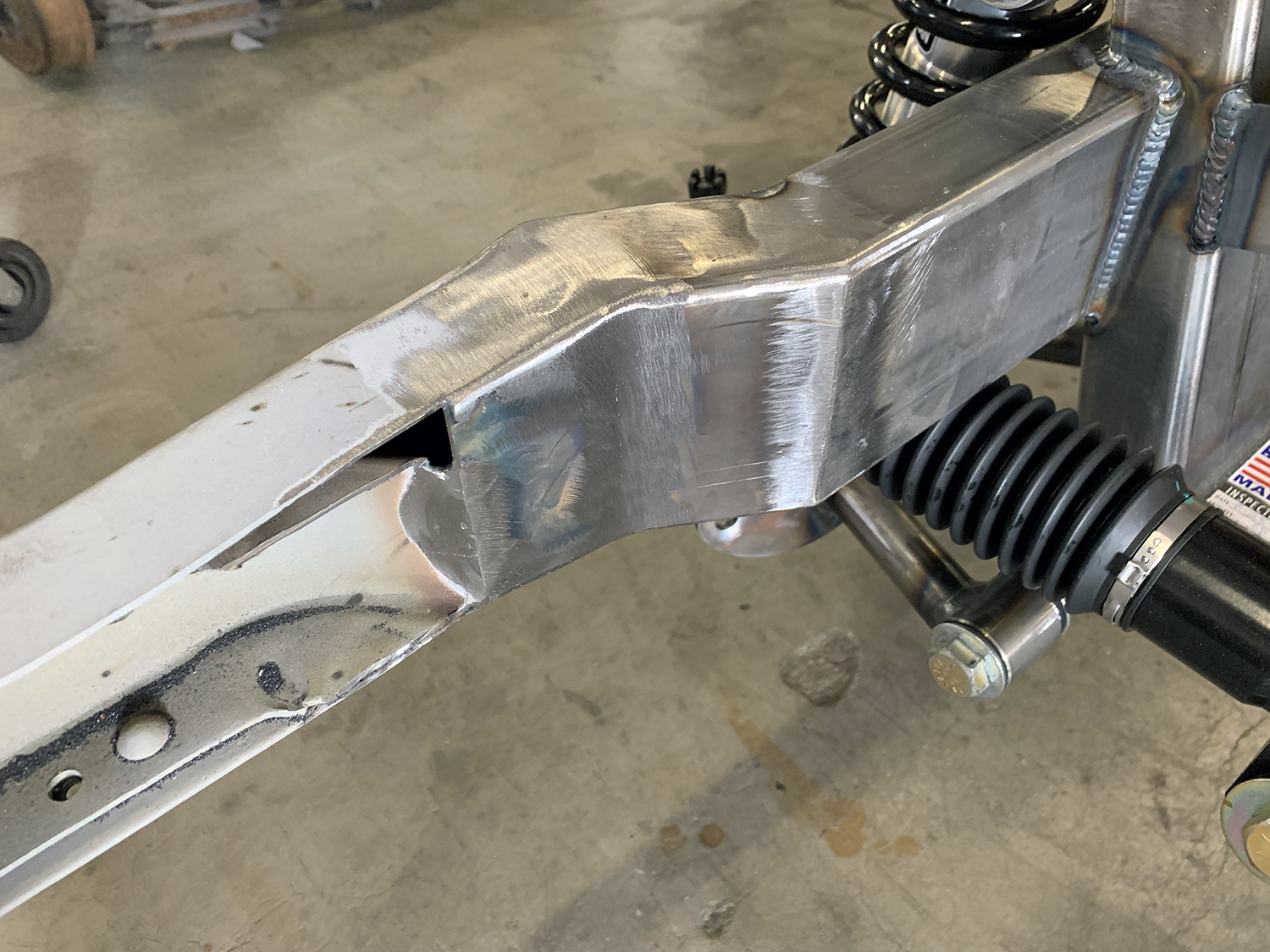

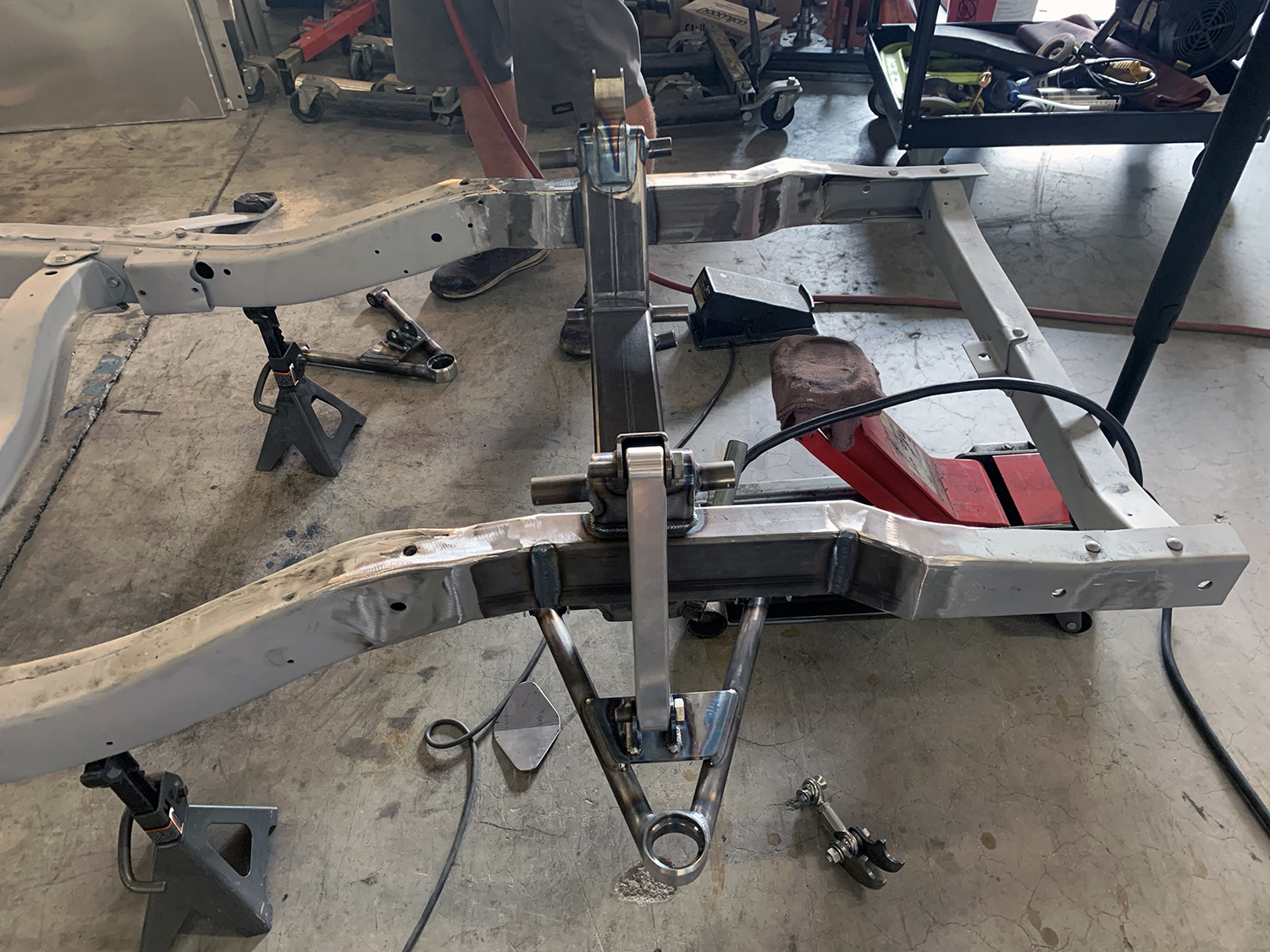

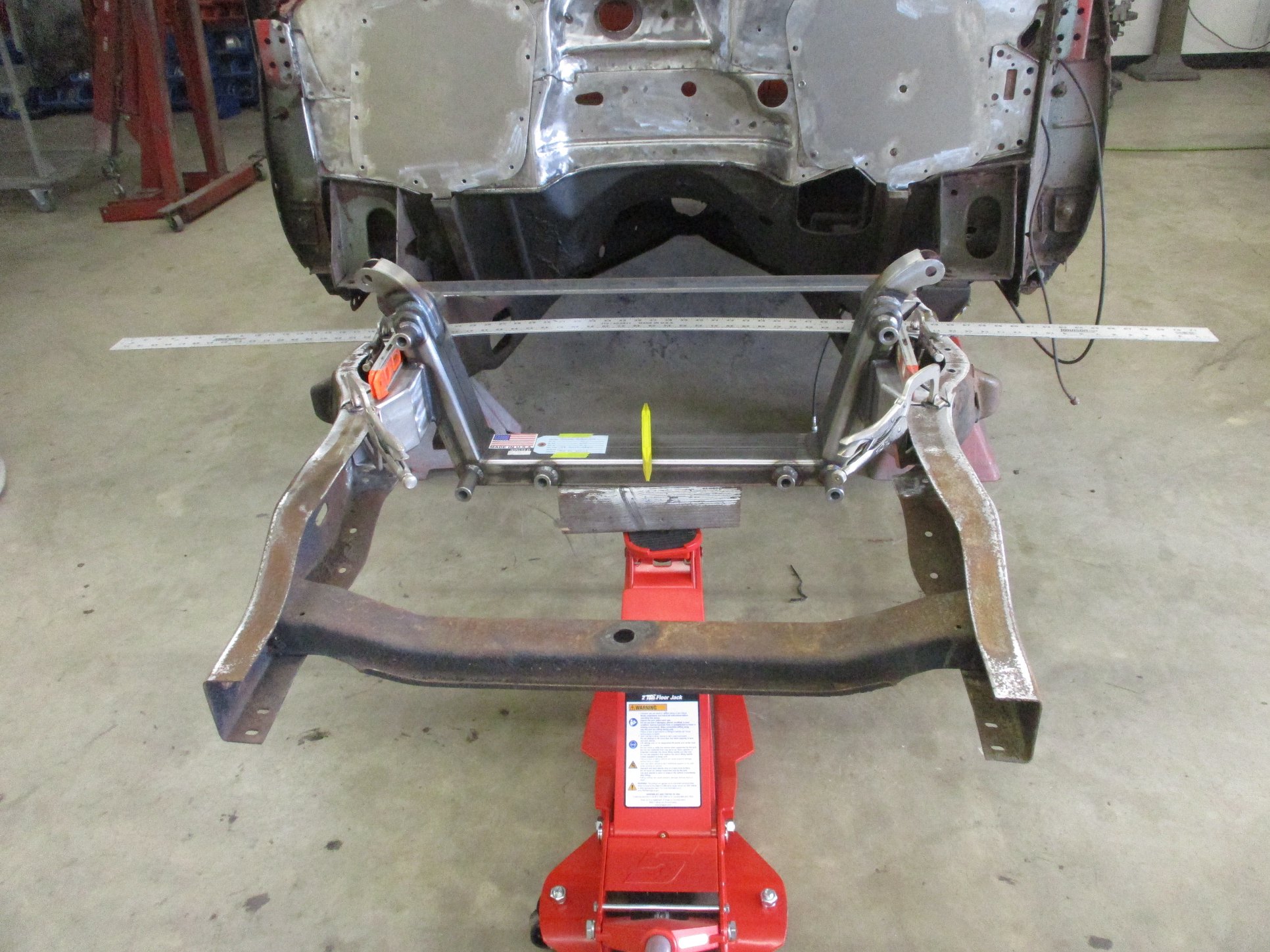

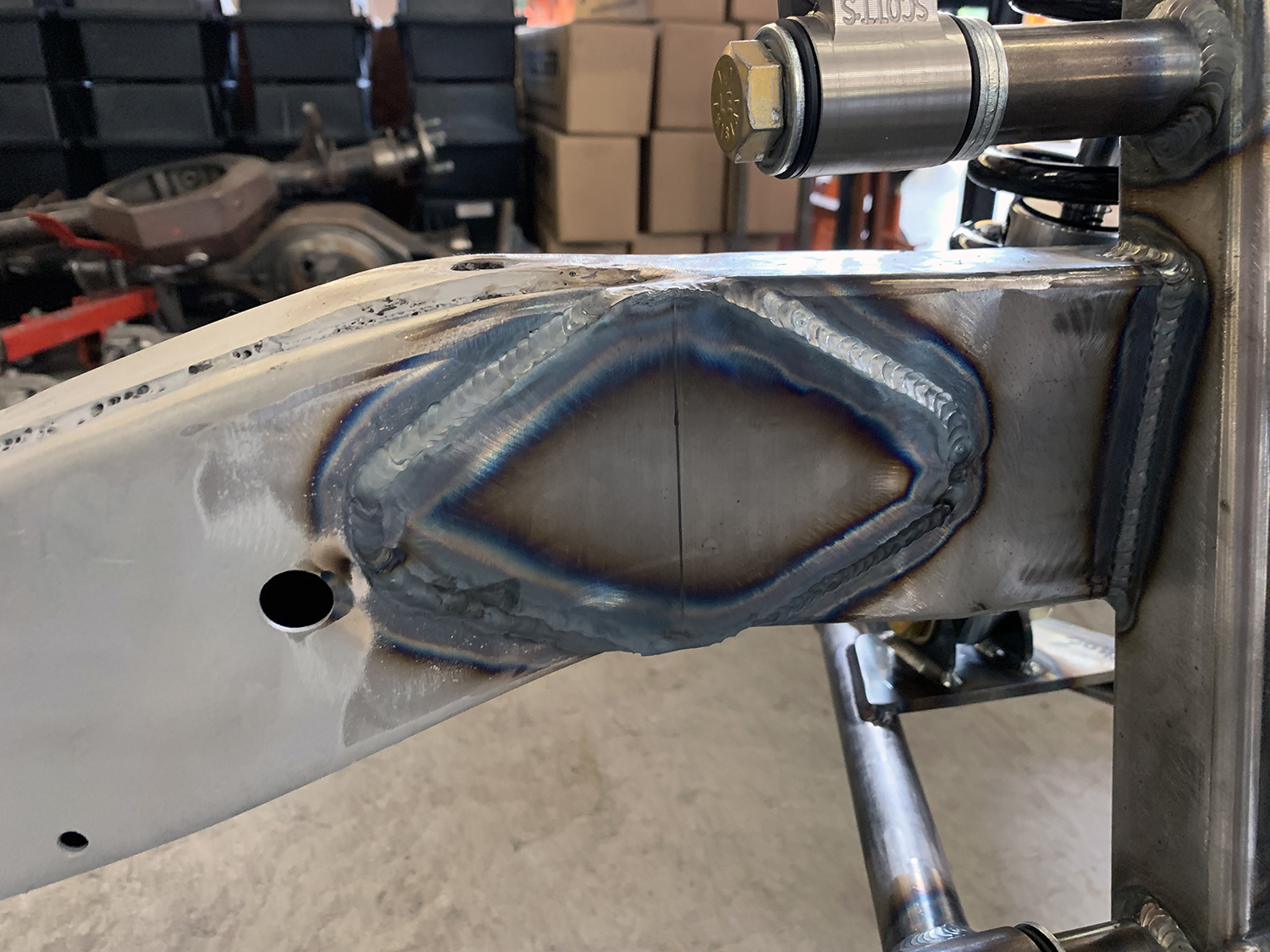

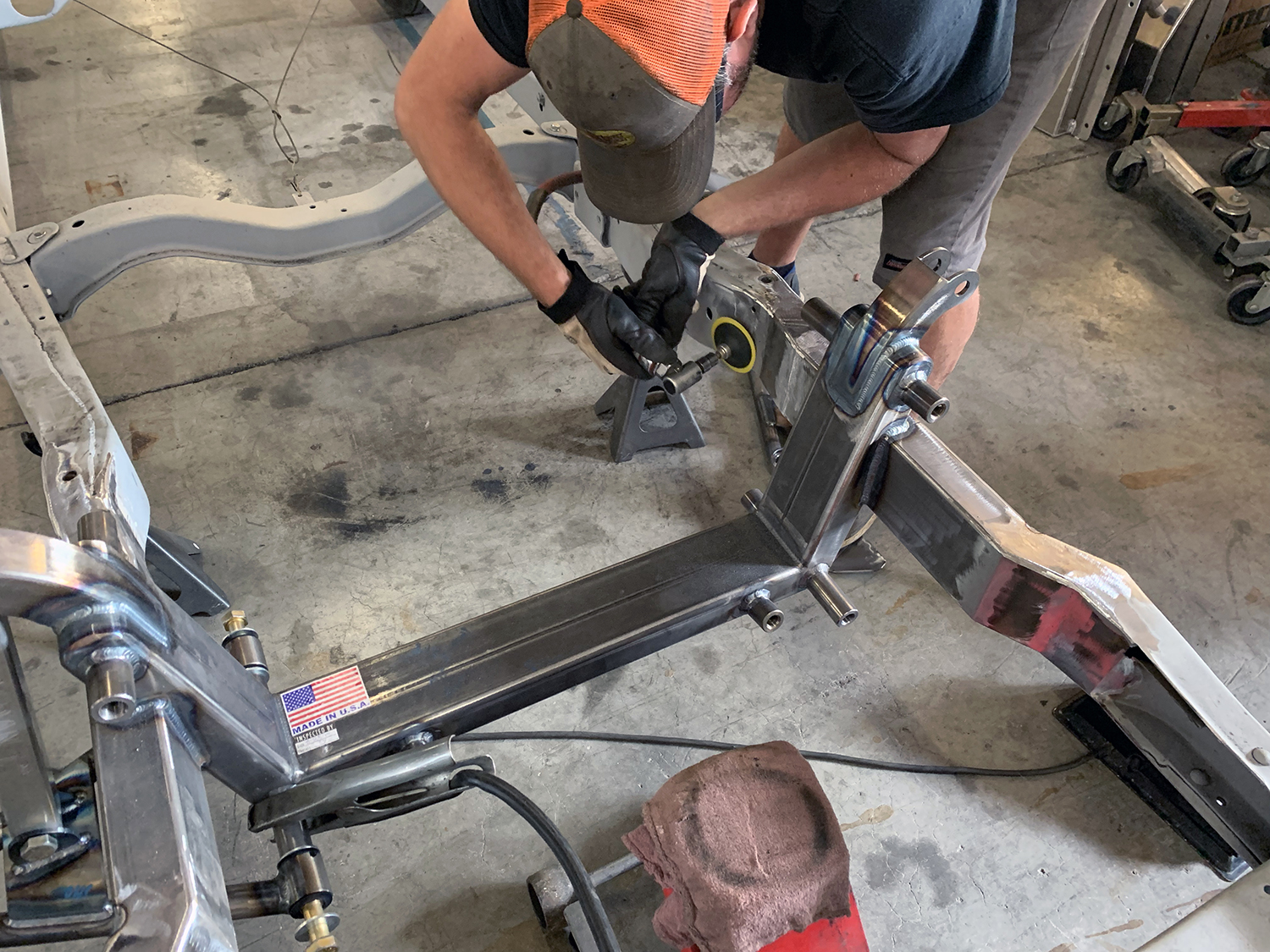

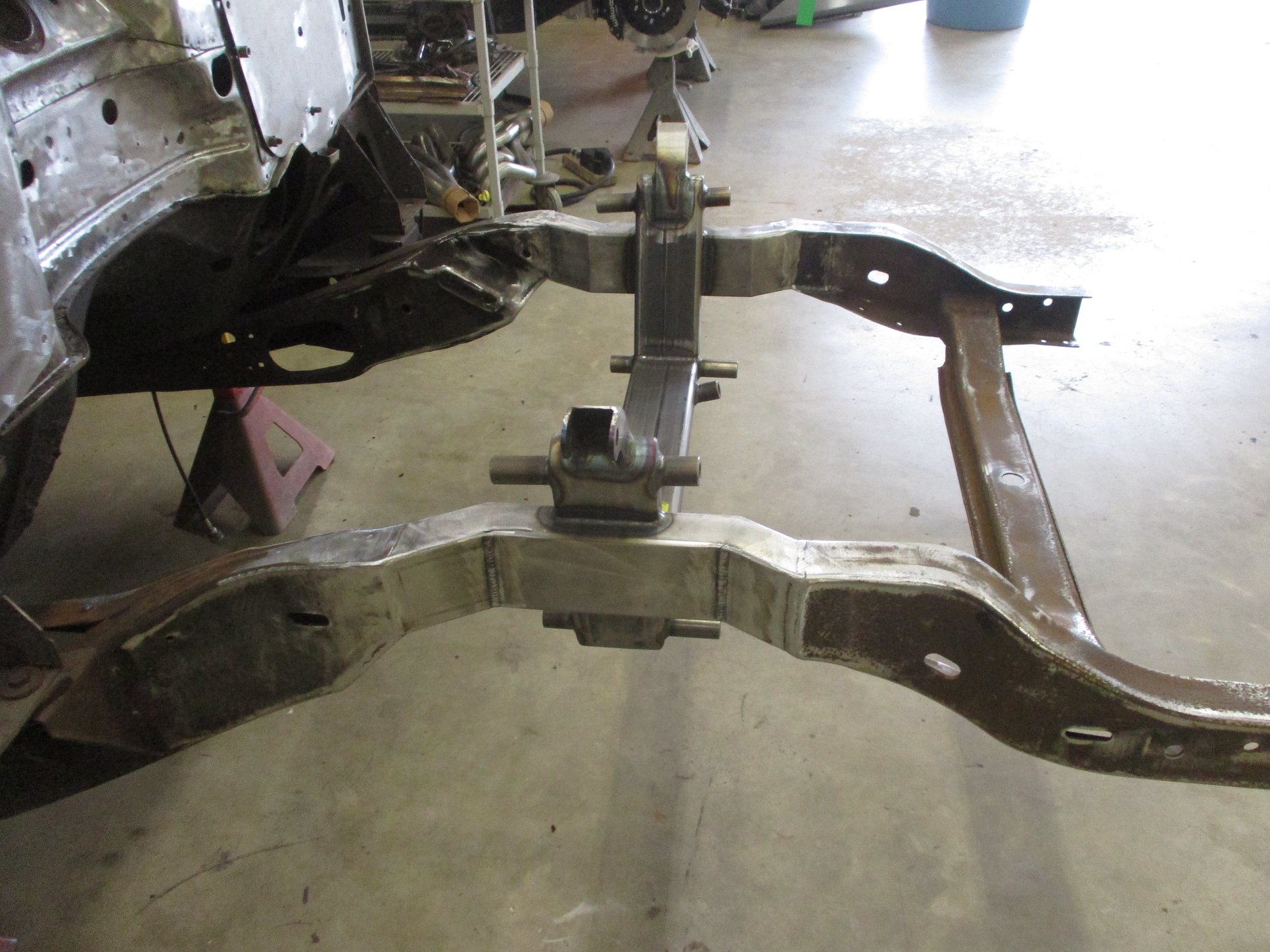

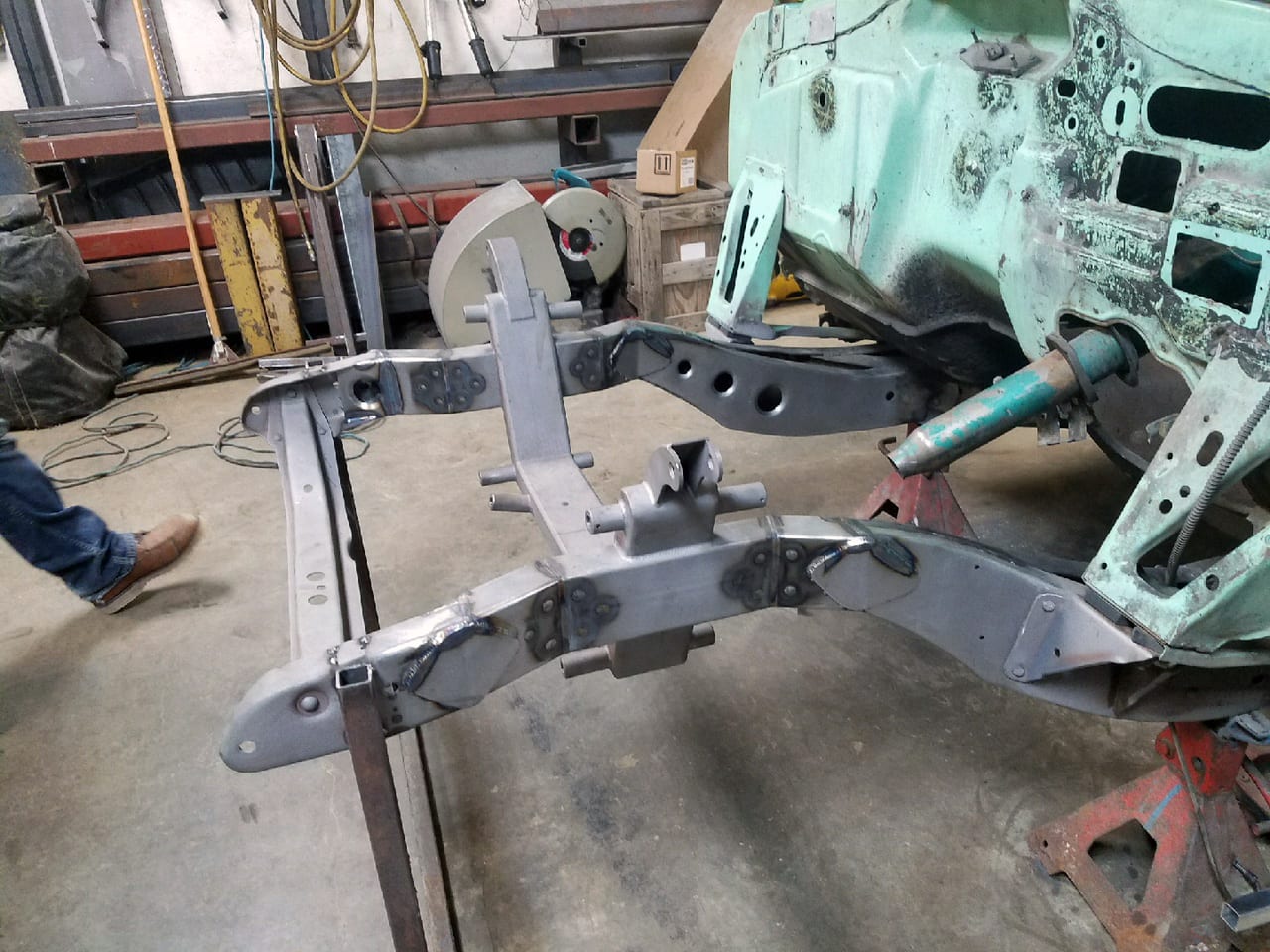

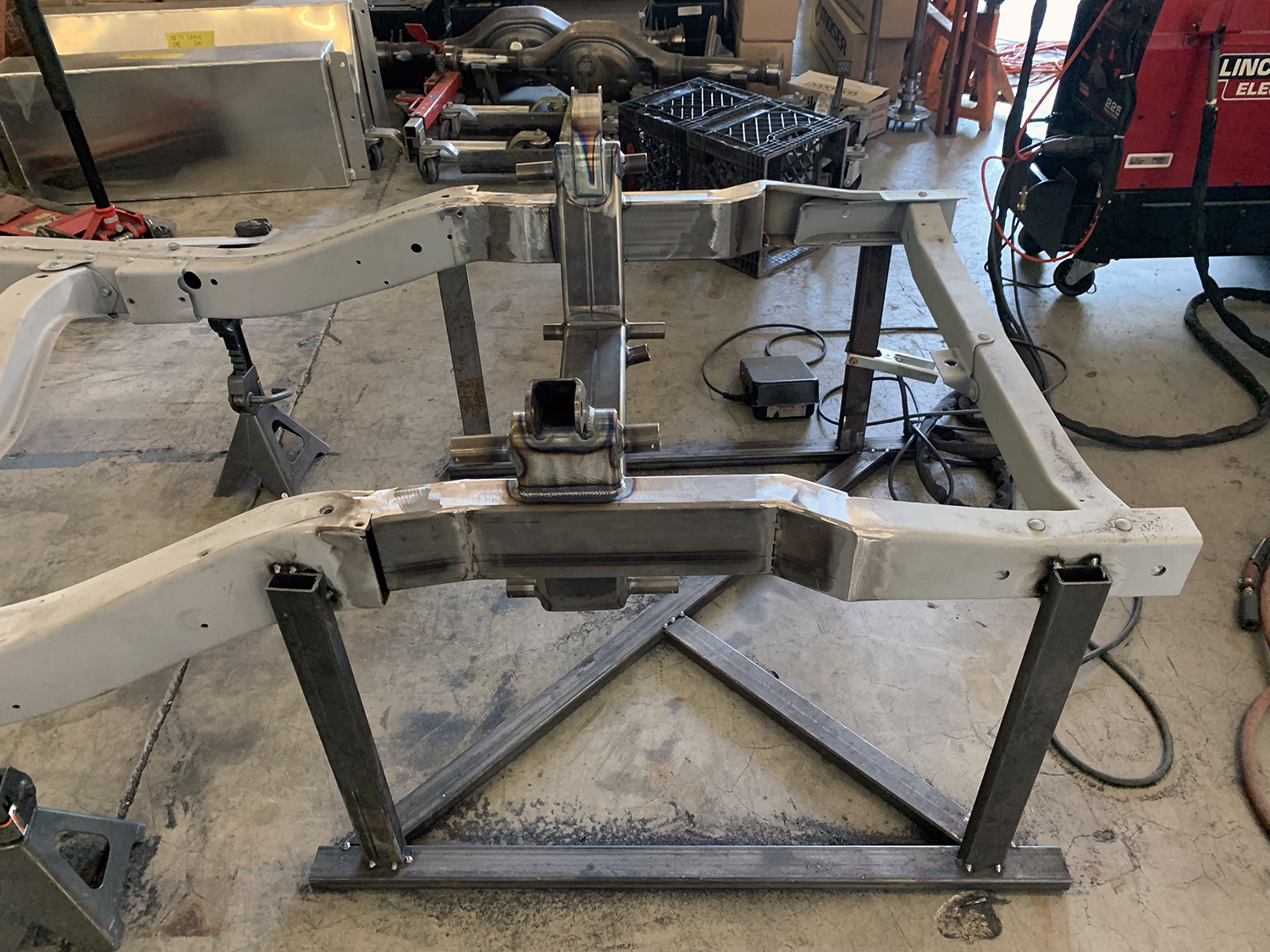

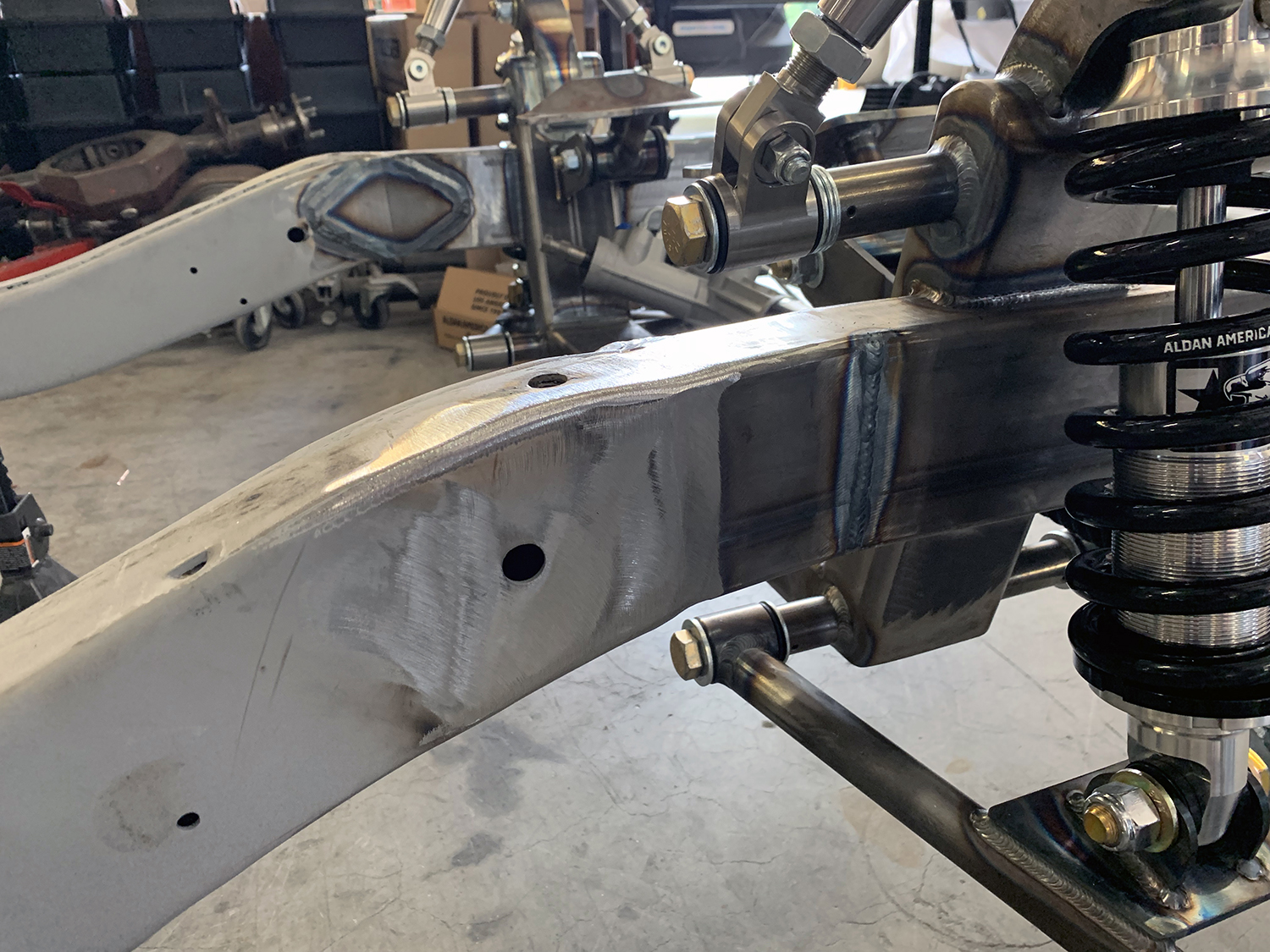

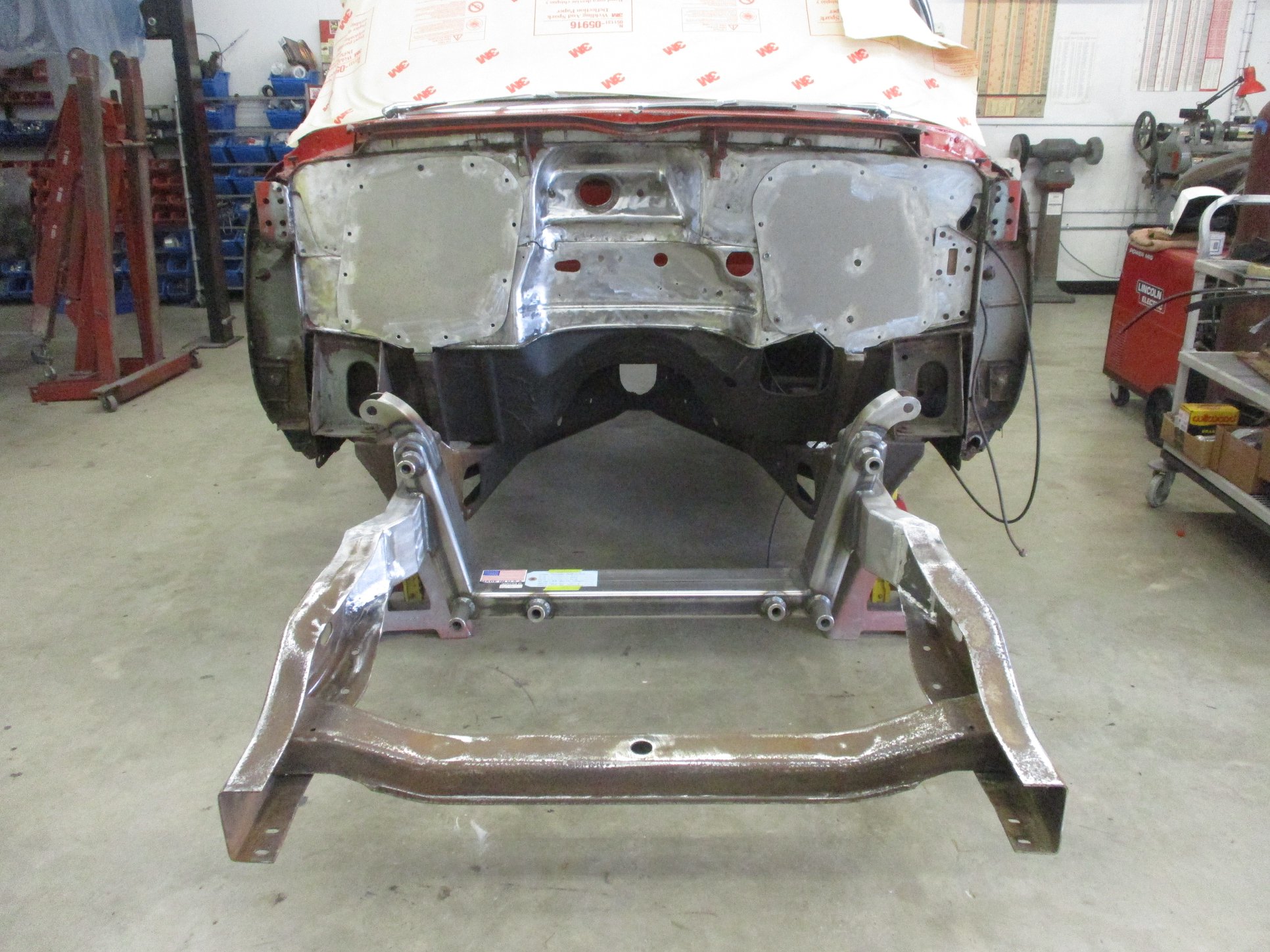

Mock Up the crossmember in position. You will have to graph your stock frame rails to the frame rail sections that we have welded to the IFS crossmember.

NOTE:  The higher you mount the crossmember, the lower the front end of your vehicle will sit.  The lower you mount the crossmember, the higher the front end will sit.

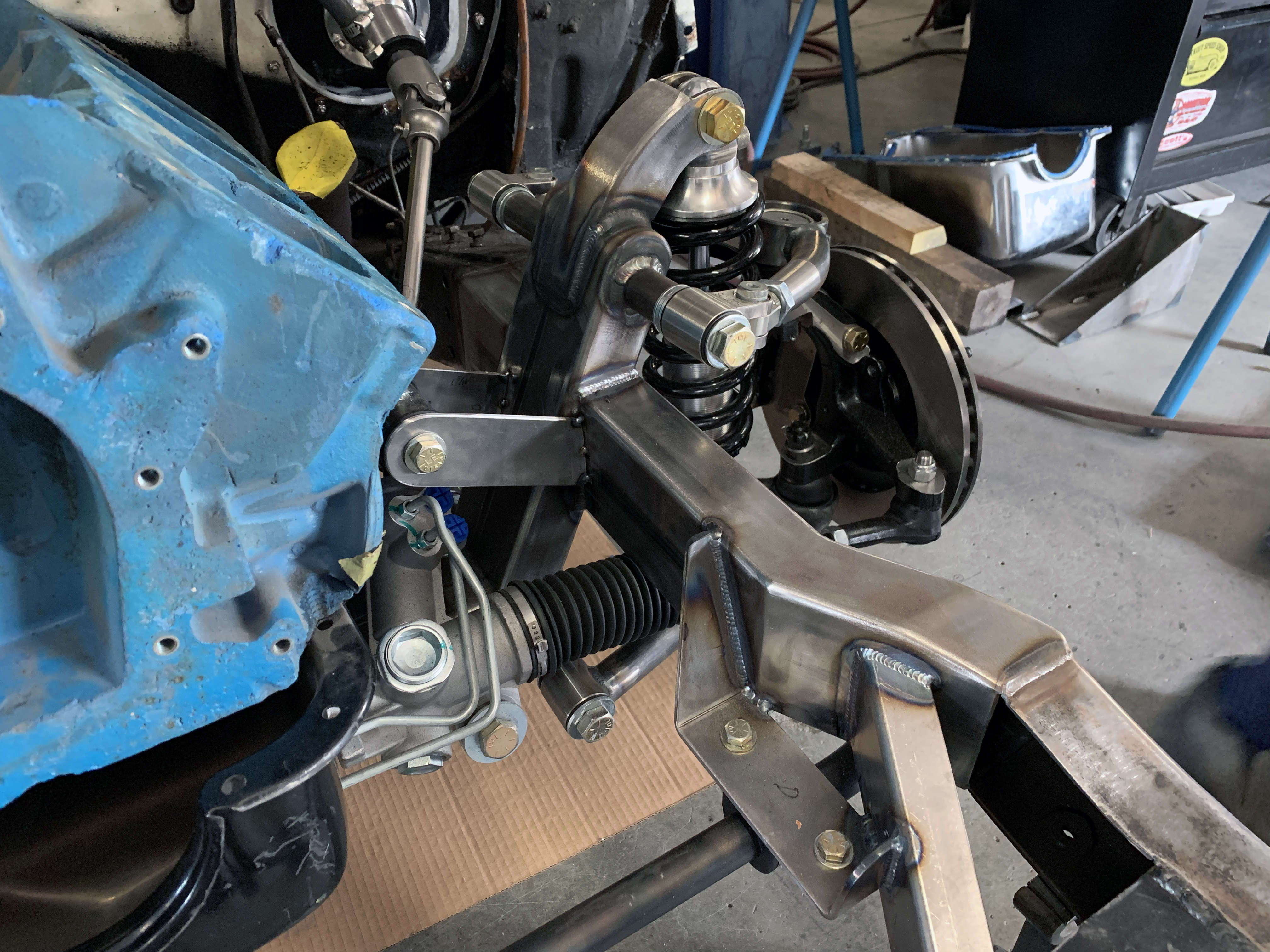

We recommend that you install the A-Arms on the driver’s side so you can mock up your wheel & tire to determine proper crossmember placement.  The Lower A-Arm should be level with the crossmember at Ride Height.  A-Arm installation instructions are explained later in the instructions.



We stand behind ALL of the parts we manufacture.  Other parts that we do not manufacture such as brakes, steering racks, ball joints, brake flex lines, power steering lines, etc carry their own manufacturers warranties.  We are not responsible for these items outside of their original warranty.

All of Scott’s Hotrods manufactured parts are guaranteed to be free of defects in materials & workmanship for the lifetime of the part. Scott’s Hotrods warranty is non-transferable.
