4-Bar Rear Suspension Kit – Coilover Hot Rod & Custom Car Suspension

Why is Scott’s Hotrods Equal-Length Parallel
4-Bar Rear Suspension Different?

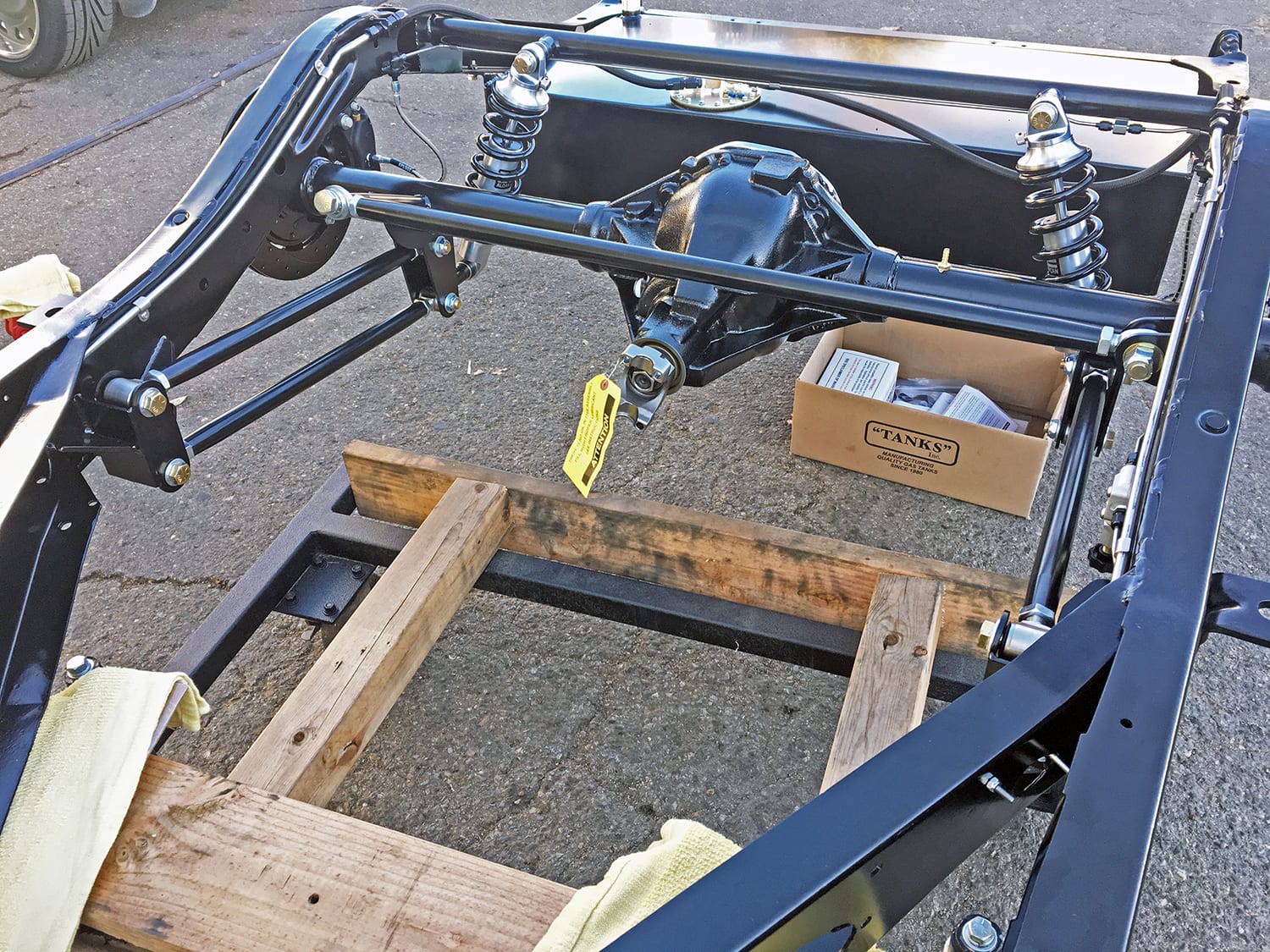

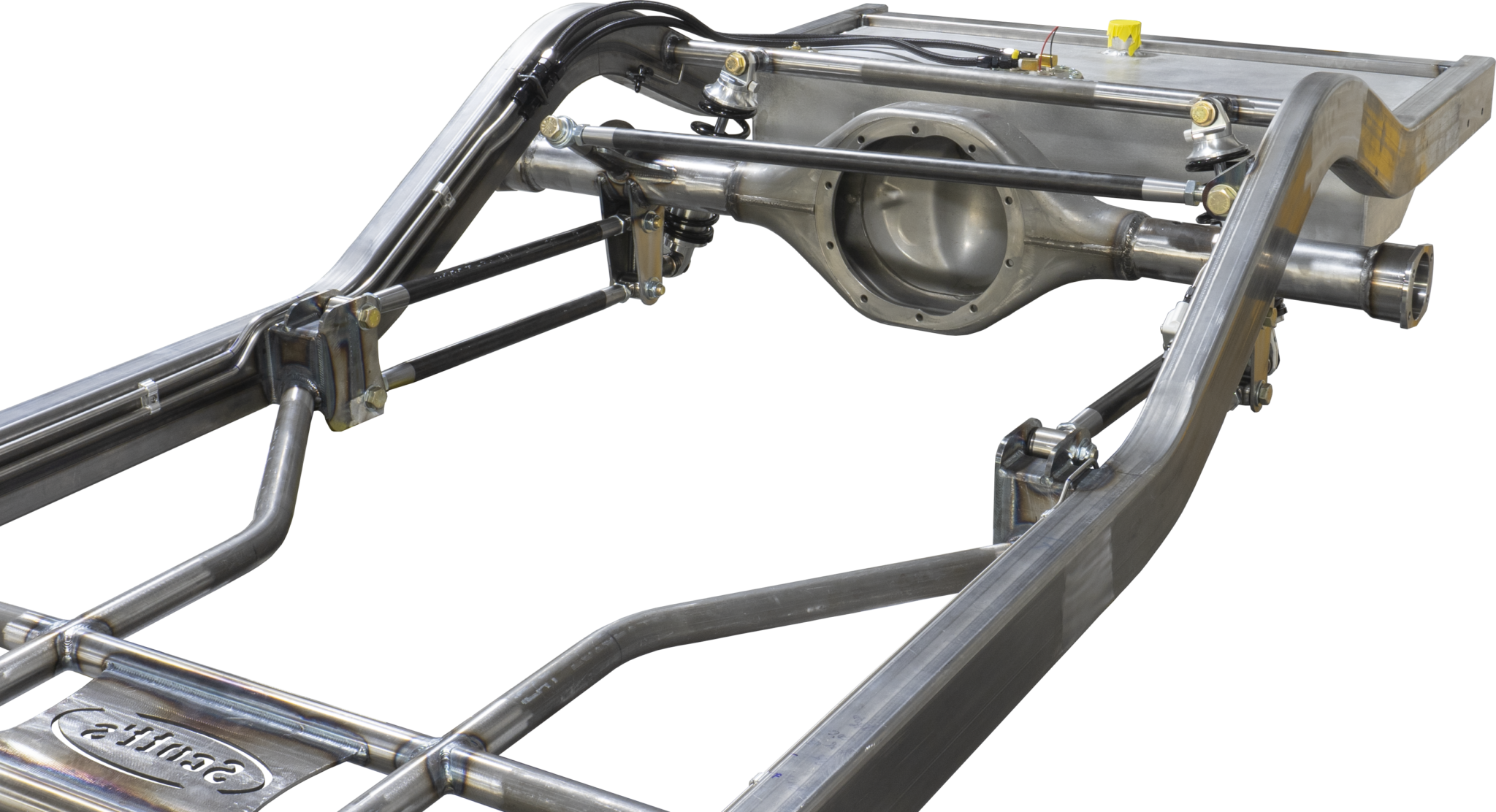

Scott’s Hotrods Equal-Length Parallel 4-Bar Rear Suspension Kit is engineered to dramatically improve the ride quality, handling, adjustability and overall performance of classic cars, hot rods, custom trucks and performance vehicles. Unlike a traditional leaf-spring rear suspension or many triangulated 4-link designs, Scott’s uses true equal-length parallel 4-bar geometry to maintain consistent rear suspension movement throughout its travel.

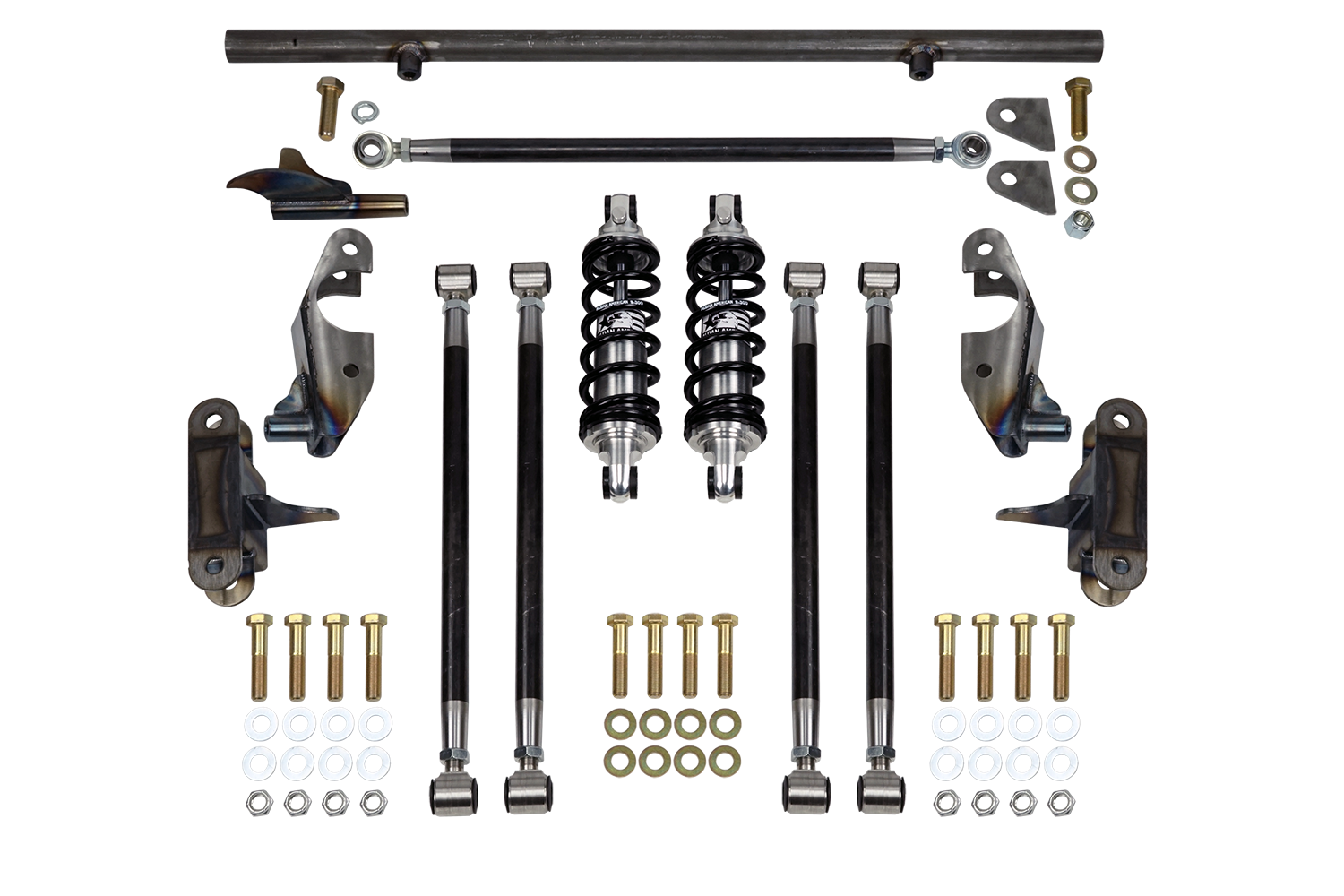

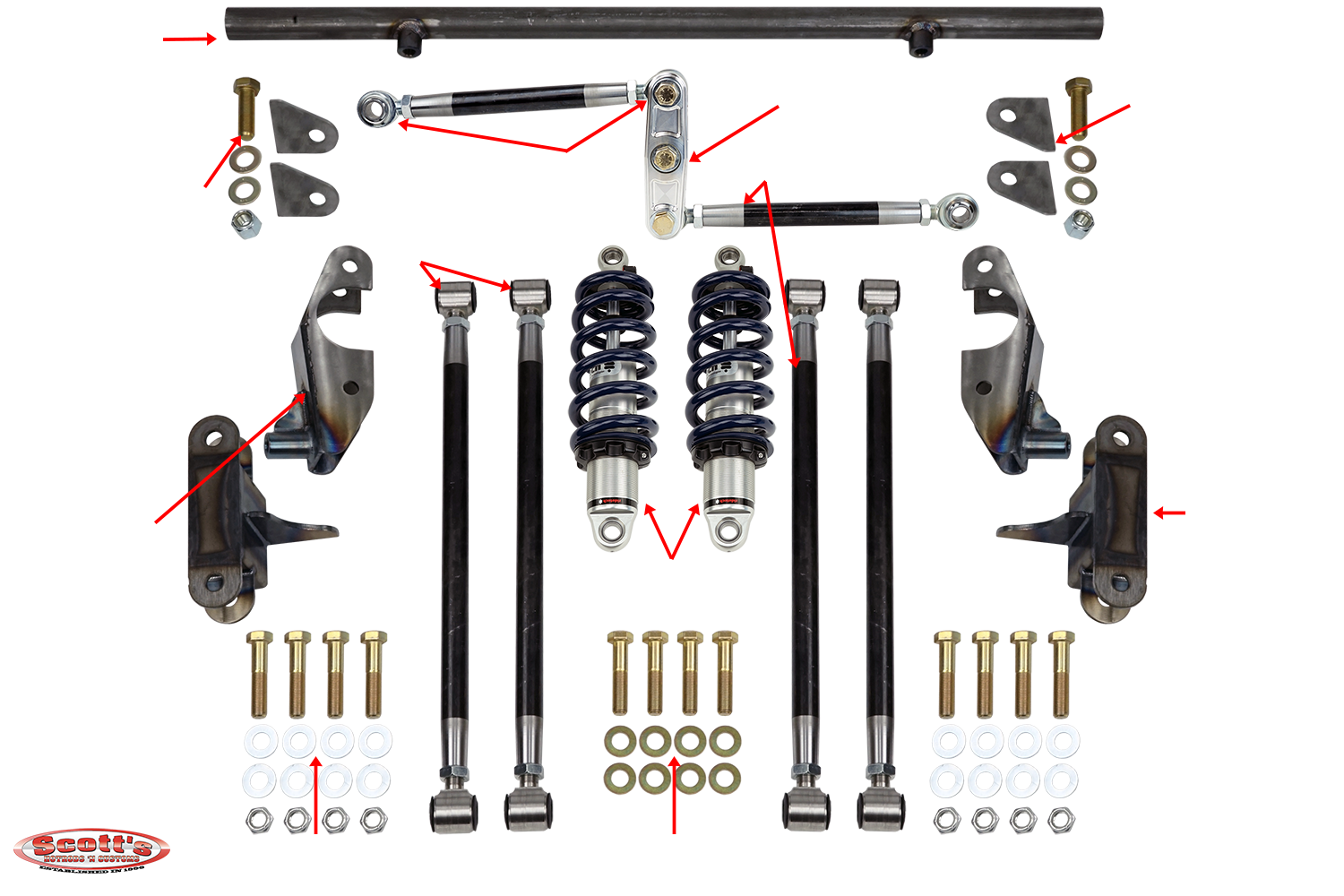

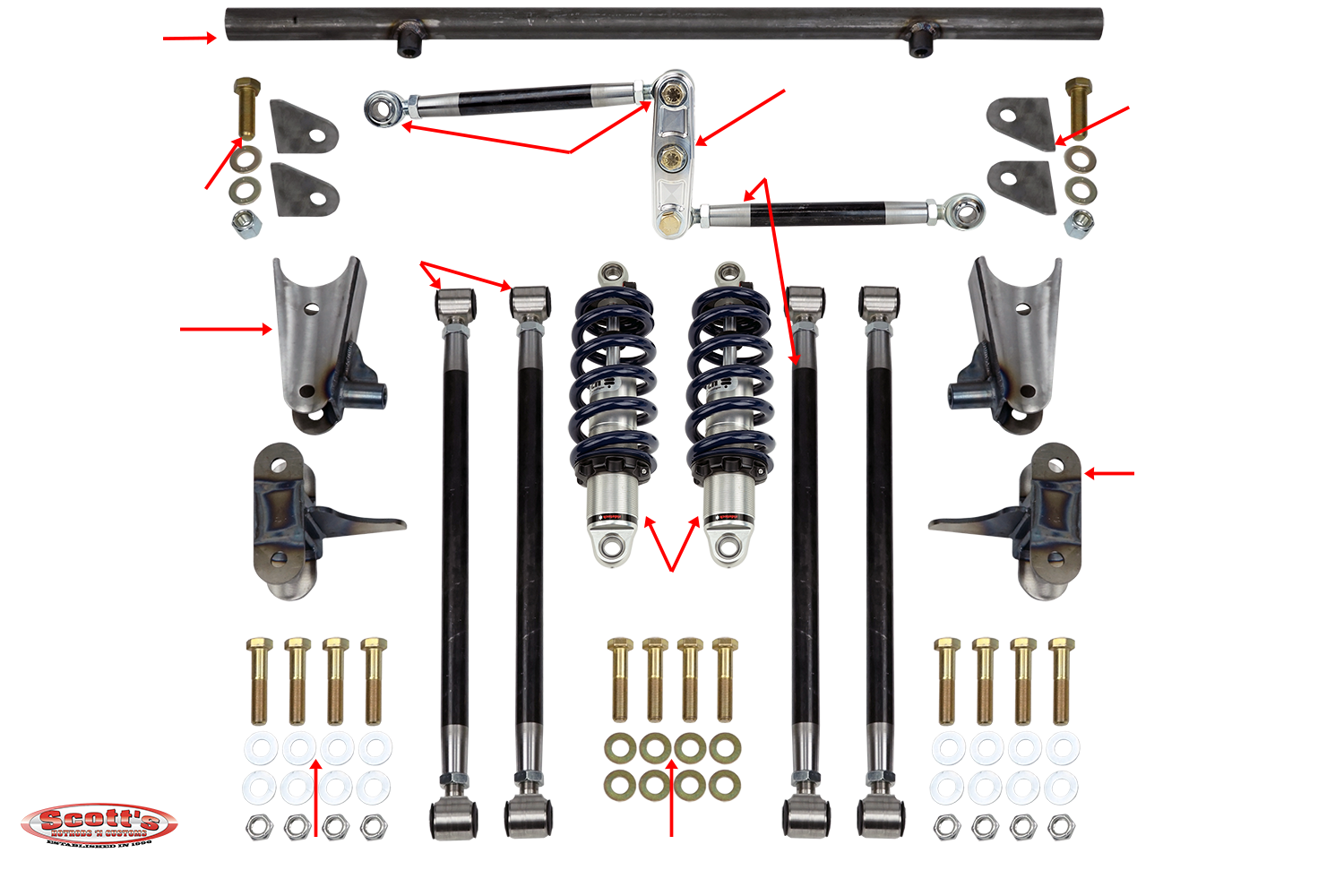

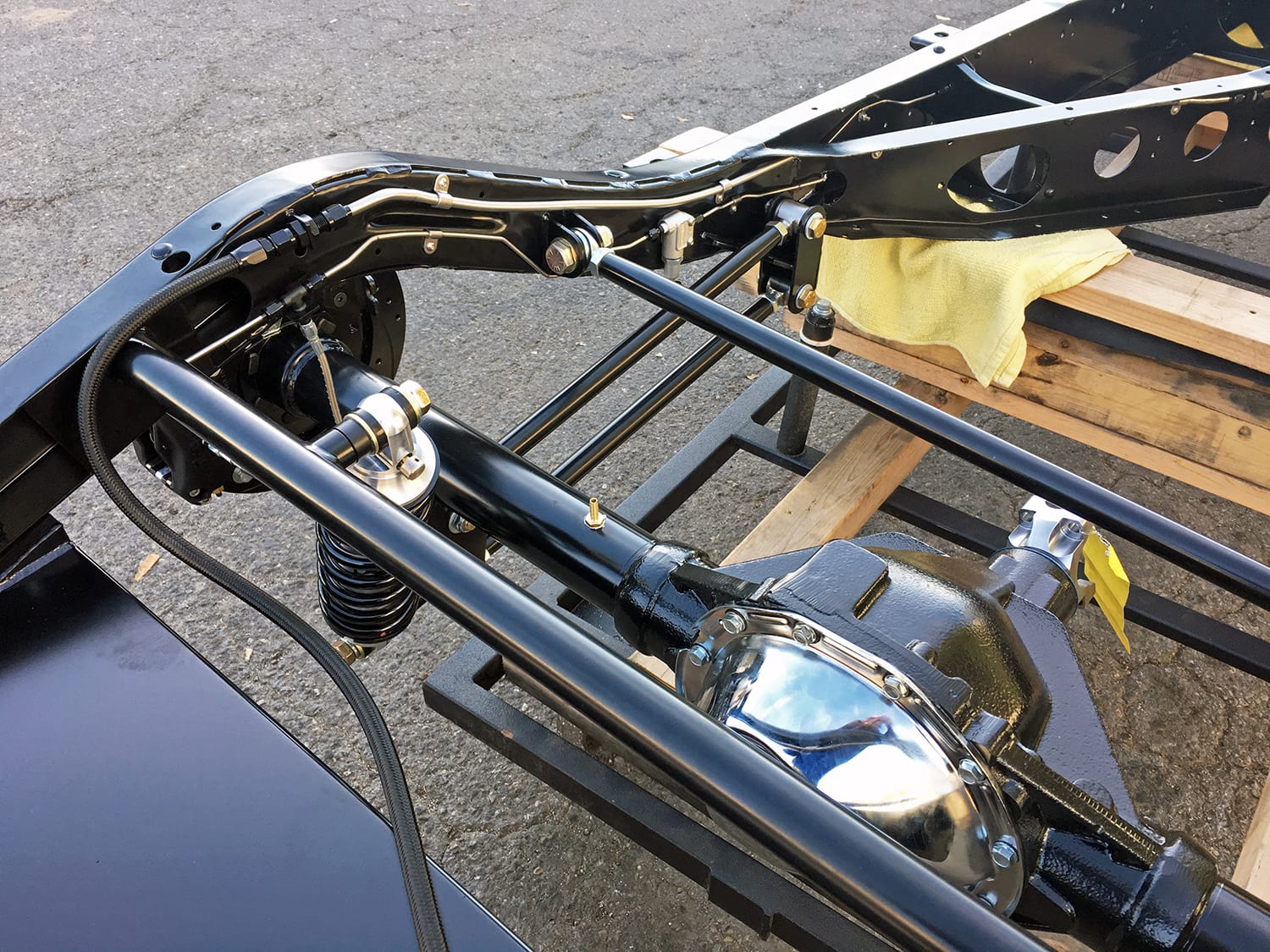

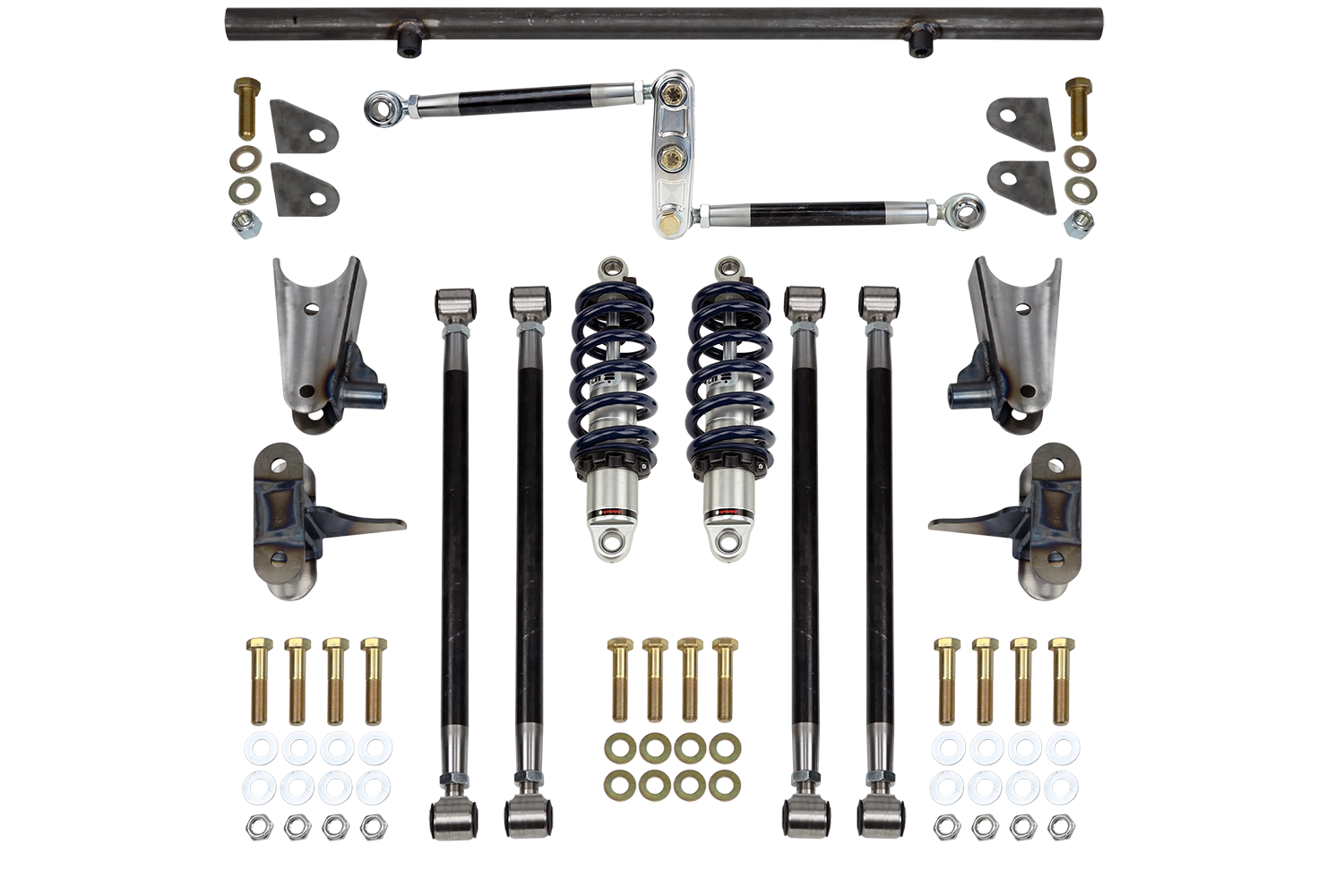

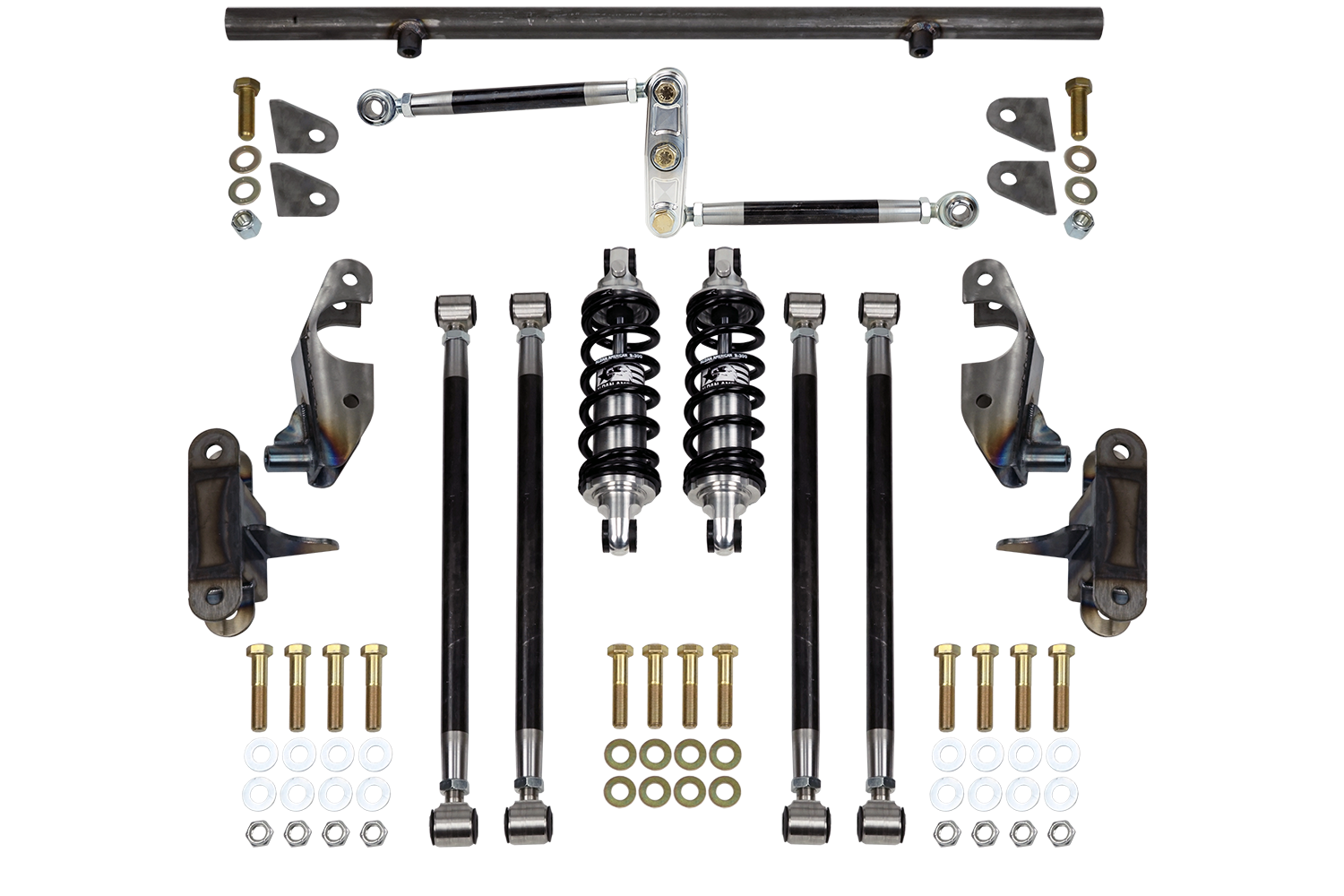

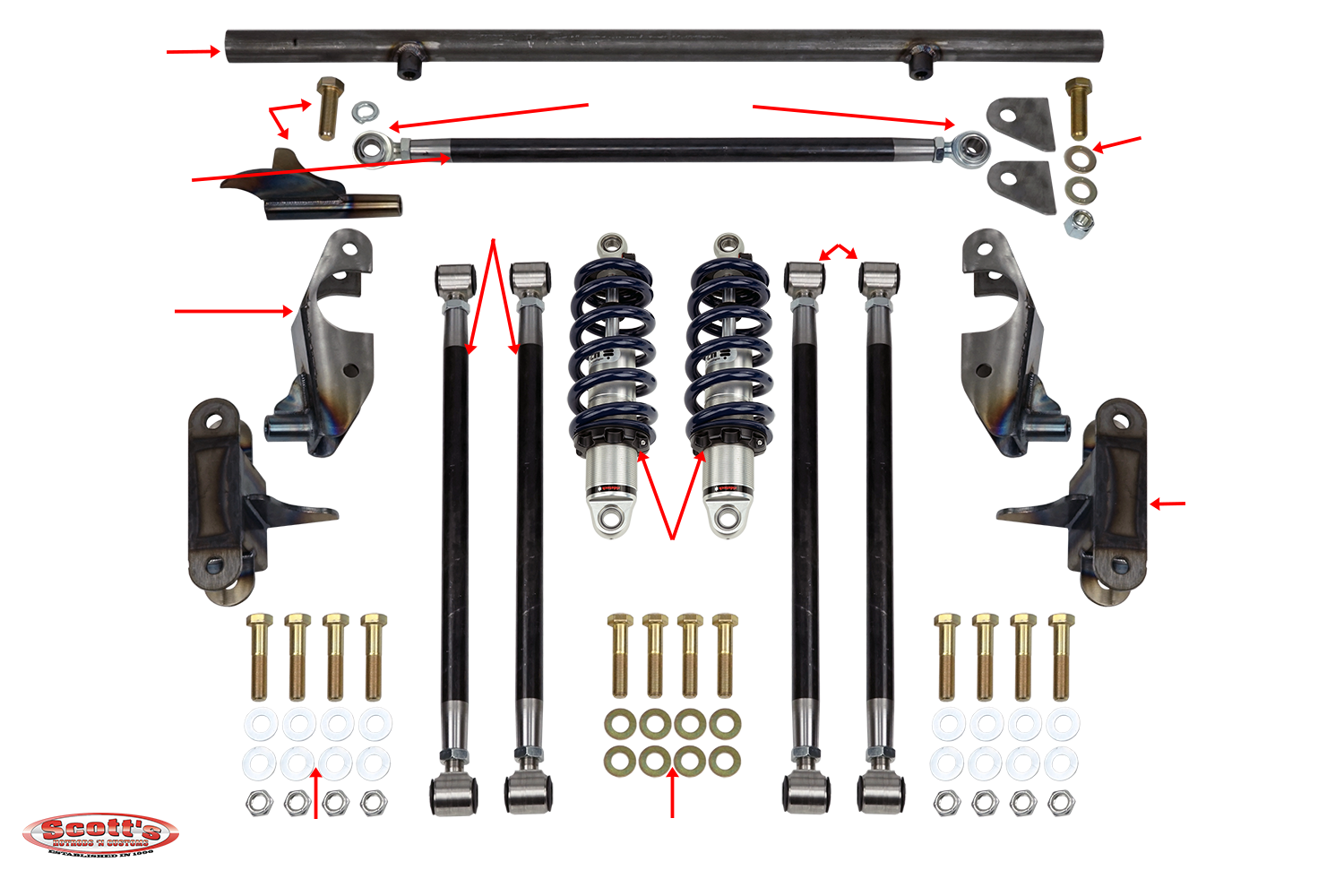

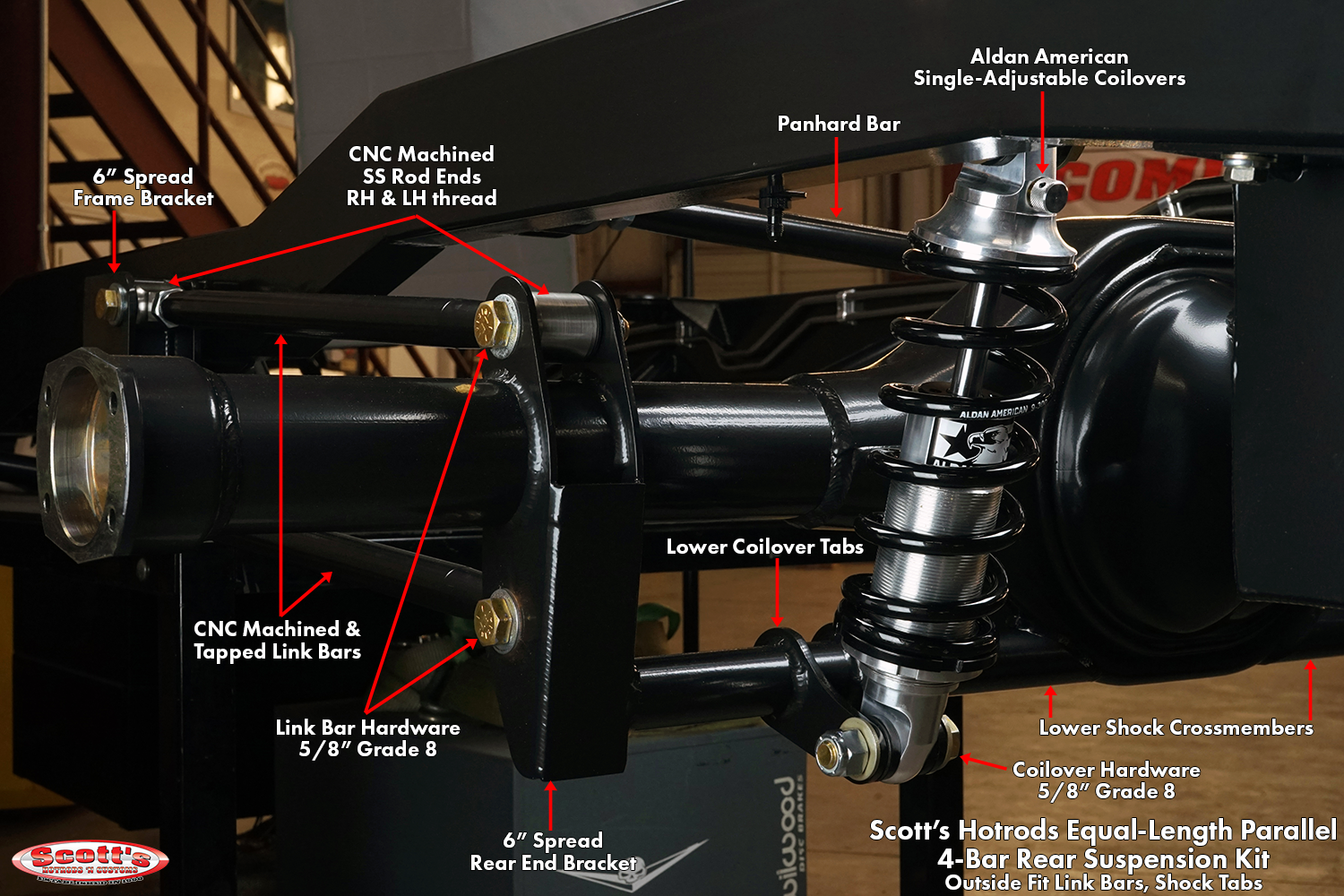

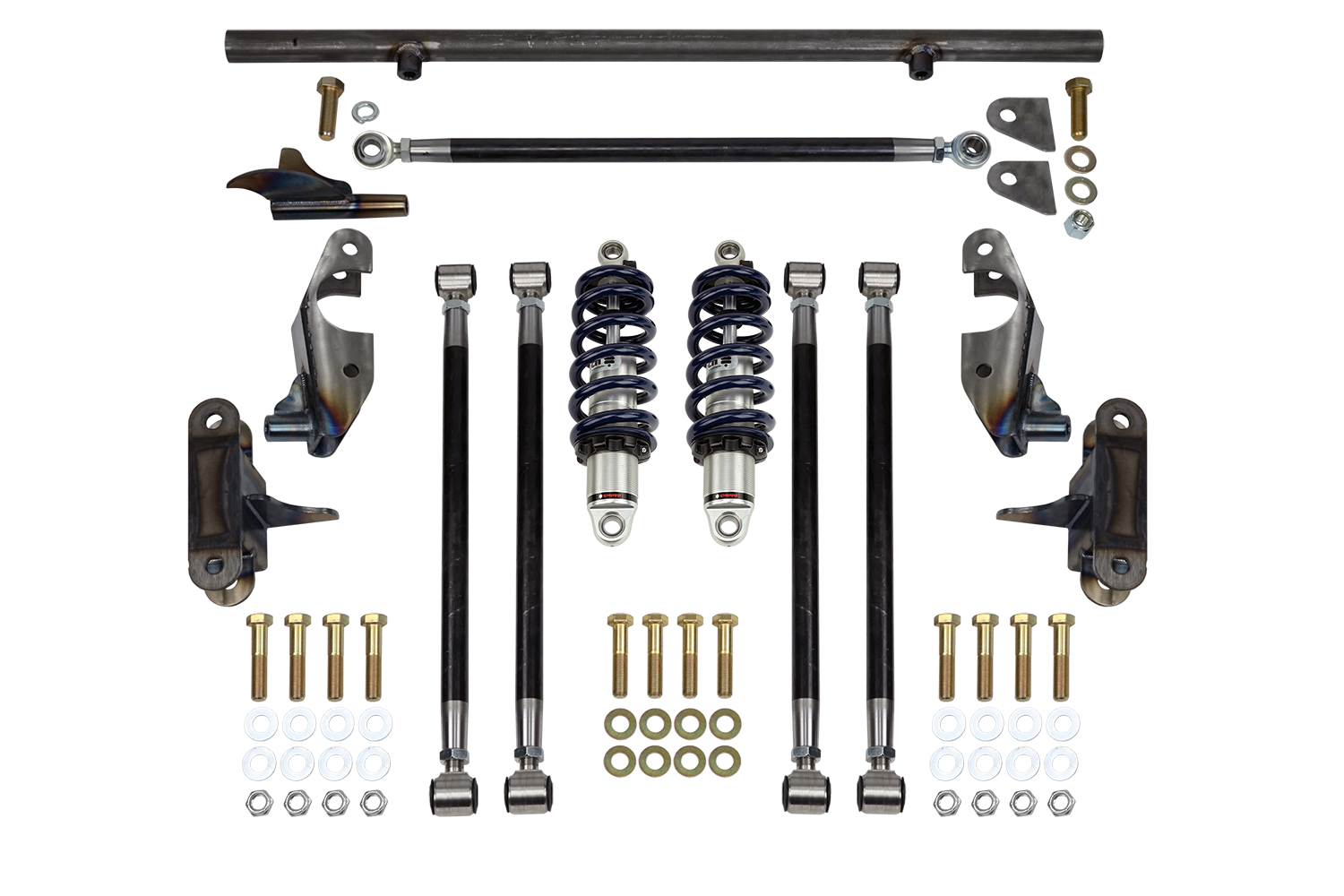

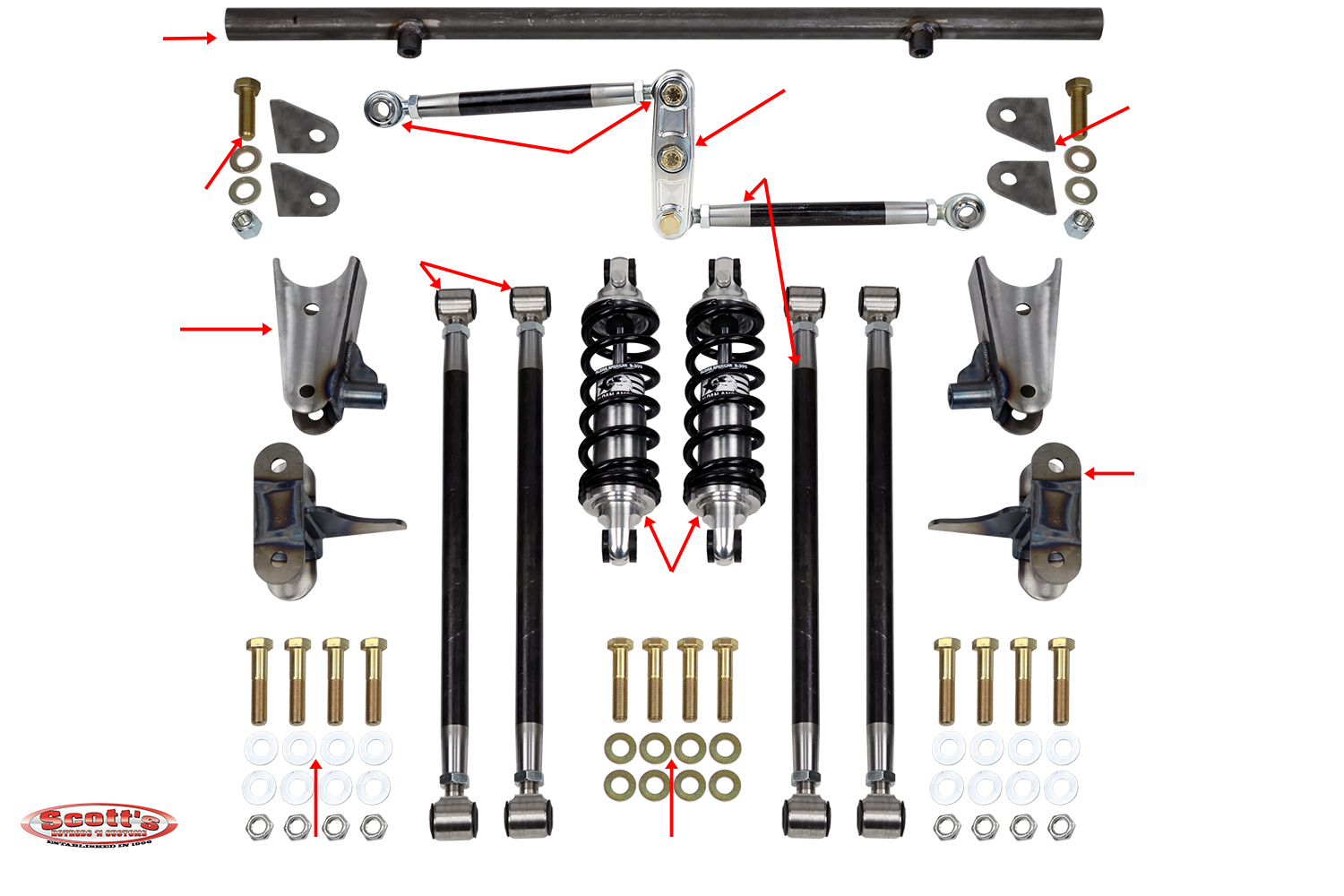

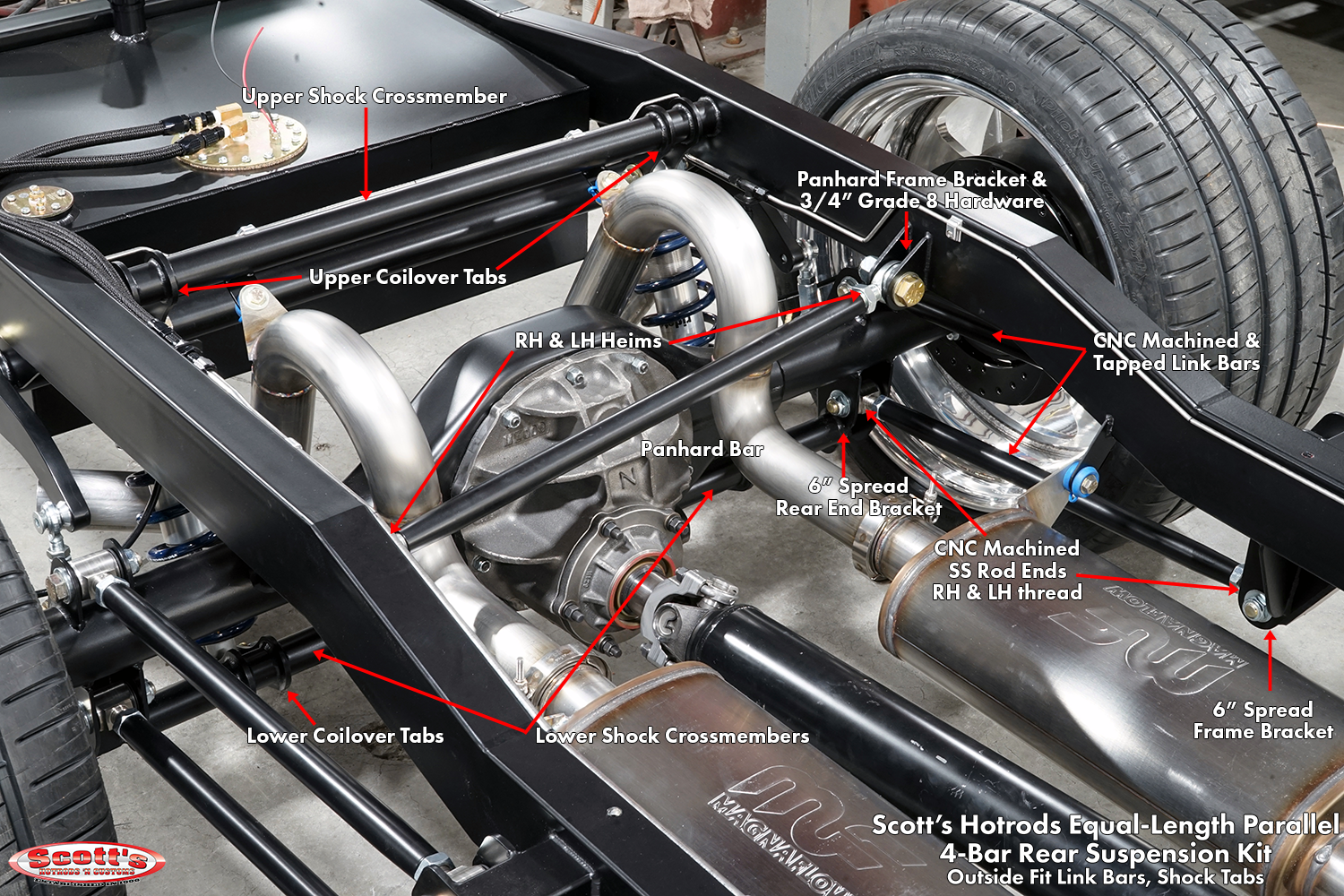

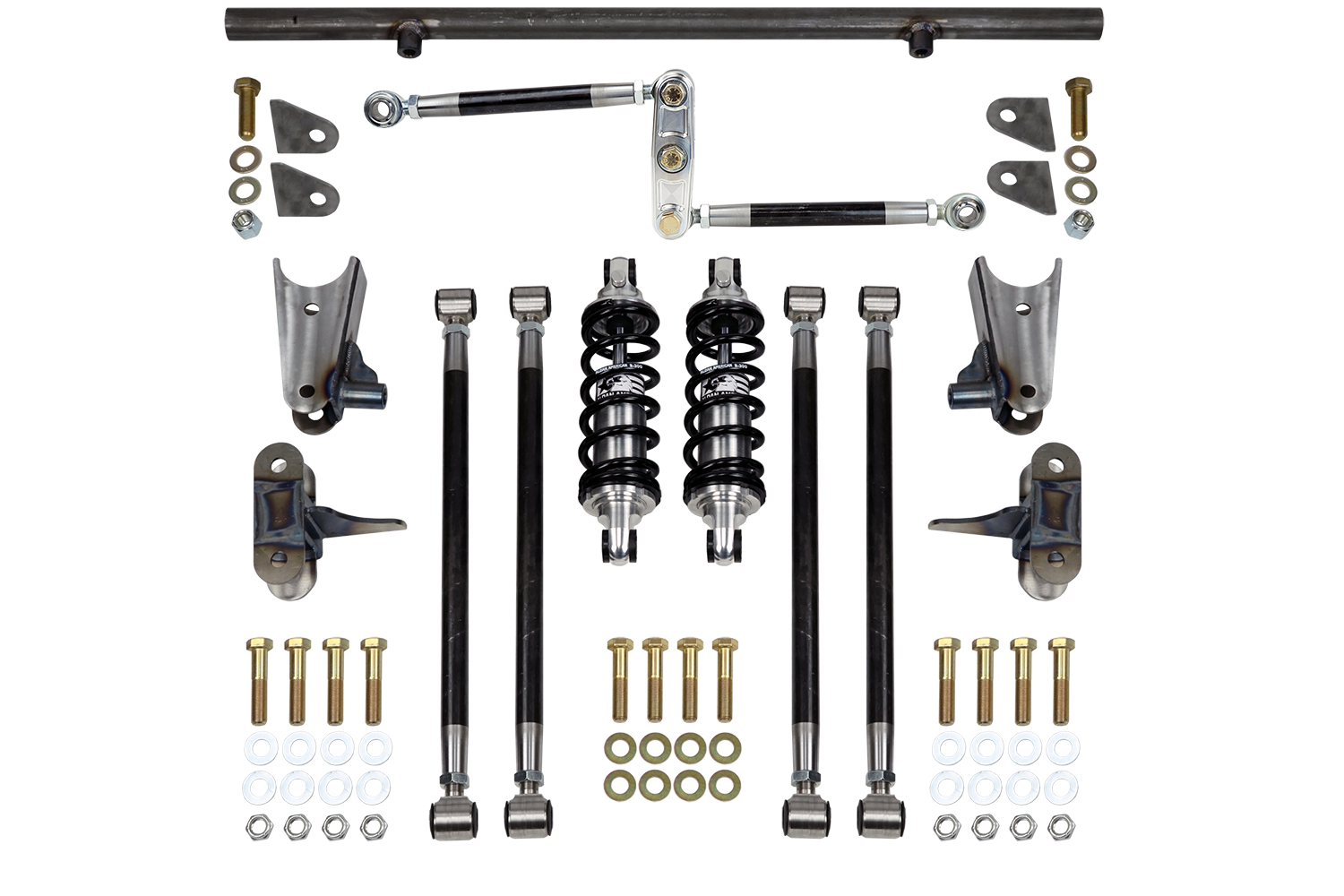

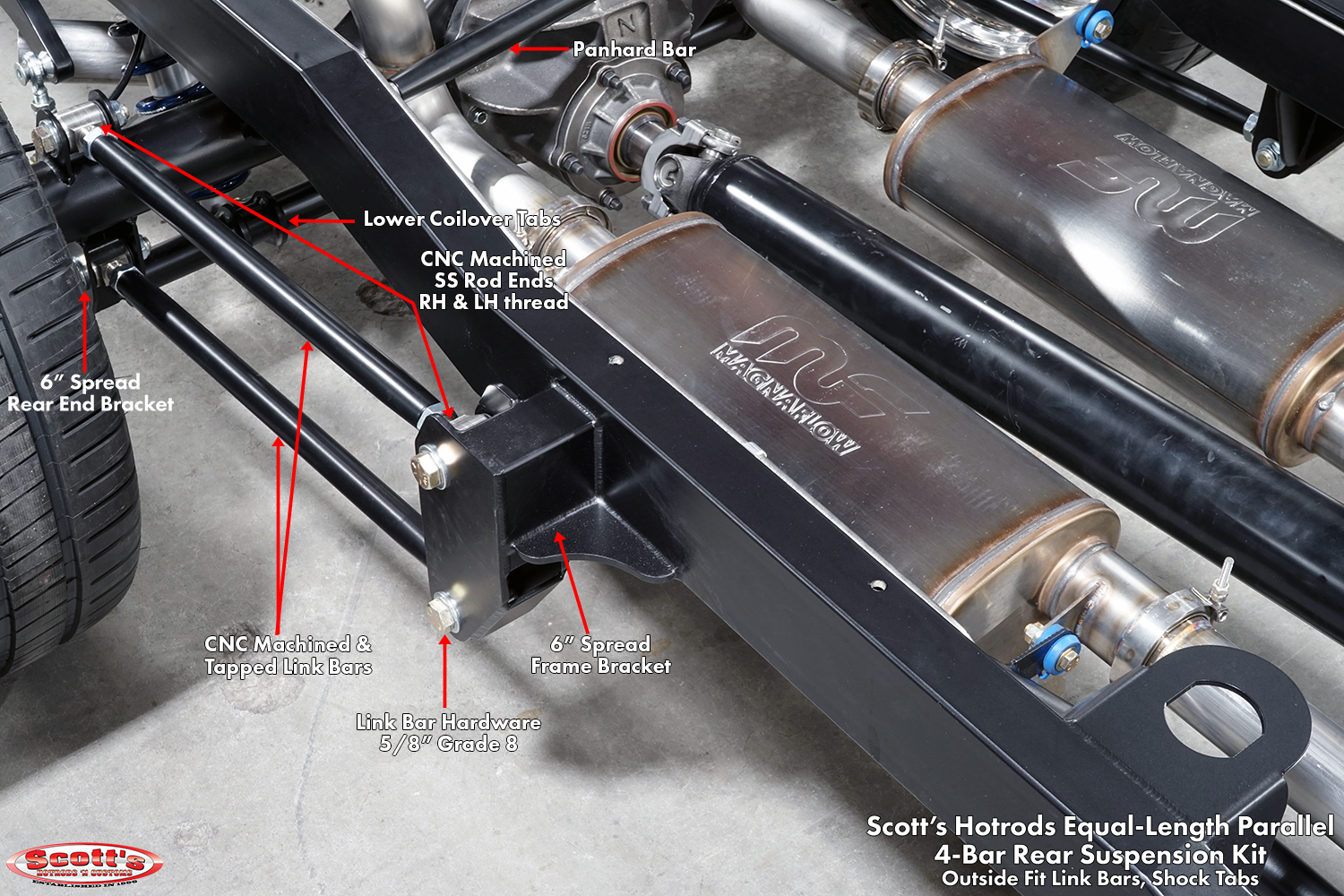

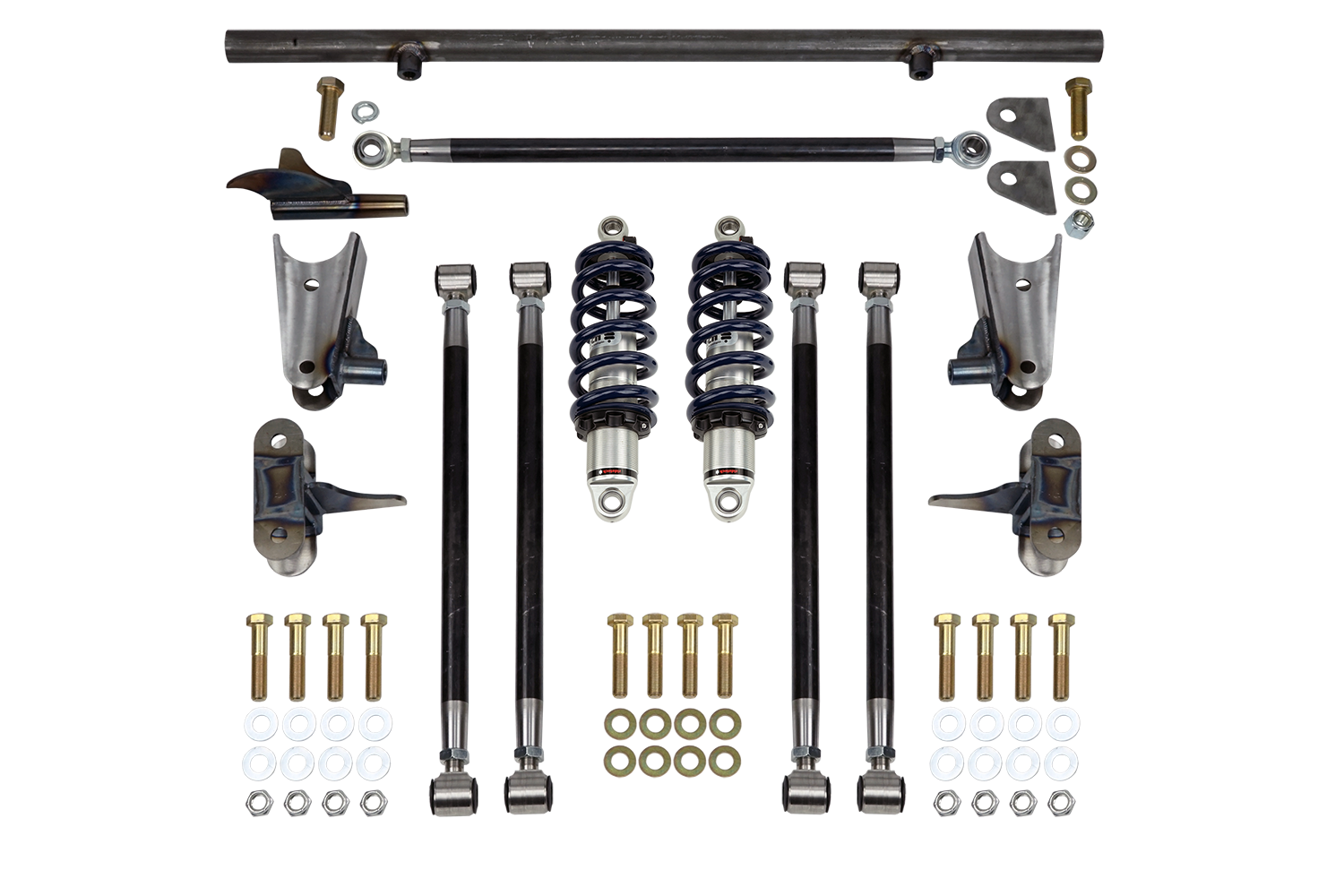

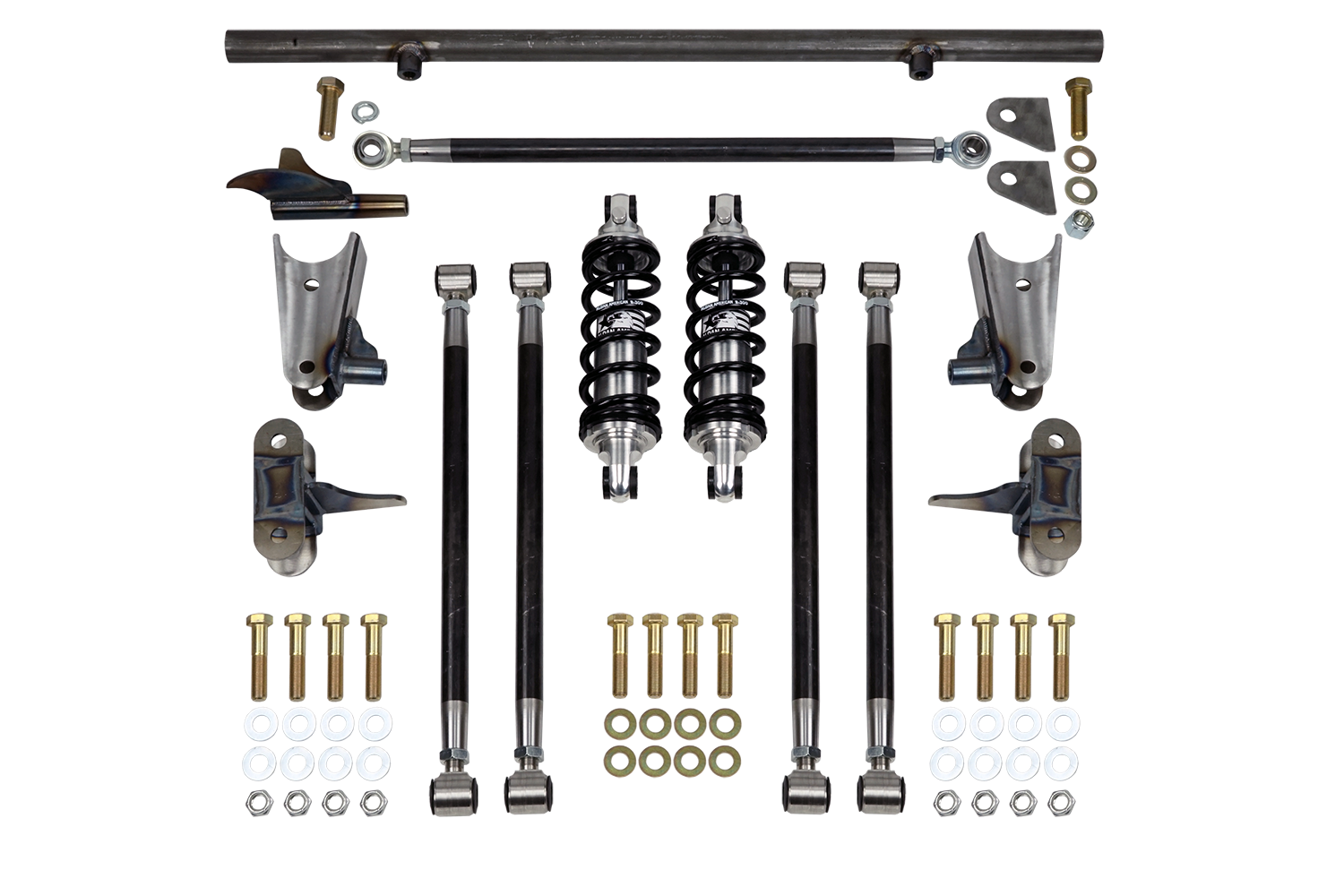

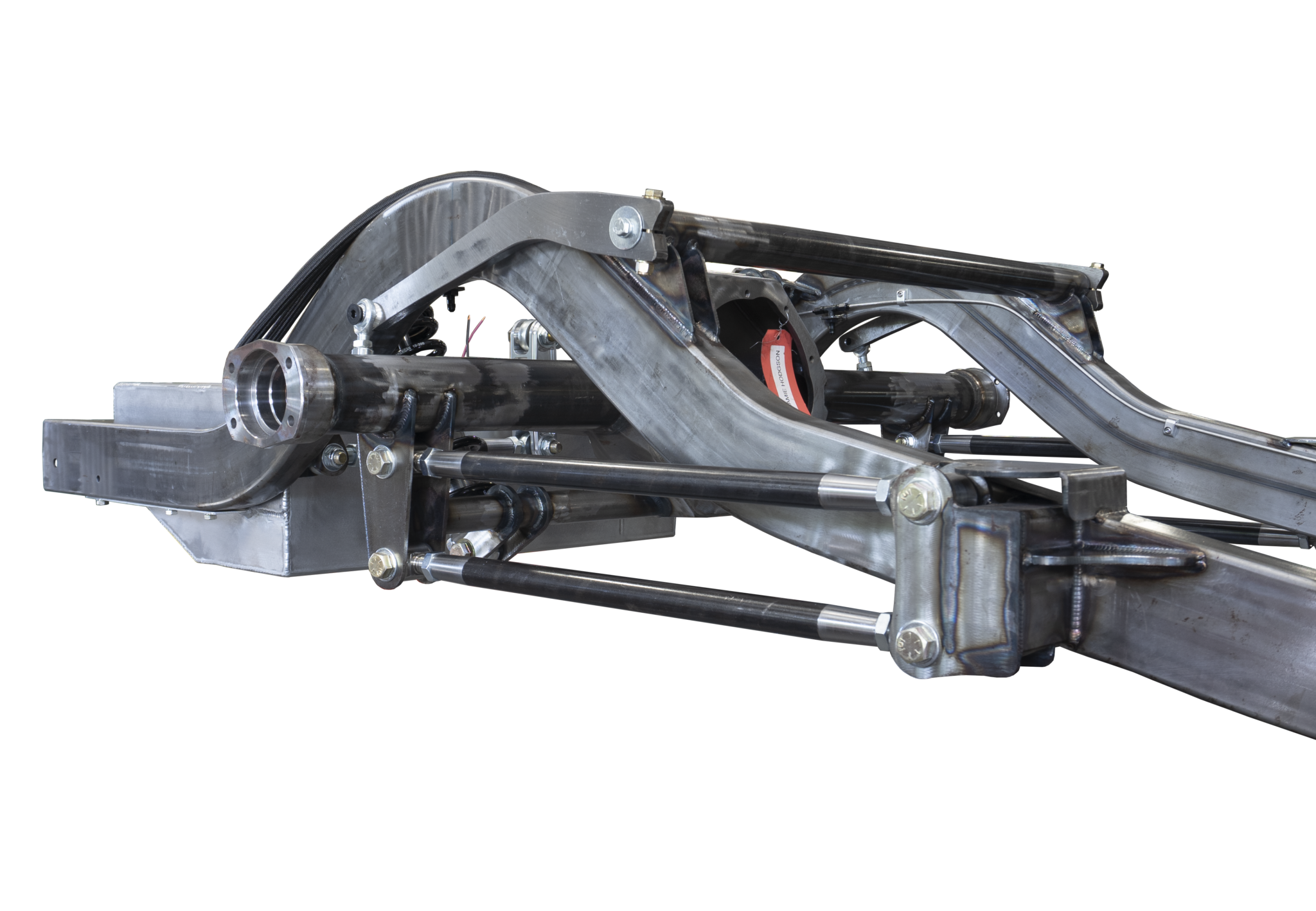

Every Scott’s 4-Bar Rear Suspension Kit is built around heavy-duty 1-1/8″ x .250-wall DOM link bars, CNC-machined stainless steel adjustable rod ends, 5/8″ Grade 8 hardware and a dedicated upper shock crossmember. The adjustable right- and left-hand threaded link bars make setting pinion angle simple, while the long Panhard bar controls lateral axle movement. The result is a clean, strong and highly adjustable rear suspension designed for everything from comfortable street-driven hot rods to high-horsepower Pro Touring and performance builds.

What Is an Equal-Length Parallel 4-Bar Rear Suspension?

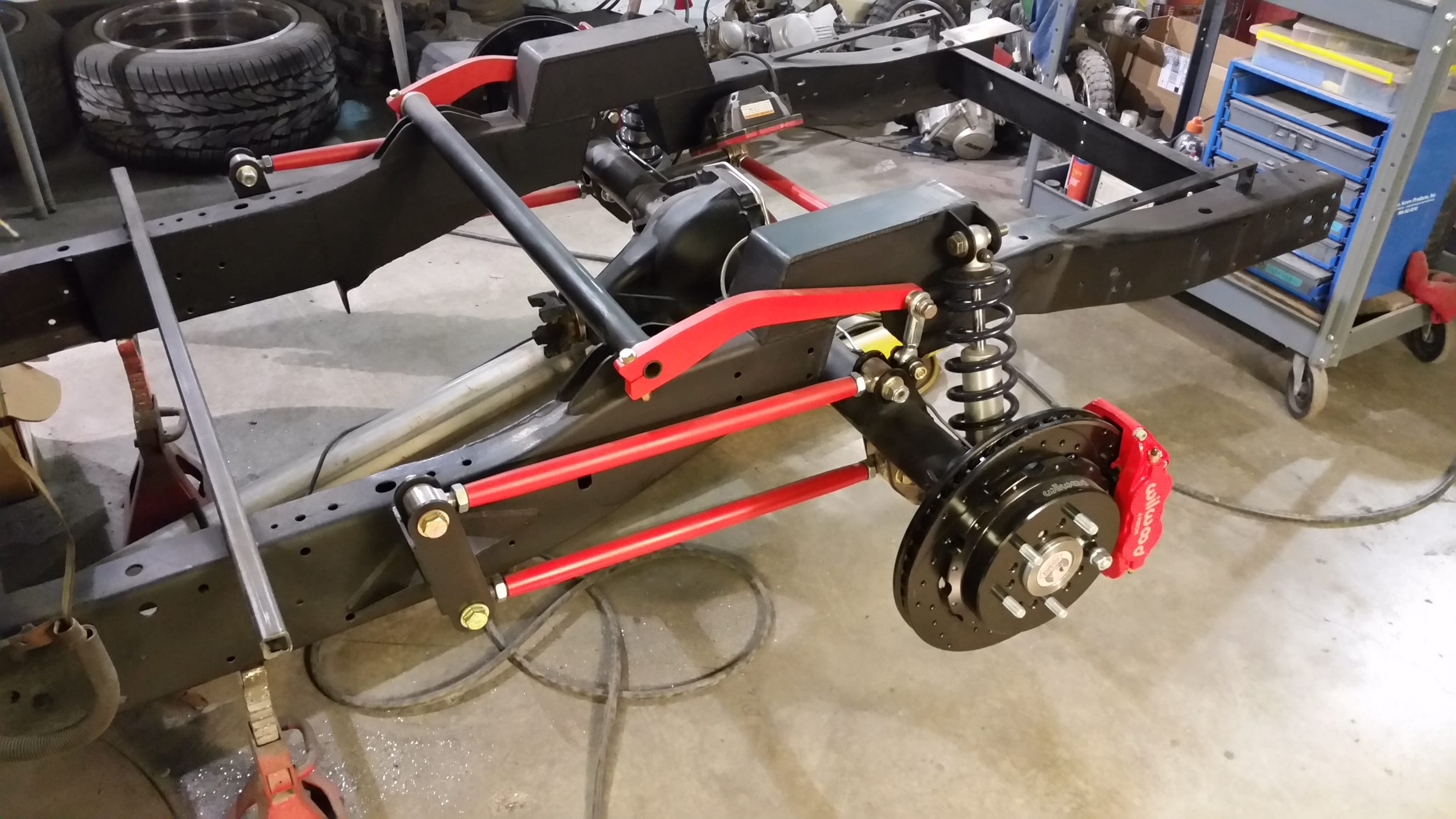

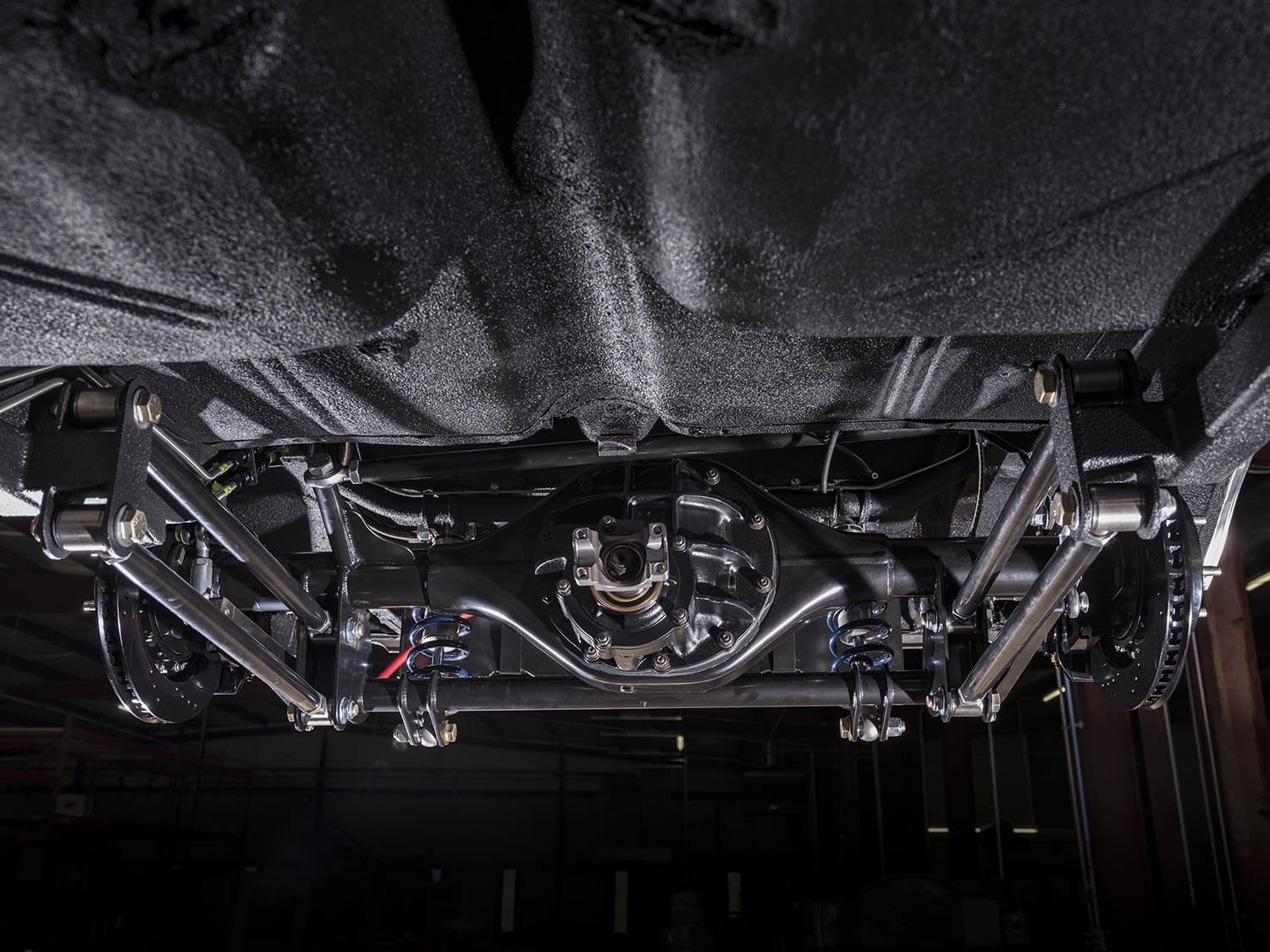

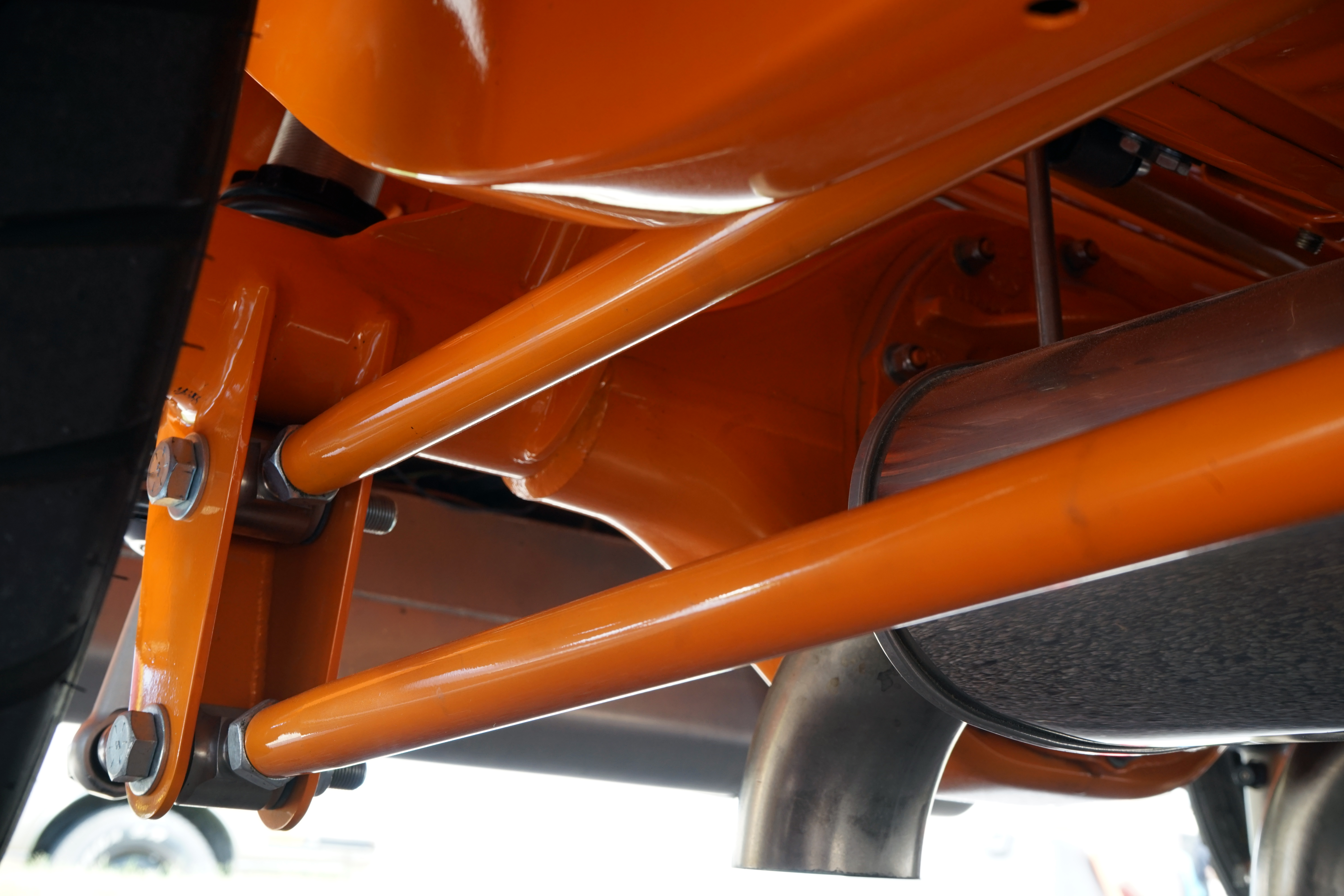

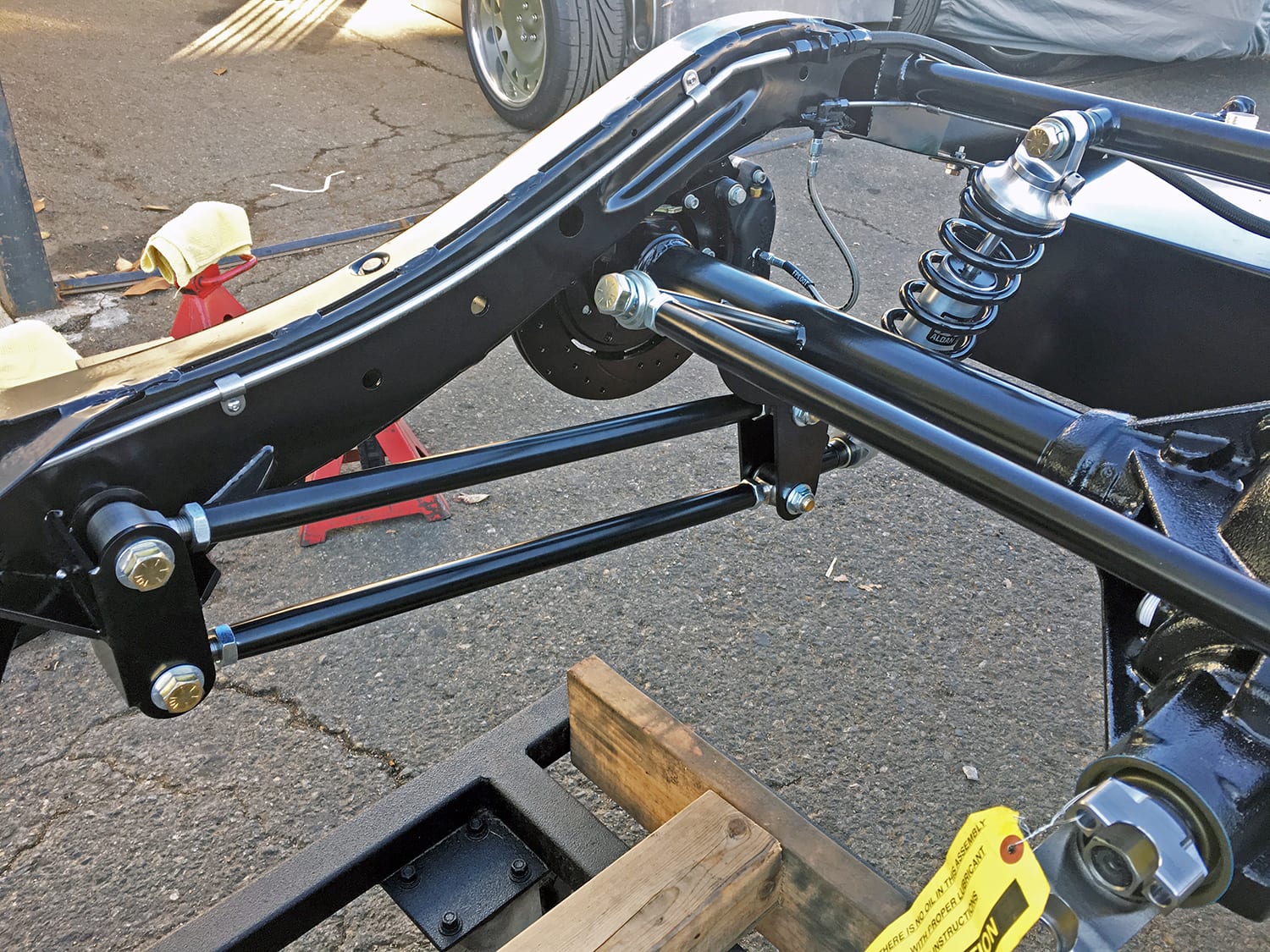

A parallel 4-bar rear suspension uses four link bars to locate the rear axle while allowing it to move vertically through the suspension travel. Scott’s Hotrods takes the design a step further by utilizing equal-length upper and lower bars positioned parallel to one another, creating predictable suspension geometry and maintaining a consistent relationship between the rear axle and chassis throughout suspension travel.

One of the major advantages of Scott’s design is pinion-angle consistency. Once the rear suspension is properly installed and adjusted, the equal-length parallel bars allow the rear axle to travel without the dramatic pinion-angle changes associated with some other rear suspension configurations. This makes the Scott’s 4-Bar an excellent choice for street rods, custom cars, classic trucks, muscle cars and high-performance builds where ride quality, driveline geometry and predictable handling matter.

Parallel 4-Bar vs. Triangulated 4-Link Rear Suspension

Not all 4-link rear suspensions use the same geometry. A triangulated 4-link angles the upper links inward to provide lateral axle location, eliminating the need for a separate Panhard bar. While compact, the angled links create a different suspension geometry and can introduce changes in pinion angle and suspension behavior as the rear axle travels.

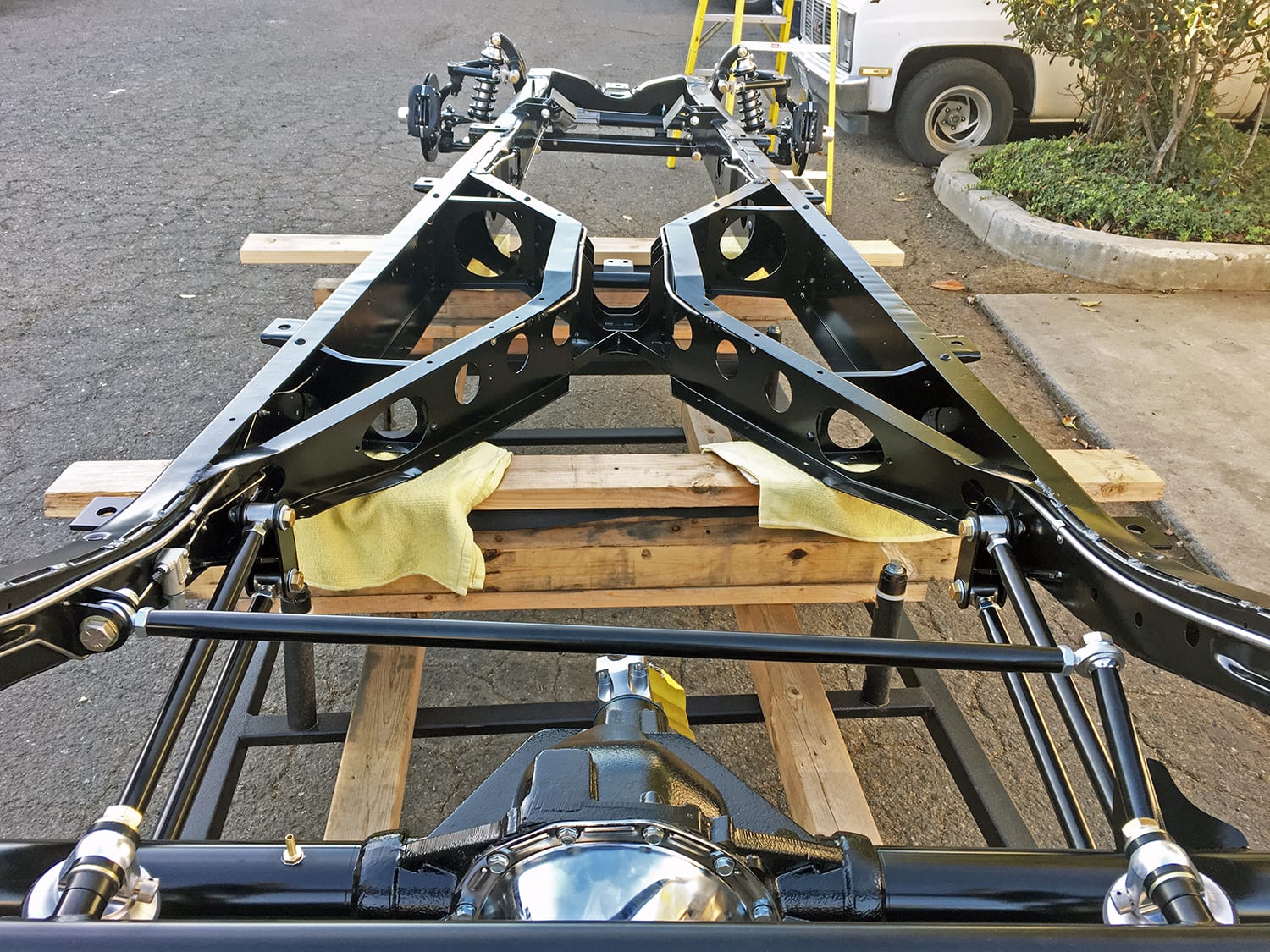

Scott’s Hotrods instead uses an equal-length parallel 4-bar system with a dedicated lateral locating device. The parallel links control fore-and-aft axle movement while a long Panhard bar controls side-to-side movement. Separating those functions creates a simple, strong and highly adjustable system with predictable suspension movement.

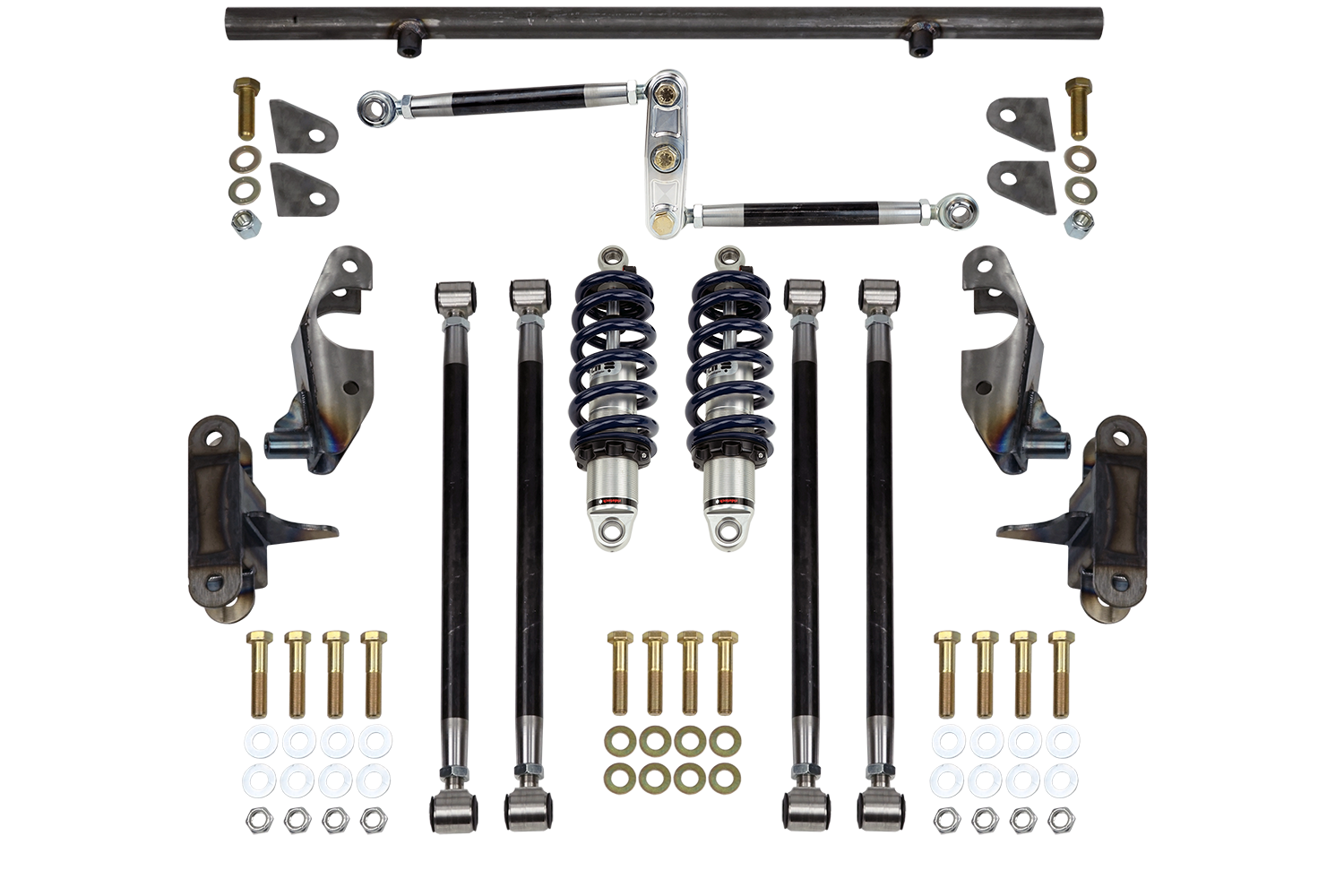

For customers looking for even greater lateral axle control, Scott’s also offers its Watt’s Link upgrade, which keeps the rear axle centered beneath the vehicle throughout suspension travel.

Heavy-Duty 4-Bar Construction — Not Lightweight Street-Rod Hardware

Scott’s Hotrods does not believe the rear suspension should be the weak link in your build. Our 4-Bar Rear Suspension uses massive 1-1/8″ OD x .250-wall DOM tubing for both the suspension link bars and Panhard bar. Each bar is CNC machined in-house at Scott’s Hotrods for precise fitment, repeatable quality and exceptional strength.

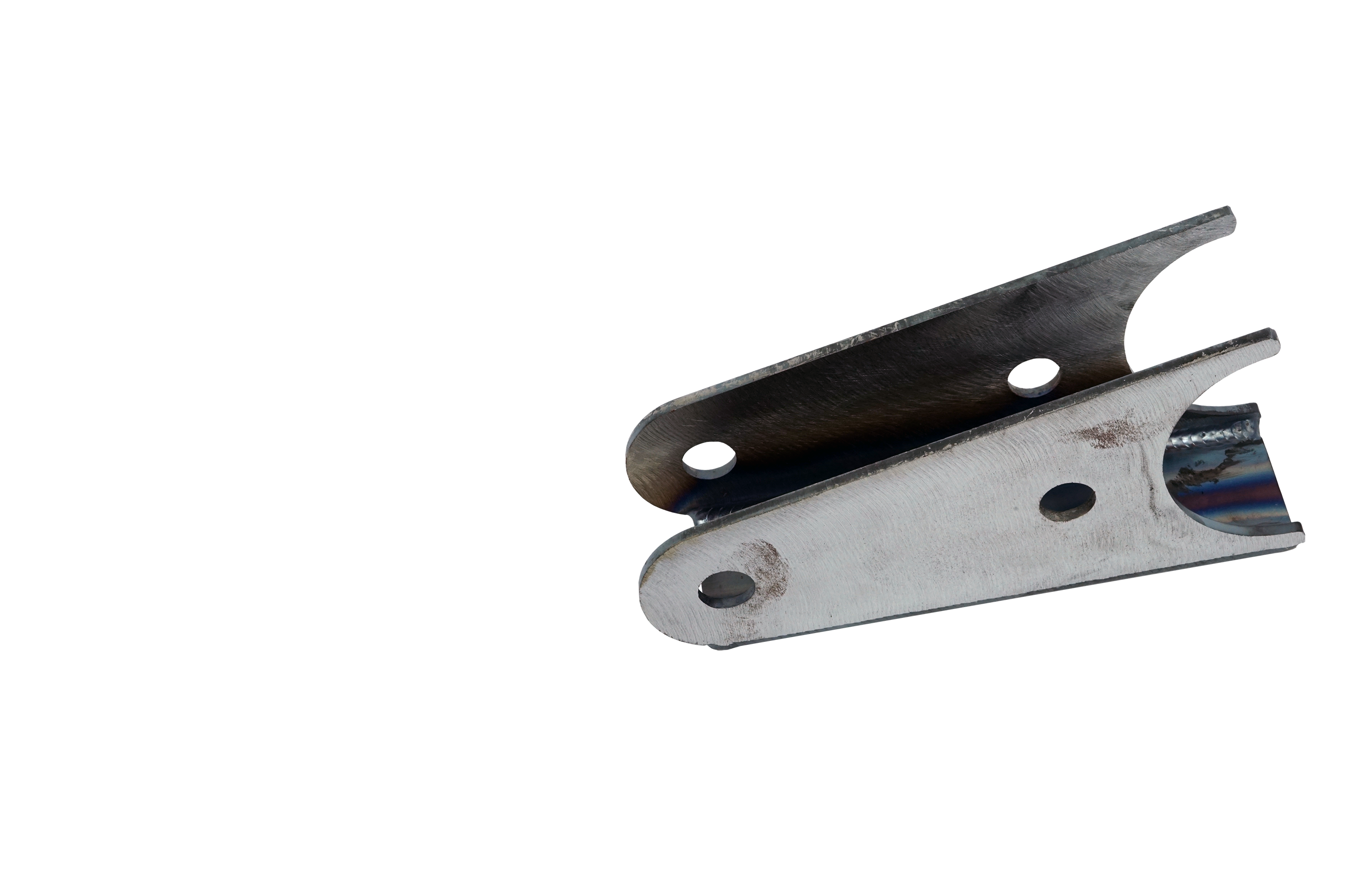

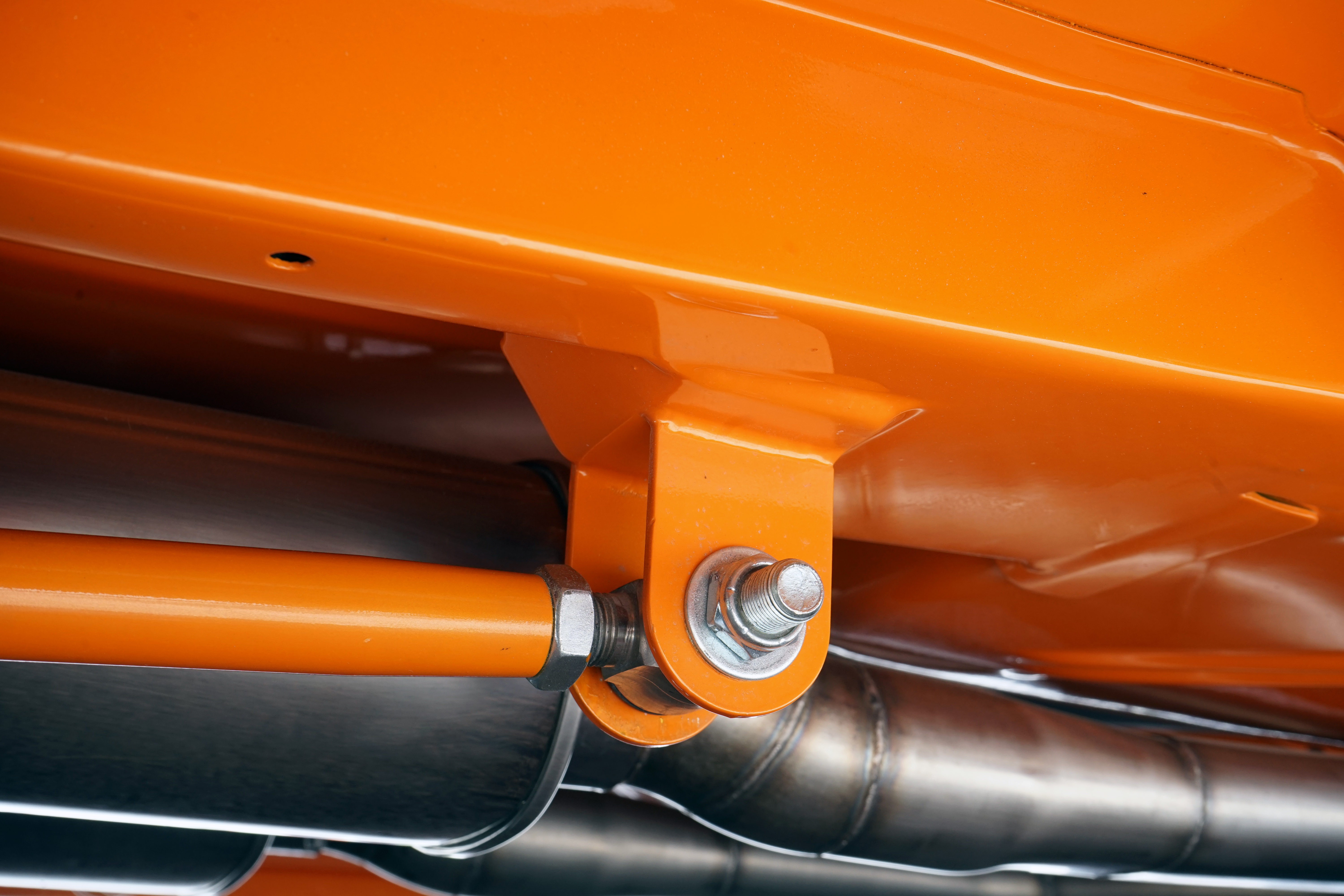

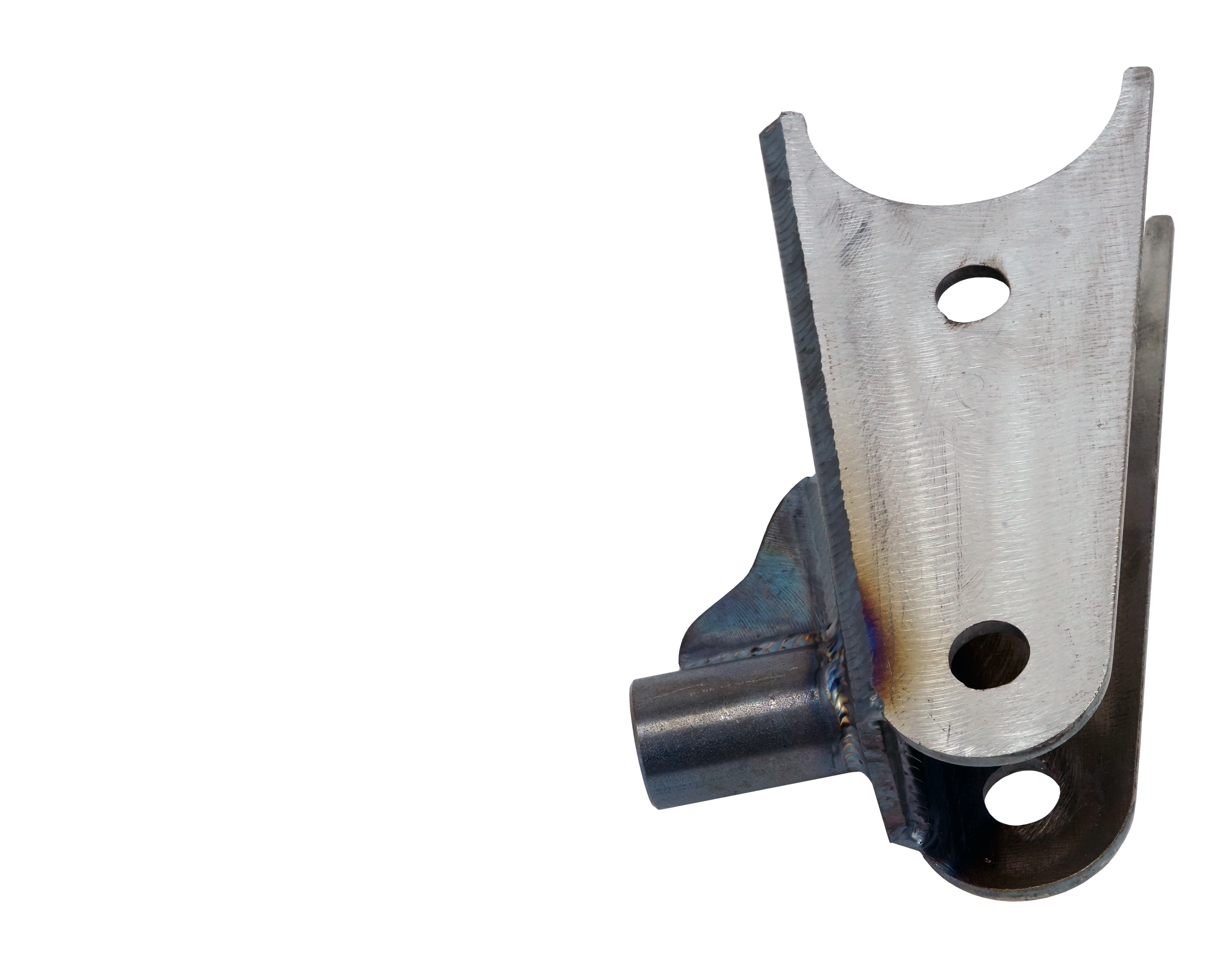

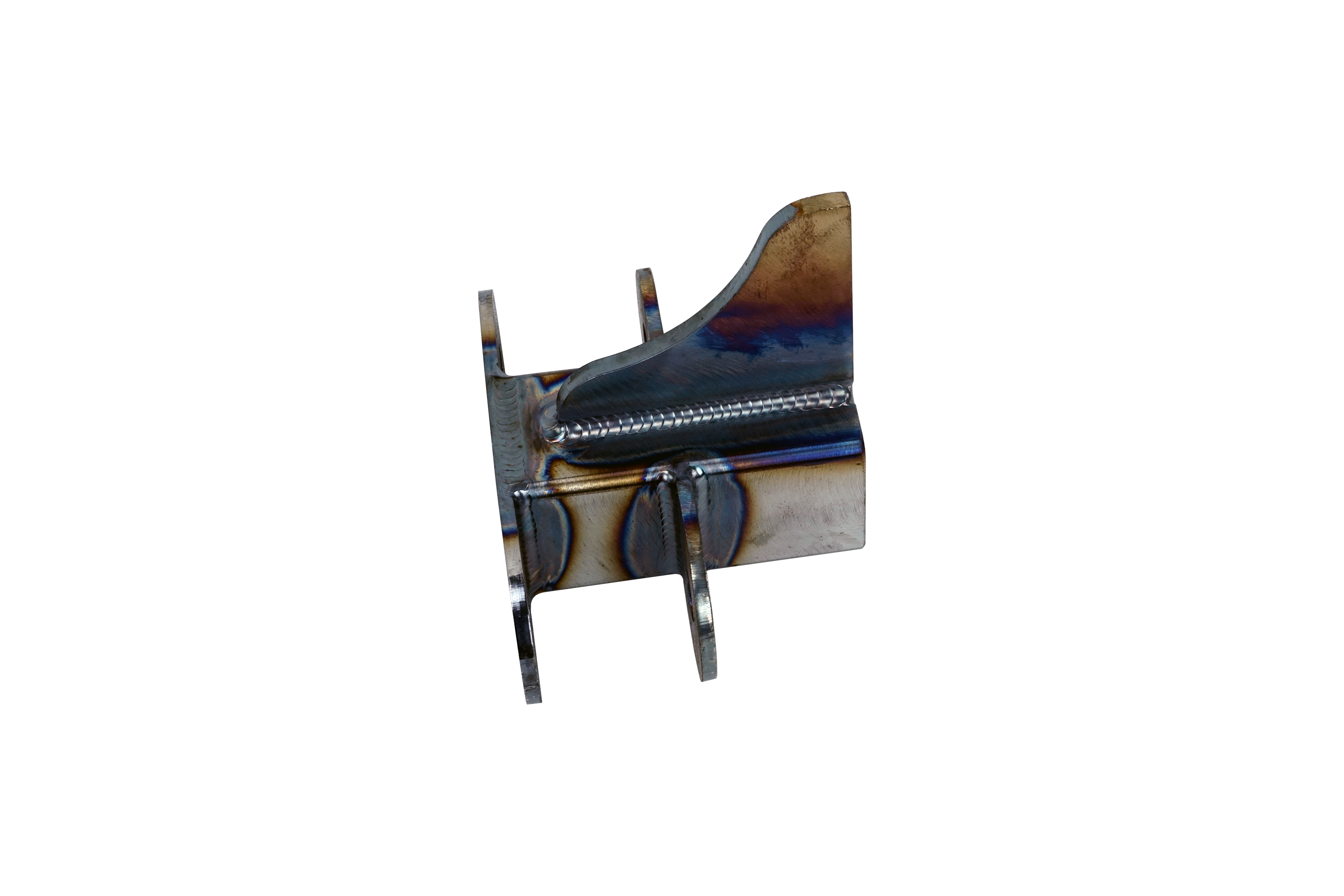

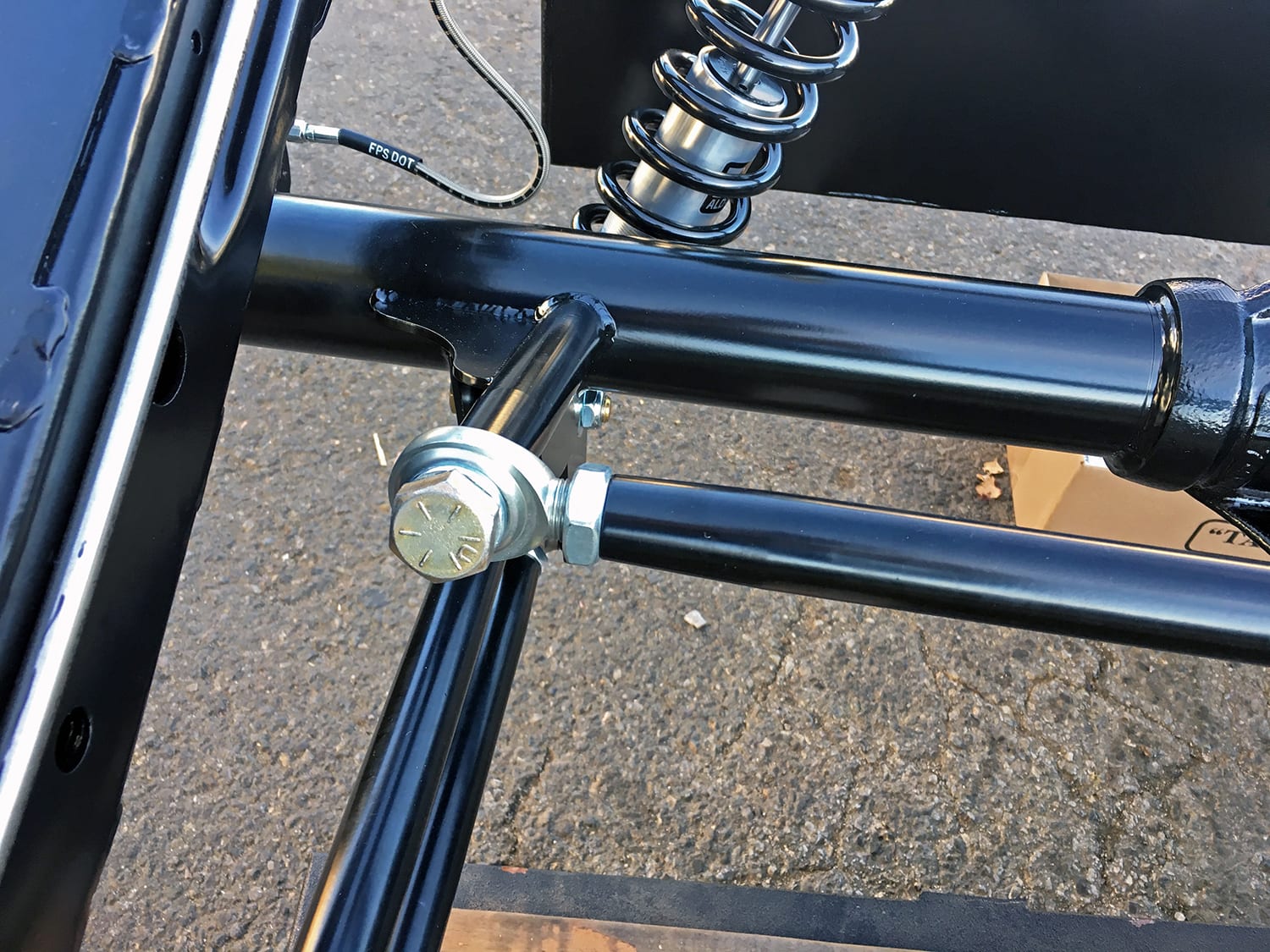

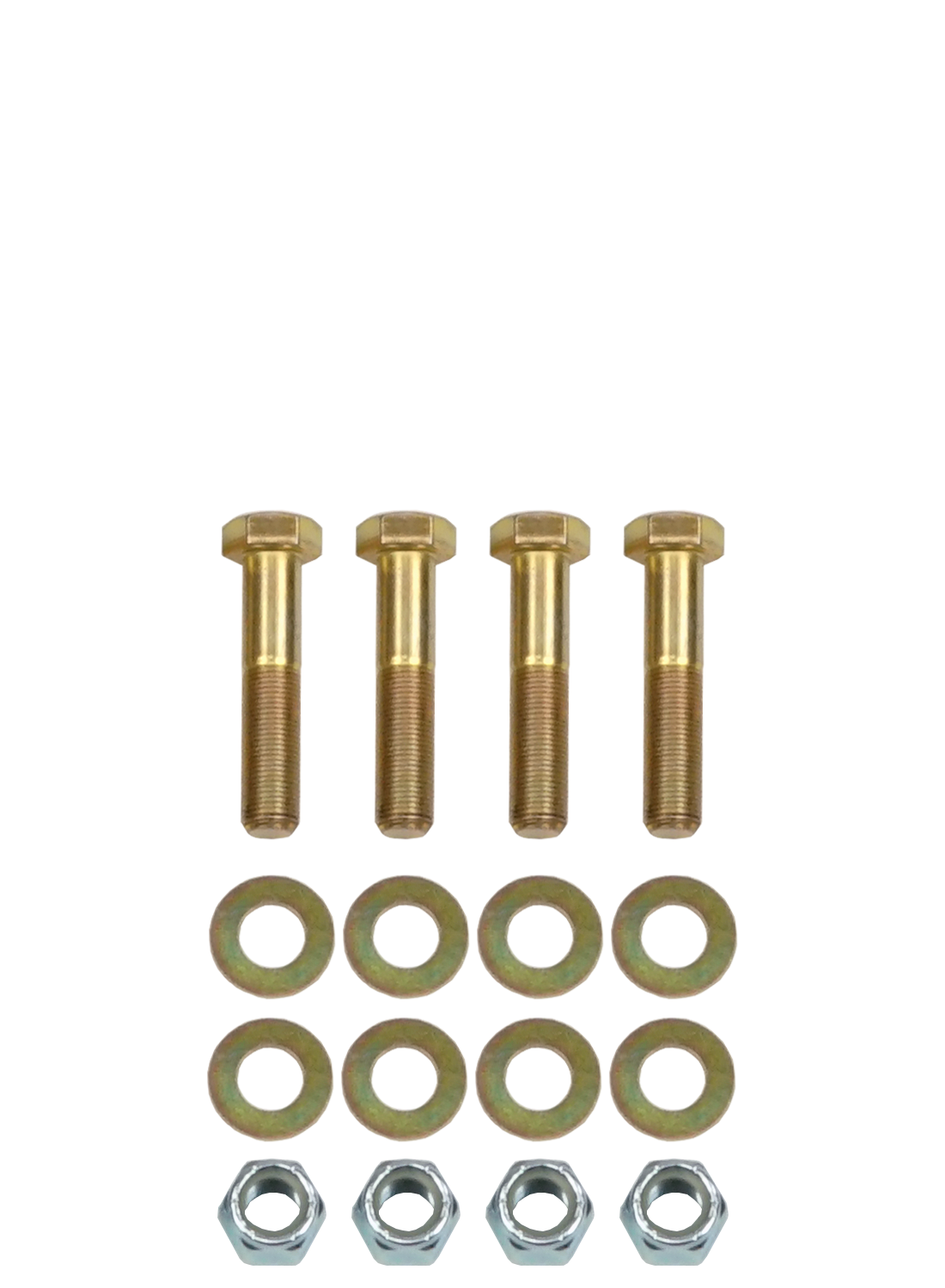

The link bars feature Scott’s CNC-machined stainless steel rod ends with right- and left-hand threads, allowing pinion-angle adjustments without removing the bars from the vehicle. Combined with FK Bearing Heim joints, heavy-duty mounting brackets and 5/8″ Grade 8 hardware, the system is engineered for serious hot rods, customs, muscle cars and high-horsepower street machines.

Why Does Scott’s Use a Long Panhard Bar?

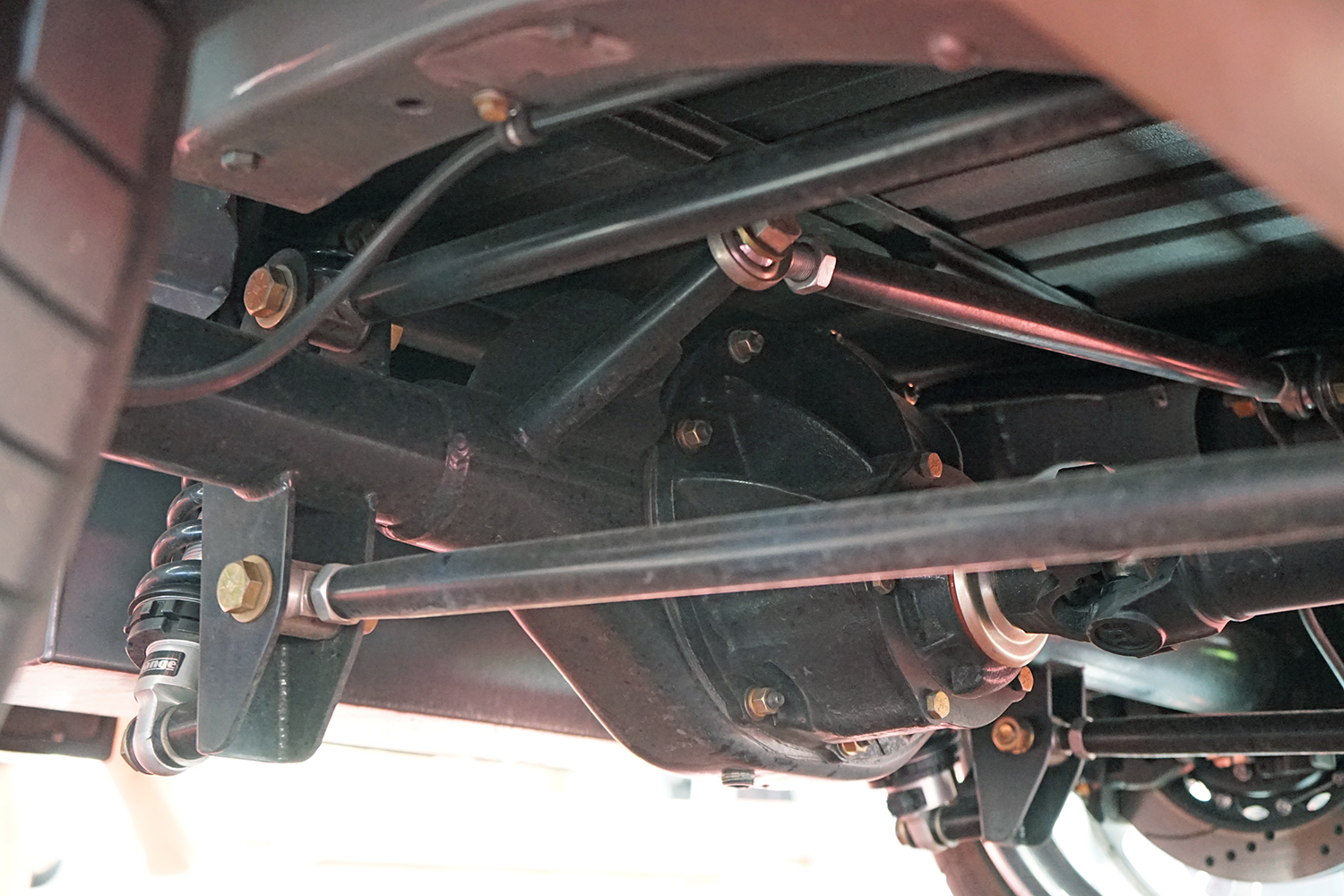

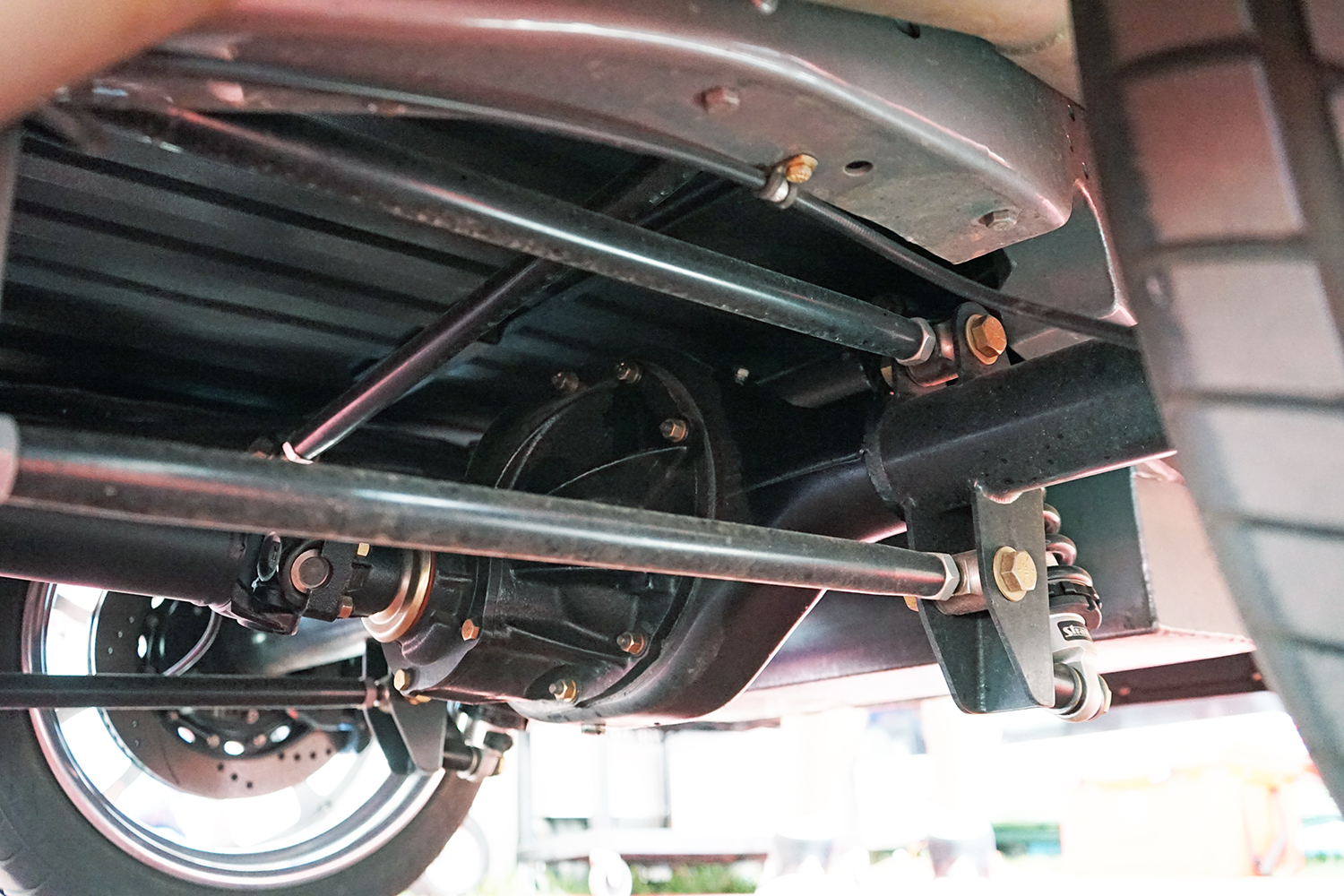

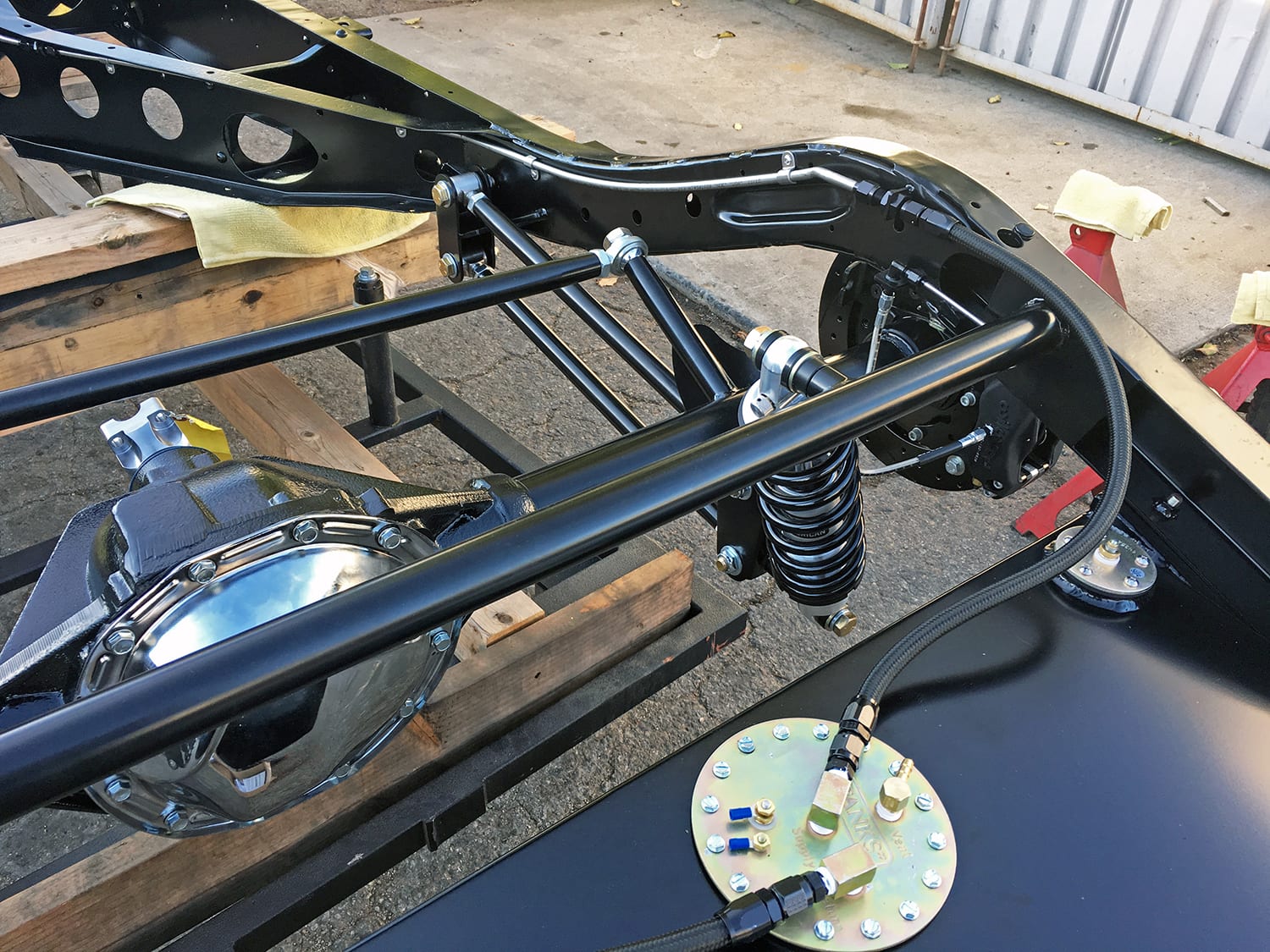

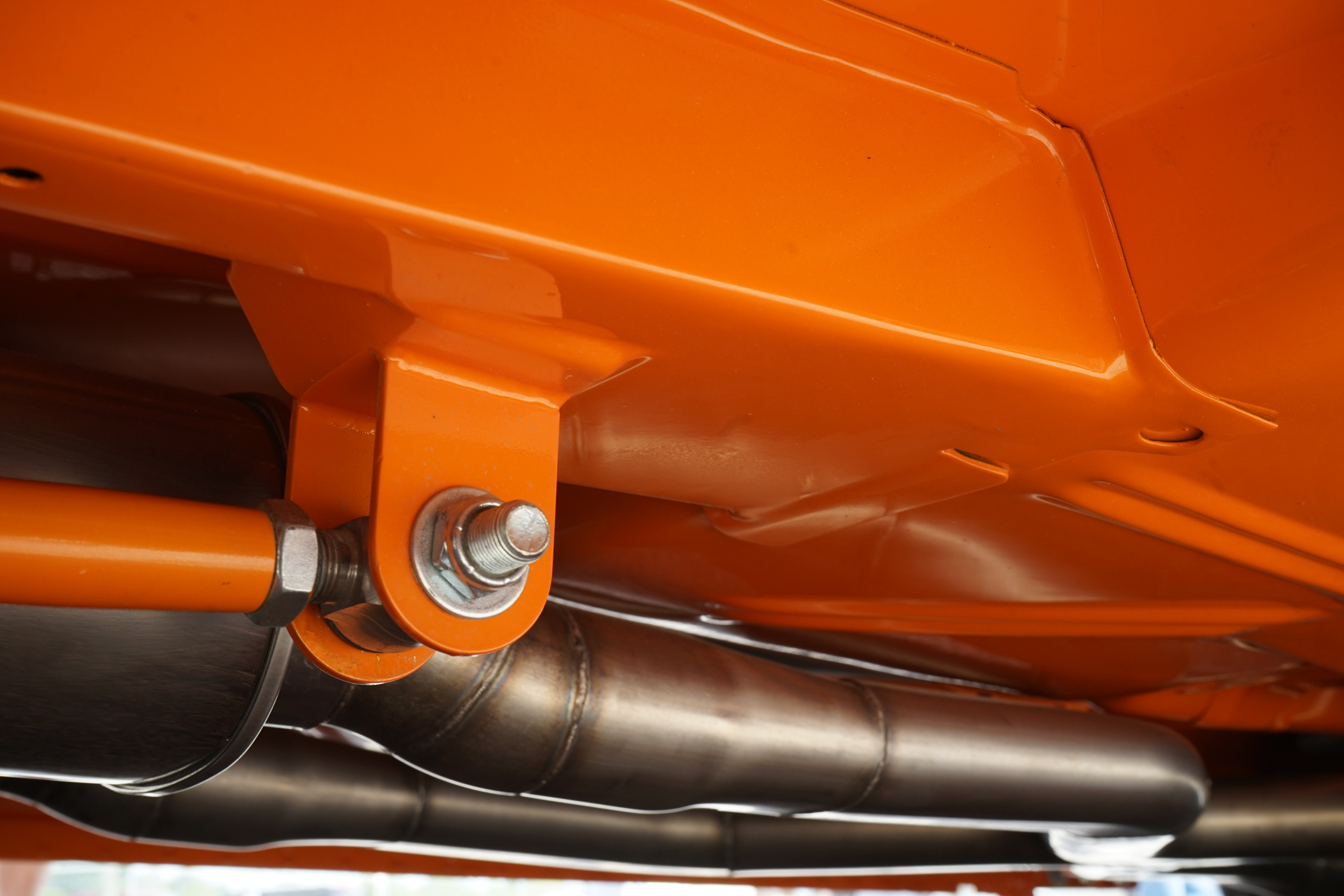

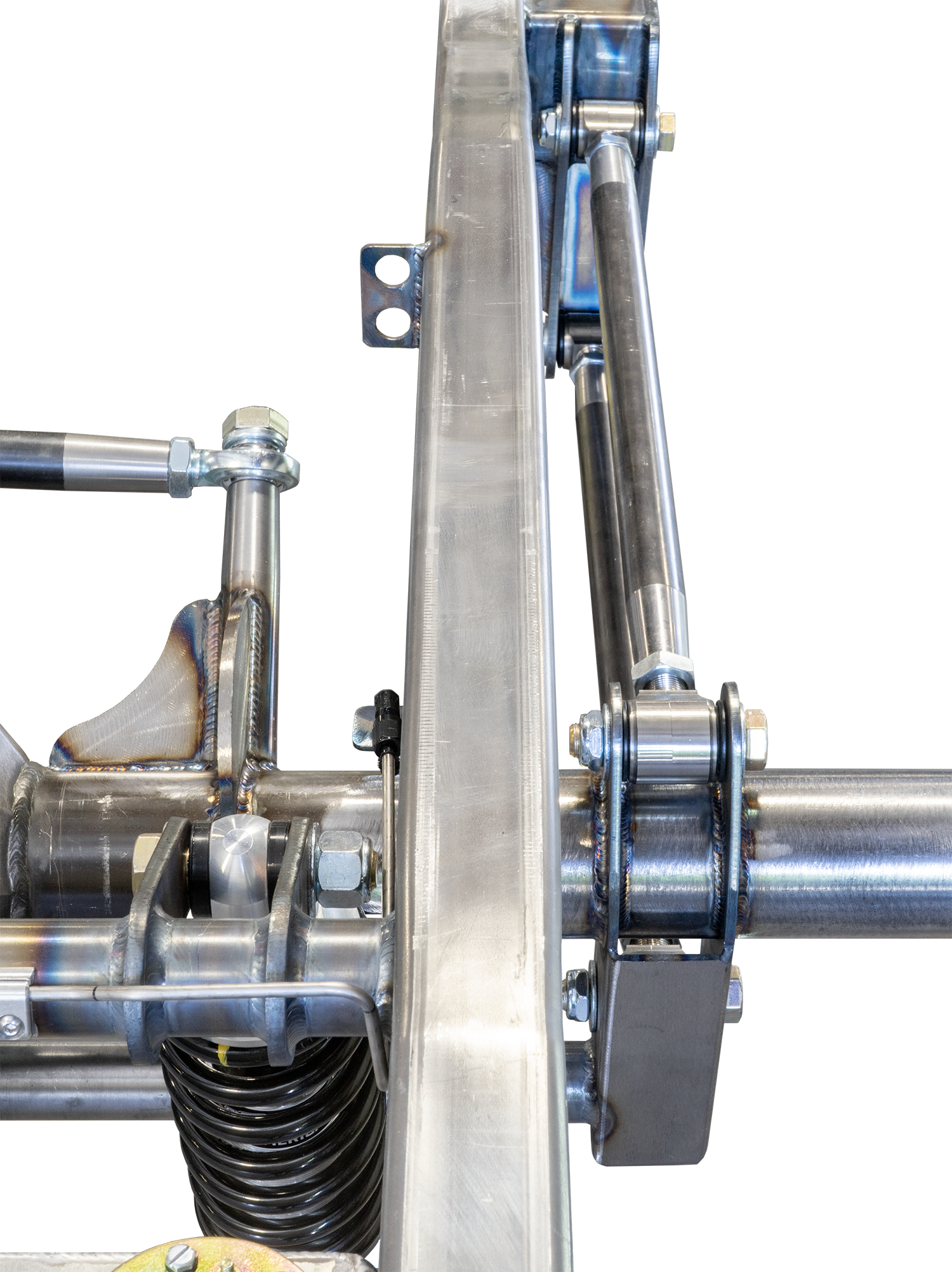

In a parallel 4-bar suspension, the link bars control the fore-and-aft position of the rear axle while the Panhard bar controls lateral movement. Scott’s engineers each application to use the longest practical Panhard bar possible. A longer bar travels through a shallower arc, helping minimize side-to-side axle movement as the suspension compresses and extends.

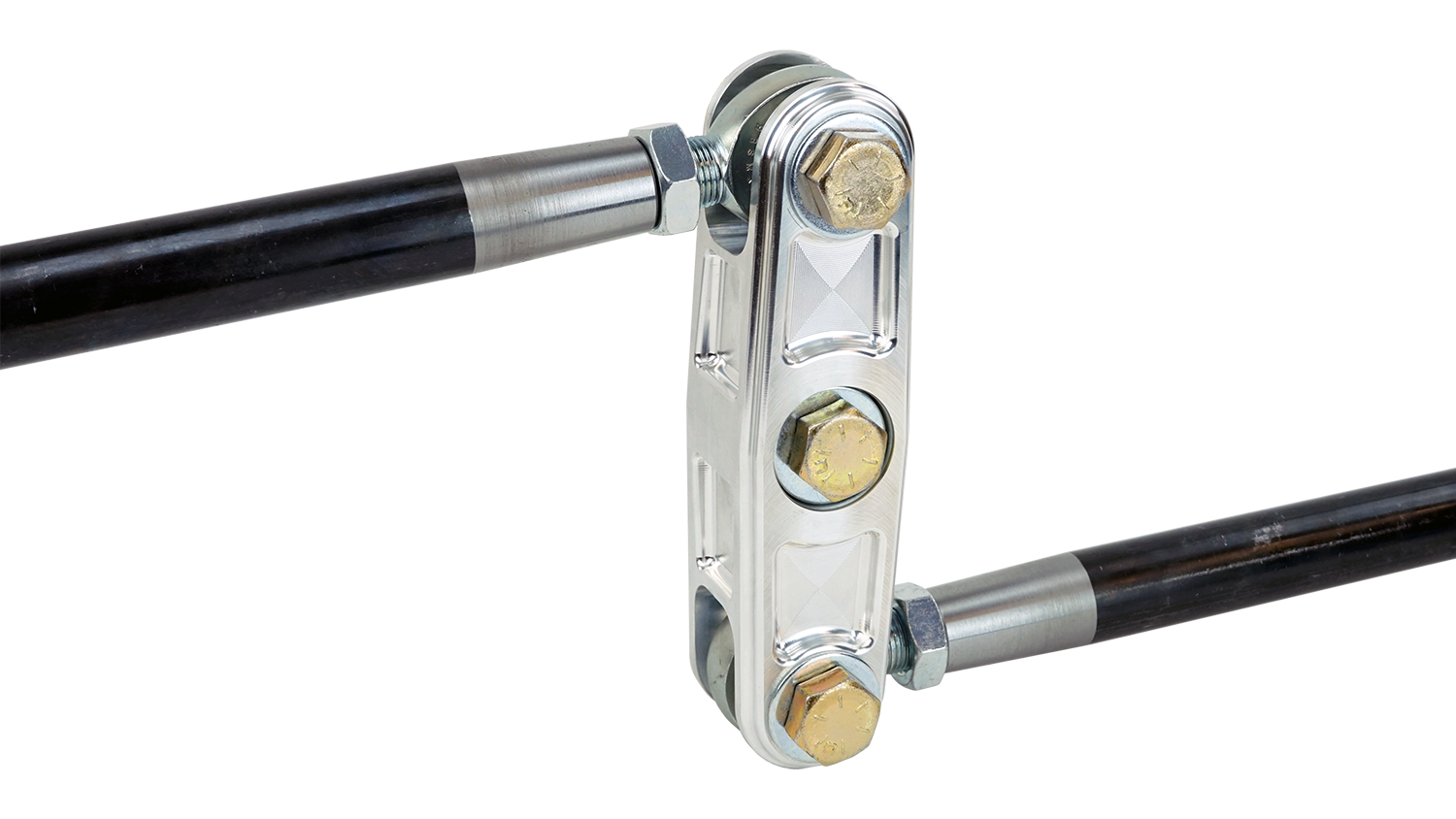

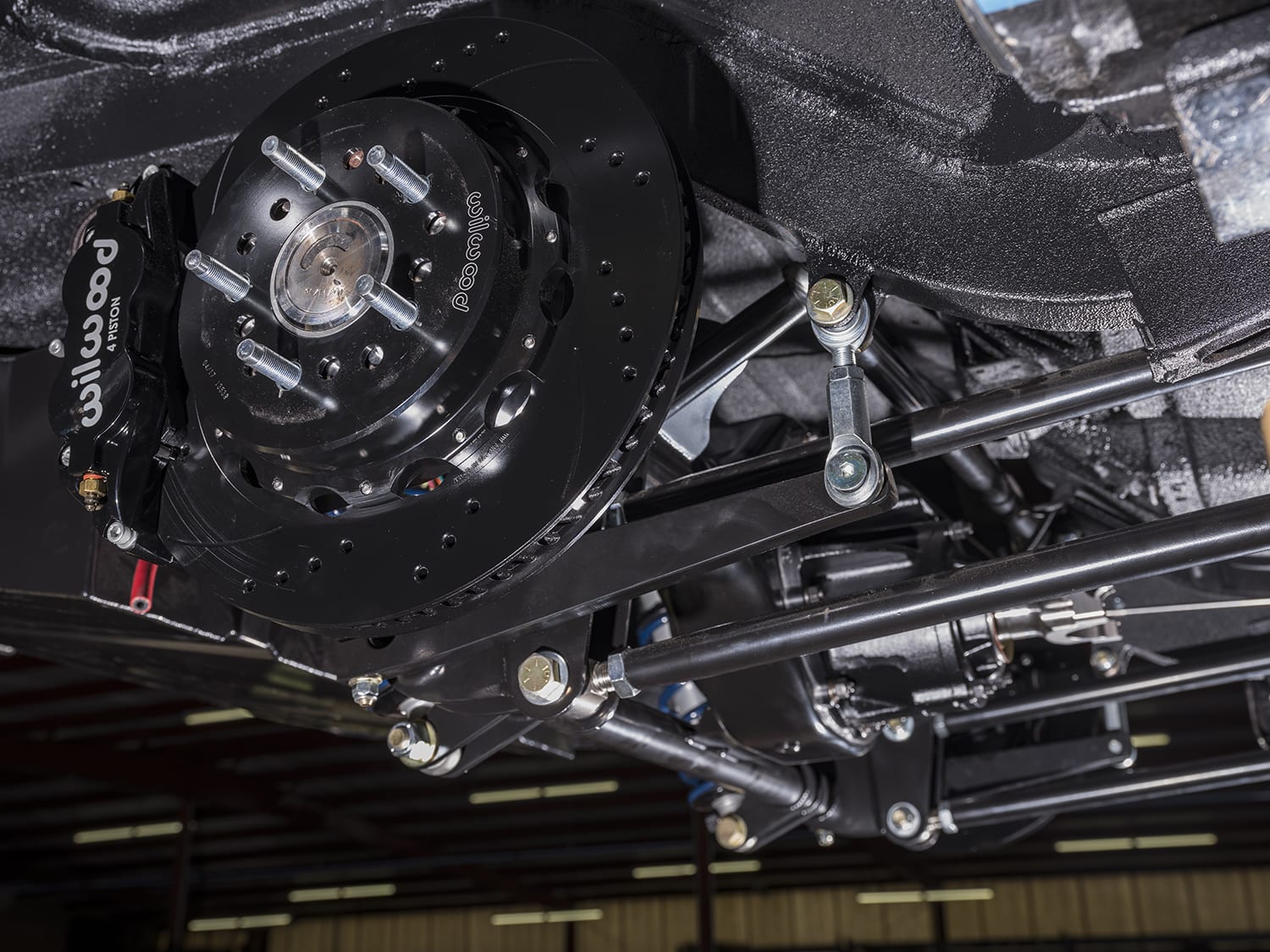

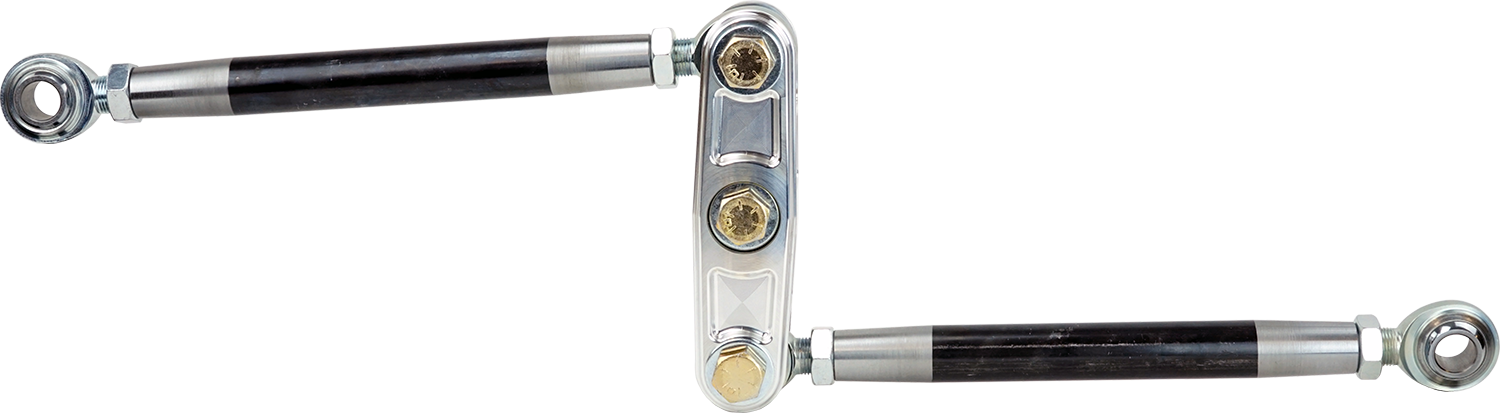

For builders seeking even more precise rear axle location, a Scott’s Watt’s Link can be added in place of the traditional Panhard arrangement. The Watt’s Link locates the rear axle through a centered pivot system, keeping the axle centered beneath the chassis throughout suspension travel.

Upgrade Your Hot Rod with a Scott’s 4-Bar Rear Suspension

Your rear suspension plays just as important a role in how your vehicle rides, handles and puts power to the pavement as the front suspension. Upgrading the front of your hot rod while leaving an outdated rear suspension behind means you’re only solving half of the equation.

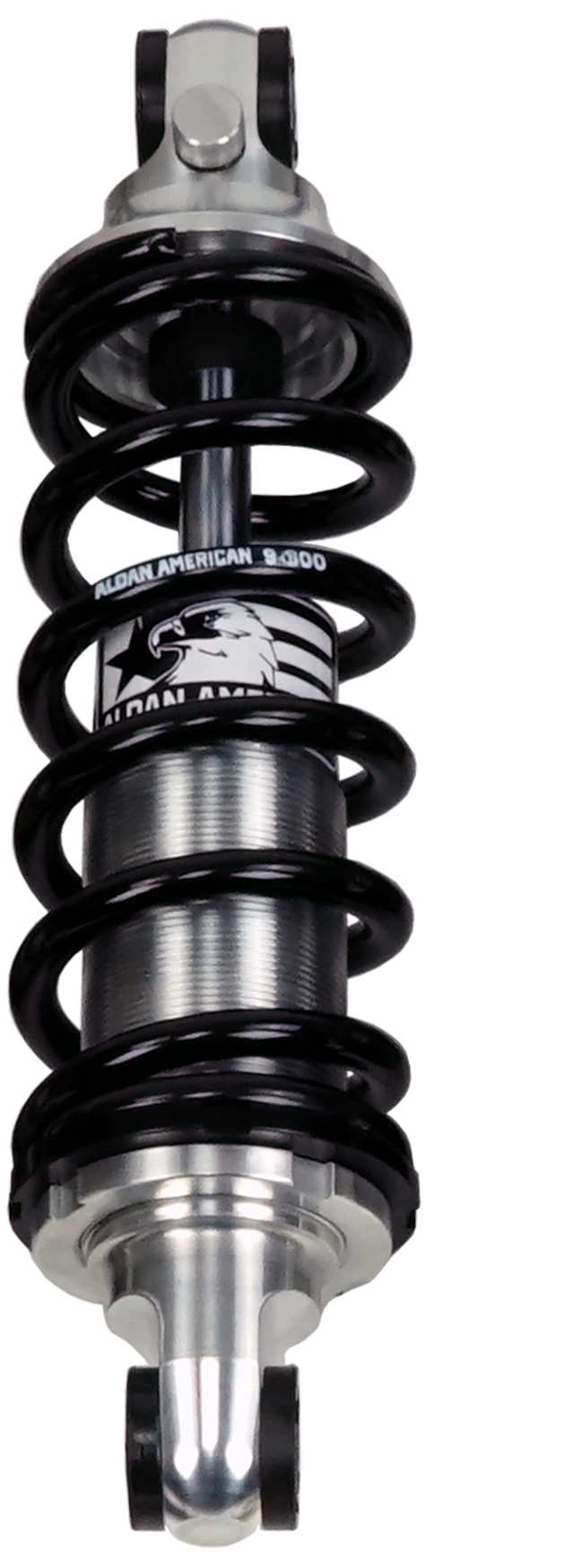

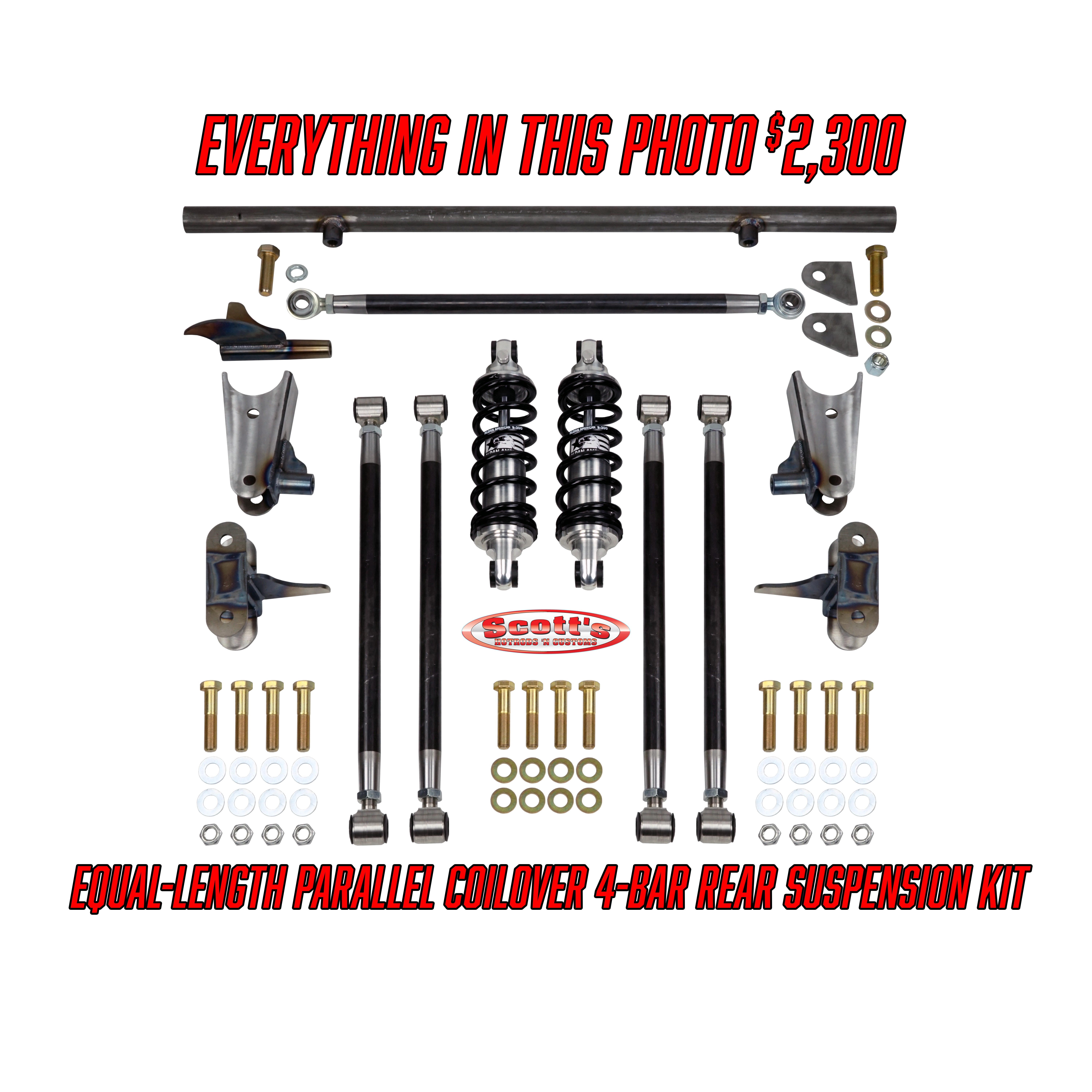

A Scott’s Hotrods Equal-Length Parallel 4-Bar Rear Suspension Kit gives your classic car, hot rod or custom truck modern suspension geometry, heavy-duty construction and the adjustability needed to dial in the stance and performance of your build. With CNC-machined components, massive DOM link bars, adjustable stainless steel rod ends, Grade 8 hardware and your choice of coilover or air suspension configurations, this isn’t a generic universal 4-link thrown together from catalog parts — it’s a rear suspension system engineered and manufactured by Scott’s Hotrods.

Built in Knoxville, Tennessee. Built for the way your hot rod is actually driven.
