Why is Scott’s Hotrods Different?

Our Independent Front Suspension is NOT a Mustang II.  We do not use a 3-piece style crossmember with spring pocket hats. We do not use T-Bolt slider adjusters that CAN come lose.  We only use Coilovers or Airbags w/ external shock.  Our Suspension can be dialed in precisely and can never be knocked out of alignment.  We 100% TIG Weld our kits.  We only use 5/8″ Grade 8 Hardware.

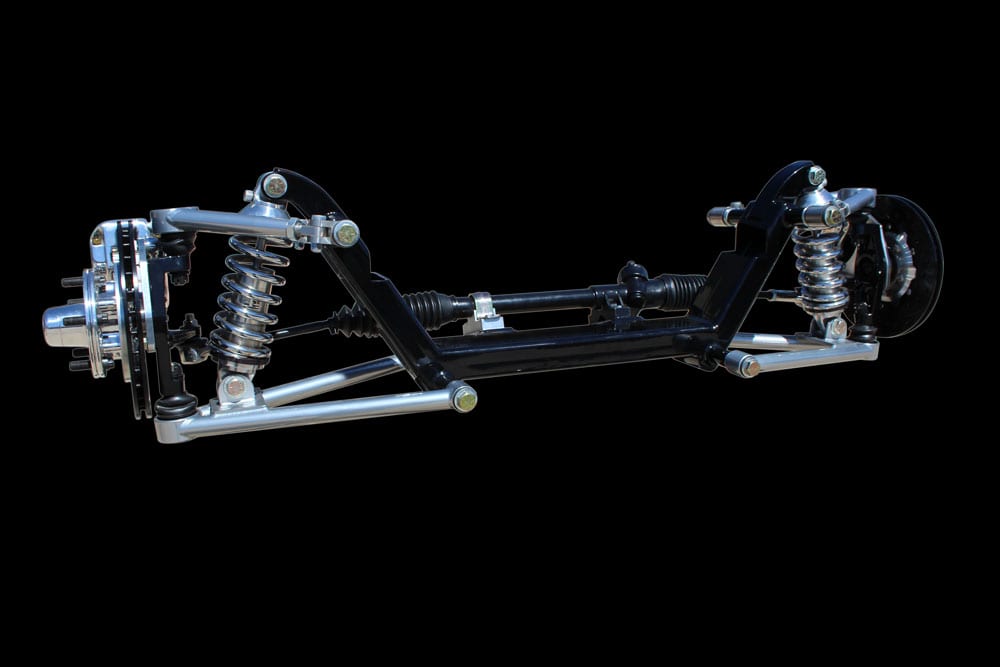

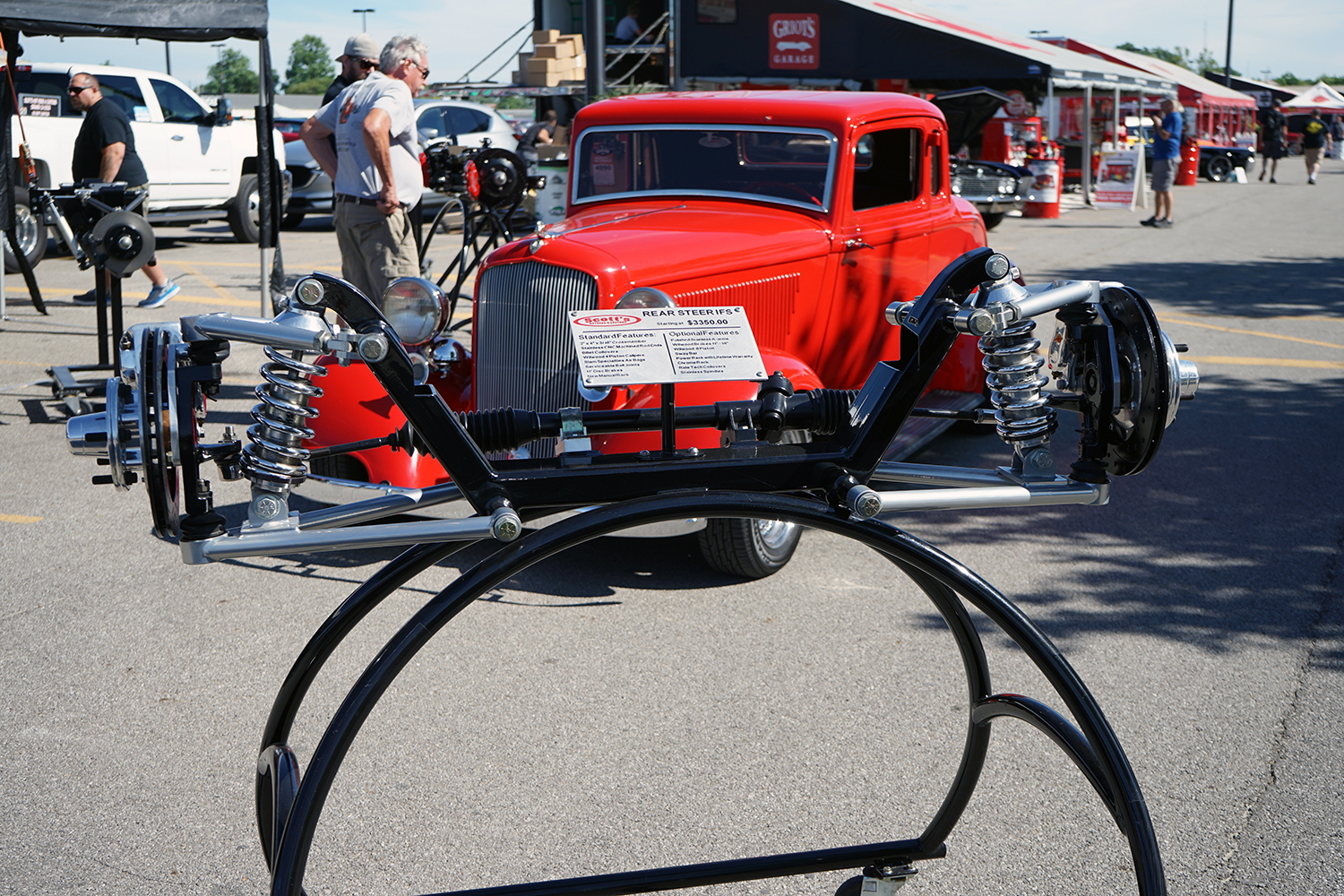

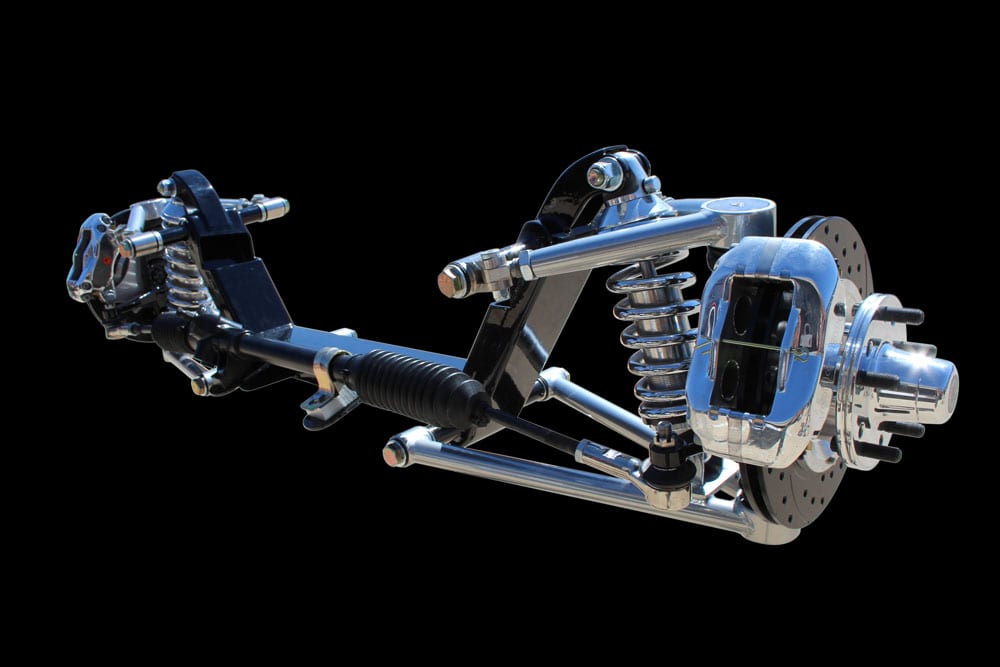

Scott’s Rear Steer IFS kits can come with Coilovers OR Airbags.  This is NOT a Mustang II kit.  We manufacture our true Independent Front Suspension (IFS) kits with a 100% TIG Welded 1-piece crossmember built specifically for each and every application.  Designed SPECIFICALLY for 1934 and older vehicles where there is no room for a front mounted Rack & Pinion

Want to swap in a late model drivetrain?

Want suspension technology from this century?

Want a smooth ride?

Want to lay frame?

We have you covered!

Starting at $3,350

• One-piece crossmember 2”x4”x3/16”-wall box tubing

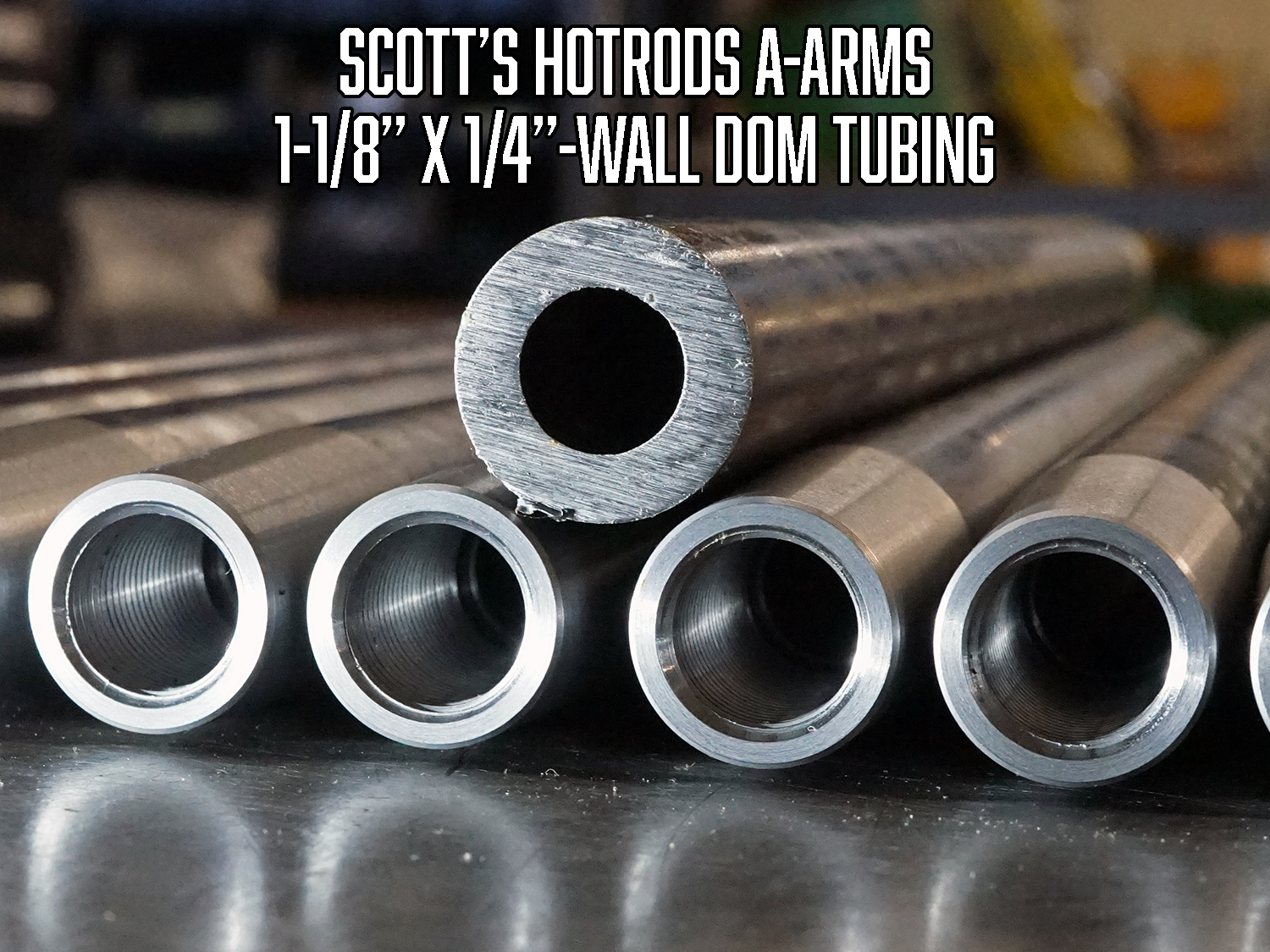

• Unequal-length A-Arms, 1-1/8”x1/4”-wall seamless DOM tubing

• Oversized Serviceable Press-In Ball Joints

• 11” Plain Brake Rotors w/Wilwood 4-piston Caliper (5 on 4.5” or 4.75” Bolt Pattern)

• Aldan American Single-Adjustable Coilovers OR Slam Specialties SS-6 Airbags

• Frame Boxing Plates

• Stainless Steel Fully Adjustable Upper A-Arm Rod Ends

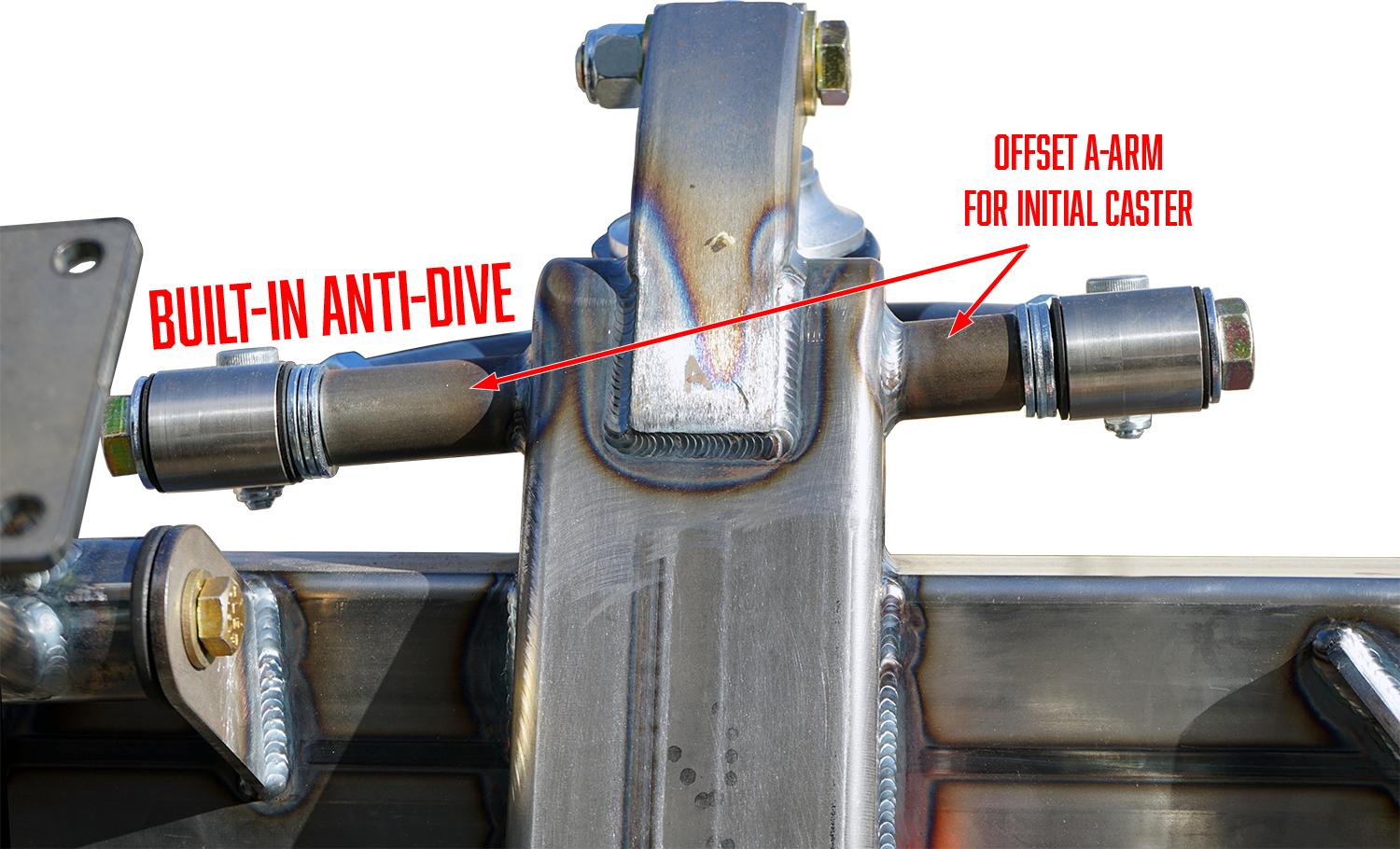

• Built-in Anti-Dive

• Manual Steering Rear Steer Rack & Pinion

• Standard or Dropped Forged Steel Rear Steer Spindles

• LIFETIME GUARANTEE

OPTIONS

• Custom Track Width

• Motor Mounts $150+

• Power Rear Steer Rack & Pinion Steering $450

• Power Steering Steel Braided Line Kit $140

• Powder coating (A-Arms, Spindles, Motor Mounts, Sway Bar) $450

• 5 on 5”, 5 on 5.5”, and 6 lug bolt pattern $300

• Standard 1” Solid Sway Bar $289

• Torsion Spline Sway Bar $625

• Steel Braided Brake Lines w/-3AN for Wilwood Calipers $74

• Wilwood 11”, 12”, 13”, 14” Drilled & Slotted Brake Kits $625+



COILOVER OPTIONS

• Aldan American Single-Adjustable (Rebound) (included)

• Aldan American Double-Adjustable (Rebound/Compression) $500

• RideTech Single-Adjustable (Rebound) $650

• RideTech Triple Adjustable (Rebound/High & Low Compression) $1,650



*Ford Rear Sump Oil Pan Required
*GM Performance Parts LS Engine Oil Pan 12628771

A qualified professional mechanic or fabricator with the technical understanding of product function and installation procedures must install all Scott’s Hotrods products. Be sure to properly bleed your power rack

*Ford Rear Sump Oil Pan Required
*GM Performance Parts LS Engine Oil Pan 12628771

We stand behind ALL of the parts we manufacture.  Other parts that we do not manufacture such as brakes, steering racks, ball joints, brake flex lines, power steering lines, etc carry their own manufacturers warranties.  We are not responsible for these items outside of their original warranty.

All of Scott’s Hotrods manufactured parts are guaranteed to be free of defects in materials & workmanship for the lifetime of the part. Scott’s Hotrods warranty is non-transferable.
