Front Steer Weld-On
Independent Front Suspension (IFS) Kit

Scott’s Hotrods Independent Front Suspension (IFS) Kits are engineered for builders who want modern handling, improved steering geometry and a clean installation without relying on a generic Mustang II-style front suspension. Our Front Steer Weld-On IFS is designed for a wide range of hot rods, classic cars and trucks and is built around Scott’s proprietary suspension geometry, heavy-duty components and modern rack-and-pinion steering.

Unlike a universal hot rod front suspension kit, every Scott’s IFS is configured around the vehicle’s application, track width, ride height and intended use. The system features heavy-duty tubular control arms, coilover suspension and a front-mounted rack-and-pinion, creating a complete independent front suspension upgrade engineered for everything from comfortable street-driven classics to high-horsepower performance builds.

Check out our IFS QC Gallery to view a wide variety of Scott’s Hotrods Front Steer Standard Weld-On IFS Kits we recently shipped out.

About our IFS
Request a Quote

Why Scott’s Hotrods IFS
Is NOT a Mustang II

✔ Designed from Scratch

✔ 1-piece Crossmember

✔ Application-Specific Geometry

✔ No Spring Hats

✔ No T-bolt Adjusters

✔ No Compromises

✔ Engineered Suspension Geometry

Scott’s Hotrods IFS

✔ Since 1996

✔ Vehicle-Specific Design

✔ NOT Mustang II

✔ 100% TIG Welded

✔ American Made

✔ Limited Lifetime Warranty

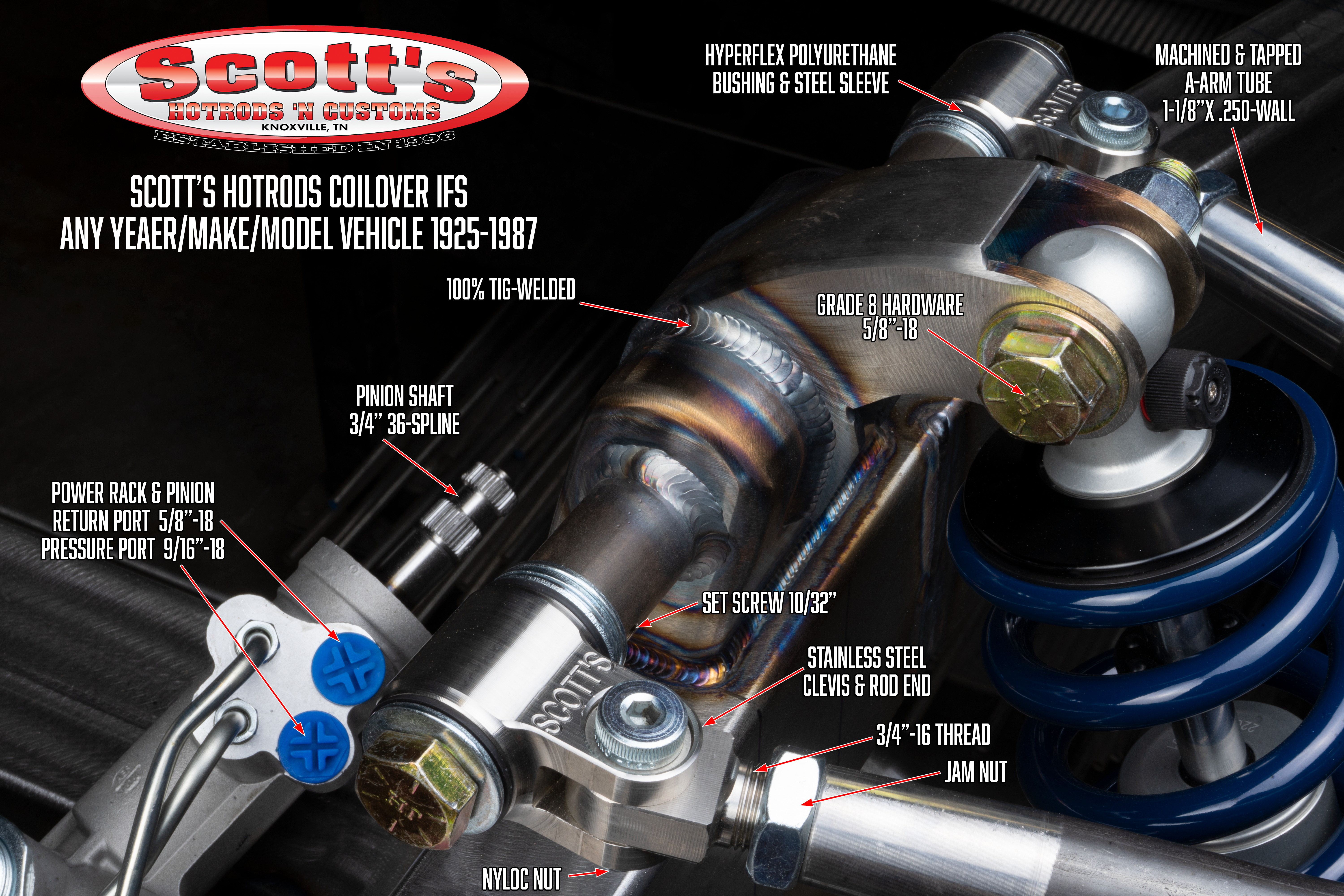

Scott’s Hotrods Front Steer Standard Weld-On Independent Front Suspension (IFS) kits come standard with premium Aldan American Single-Adjustable Coilovers and are engineered specifically for your vehicle—not adapted from a generic Mustang II design. Every IFS features our proprietary 100% TIG-welded, one-piece crossmember, precision-built for each application to deliver superior strength, optimized suspension geometry, and exceptional ride quality. Designed for American-made cars and trucks built between 1925 and 1987, every kit is manufactured to fit your project—not the other way around.

Whether you’re installing an LS, LT, Coyote, Godzilla, HEMI, or traditional V8, dialing in the perfect ride height, or building anything from a comfortable weekend cruiser to a high-horsepower Pro Touring or drag race machine, Scott’s Hotrods builds an Independent Front Suspension system engineered specifically for your vision. No compromises. No universal shortcuts. Just American-made performance, precision, and craftsmanship.

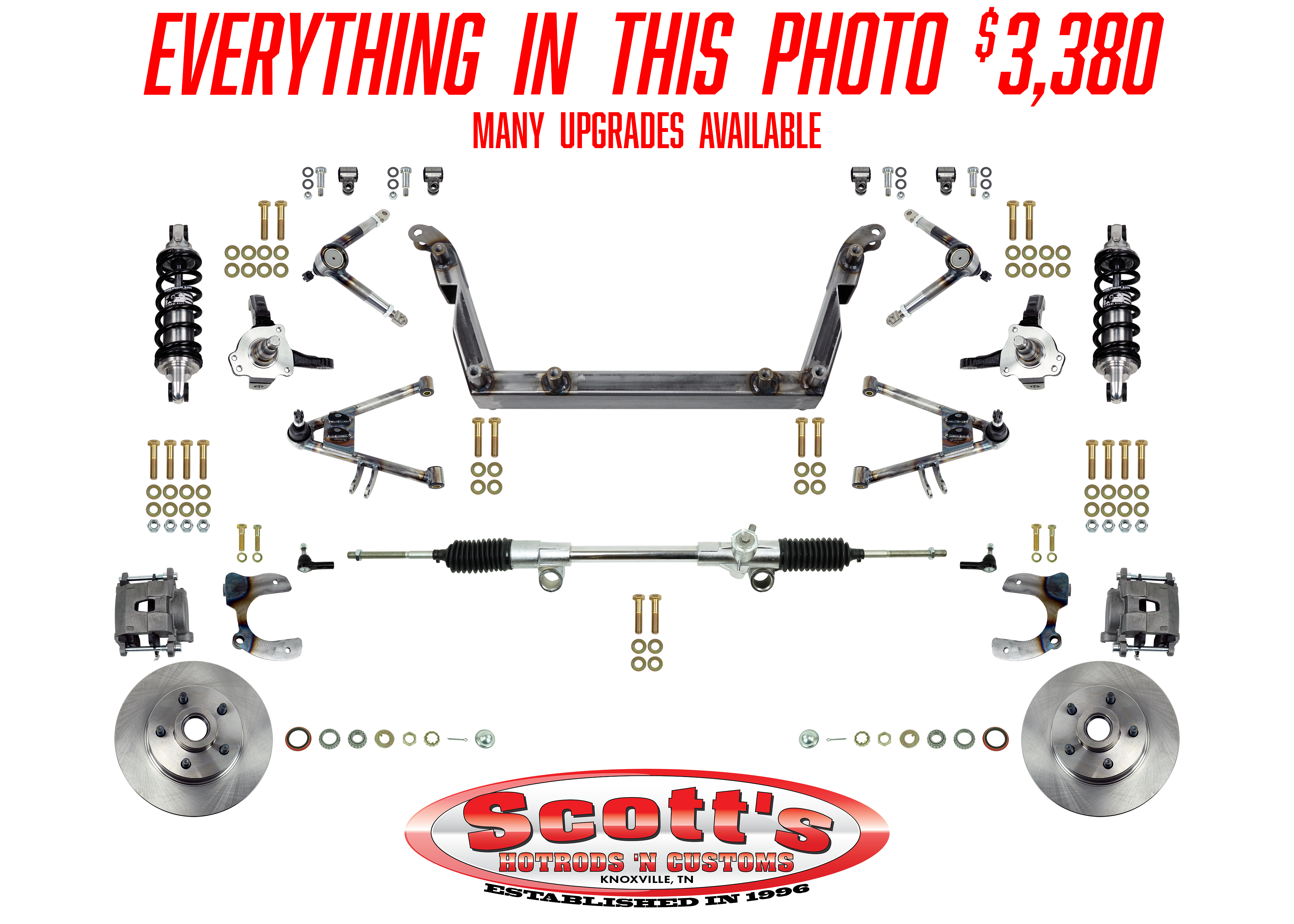

Starting at $3,380

Call to order today!

Scott’s Hotrods Front Steer Standard Weld-On IFS

• One-piece crossmember 2”x4”x3/16”-wall box tubing

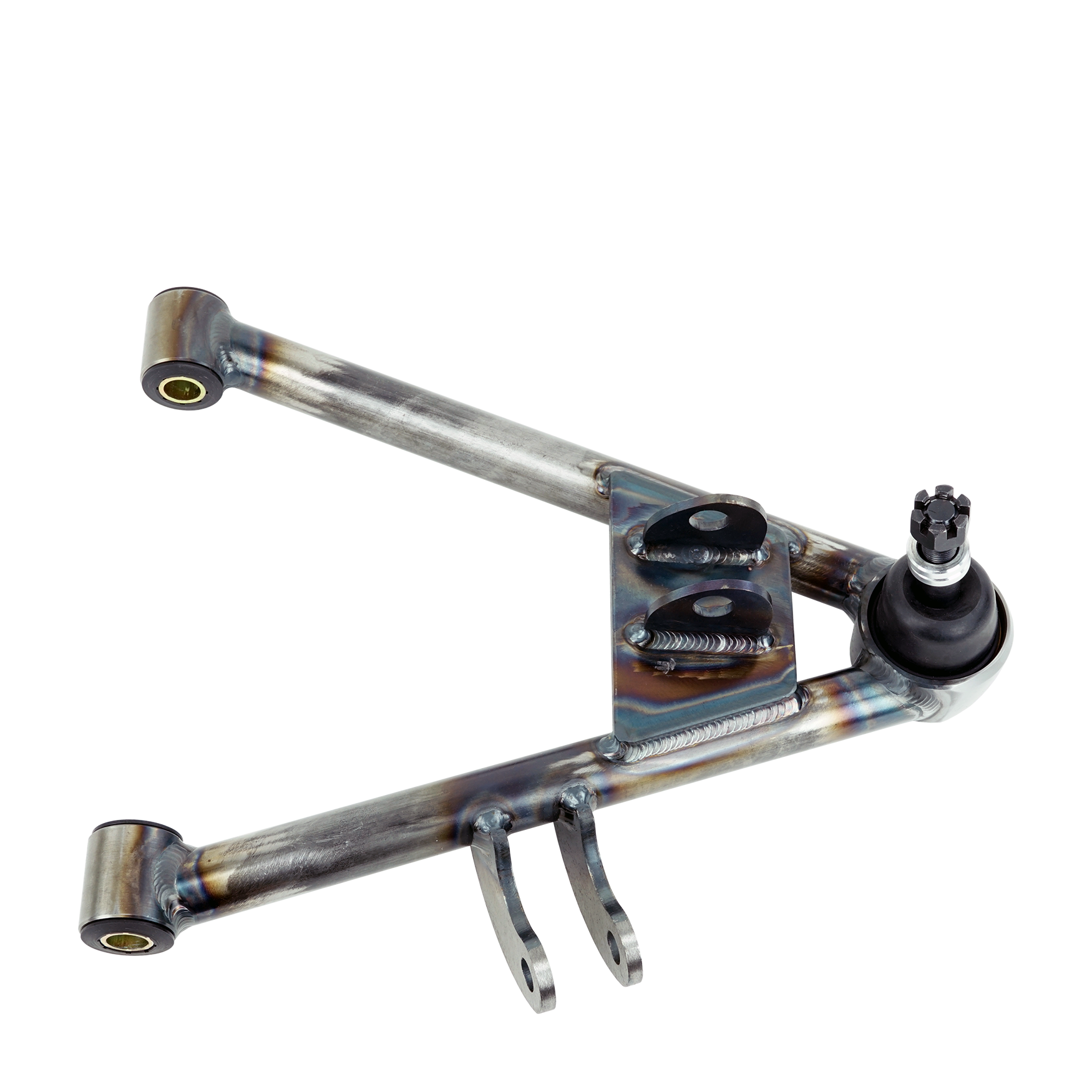

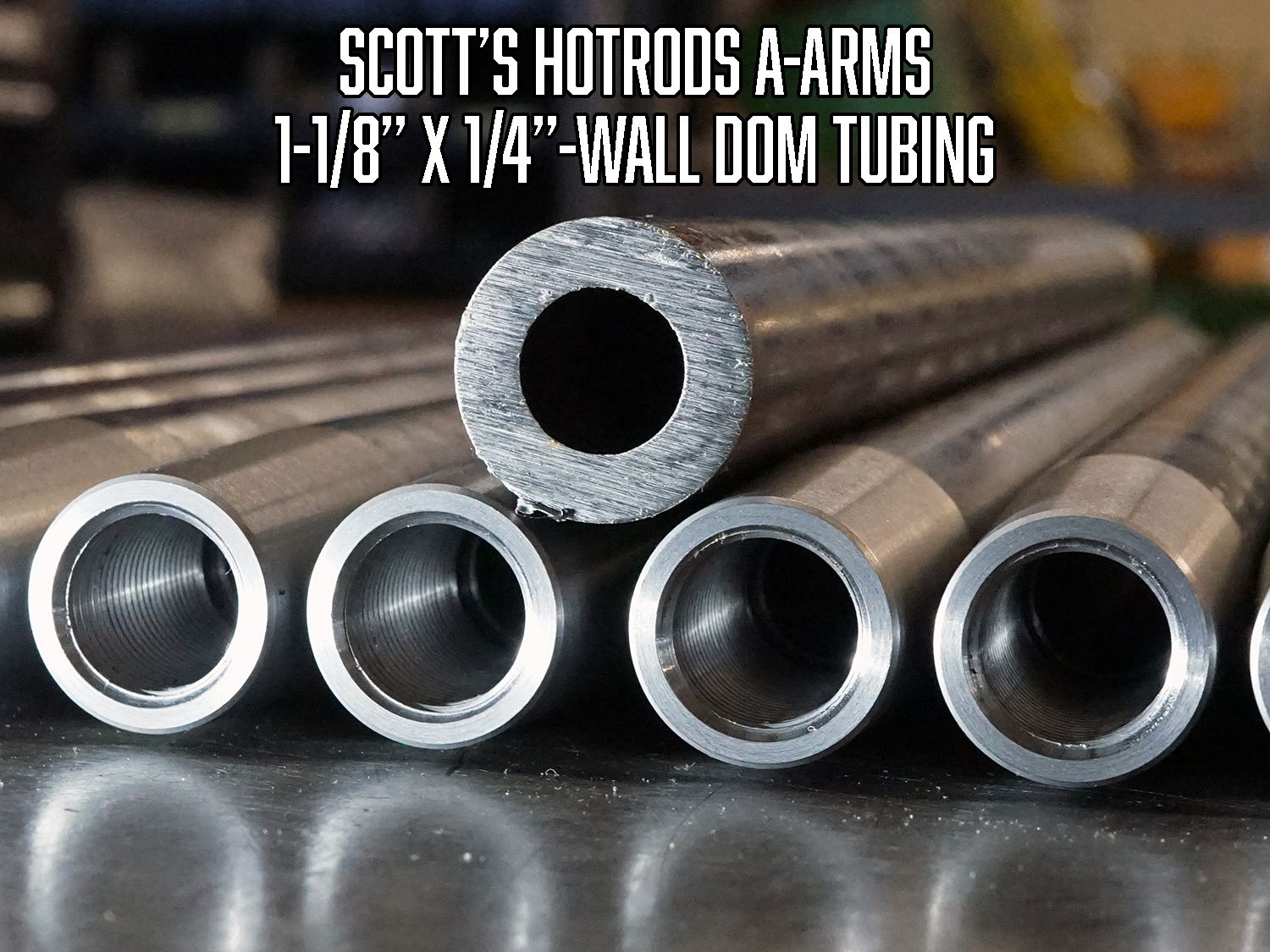

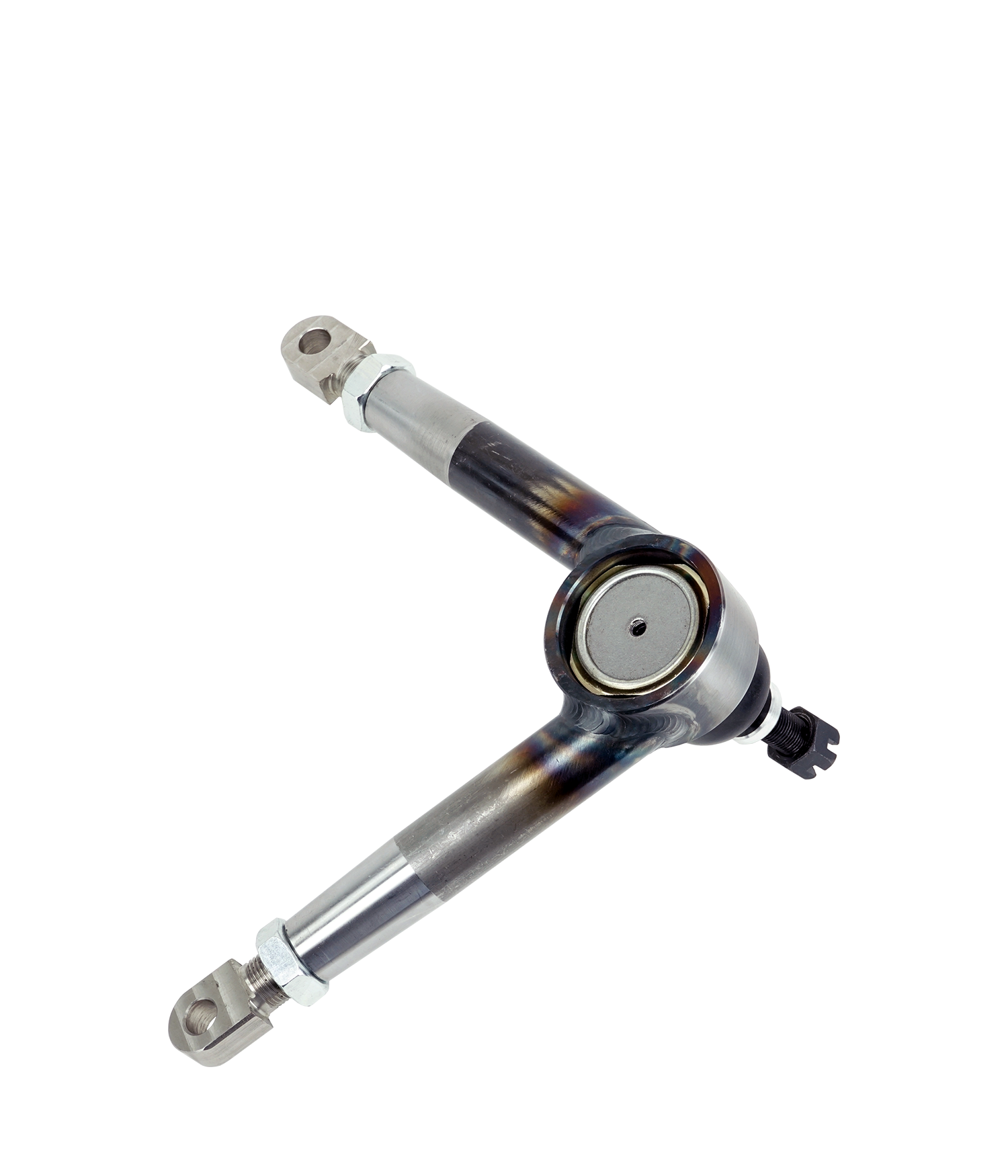

• Unequal-length A-Arms, 1-1/8”x1/4”-wall seamless DOM tubing

• Oversized Serviceable Press-In Ball Joints

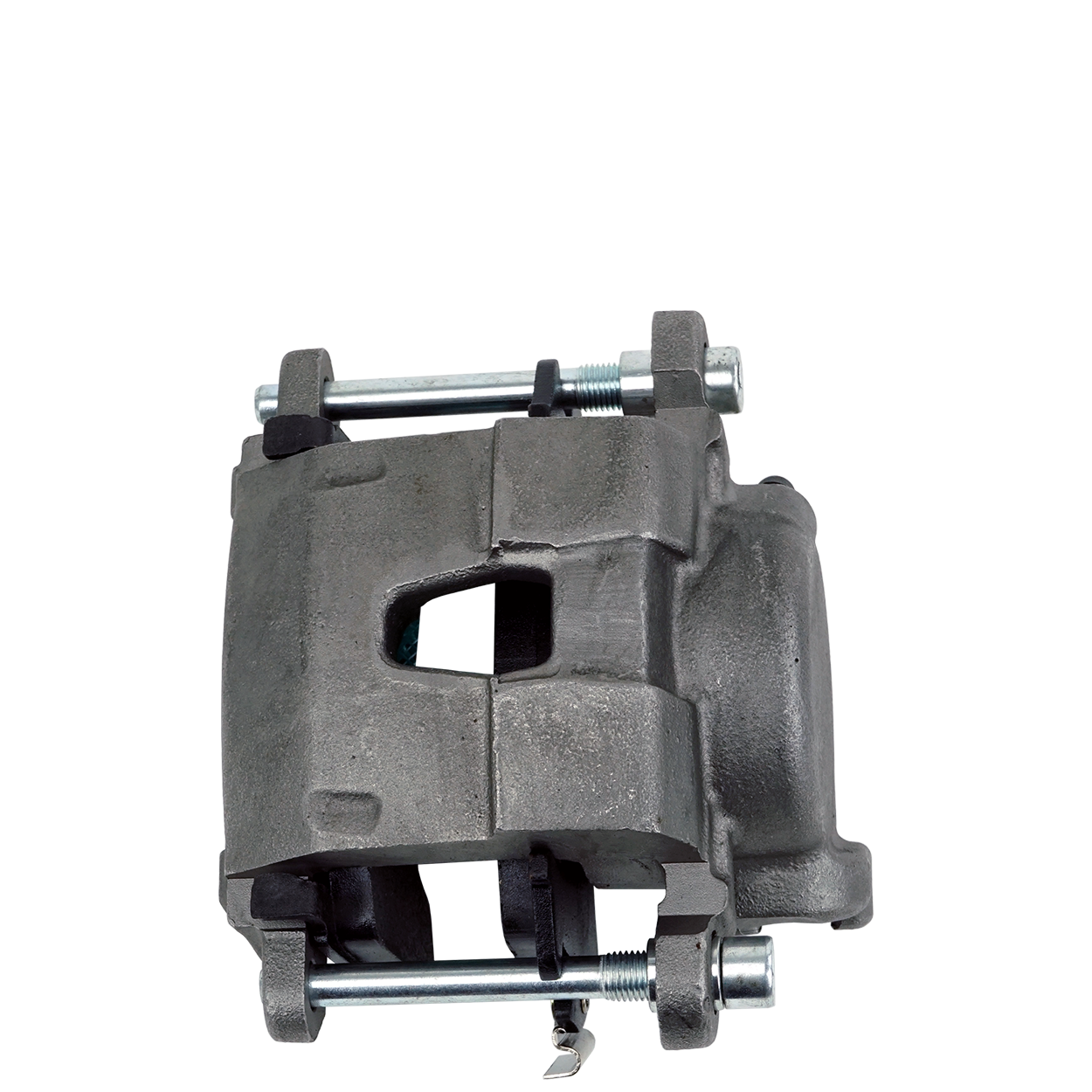

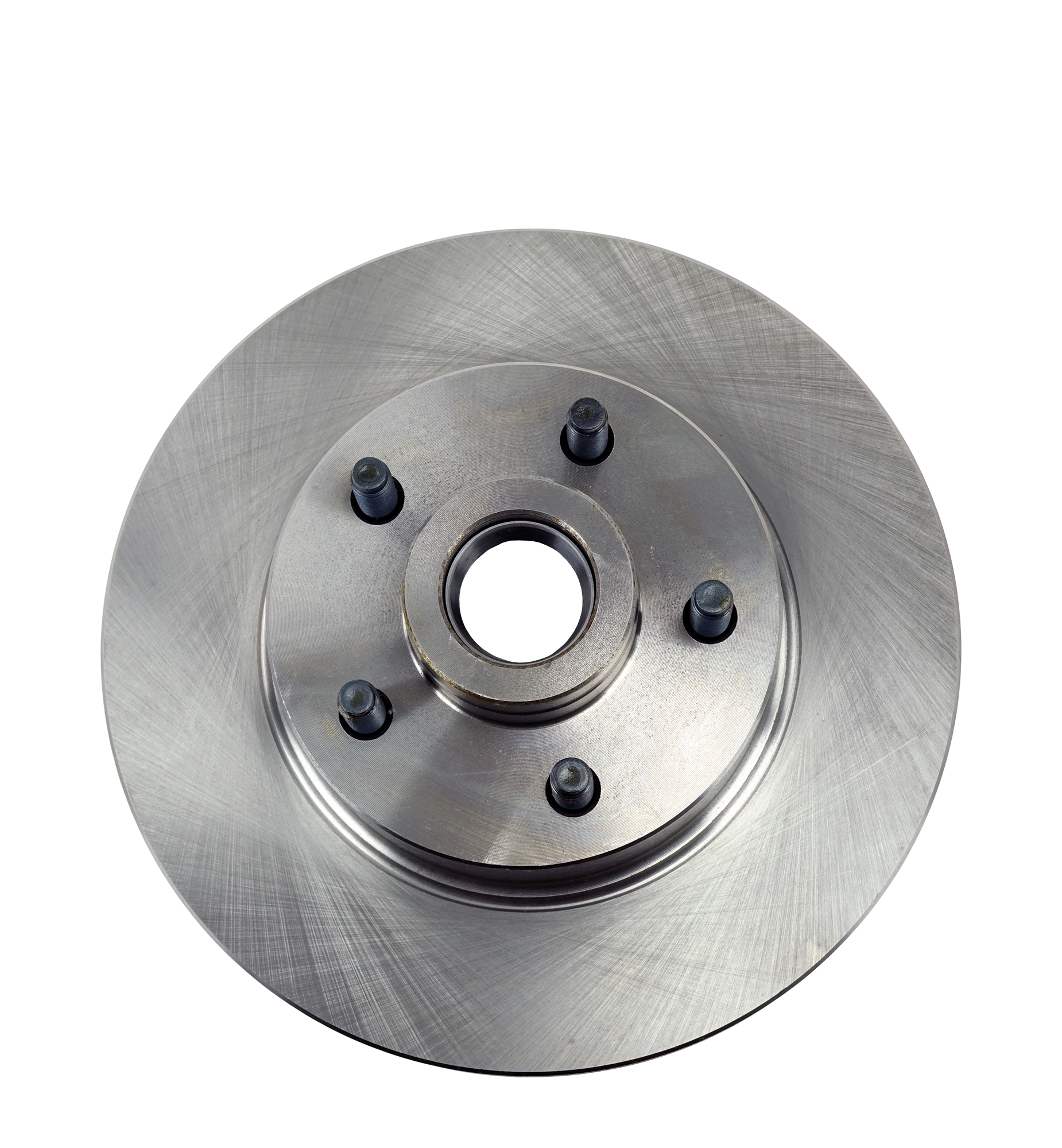

• 11” Plain Brake Rotors w/Single Piston GM Caliper (5 on 4.5” or 4.75” Bolt Pattern)

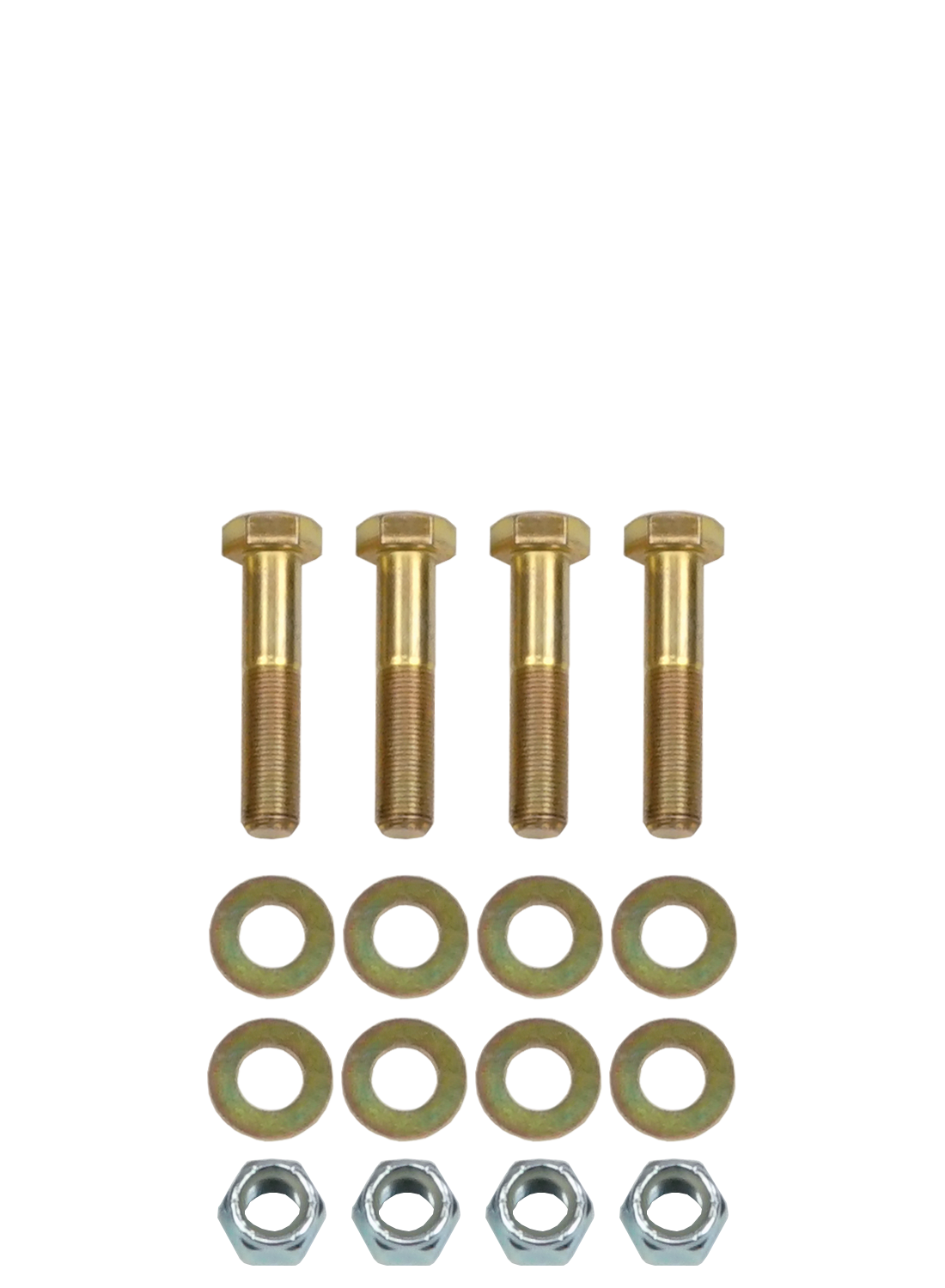

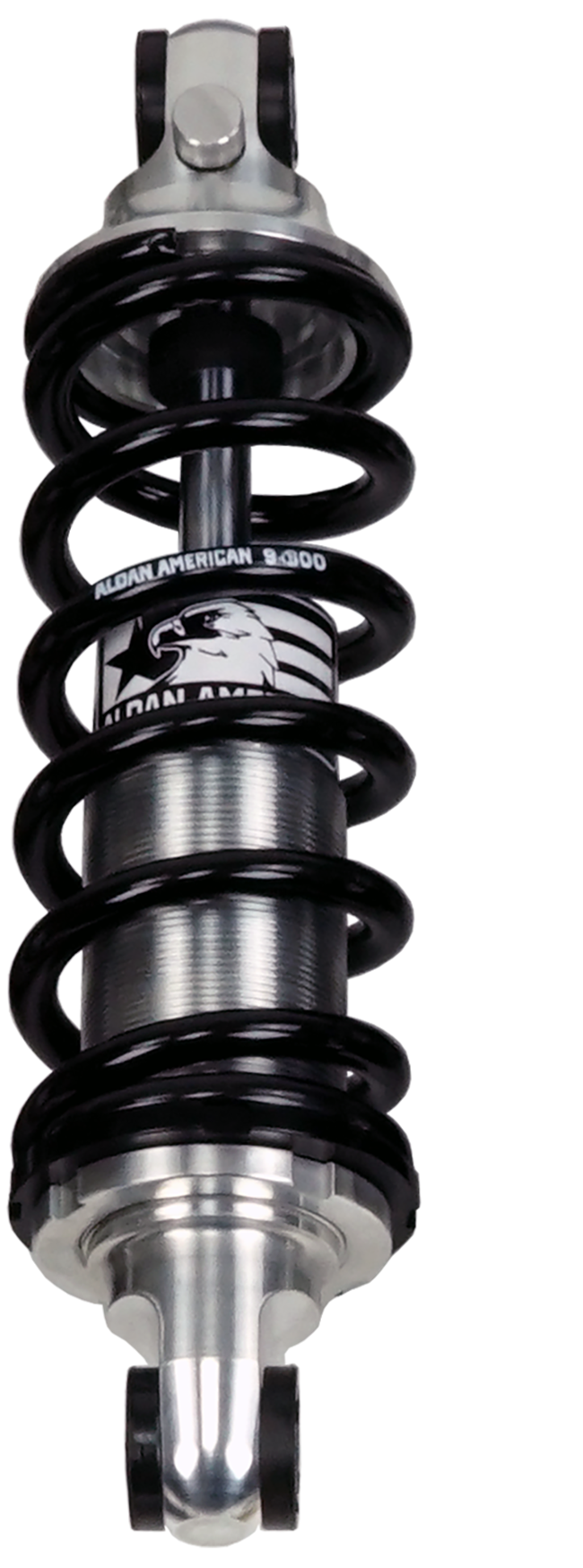

• Aldan American Single-Adjustable Coilovers

• Frame Boxing Plates (if required)

• Stainless Steel Fully Adjustable Upper A-Arm Rod Ends

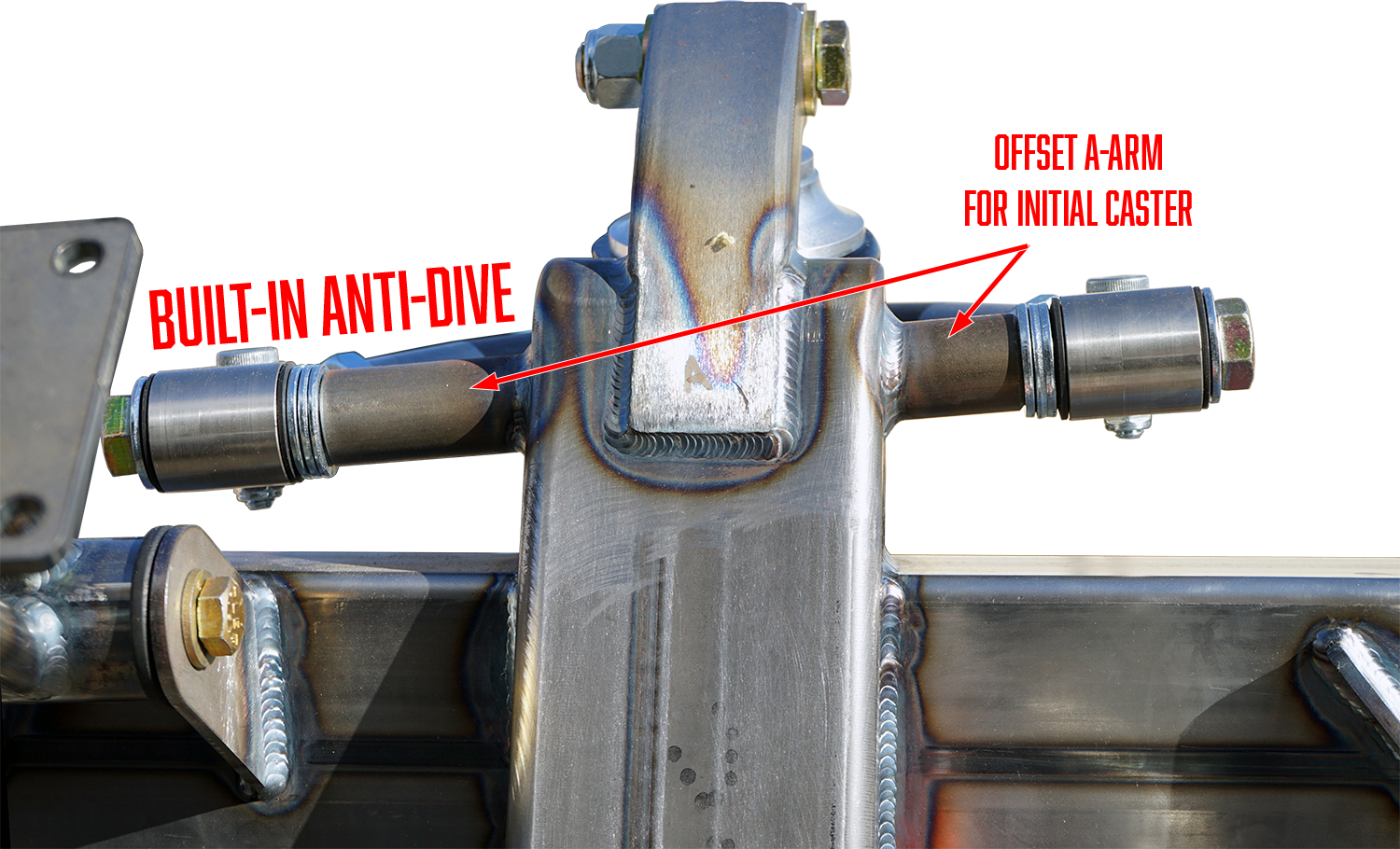

• Built-in Anti-Dive

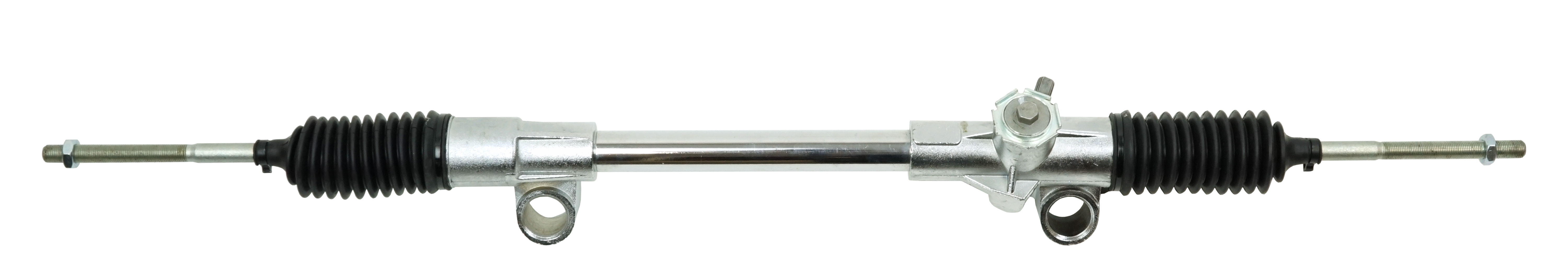

• Manual Steering Rack & Pinion

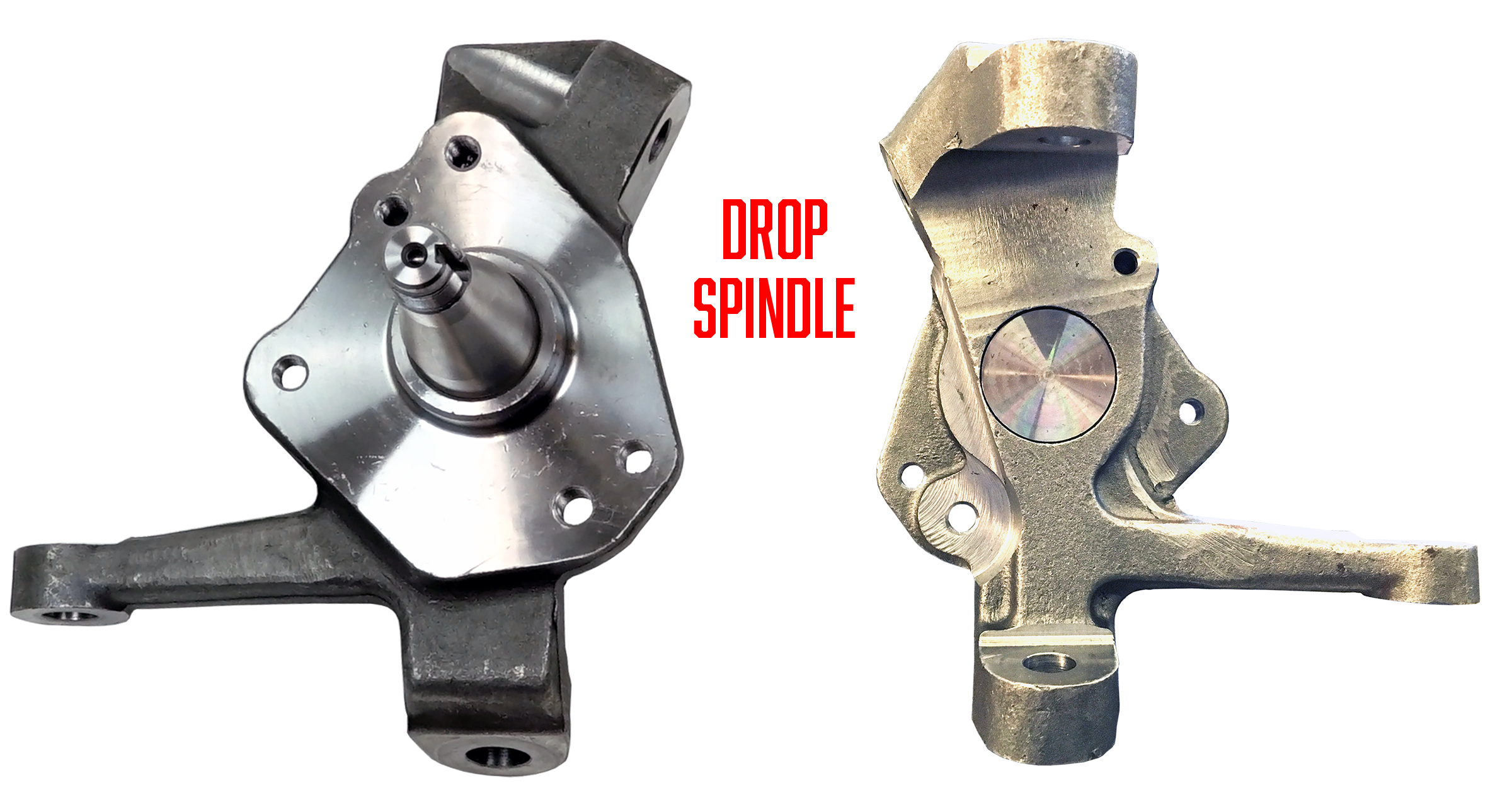

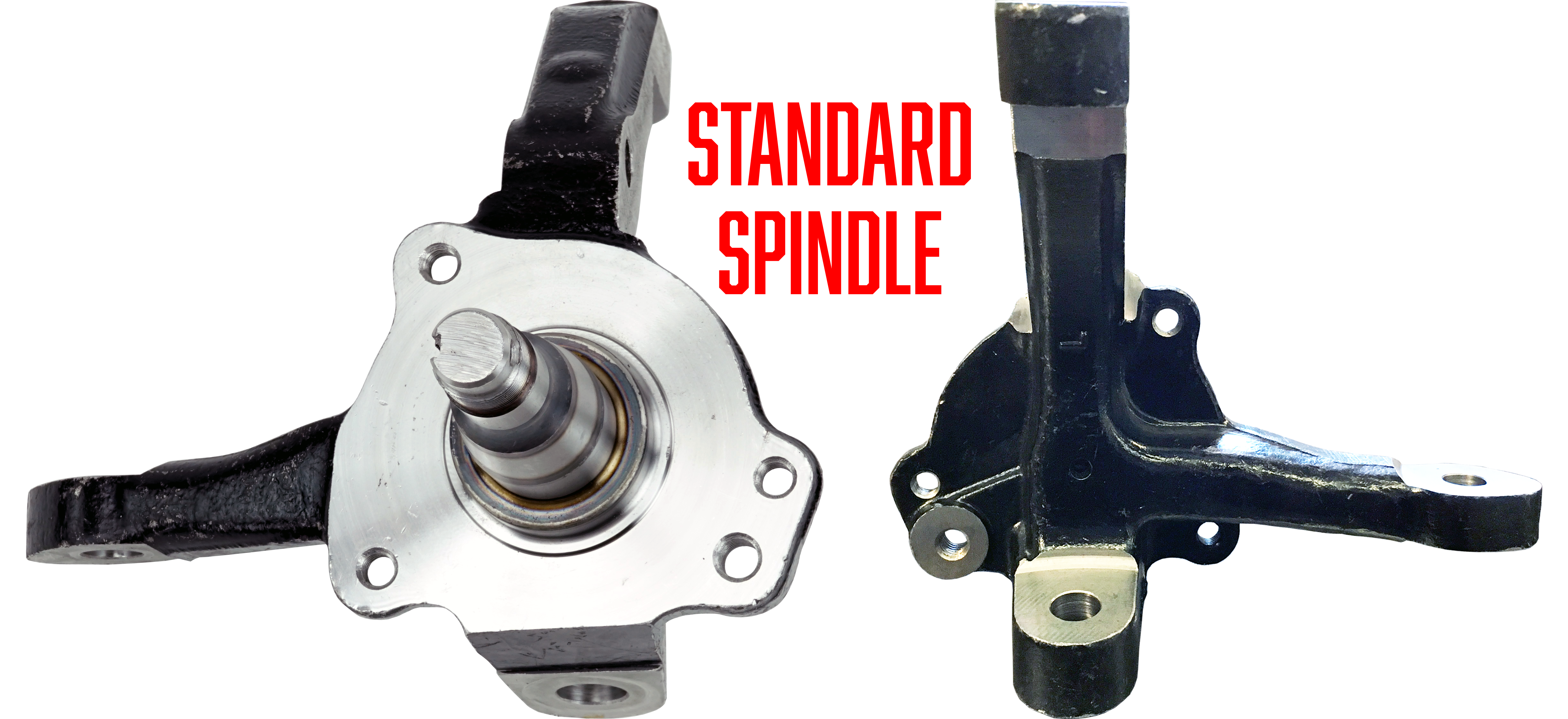

• Standard or Dropped Forged Steel Spindles

• LIFETIME GUARANTEE

Scott's Hotrods IFS Pricing 2026

ITEM/UPGRADEDESCRIPTIONPRICE
COILOVER IFS KITAldan Single-Adjustable Coilovers, Manual Rack, Tubular A-Arms, Forged Spindles, 11" Rotors, GM caliper, 5x4.5" or 4.75"$3,380
Spring Pocket Replacement IFS KITSpring Pocket Replacement Kits$3,655
Bolt-On IFS KITBolt-On IFS ('48-'54 & '63-'87 Chevy Trucks)$3,925
Bolt-On IFS ('55-'59 Chevy Trucks)$4,540
Van/Cabover IFS KITVan & Cabover IFS Kits$4,465
Rear Steer IFS KITPre 1934 Cars$4,660
IFS ClipCamaro$5,685
Tri 5$5,685
Nova II$4,740
75-79 Nova$5,685
SuperSlam KitsSlam Specialties SS-6 Bags, RideTech HQ Single-Adjustable Shocks+$440
C10 CradlesMotor Mount Cradles ONLY+$155
CoiloversAldan American Single-Adjustable$0
RideTech Single-Adjustable+$820
Aldan American Double-Adjustable+$500
RideTech Triple-Adjustable+$1,900

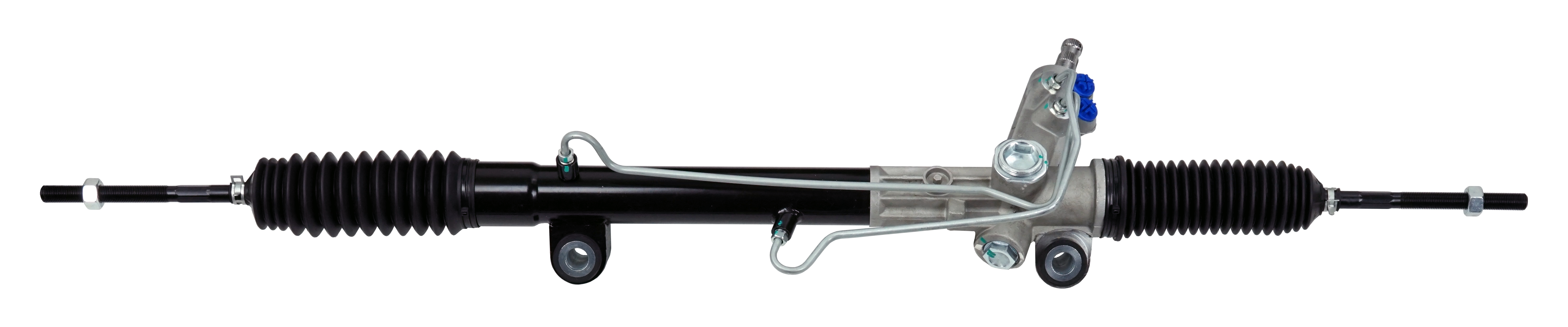

Rack & PinionPower Rack & Pinion+$330
Right Hand Drive Power Rack & Pinion+$990
Rear Steer Power Rack & Pinion+$990

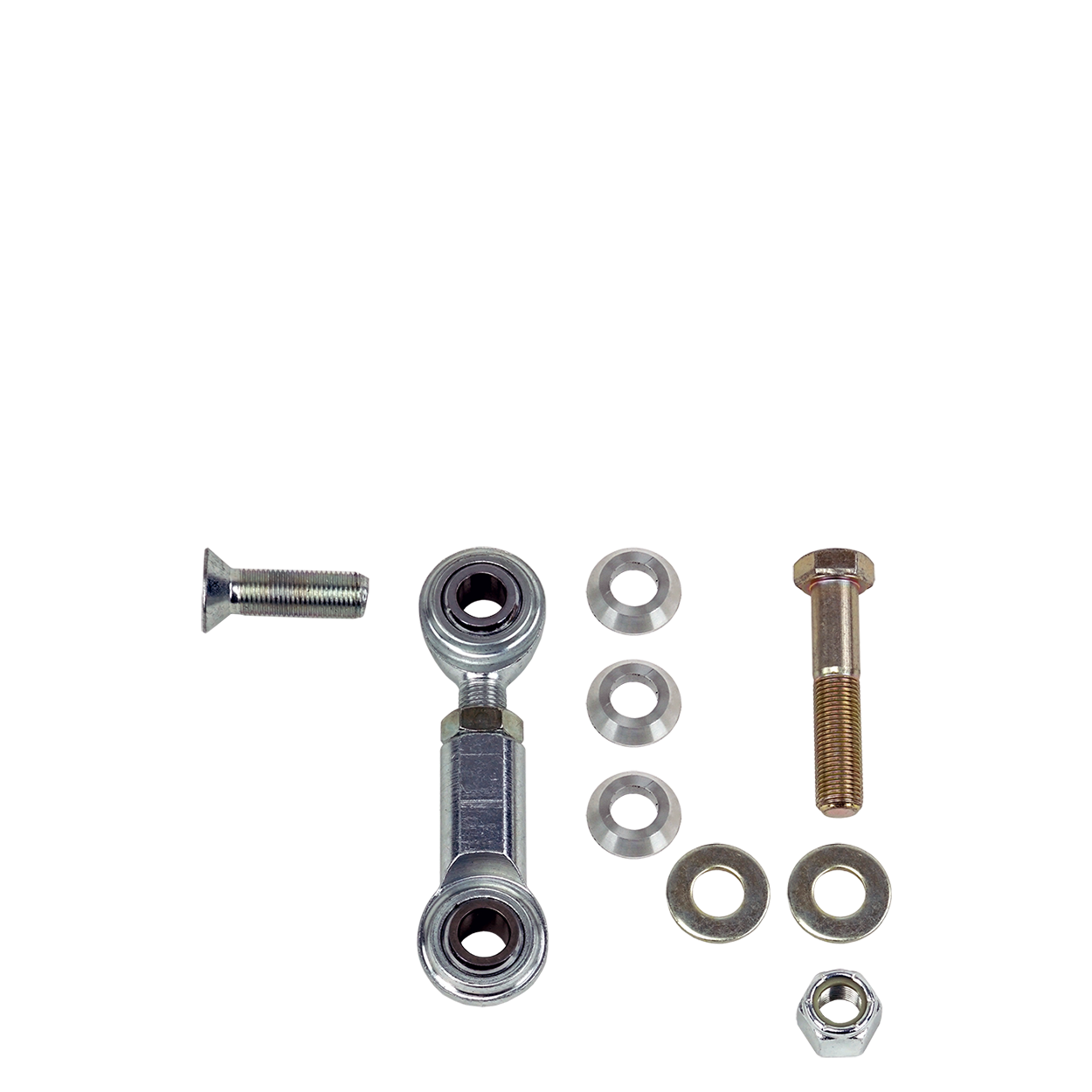

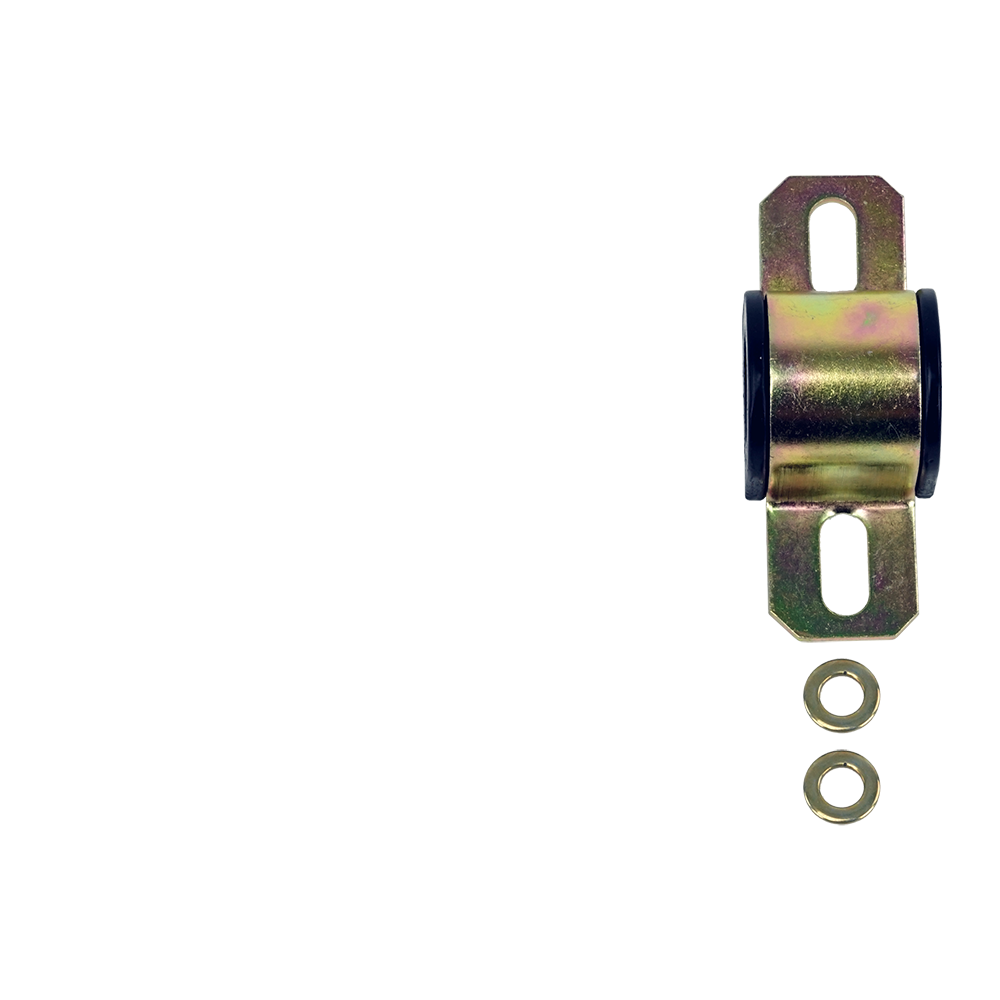

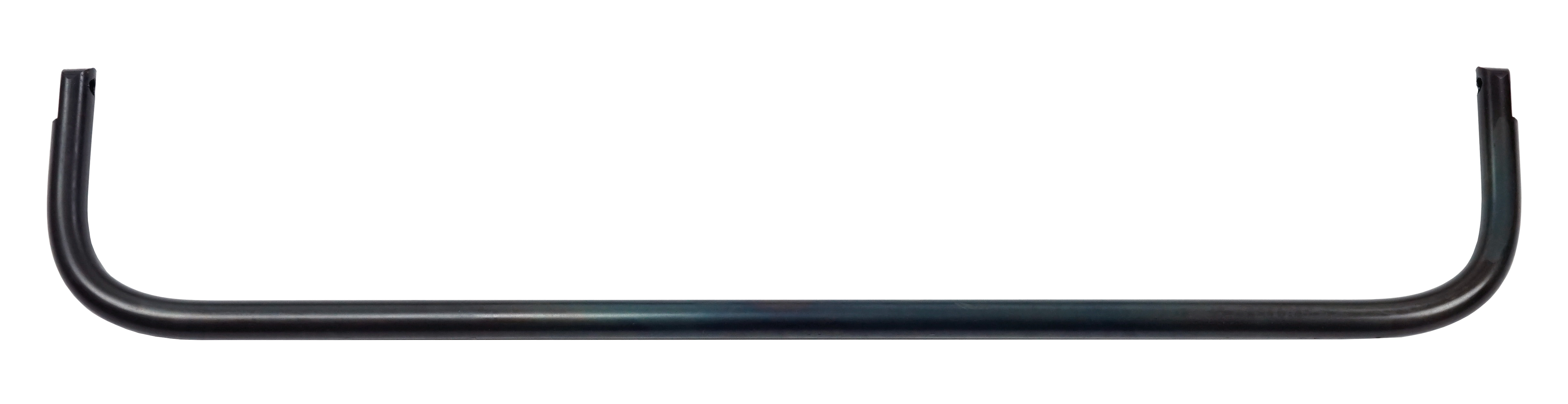

Sway Bar1" Solid Sway Bar+$390
Torsion Spline Sway Bar+$840
Wilwood SpindlesWilwood ProSpindle, Standard or Drop+$430

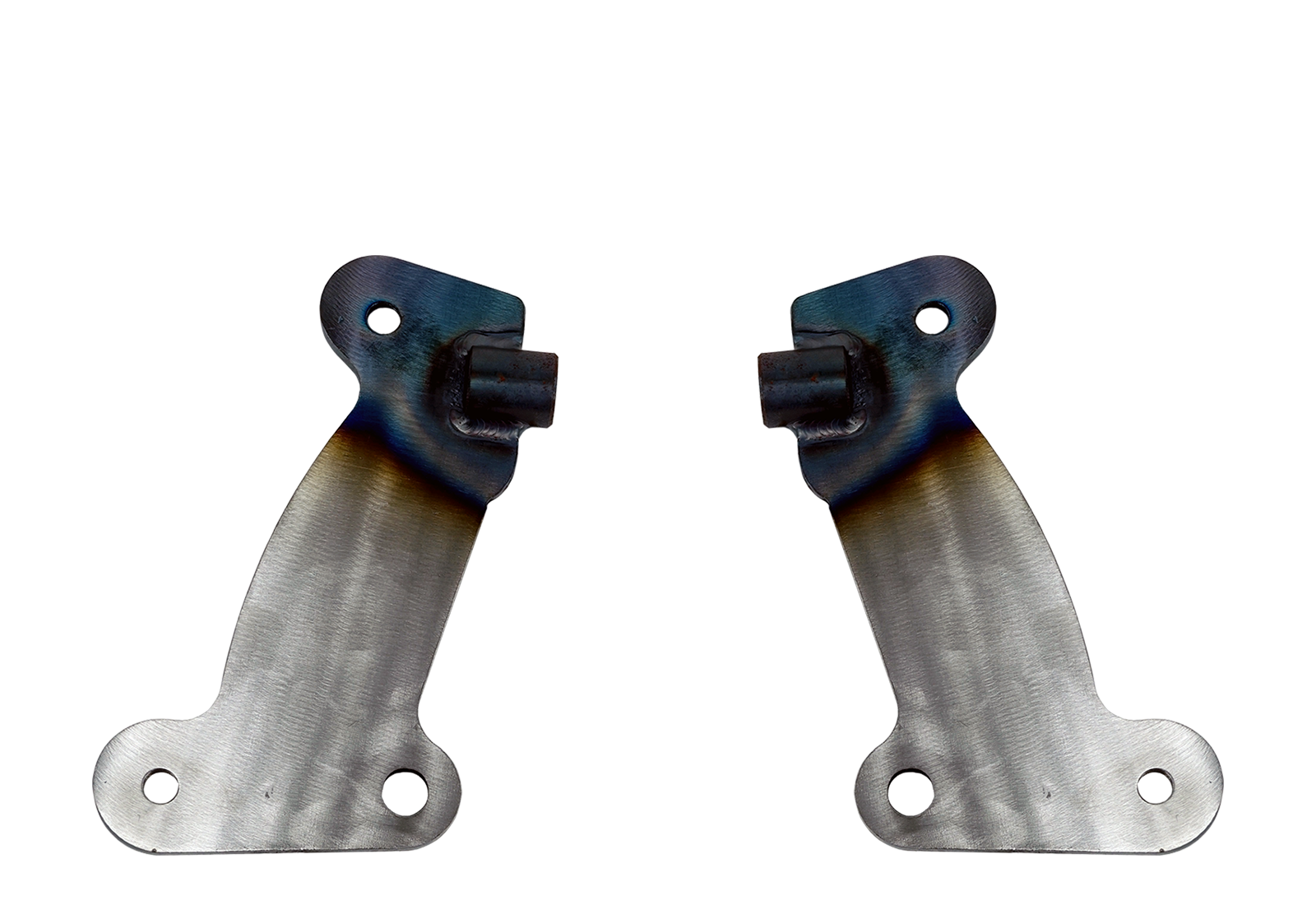

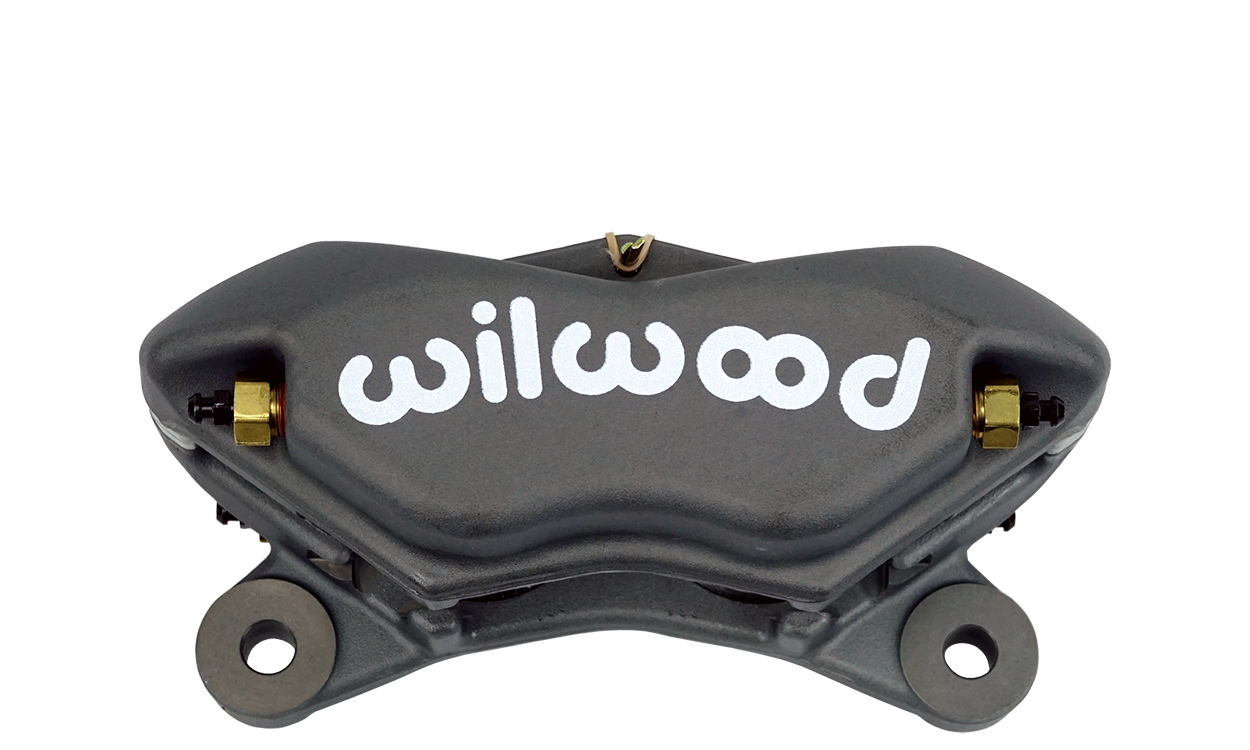

Brakes UpgradesWilwood Calipers ONLY, 4-Piston, Black or Red (15" Diameter Wheel Minimum)+$490
Wilwood Calipers ONLY, 4-Piston, Polished (15" Diameter Wheel Minimum)+$720
4-Piston11" D&S Wilwood Kit, Red or Black (15" Diameter Wheel Minimum)+$1,204
4-Piston11" D&S Wilwood Kit, Polished (15" Diameter Wheel Minimum)+$1,404
4-Piston12" D&S Wilwood Kit, Red or Black (16" Diameter Wheel Minimum)+$1,270
4-Piston12" D&S Wilwood Kit, Polished (16" Diameter Wheel Minimum)+$1,470
6-Piston12" D&S Wilwood Kit, Red or Black (16" Diameter Wheel Minimum)+$1,452
6-Piston13" D&S Wilwood Kit, Red or Black (17" Diameter Wheel Minimum)+$2,293
6-Piston13" D&S Wilwood Kit, Polished (17" Diameter Wheel Minimum)+$2,676
6-Piston14" D&S Wilwood Kit, Red or Black (18" Diameter Wheel Minimum)+$2,497
6-Piston14" D&S Wilwood Kit, Polished (18" Diameter Wheel Minimum)+$2,881
6-Piston, AERO614" D&S Wilwood Kit, Red or Black, AERO6 Caliper (18" Diameter Wheel Minimum)+$2,711
M2 PRO HUB*Sealed Hub Spindle, Drop Only+$650
4-Piston12" D&S Wilwood Kit, R OR B+$1,470
6-Piston12" D&S Wilwood Kit, R OR B+$1,452
6-Piston13" D&S Wilwood Kit, R OR B+$2,293
6-Piston14" D&S Wilwood Kit, R OR B+$2,676
6-Piston14" D&S Wilwood Kit, R OR B AERO+$2,497
6-Piston15" SLOT Wilwood Kit, R or B, AERO+$2,881
Special Bolt Pattern w/Standard Rotor5x5.5"
+$550
5x5"+$550
6-Lug+$550
5X5" 4-Piston
12" D&S Wilwood Kit, Red or Black, 5x5"+$1,861
6-Piston12" D&S Wilwood Kit, Red or Black, 5x5"+$2,079
6-Piston13" D&S Wilwood Kit, Red or Black (ProSpindle ONLY), 5x5"+$2,325
6-Piston14" D&S Wilwood Kit, Red or Black (ProSpindle ONLY), 5x5"+$2,529
AERO6-Piston15" D&S Wilwood Kit, Red or Black (ProSpindle ONLY) 19" Wheel Minimum$2,875

Scott's Hotrods IFS Quote Form
Please fill out the form completely so the experts at Scott's Hotrods can provide you with an accurate IFS quote.

A qualified professional mechanic or fabricator with the technical understanding of product function and installation procedures must install all Scott’s Hotrods products. Be sure to properly bleed your power rack

Scott’s FAQs

*Ford Rear Sump Oil Pan Required M-6675-A50
*GM Performance Parts LS Engine Oil Pan 12628771

We stand behind ALL of the parts we manufacture.  Other parts that we do not manufacture such as brakes, steering racks, ball joints, brake flex lines, power steering lines, etc carry their own manufacturers warranties.  We are not responsible for these items outside of their original warranty.

All of Scott’s Hotrods manufactured parts are guaranteed to be free of defects in materials & workmanship for the lifetime of the part. Scott’s Hotrods warranty is non-transferable.

Ford Rear Sump Oil Pan – SBF 302W M-6675-A50
Ford Rear Sump Oil Pan – SBF 351W M-6675-A58
Ford Rear Sump Oil Pan – SBF 351C CTR-15-720

GM Performance Parts LS Engine Oil Pan 12628771
Holley LS Swap Pan Holley 302-2

Borgeson Steering Linkage Kit

Scott’s Hotrods Power Steering Line Kit

Scott’s Hotrods Hot Rod Gas Pedal

Scott’s Hotrods Exhaust Hangers

1949 Chevrolet 3100 – Installing modern suspension in an early Chevy pickup

scott's hotrods coilover independent front suspension (ifs) suspension kit

A True Independent Front Suspension
for Hot Rods & Custom Cars

Scott’s Hotrods Independent Front Suspension (IFS) is engineered for builders who want modern handling, improved ride quality and precise steering without relying on a traditional Mustang II-style front suspension. Our Front Steer Weld-On IFS is a purpose-built independent front suspension kit featuring Scott’s proprietary suspension geometry, heavy-duty tubular control arms, rack-and-pinion steering and your choice of coilover front suspension or airbag suspension.

Designed for hot rods, classic cars, custom trucks and specialty builds, Scott’s weld-on front suspension kits can be configured for a wide range of vehicle widths, ride heights and performance requirements. Every Scott’s IFS is manufactured with the strength and adjustability needed for everything from comfortable street-driven hot rods to high-horsepower Pro Touring and performance builds. If you’re searching for a custom front suspension kit, hot rod IFS, coilover front suspension, or a modern alternative to a Mustang II front suspension, Scott’s delivers a suspension system engineered and manufactured for the vehicle you’re actually building.



IFS KIT COMPARISON

Scott’s Hotrods Typical Mustang II Kit
👍 Vehicle-specific geometry 👎 Universal geometry
👍 One-piece TIG-welded crossmember 👎 Multi-piece crossmember
👍 Unequal-length A-arms 👎 Generic arms
👍 Built around your ride height 👎 One-size-fits-all
👍 Built-to-order 👎 Off-the-shelf

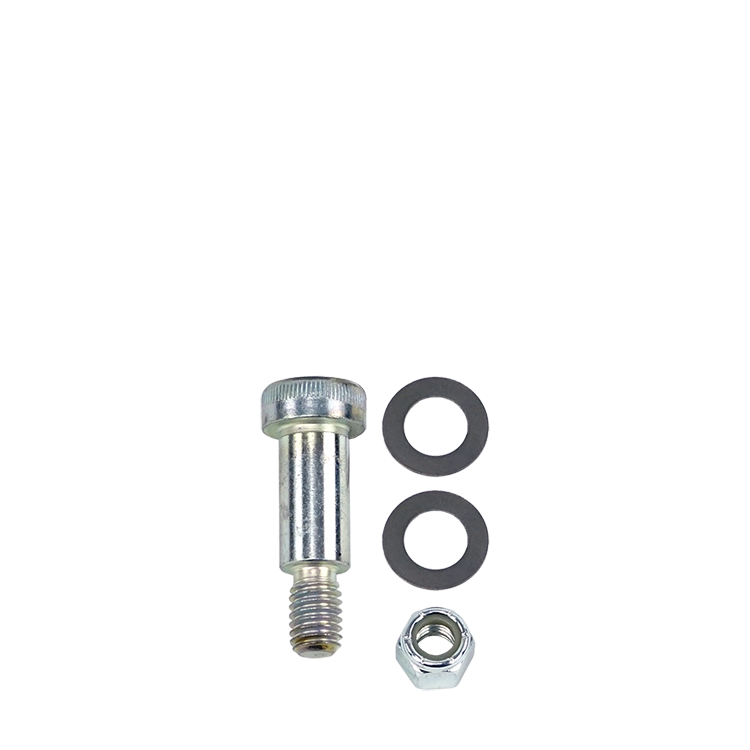

👍 5/8″+ Grade 8 hardware 👎 Smaller hardware
👍 Custom engine options 👎 Limited

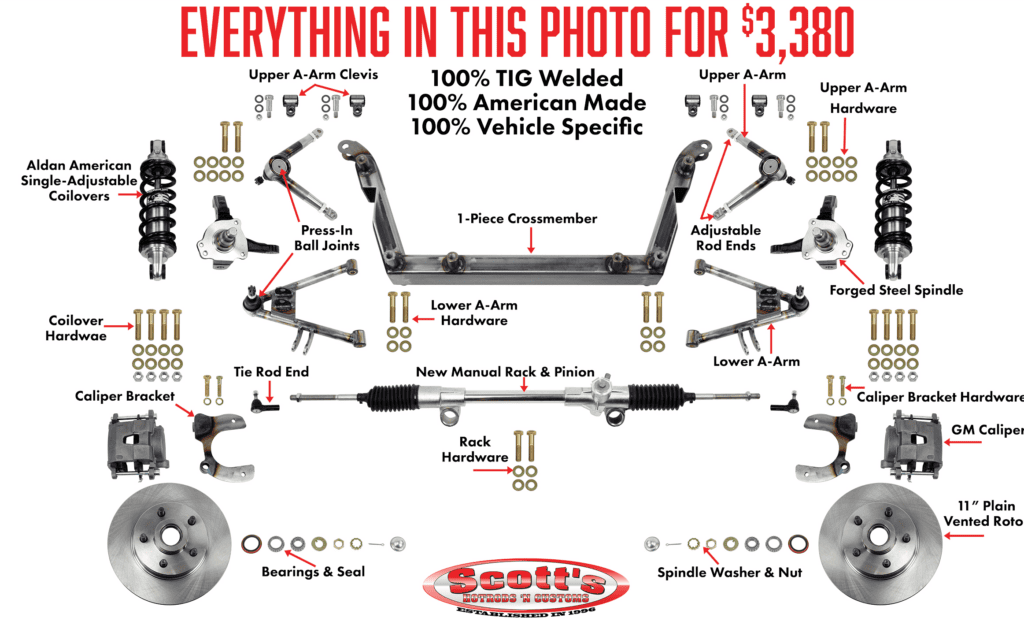

scotts hotrods ifs kit

Scott’s Hotrods Front Steer Standard Weld-On IFS

Whether you’re restoring a rare classic, building a Pro Touring machine, upgrading your pickup, or creating a one-of-a-kind custom, Scott’s Hotrods builds every Independent Front Suspension system specifically for your project. From the first CAD drawing to the final TIG weld, every component is engineered for superior fit, exceptional ride quality, and the confidence to drive your classic farther and harder than ever before.

scotts hotrods badge ifs
quality creativity workmanship
